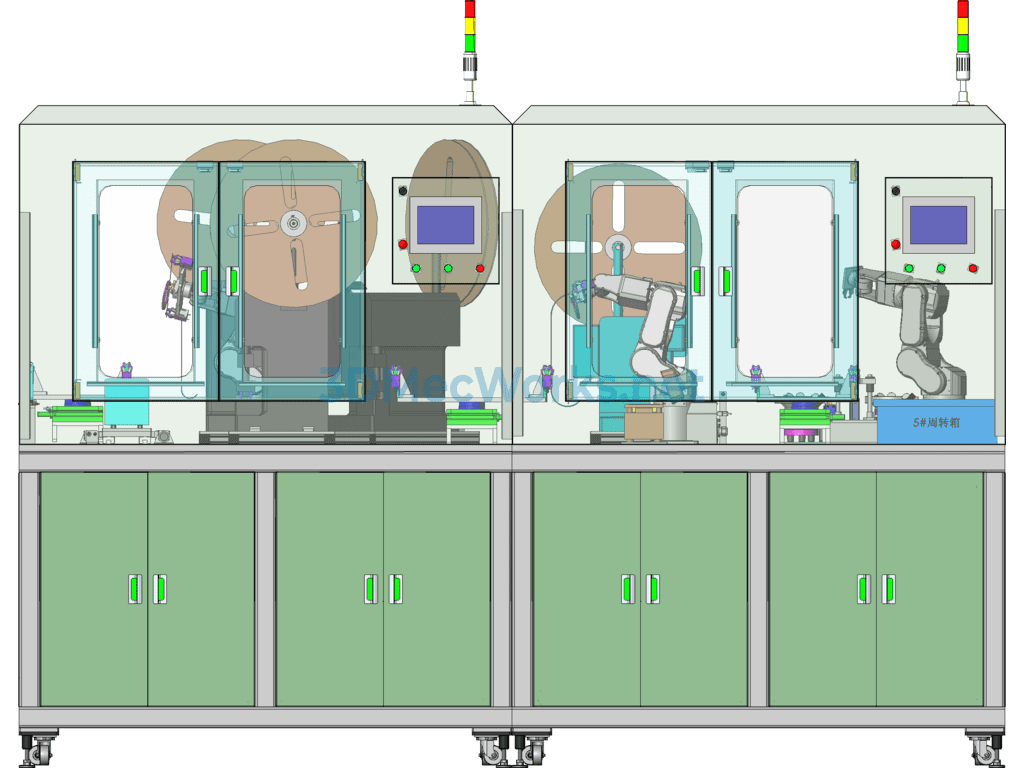

Wire Processing Equipment_x000D_
1. Dimensions: Length (L) × Width (W) × Height (H) = 3700mm × 1700mm × 2485mm_x000D_
2. Power Supply Voltage: 220V;_x000D_
3. Air Source Pressure: 0.4~0.6MPa._x000D_
Working Principle_x000D_
1. Feeding_x000D_
2. Wire Stripping_x000D_
3. Manipulator A Action Assists in Pressing Terminal Copper Sleeve_x000D_
4. Rotation of Transfer Table 1 for Material Placement_x000D_
5. Manipulator B Assists in Pressing Terminal with Tinning_x000D_
6. Rotation of Transfer Table 2 for Material Placement_x000D_
7. Manipulator C Assists in Assembling Plug Fittings_x000D_
8. Plug Assembly_x000D_
9. Material Collection
