Wheel Hub Die-Casting Net Placing Machine (Mold Opening For Placing Carbon Fiber Filter Mesh) - SolidWorks - Free Download

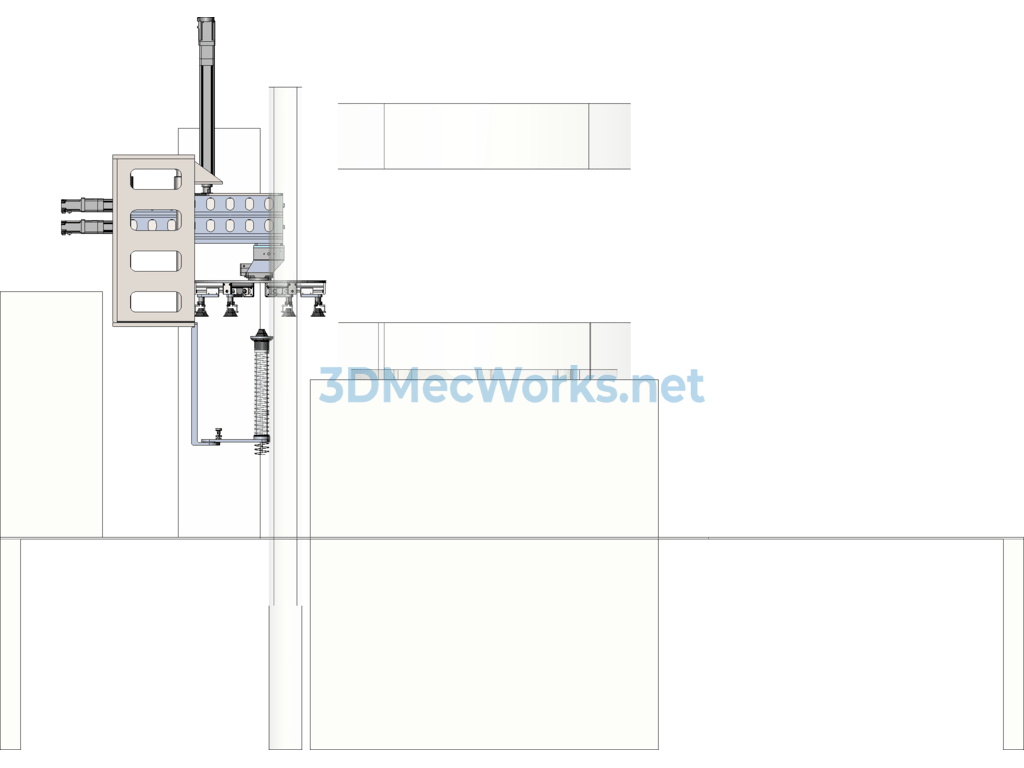

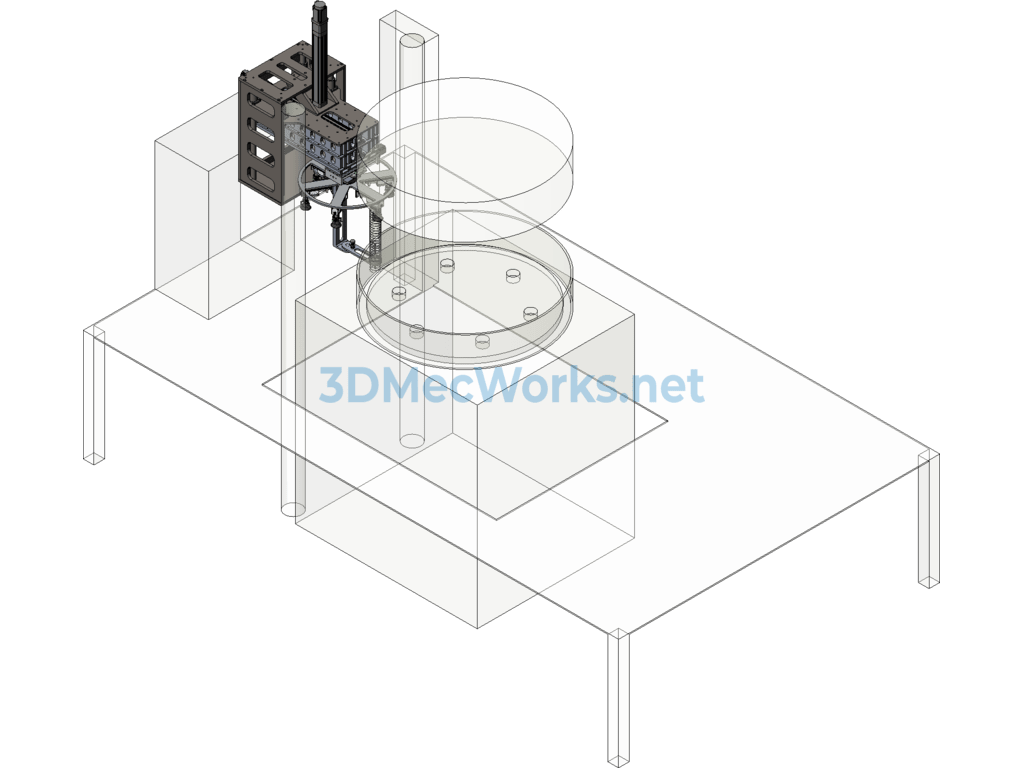

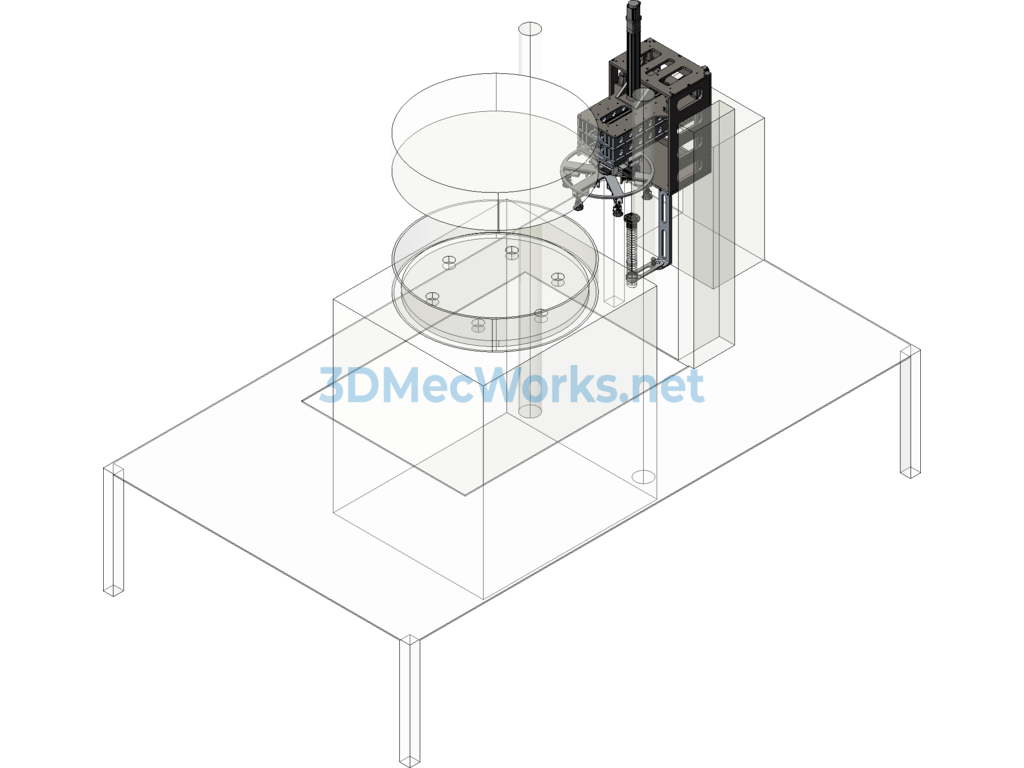

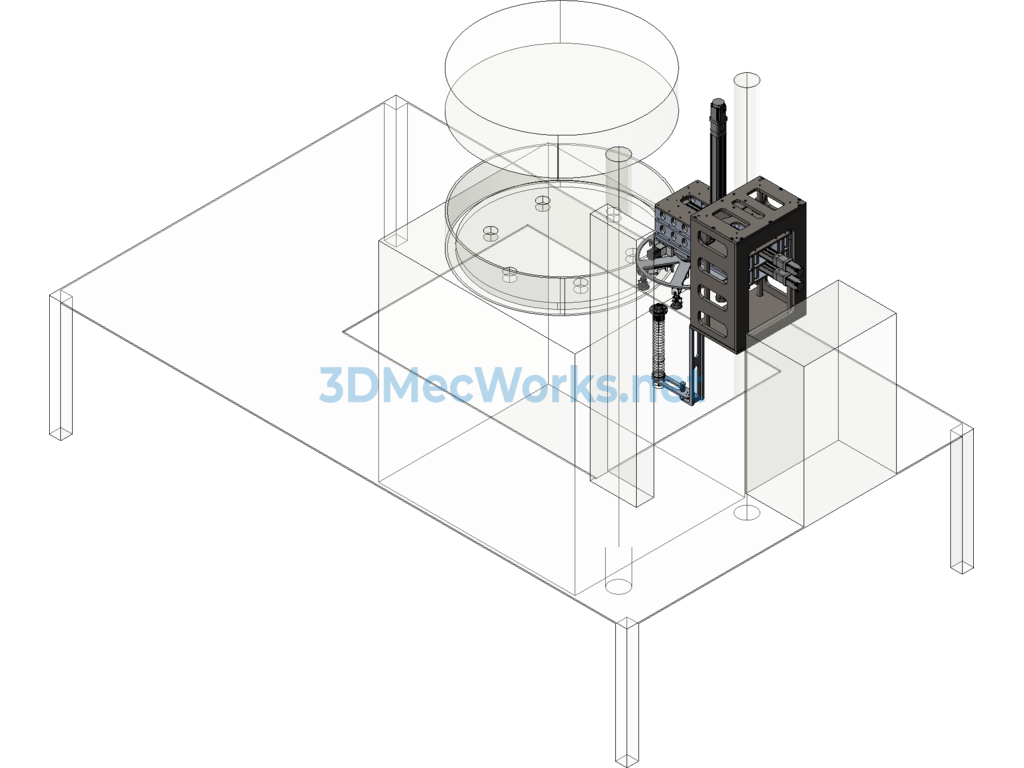

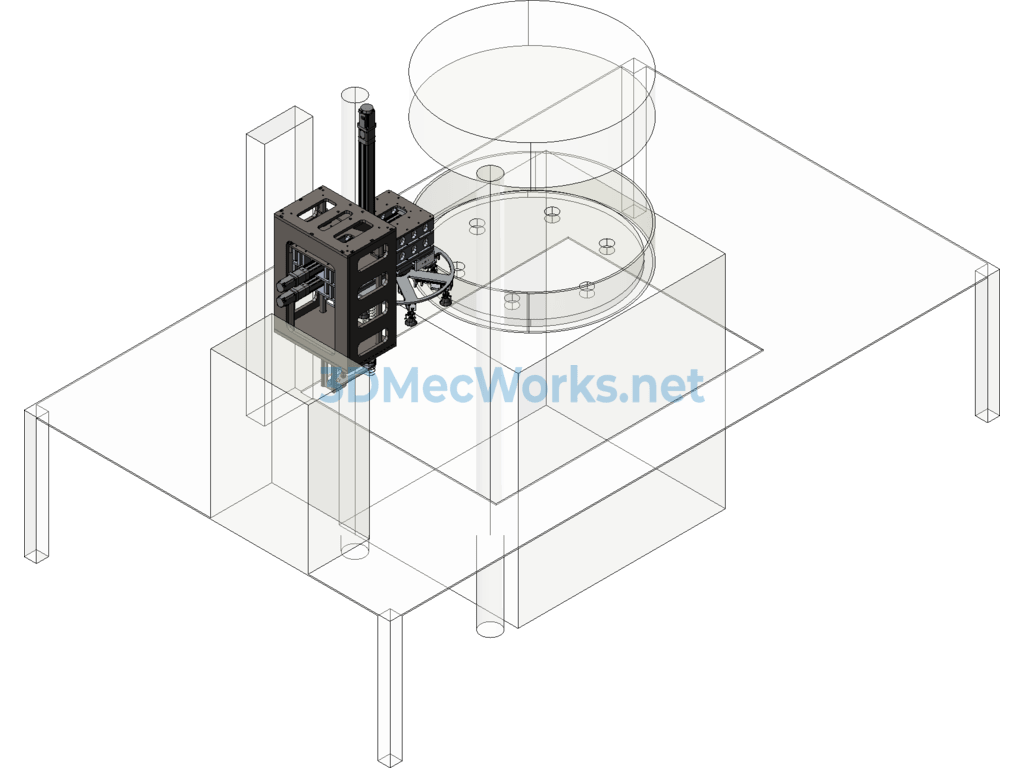

This equipment is designed to accommodate the placement of a carbon fiber filter mesh at the mold opening of the high-temperature die-casting furnace prior to hub die-casting. The equipment primarily utilizes a heavy-duty four-axis telescopic manipulator. The device, featuring a two-stage telescopic arm, is particularly suitable for probing operations in confined spaces. It serves as an excellent replacement for industrial robots due to its advantages of high load capacity, long travel distance, and low cost. Additionally, it is supplemented with gripping fixtures and automatic feeding tooling to achieve fully automated production operations.
