Walk-Behind Tractor Lawnmower (equipped With Honda Gx390 Engine)

The walk-behind tractor mower equipped with a Honda GX390 engine consists of a cutter deck, engine, traveling wheels, traveling mechanism, blades, walk-behind tractor, and control section. The cutter deck is mounted on the traveling wheels, with the engine installed on the cutter deck, and blades mounted on the engine’s output shaft. The blades take advantage of the engine’s high-speed rotation to significantly improve speed, saving the working hours of the mowing workers and reducing a large amount of human resources. The mower, also known as a lawnmower, is composed of a cutter deck, engine, traveling wheels, traveling mechanism, blades, handle, and control section. It consists of a parallelogram lifting device, frame, left and right single-wing weeding device, whole machine deviation correction device, combing tooth rotating bevel gear speed increasing transmission mechanism, and comb tooth profiling depth adjustment device; its efficiency is 8 to 10 times higher than manual weeding, with a low seedling injury rate and high weed removal cleanliness rate. The overall structural design is very good, and you can download it to learn about the application of design ideas.

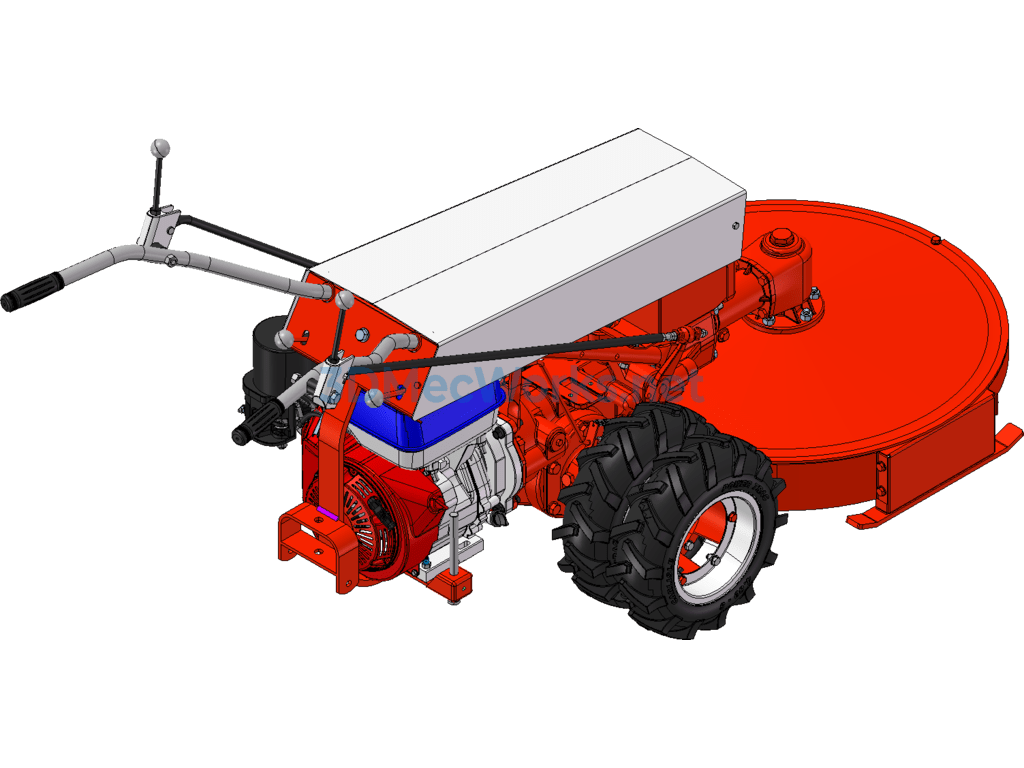

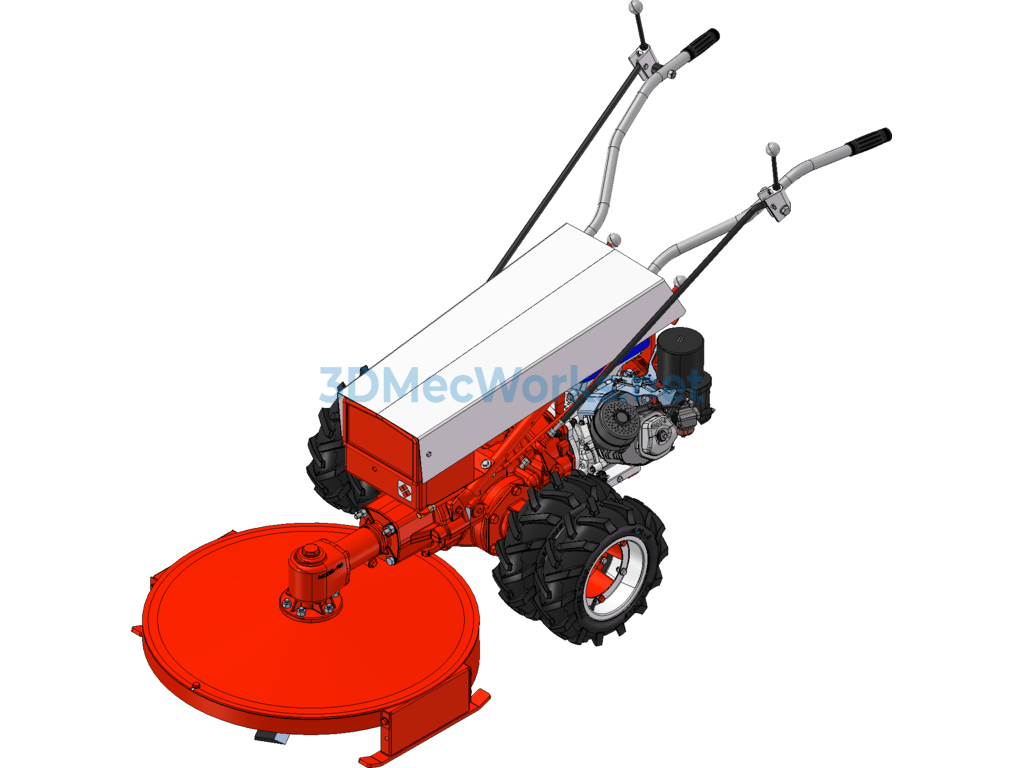

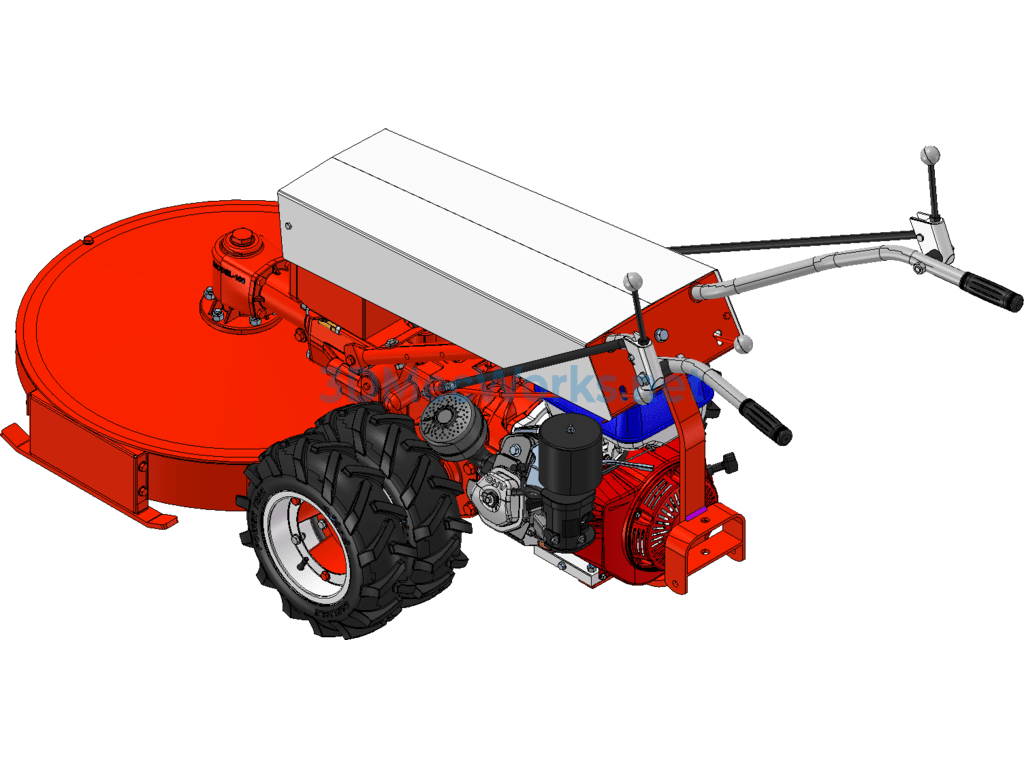

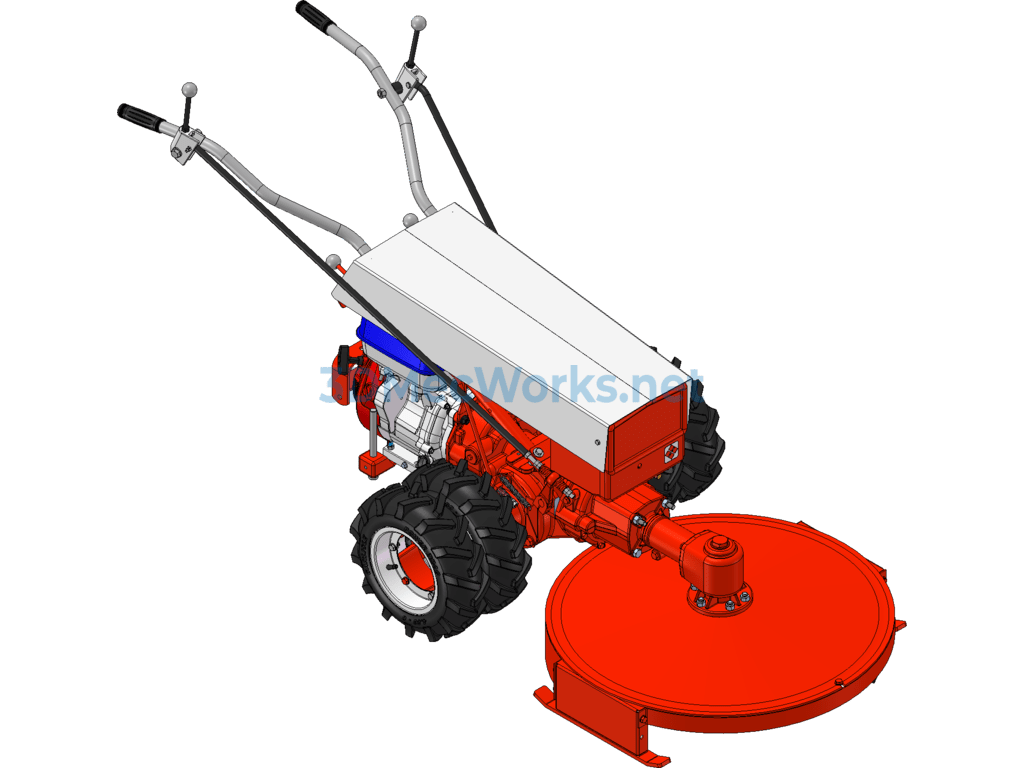

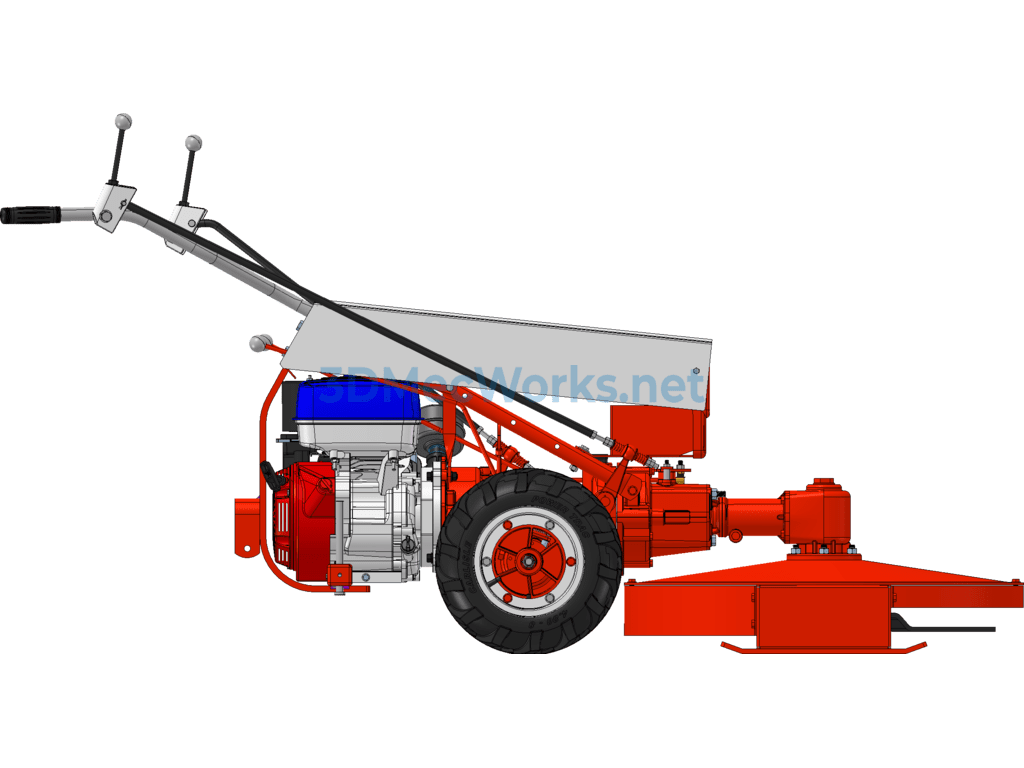

The walk-behind tractor mower (lawn mower) is also known as a weeding machine, grass cutter, lawn trimmer, etc. This 3D model is designed using SW2015 and offers sldasm and sldprt source files for reference. Feel free to download it.
