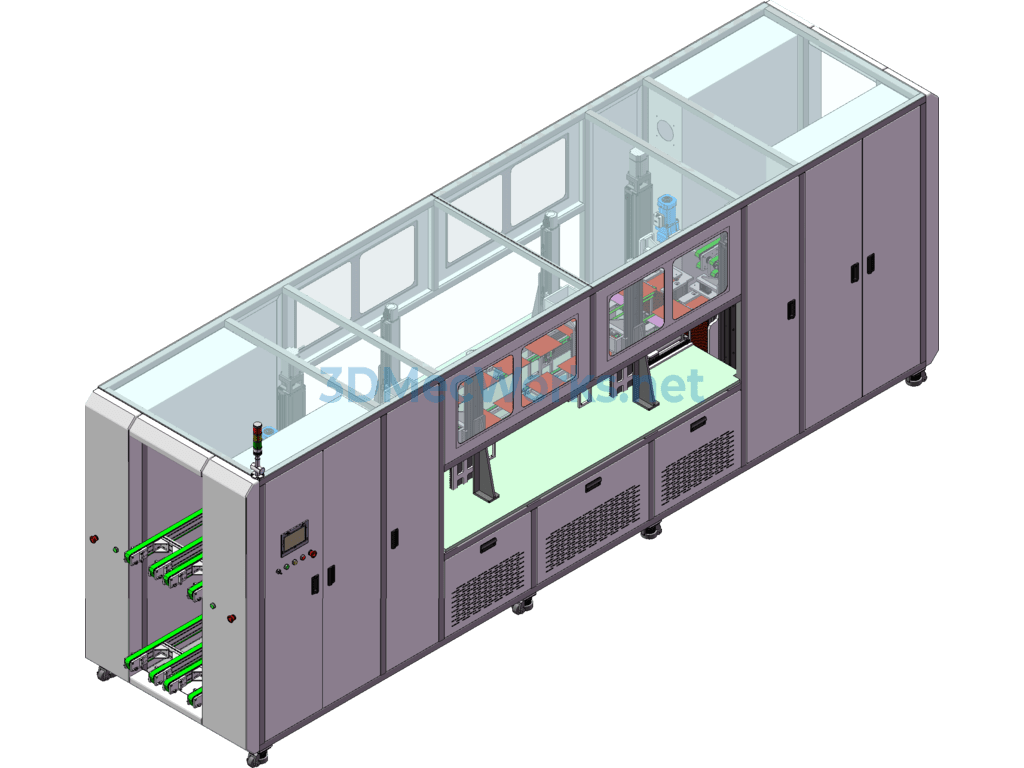

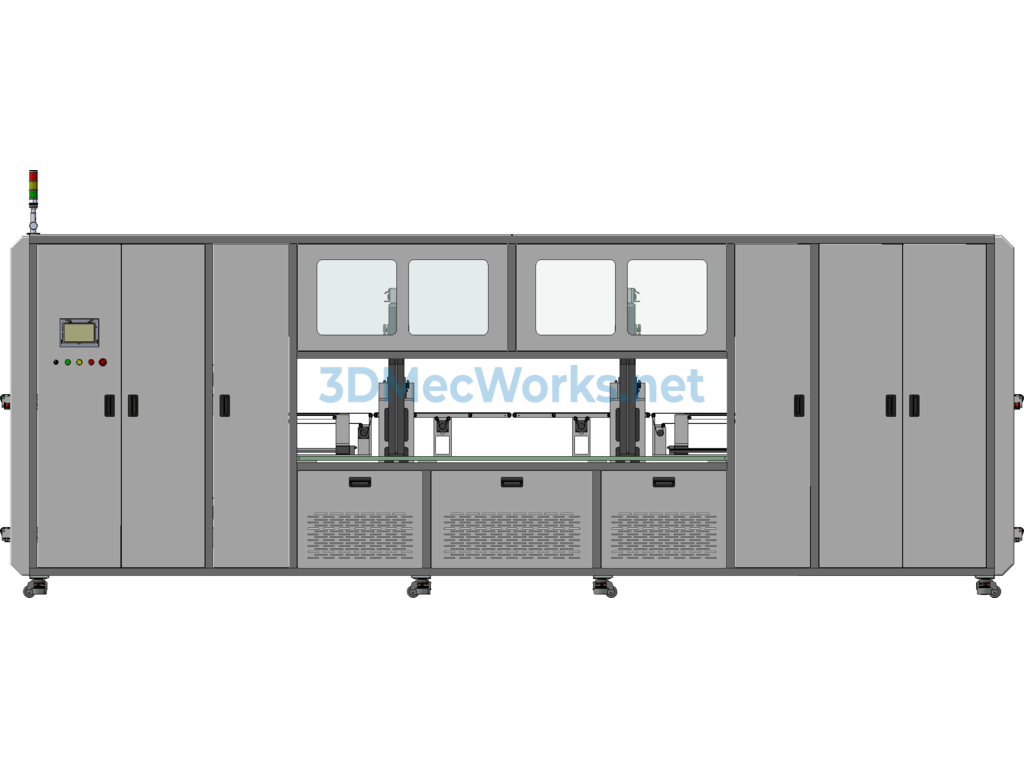

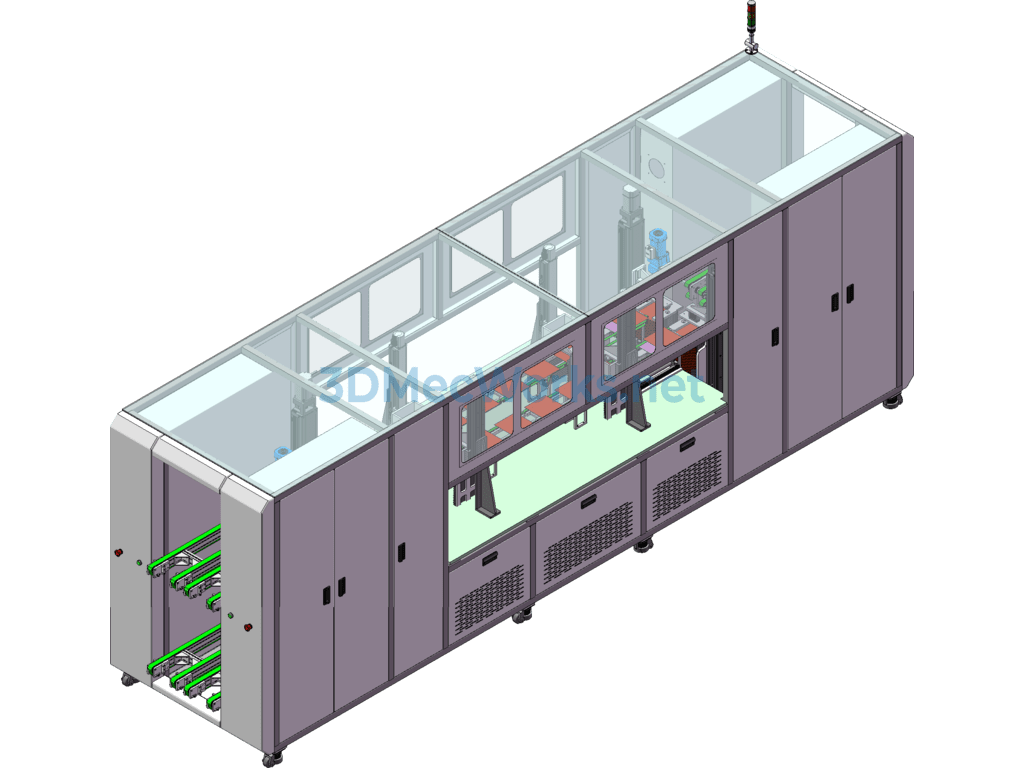

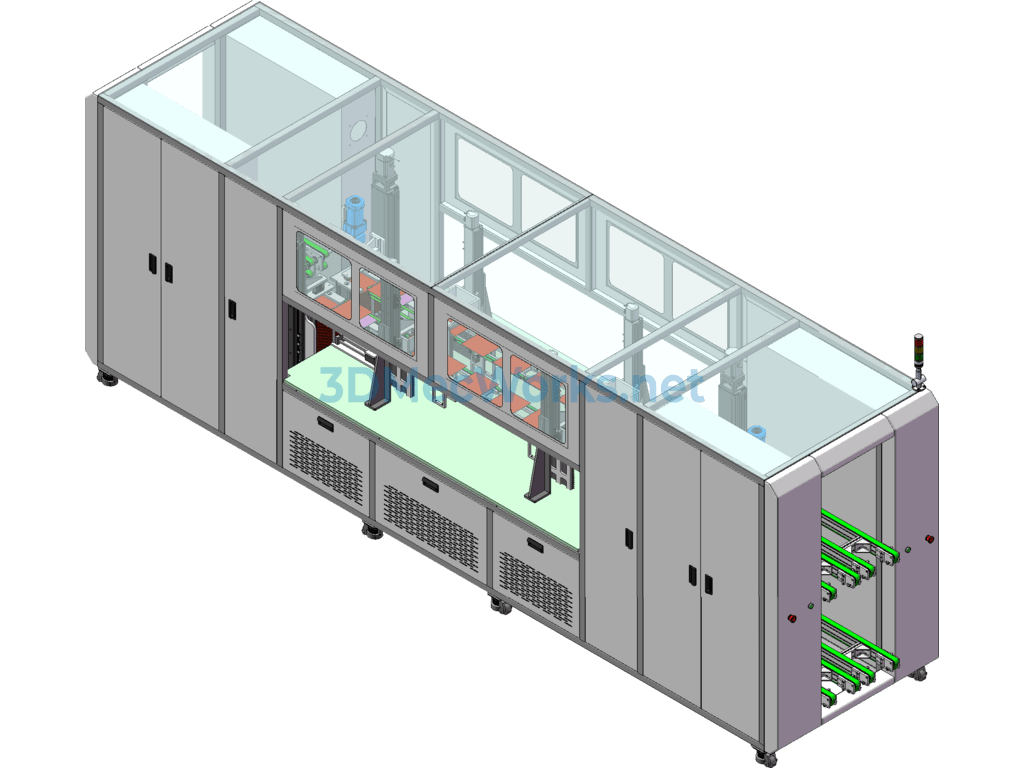

Wafer Cassette Transfer Machine (Guide Wafer Machine) - SolidWorks - Free Download

1. Production Process This equipment will transfer wafers from basket A to basket B. The equipment function modules include: buffer component, elastic belt conveying component, telescopic wafer loading component, lifting wafer loading component, basket conveying component, etc. _x000D_
2. Wafer Basket: 100 pieces spacing 4.76mm / 120 pieces 4.12mm _x000D_
3. Applicable Wafers Dimensions: 156-182 Thickness 0.16-0.24MM _x000D_
4. Capacity: 6000-8000pcs/h _x000D_
5. Single Machine Fragment Rate: ≤0.02% (excluding original fragments) _x000D_
6. Single/Multicrystalline: Single and Multicrystalline compatible _x000D_
7. Number of Channels: 2 channels _x000D_
8. Basket Temporary Storage: 8 baskets _x000D_
9. Equipment Size: 5225*1250*1850 (Length*Width*Height in mm) _x000D_
10. Power Supply: 220V 50-60Hz _x000D_
11. Compressed Air: 0.5-0.7MPa _x000D_
12. Power: 4.8kw
