Vertical Steam Engine

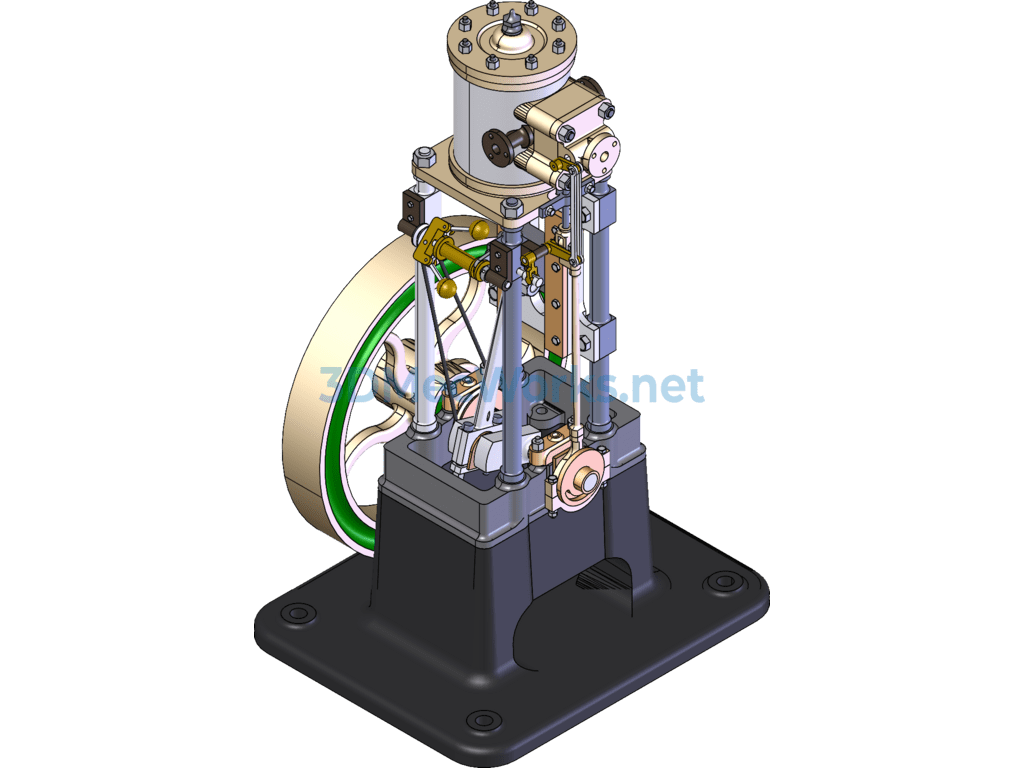

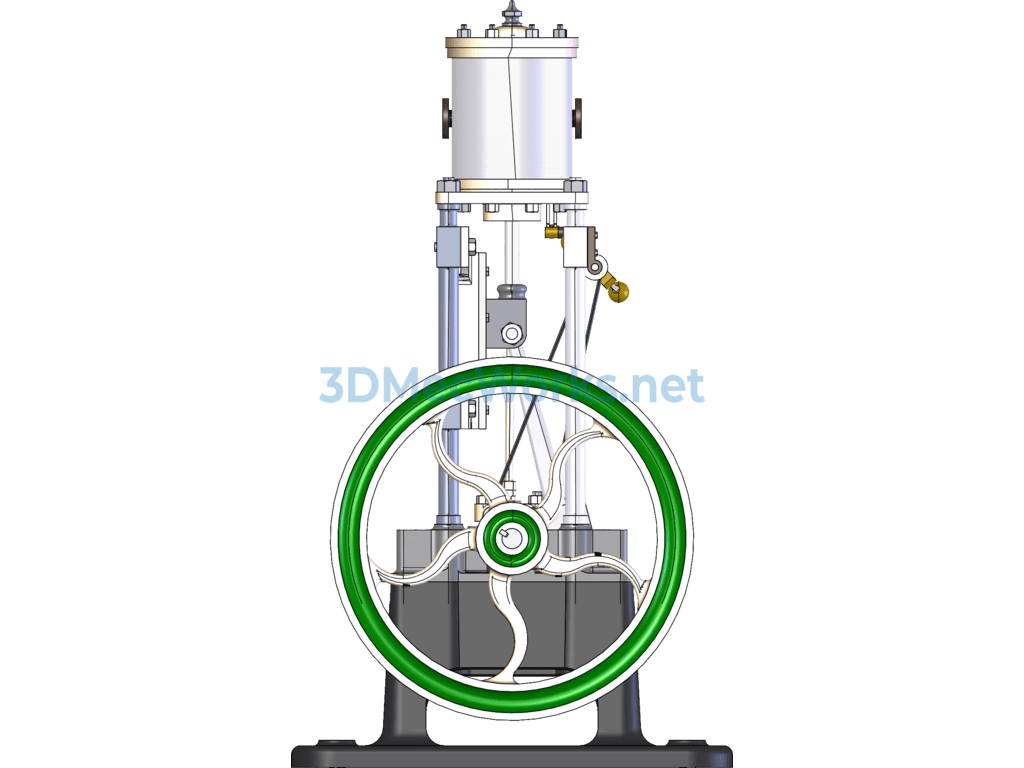

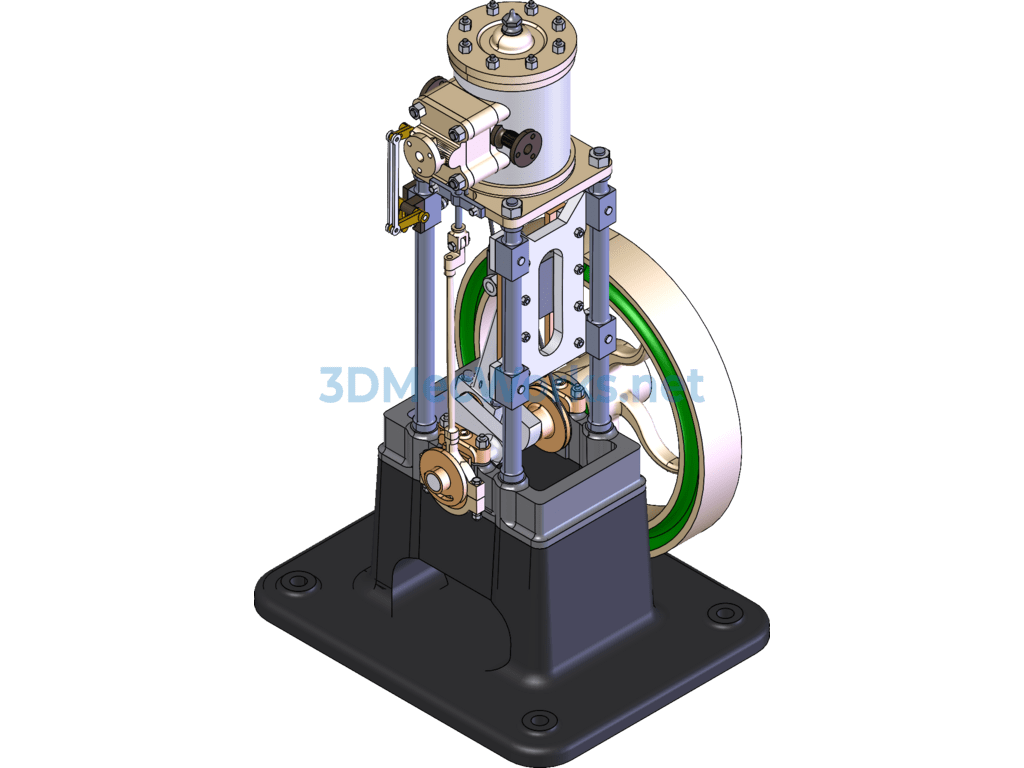

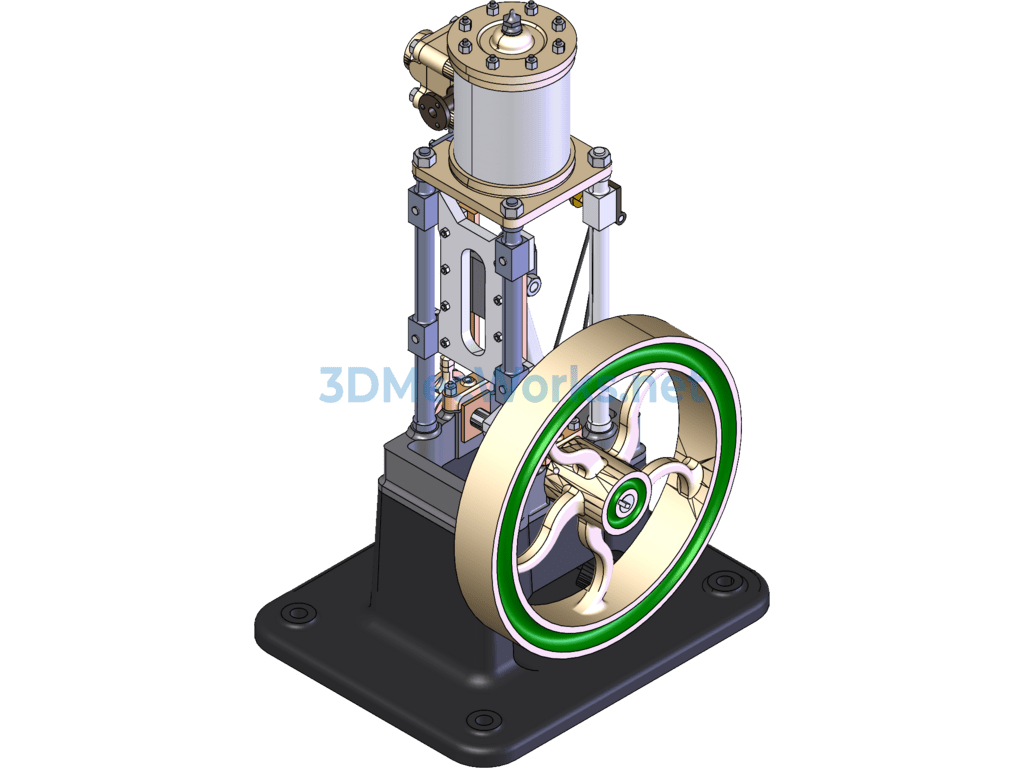

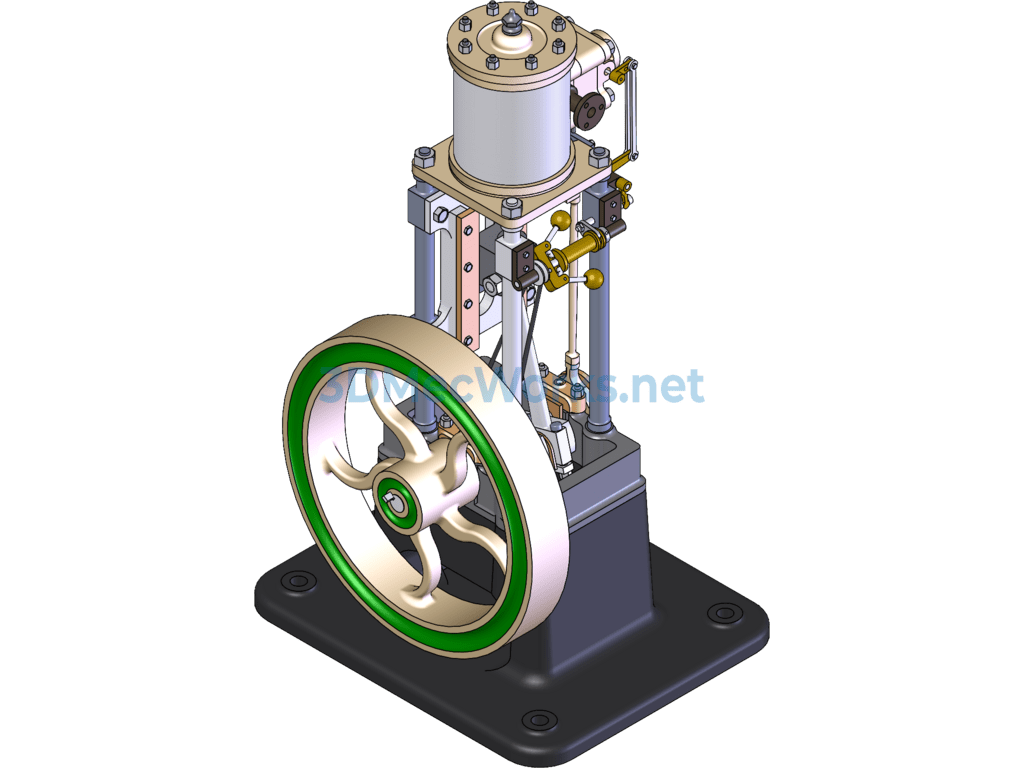

Vertical Steam Engine 3D Model

The combustion section of the steam engine adopts a double-layer grate combustion chamber, which allows for rapid temperature and pressure increase. It includes a secondary combustion process for unburned gases, ensuring complete combustion and performing smoke and dust removal functions.

The bent water tubes arranged at the upper part of the furnace body form the convective heat area, while the grate tubes and furnace lining at the lower part form the radiant heat area. The furnace structure and flue gas flow are designed with a reasonable layout, ensuring efficient heat transfer.

This steam engine is designed with simplicity and practicality in mind. It features a simple structure, easy operation, and maintenance, requires little floor space, and involves minimal infrastructure investment. It is one of the ideal pieces of equipment for generating steam for small enterprises and institutions, suitable for heating and other purposes.
