Vertical Lathe Hydraulic Fixture Diagram

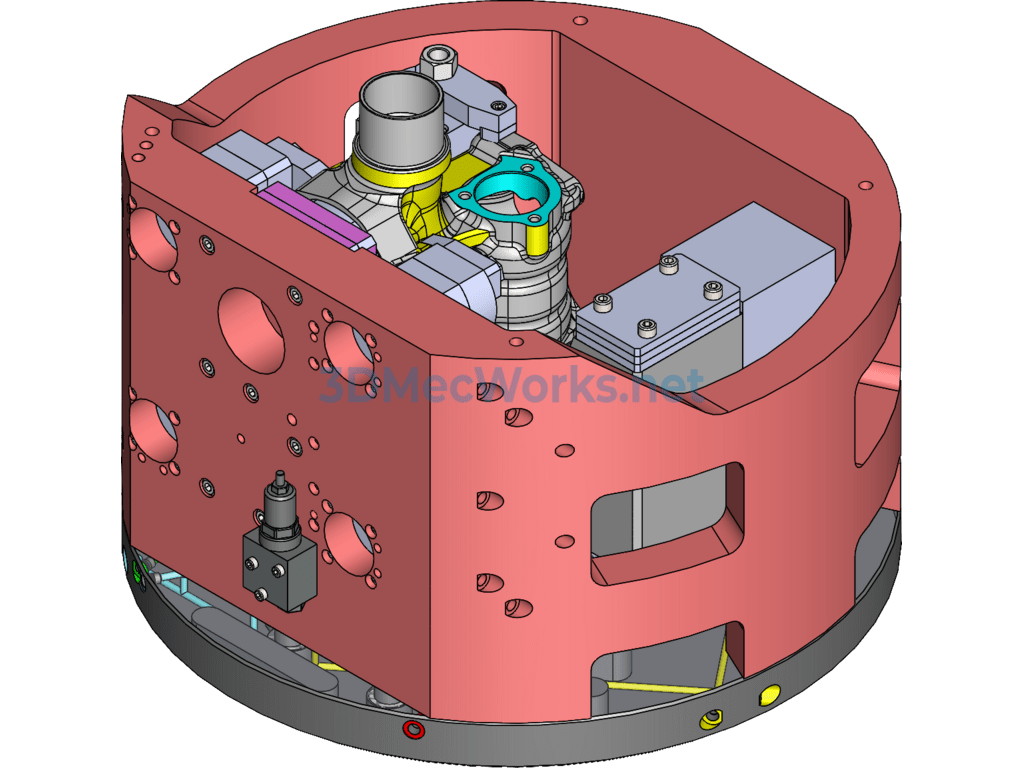

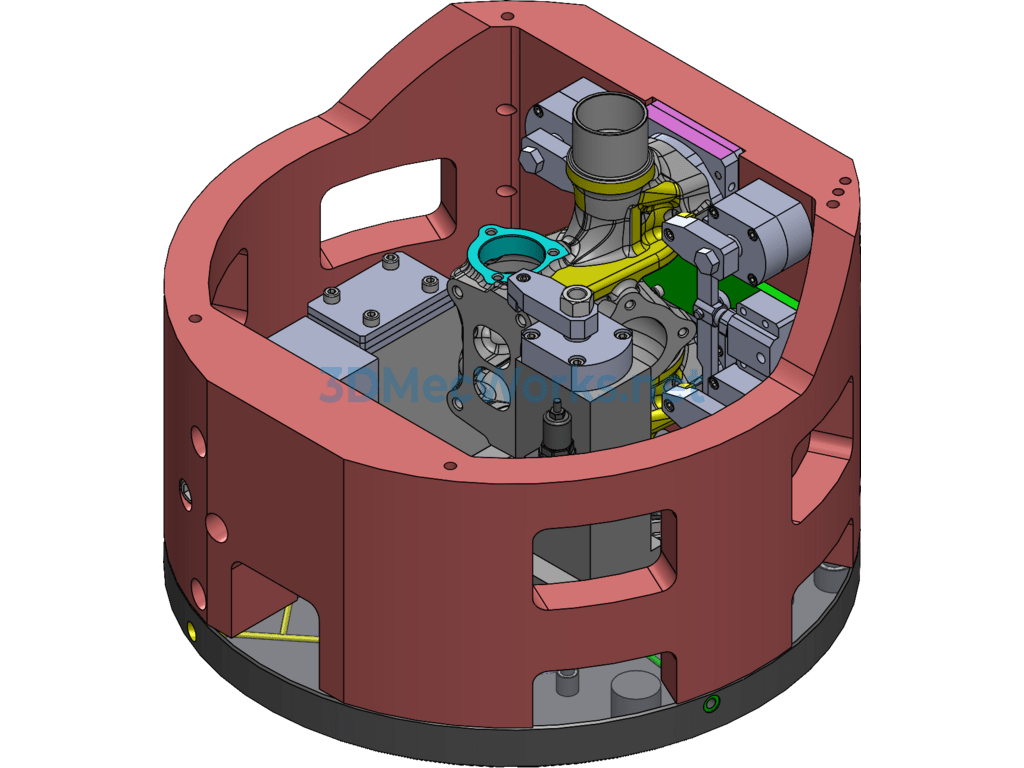

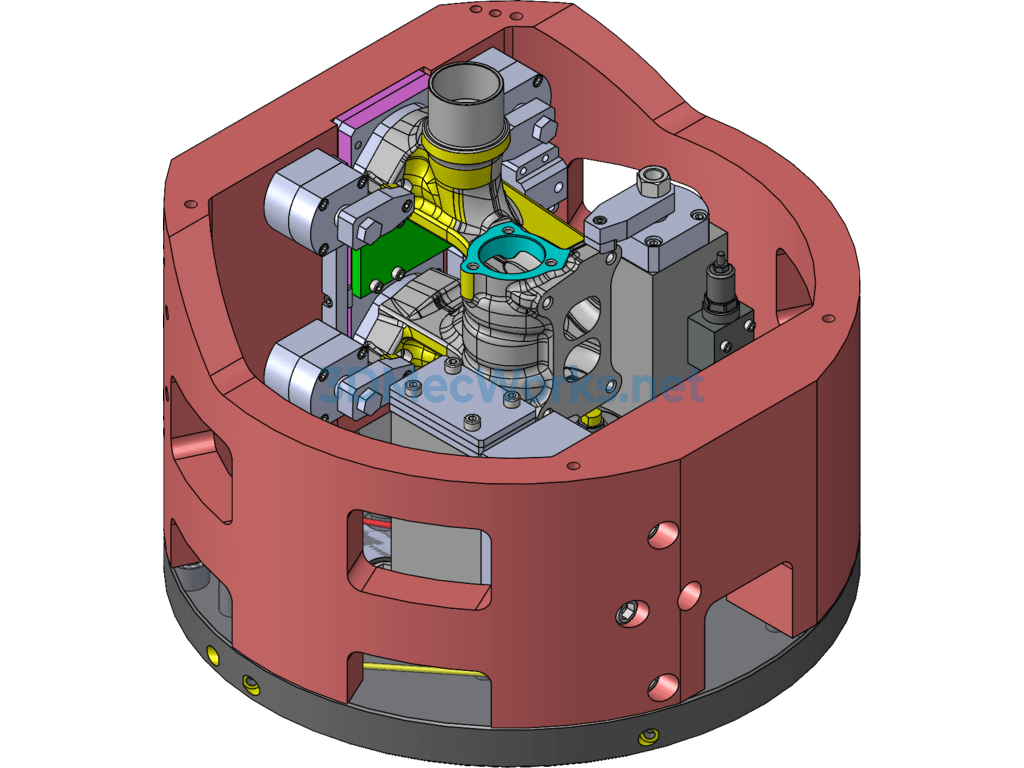

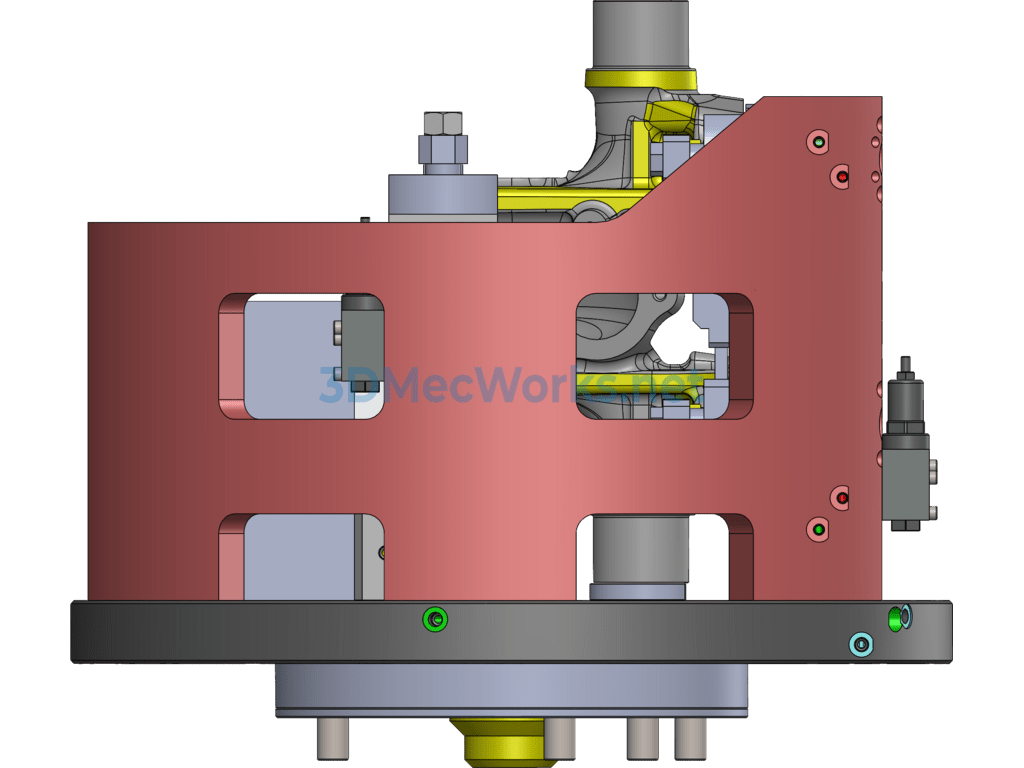

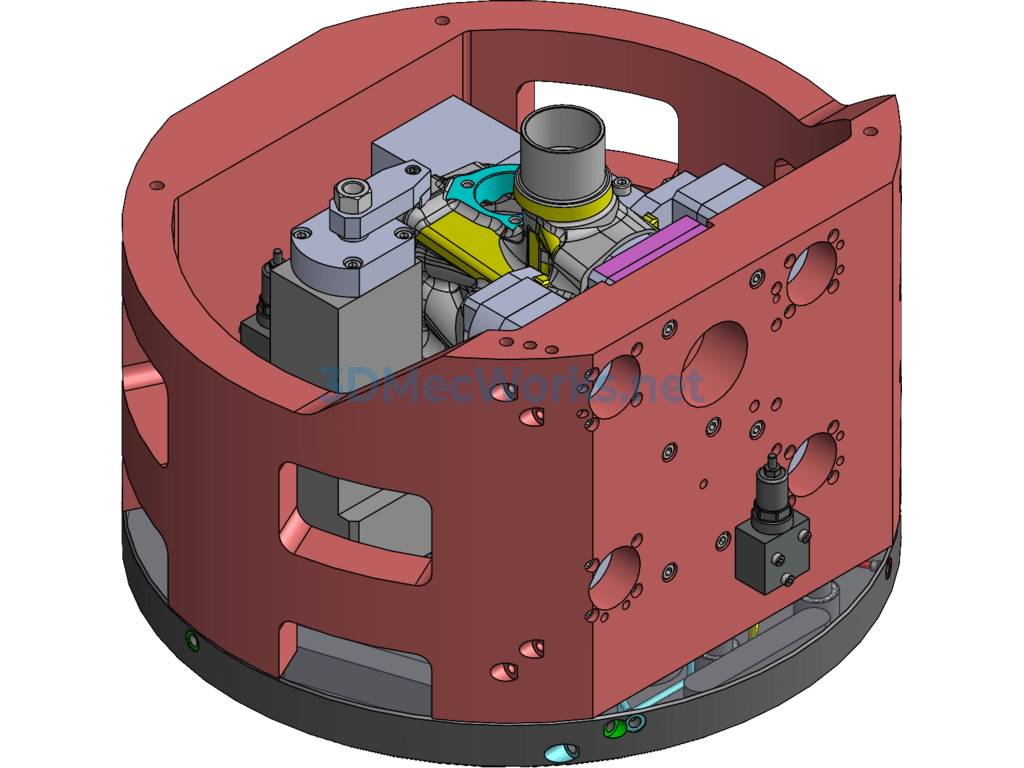

This set of fixtures is a vertical lathe hydraulic fixture, with oil supplied by the machine tool; the fixture is positioned by one face and two pins, with the cylinder clamping. The sequence of cylinder actions is as follows: #1 pusher cylinder → #2 rotary cylinder → #3 support cylinder → #4 rotary cylinder; the total clamping weight is approximately 280 kg.
Specification: Vertical Lathe Hydraulic Fixture Diagram
|
