Vertical Dual Servo Lead Screw Terminal Insertion Tool 3D + Engineering Drawing - SolidWorks - Free Download

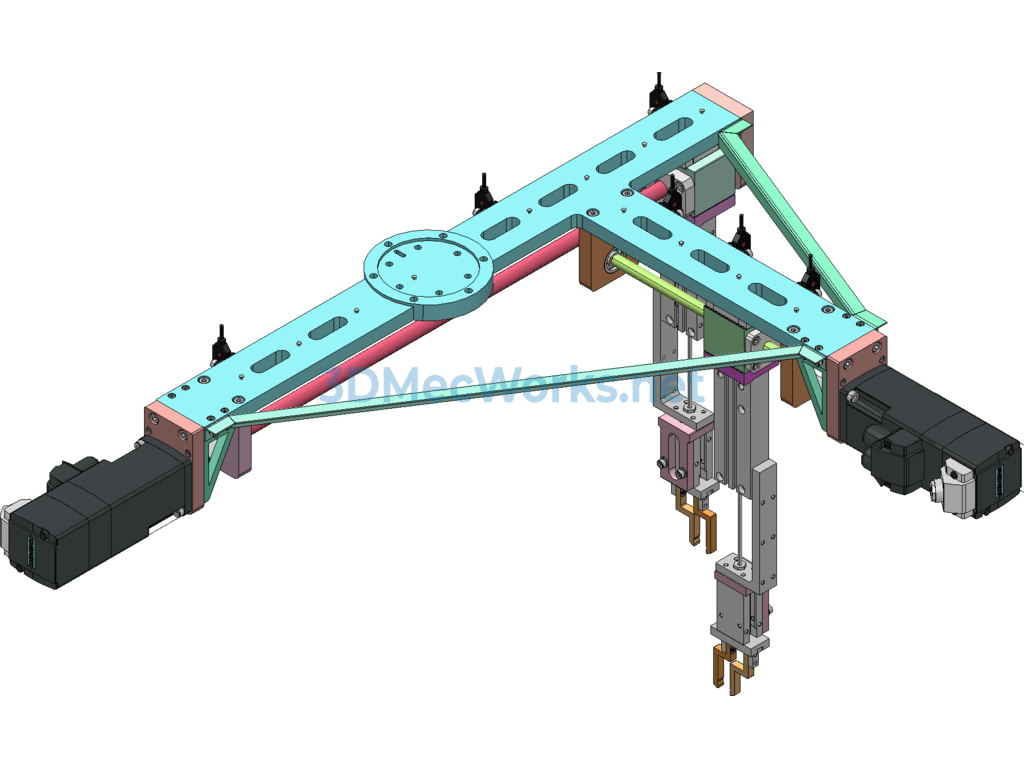

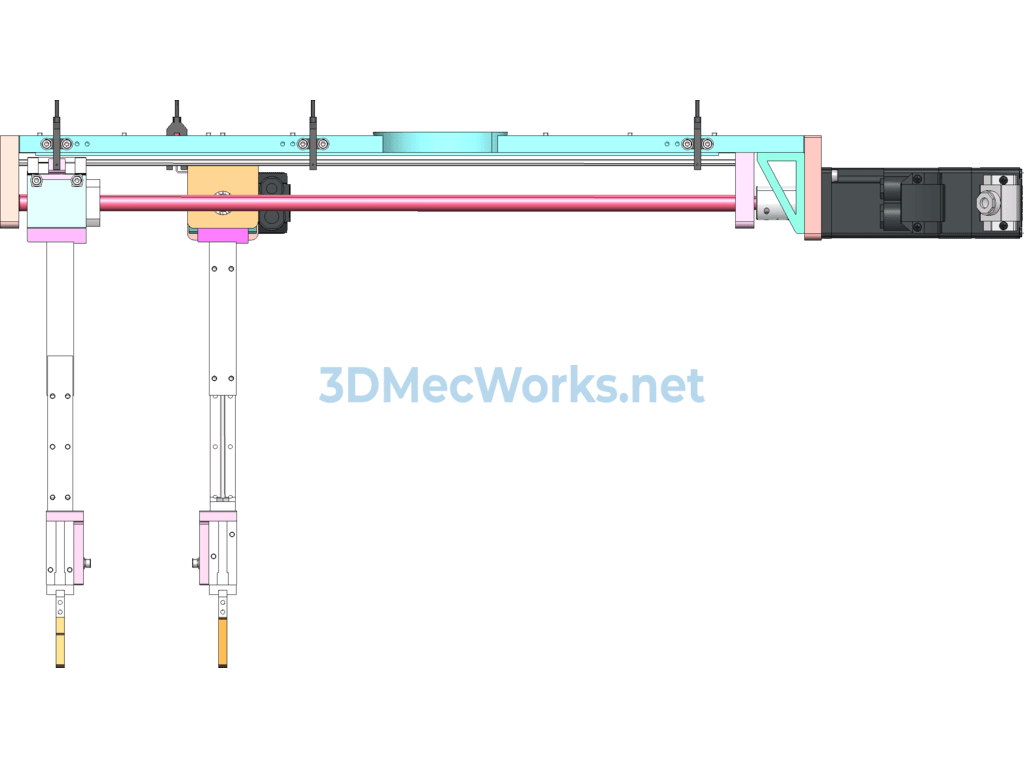

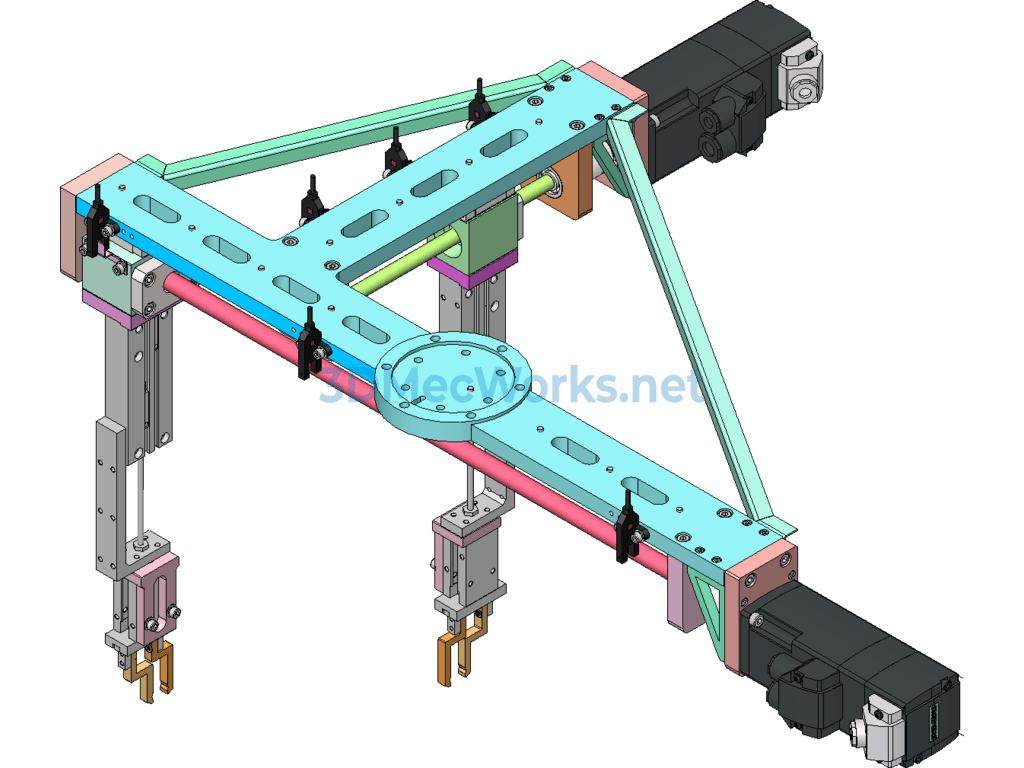

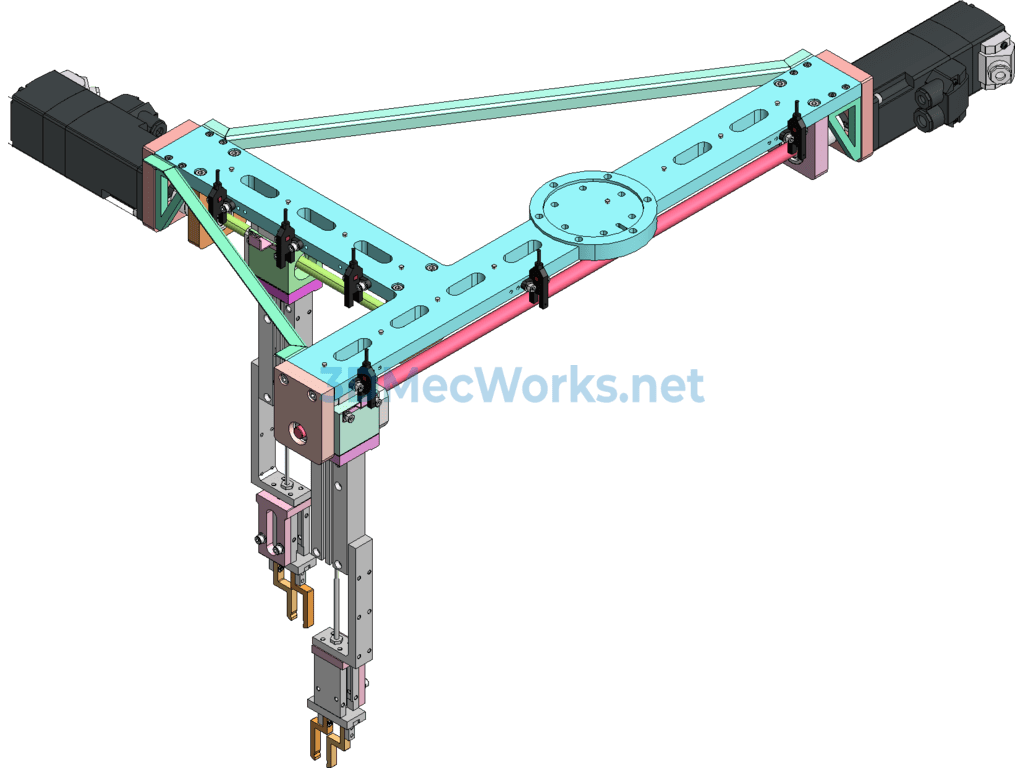

Vertical dual servo screw fixture, composed of a mounting bracket assembly, servo screw assembly one, and servo screw assembly two. It can simultaneously or sequentially clamp in two cross-vertical directions, with adjustable range in both vertical directions. Suitable for clamping and inserting operations on both ends of terminals and other workpieces. Includes a full set of 2D drawings, with machining parts, purchased parts, and standard part BOM table attached.
