Vertical Band Saw Machine

0
Published by
Beatrice Erickson
43,666 views
|
34,540 downloads


Vertical Band Saw:

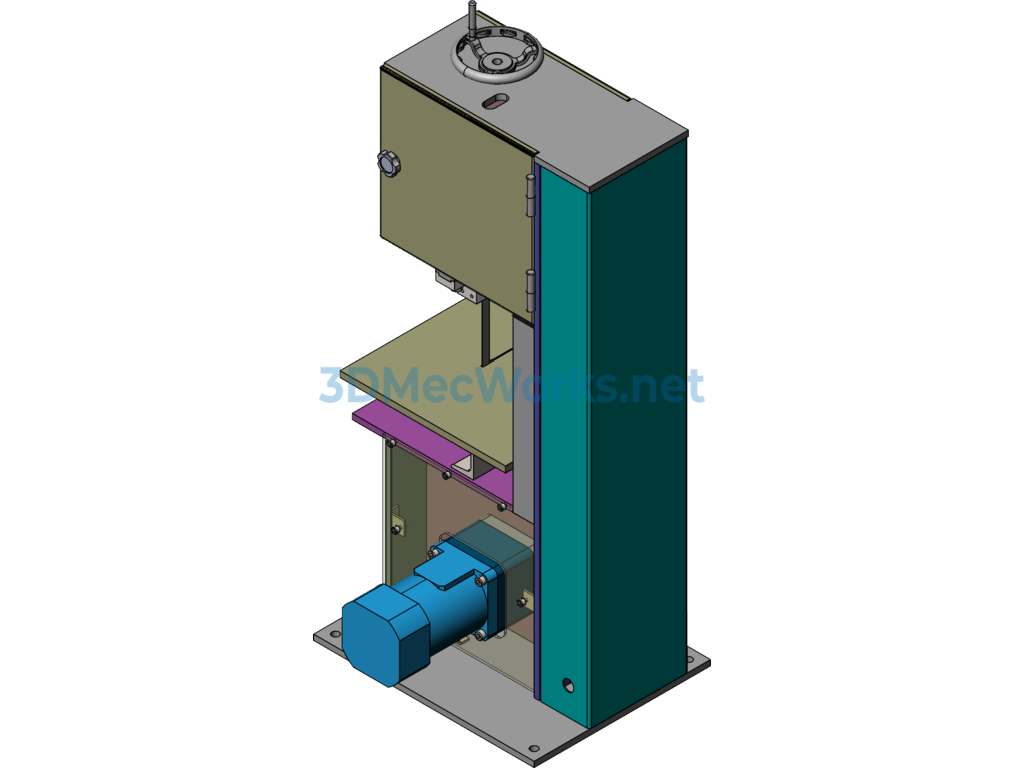

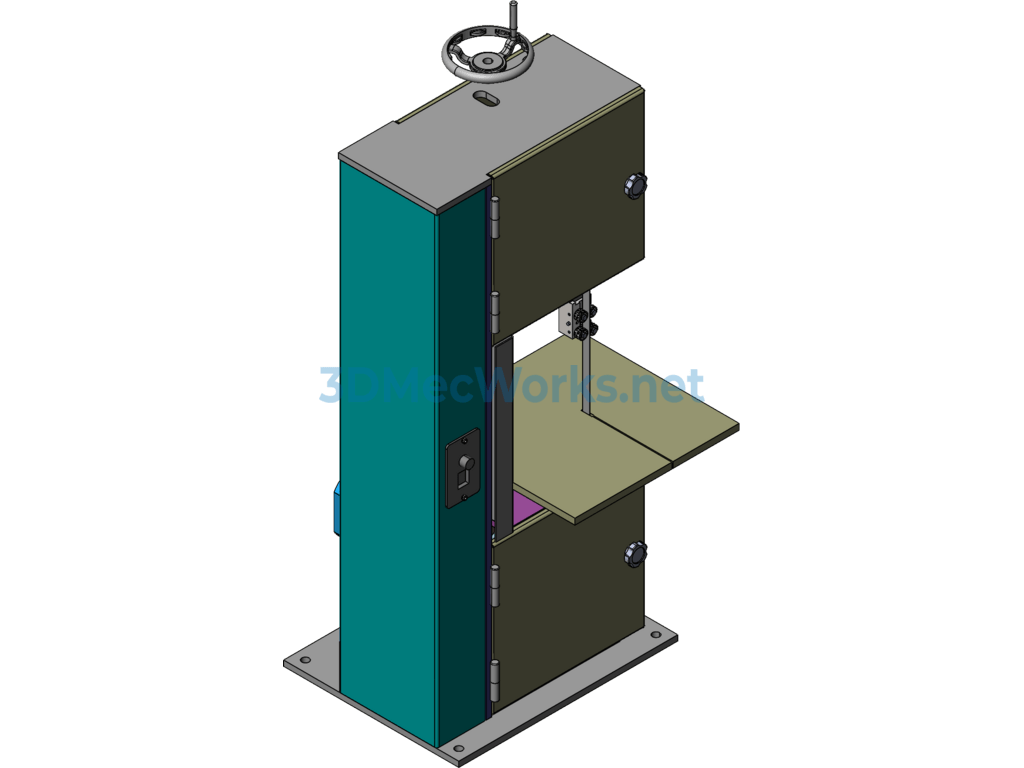

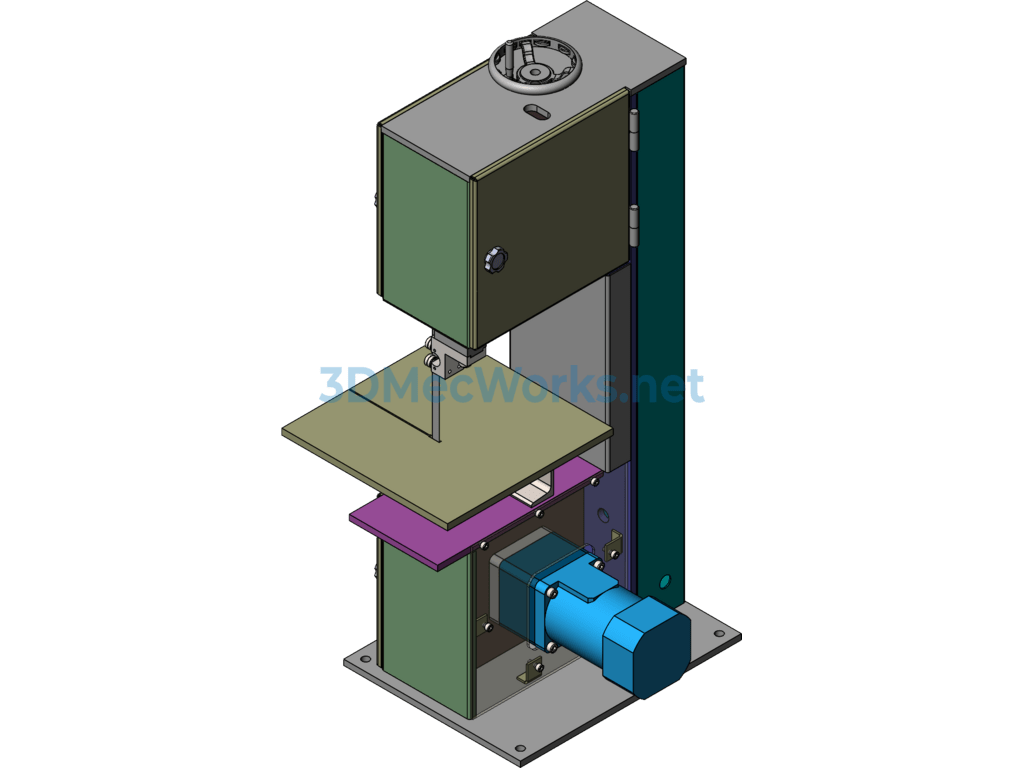

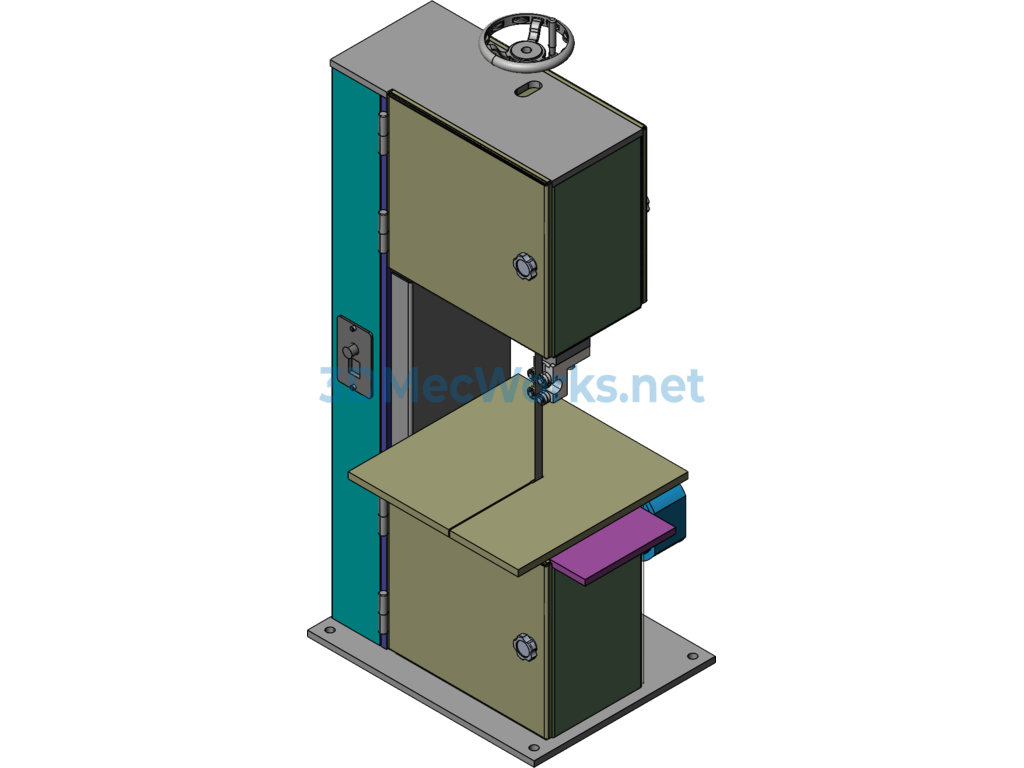

Complete model with an annular saw blade tensioned on two saw wheels, driven by the saw wheels for cutting. The saw frame is vertically positioned, and the workpiece moves during cutting, used for cutting the curved contours of sheets and shaped parts. The saw blade can also be replaced with a file chain or sanding belt for filing or polishing. The base is a box-like structure made of welded steel plates.

————Comments from the Reviewer——————

The model lacks a tensioning mechanism; other mechanisms can be referenced.

Specification: Vertical Band Saw Machine

Design Software

Editable

,

File Formats

,

Industry Application

,

Sharing Level

Version
