Vehicle Motor Printing and Labeling Machine, Printing and Label Attachment Machine

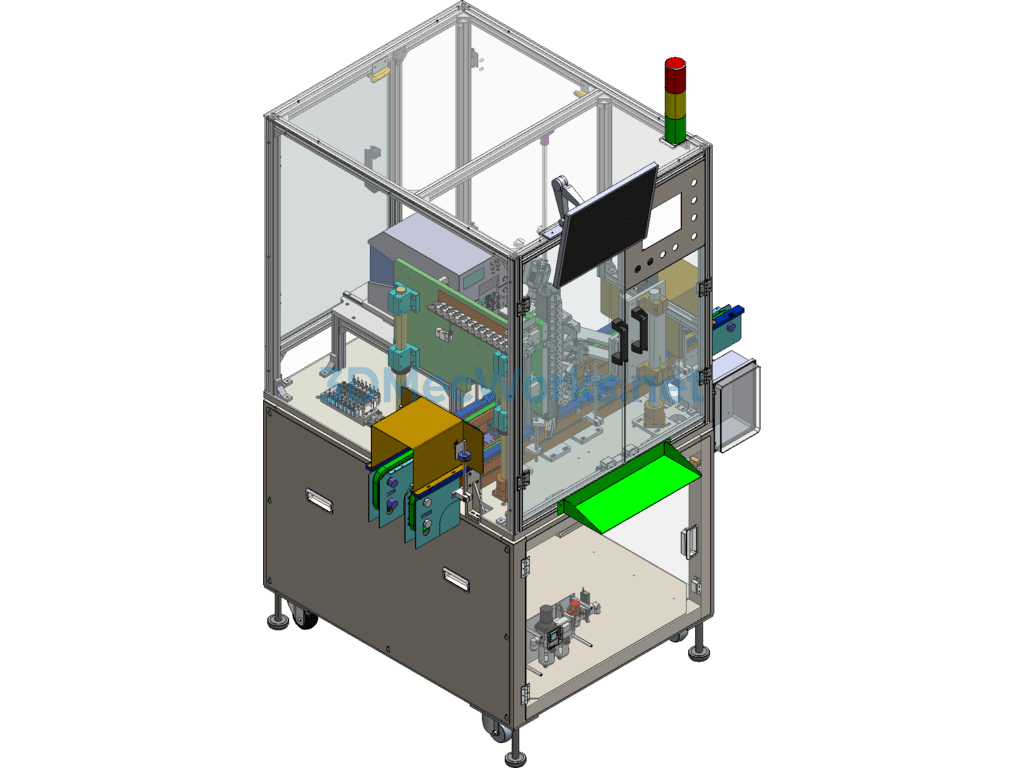

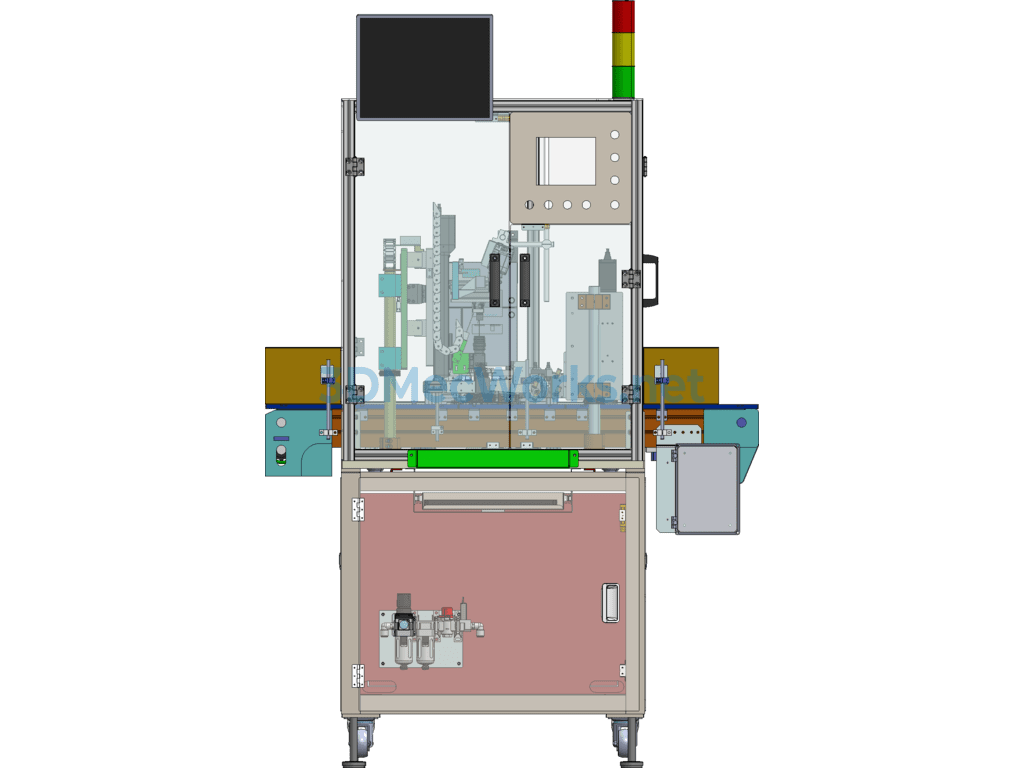

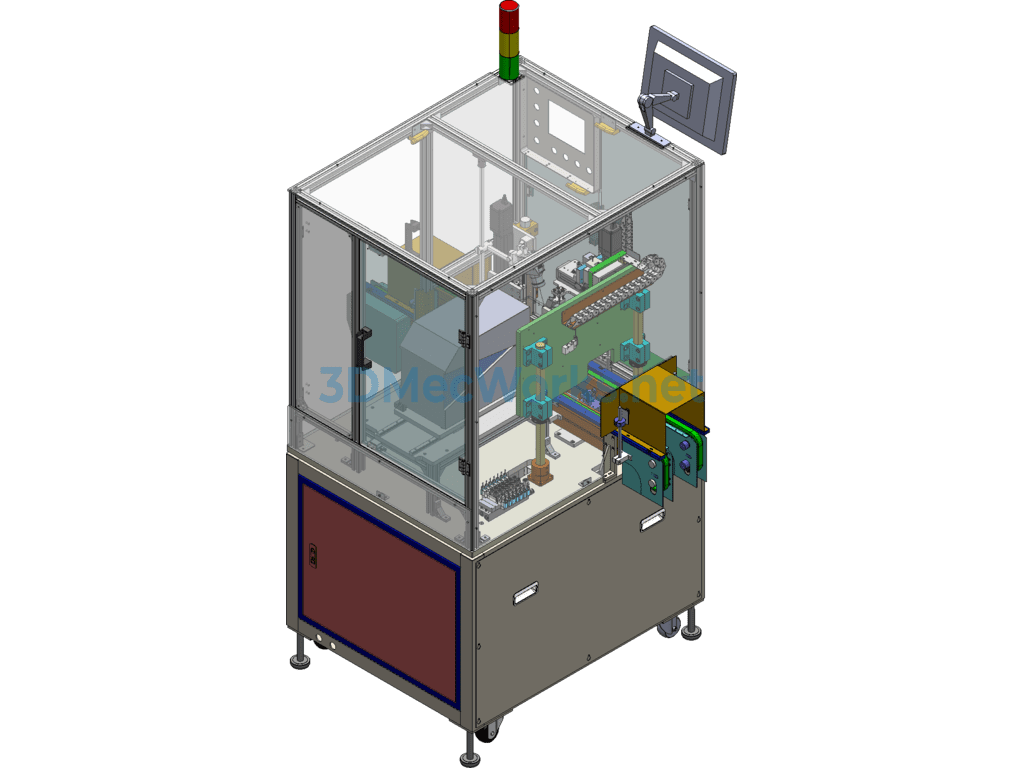

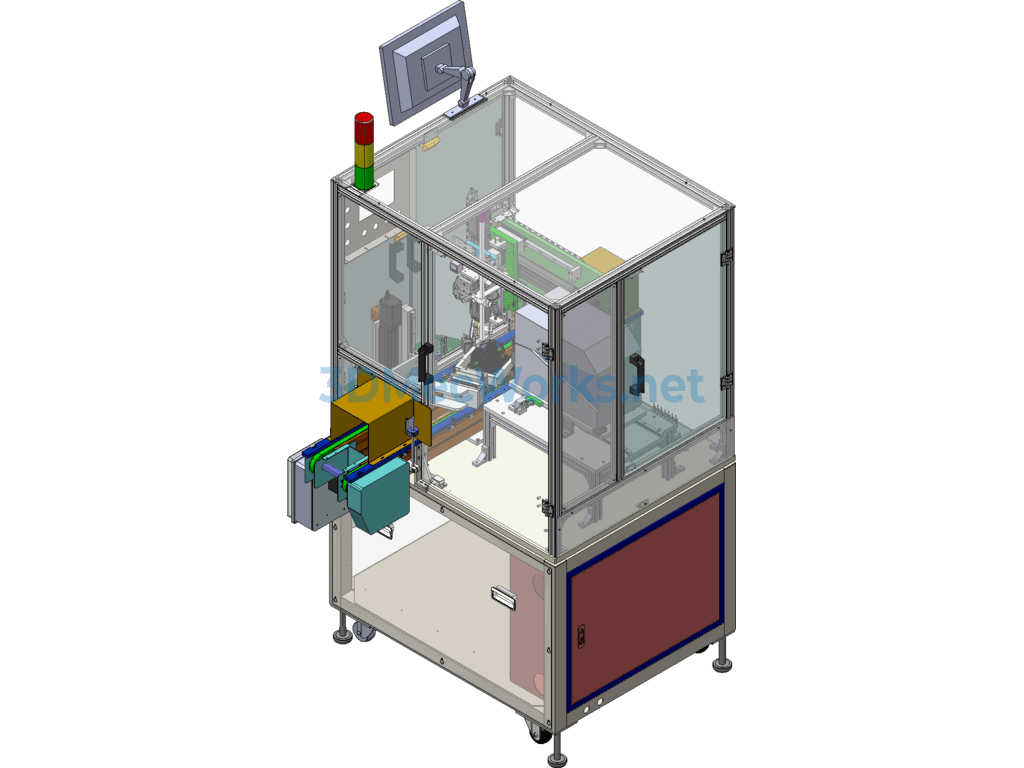

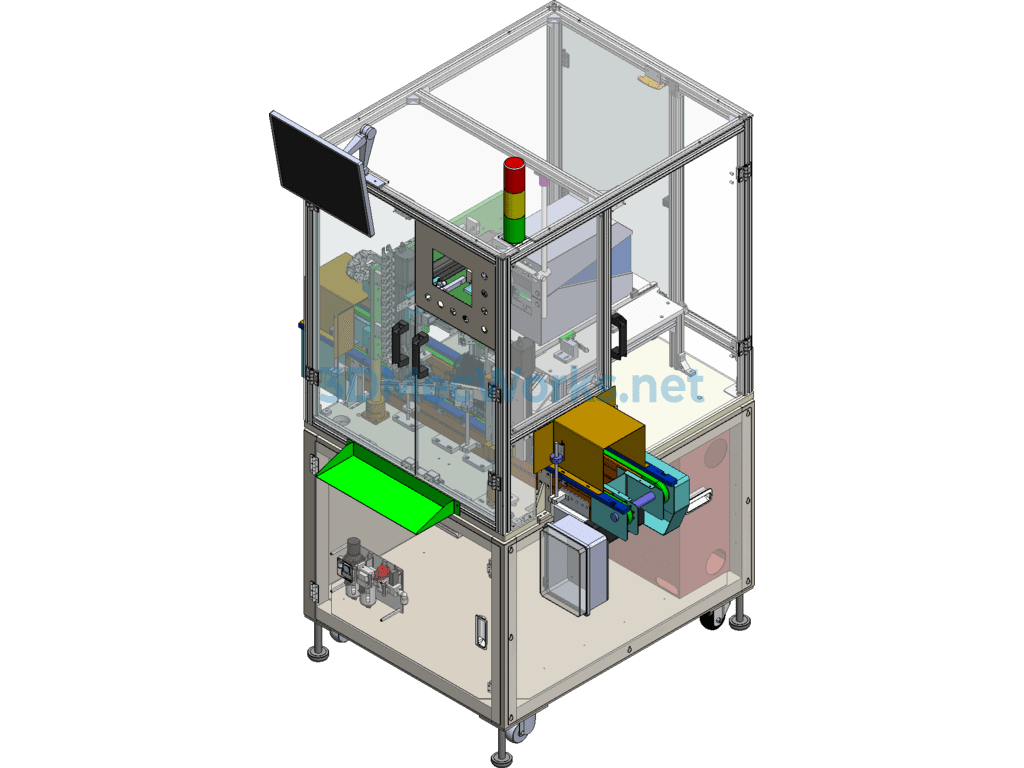

Vehicle-mounted motor printing and labeling machine, printing and labeling attachment machine/attachment machine 3D model sharing, SW design sldasm, sldprt source file provided. The vehicle-mounted motor printing and labeling machine (printing and labeling attachment machine) is equipped with a tray stop mechanism for tray positioning and lifting actions. The transfer mechanism absorbs the label from the labeling machine, then moves it above the motor. The transfer unit is also equipped with a lifting mechanism, which descends to attach the label. During the process, a visual performance checks if the label has been successfully attached. There is also a laser printing instrument that prints simultaneously. After the actions are completed, the conveyor line flows and continues transferring to the next workstation. You are welcome to download this 3D model for reference.
