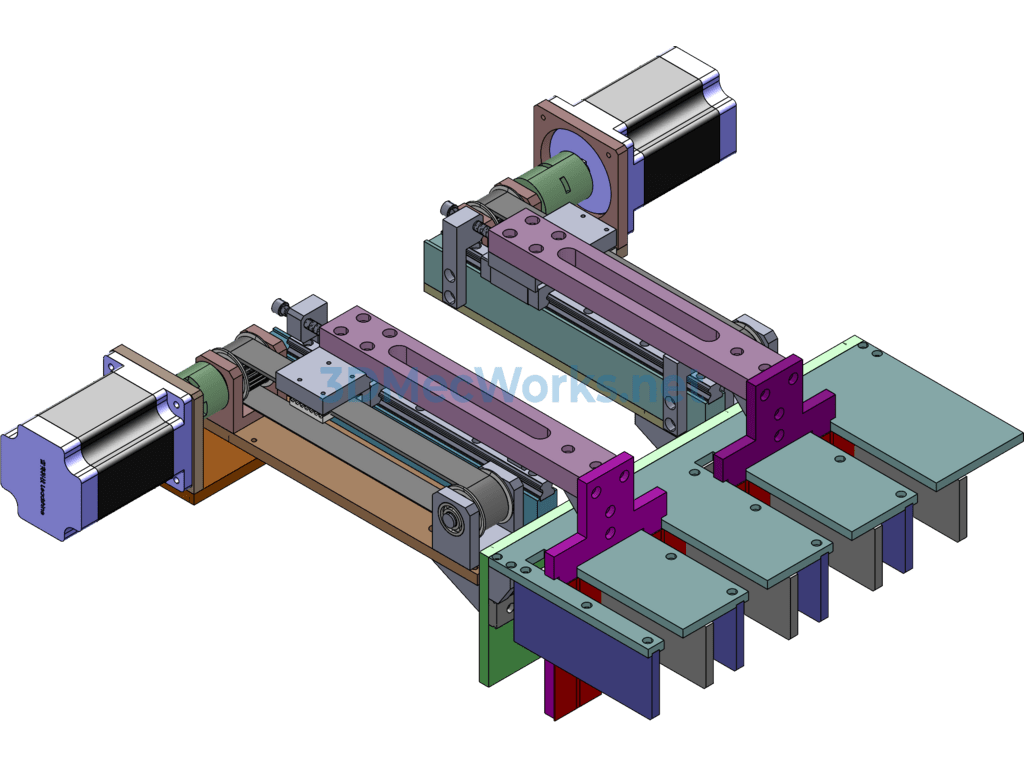

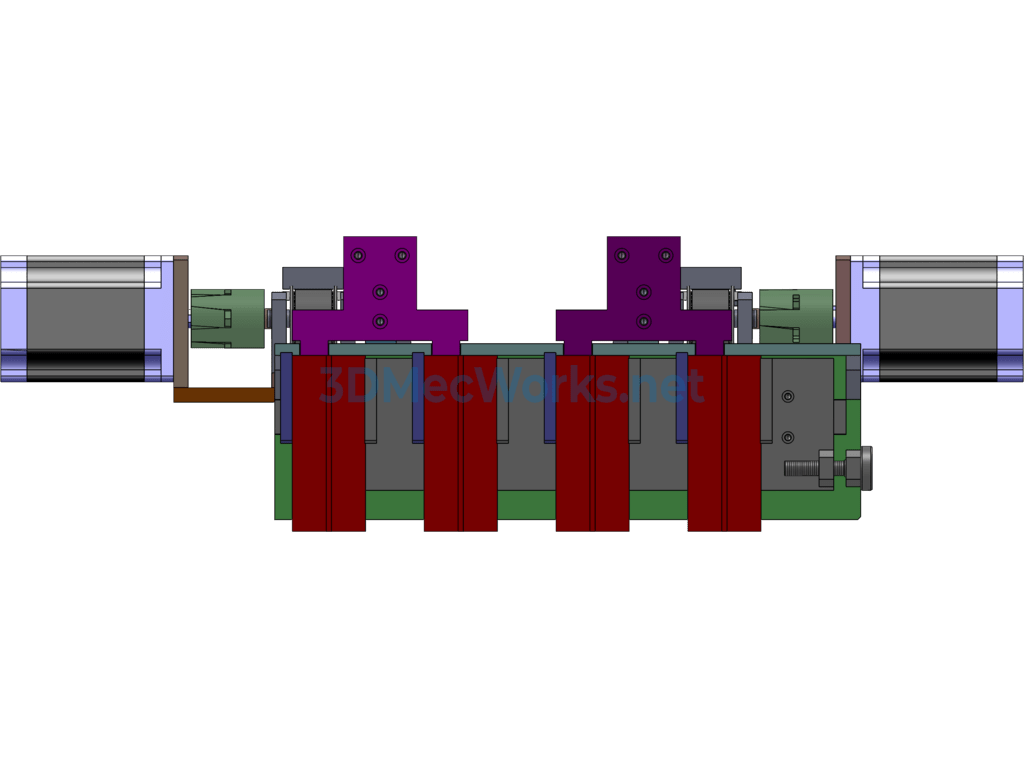

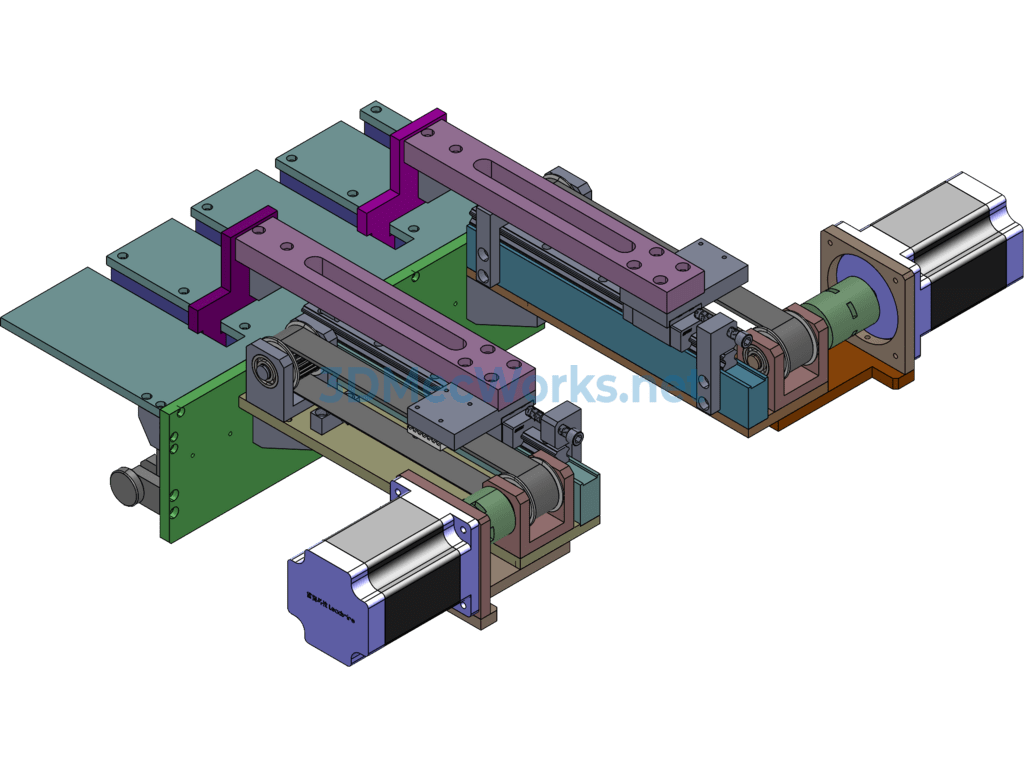

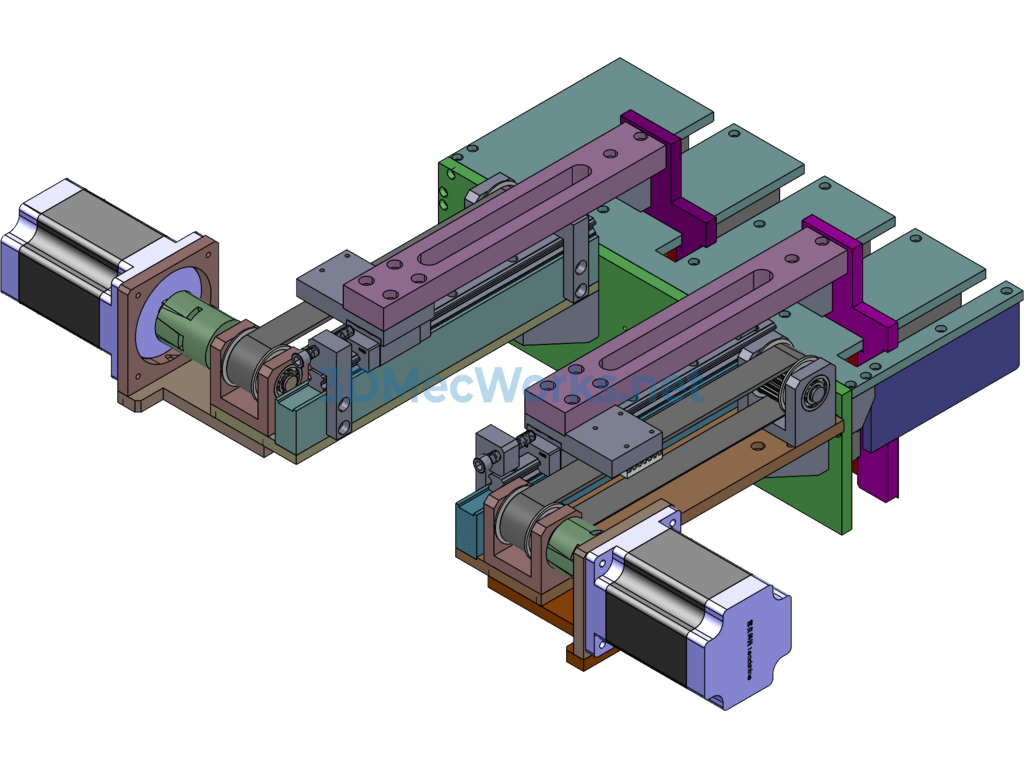

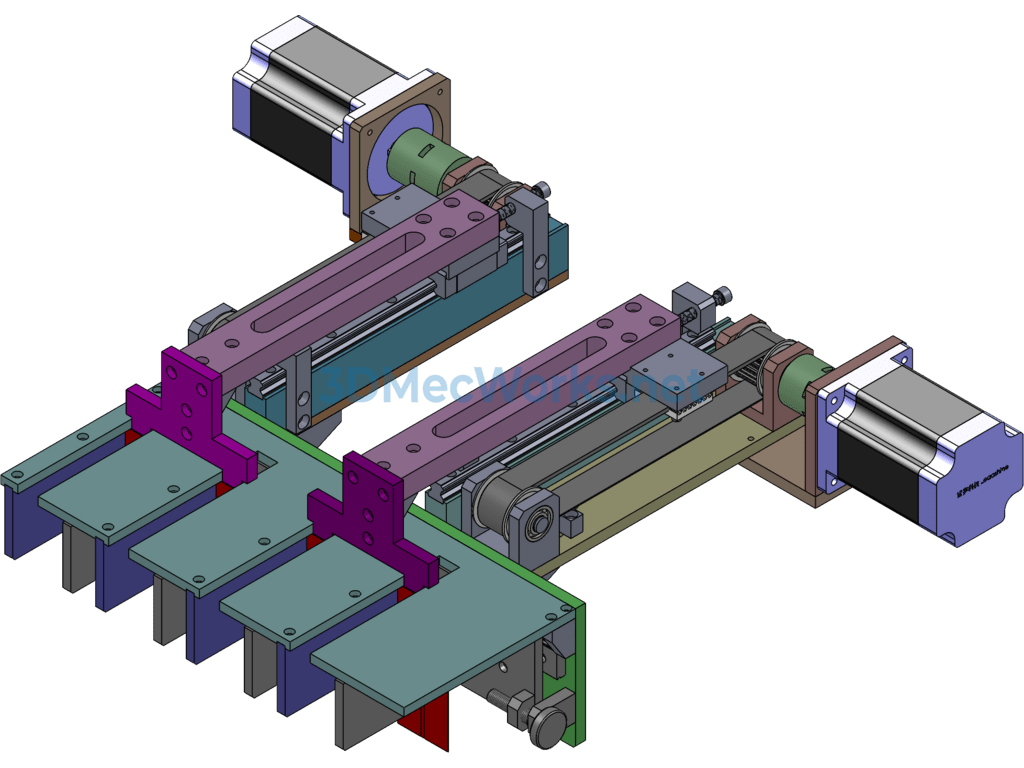

Various types of jacking and feeding mechanisms. Designed using SOLIDWORKS, the source files for all parts include features for your convenience in use, reference, and modification. The overall structure is clear, and the parts are complete, making it an ideal reference or study material for your designs. It’s highly worth consulting, and peers are welcome to refer to it!
Includes:
– Jacking and Feeding Component 5 (Linear Reduction Motor)
– Jacking and Feeding Mechanism 4 (Belt Rail)
– Jacking and Feeding Mechanism 3 (Belt Rail)
– Jacking and Feeding Mechanism 2 (Fixed Nut, Movable Lead Screw)
– Jacking and Feeding Mechanism 1 (Fixed Nut, Movable Lead Screw)
Specification: Various Styles of Loading Mechanisms, Lifting and Feeding Mechanisms
|
