Valve Body Fixture Assembly Drawing

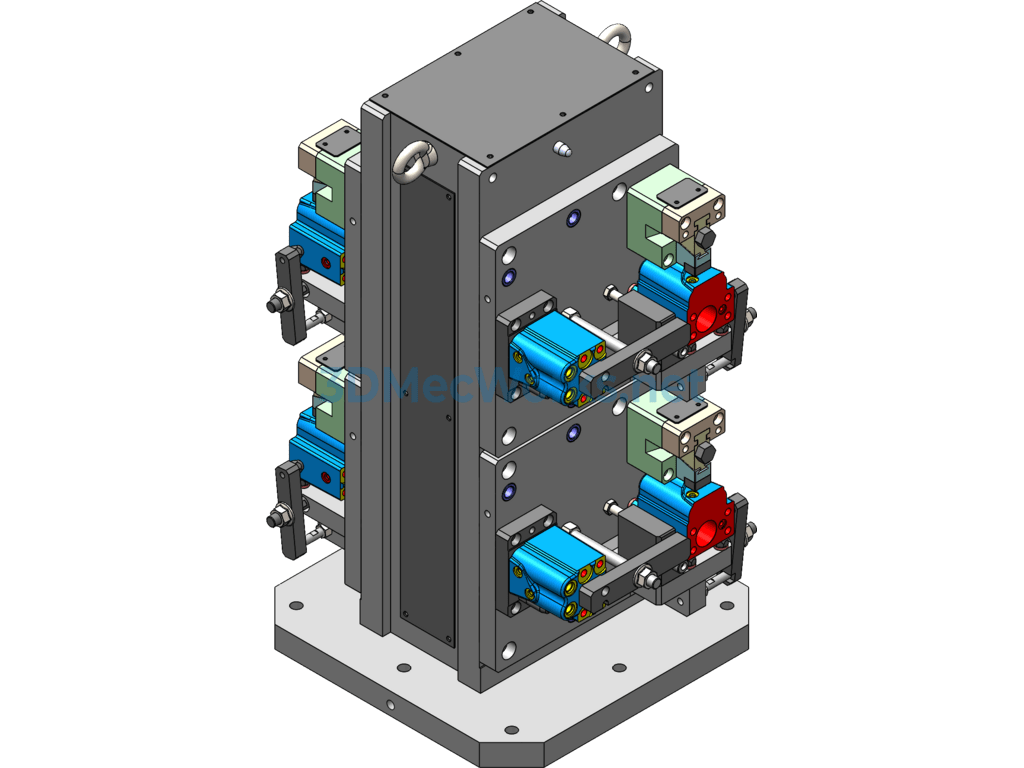

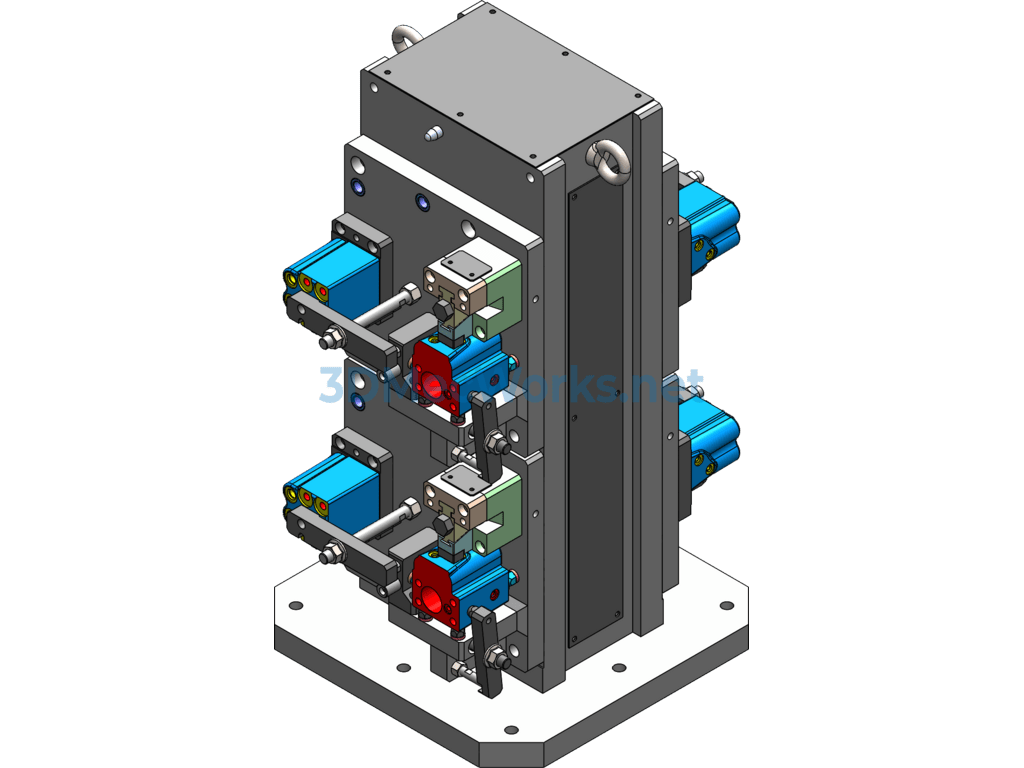

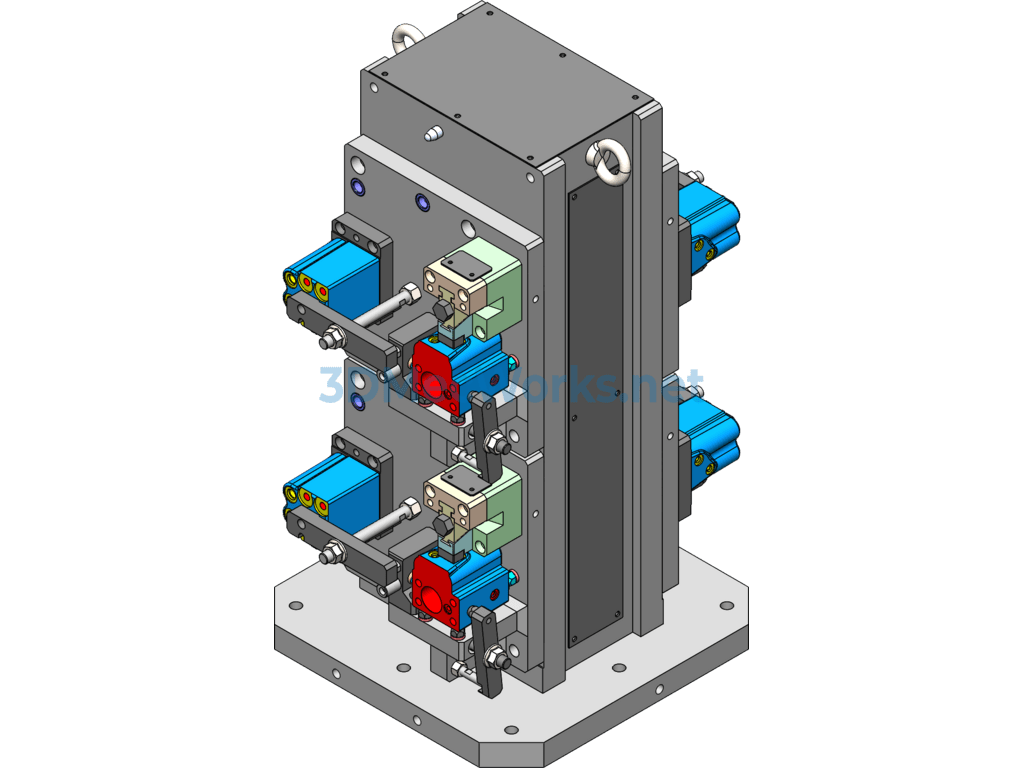

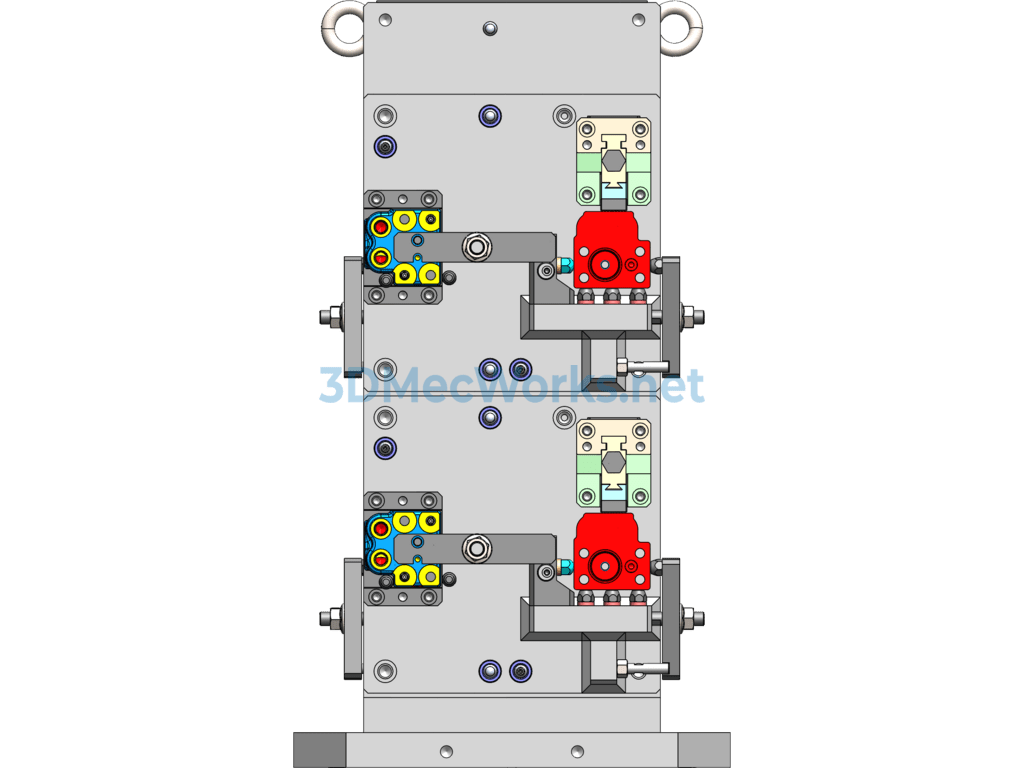

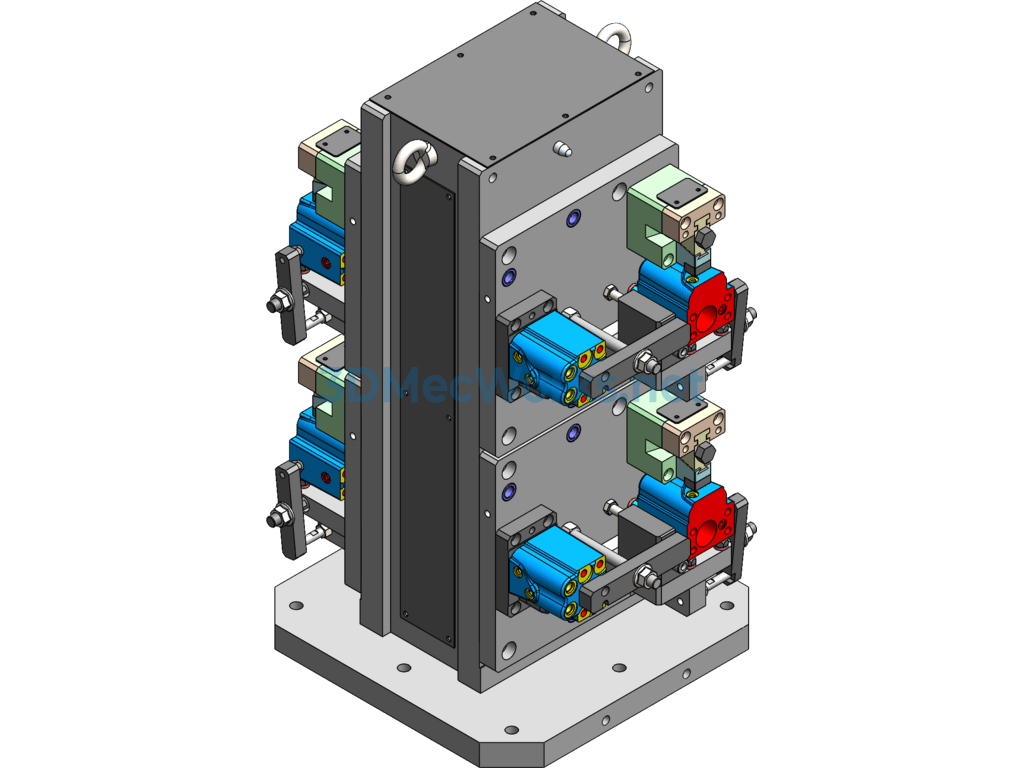

The diagram shown is an assembly drawing for a manual fixture, designed to be used with the MAKINO a71 machine tool. The worktable dimensions are 500X500. This fixture uses workpiece outer shape positioning for OP10, and a one-face two-pin positioning for OP20. The fixture weighs approximately 490KG.
Specification: Valve Body Fixture Assembly Drawing
|
