Valve Body Assembly Machine

Valve Body Assembly Machine (Non-standard) Design Model

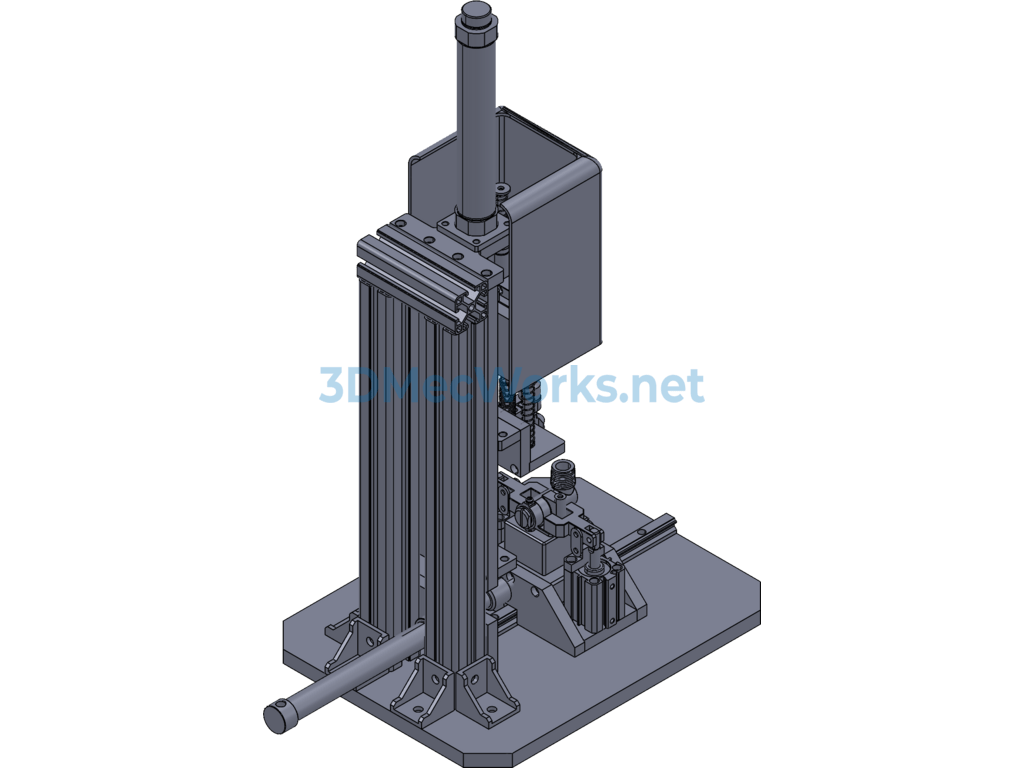

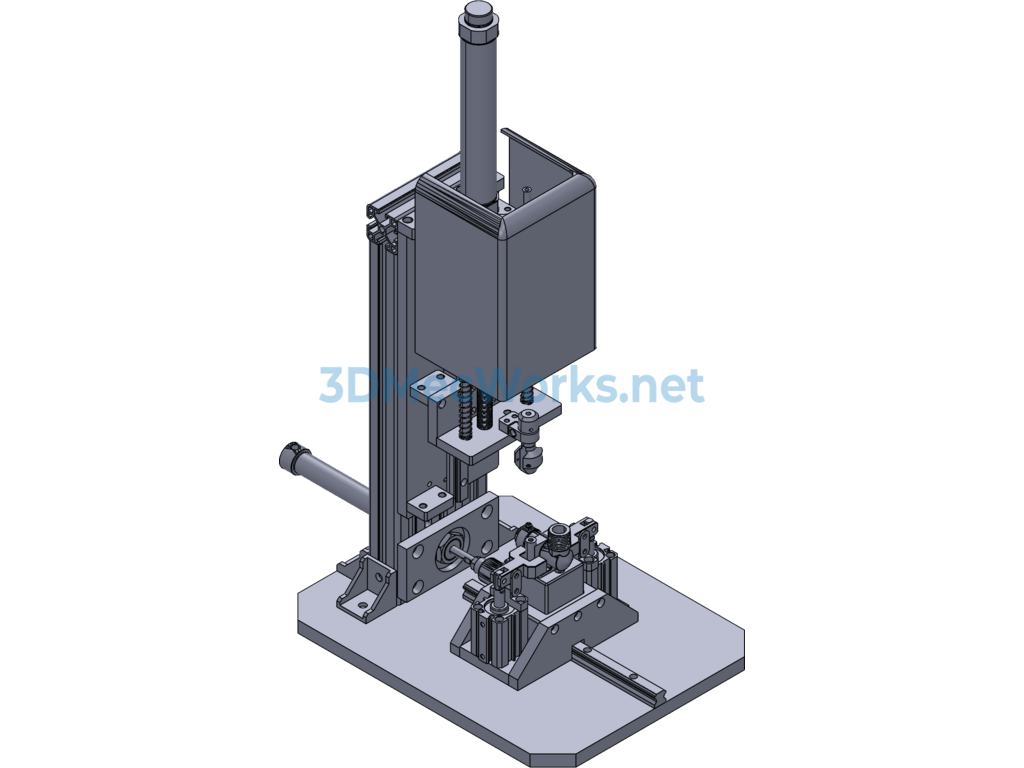

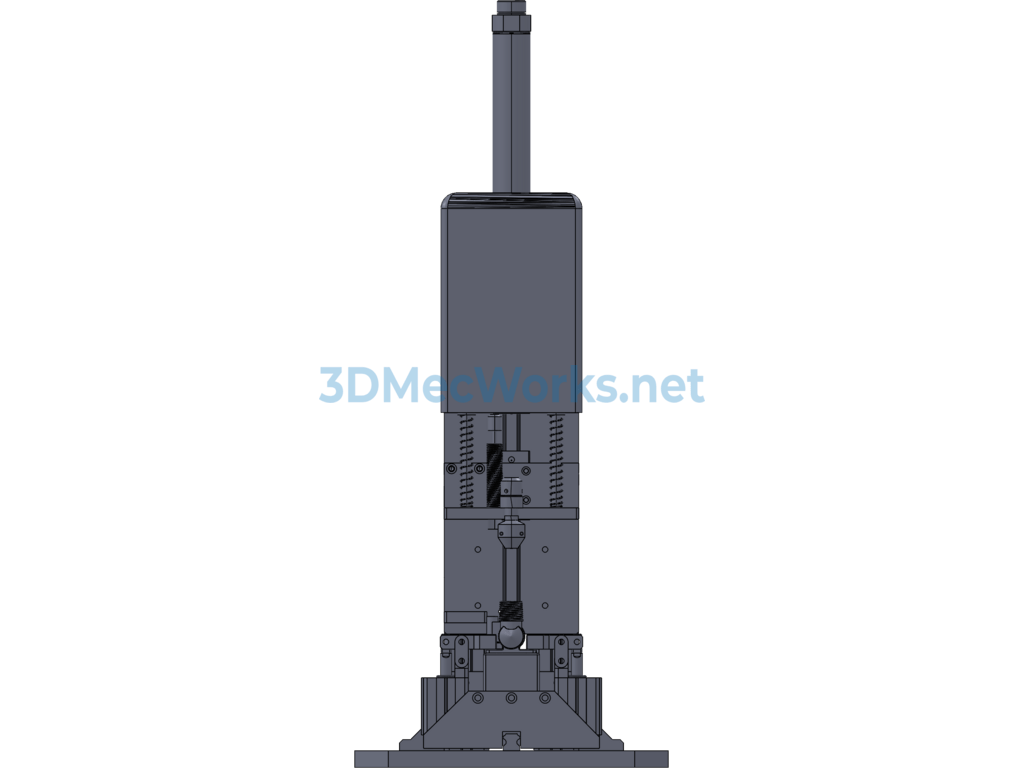

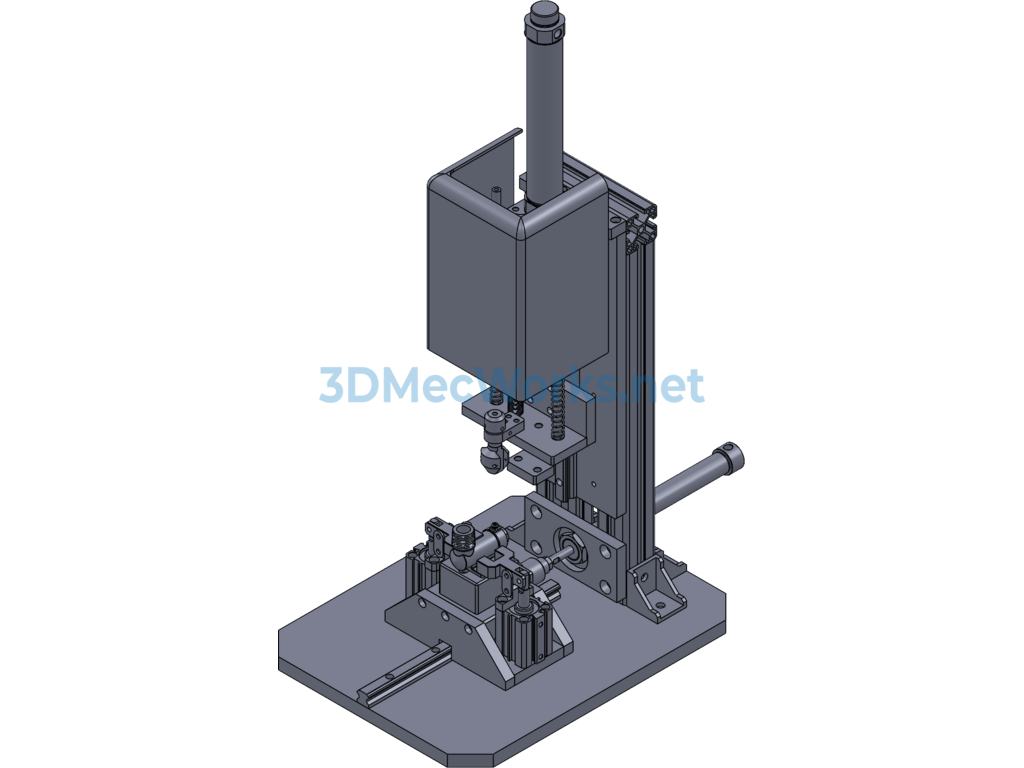

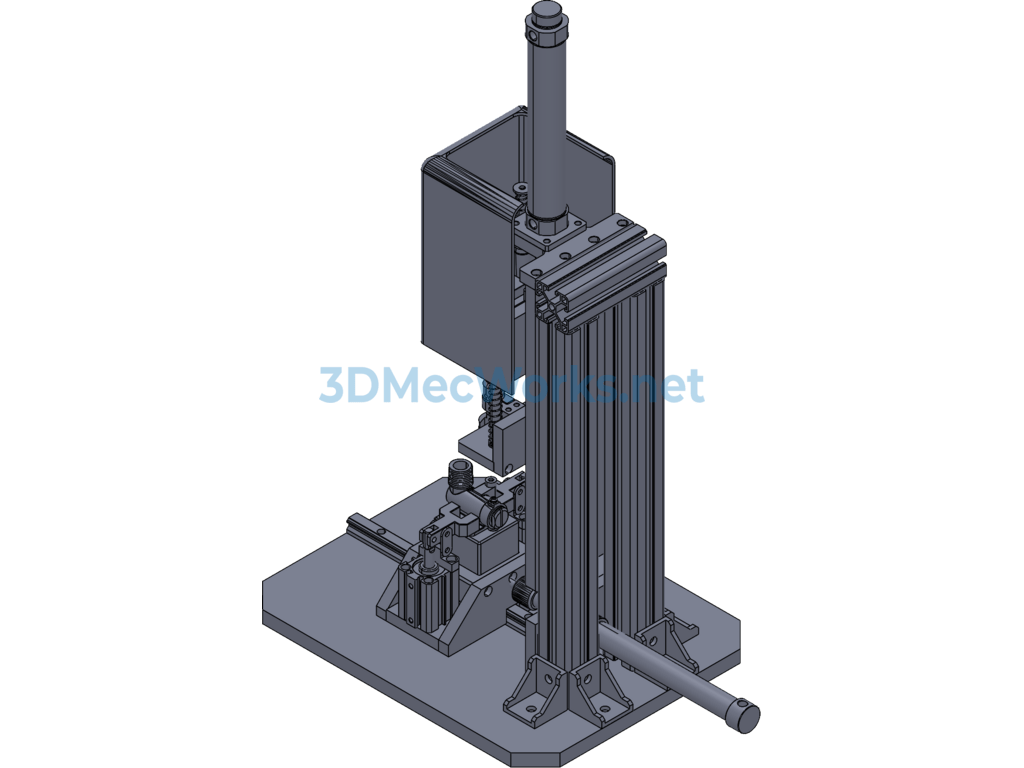

This is a design model of a non-standard small piece of equipment, specifically used for valve body assembly. It features a reliable structural rigidity and resistance to deformation. The hydraulic station is positioned above, with a mold lifting and connecting device set on the press plate. The hydraulic station and press plate are equipped with detachable dust covers. (Drawn in SW2010, does not include parameters, but the model is editable)
