Valve Arm Rotary Riveting Valve Stem Rotary Riveting Machine - SolidWorks - Free Download

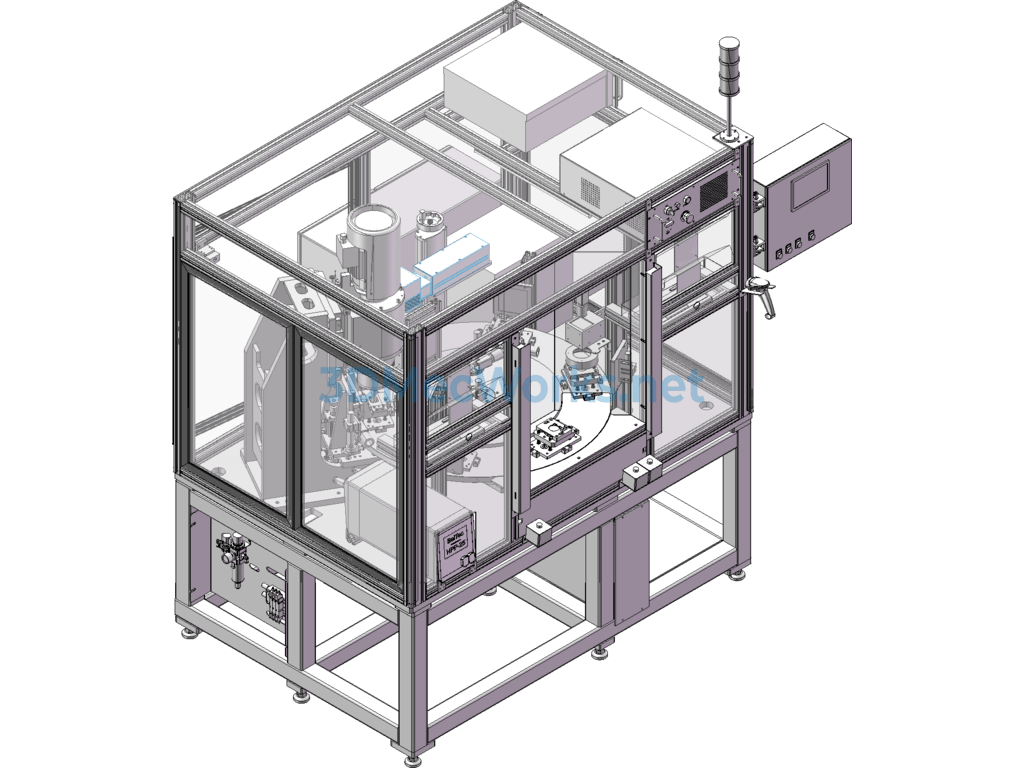

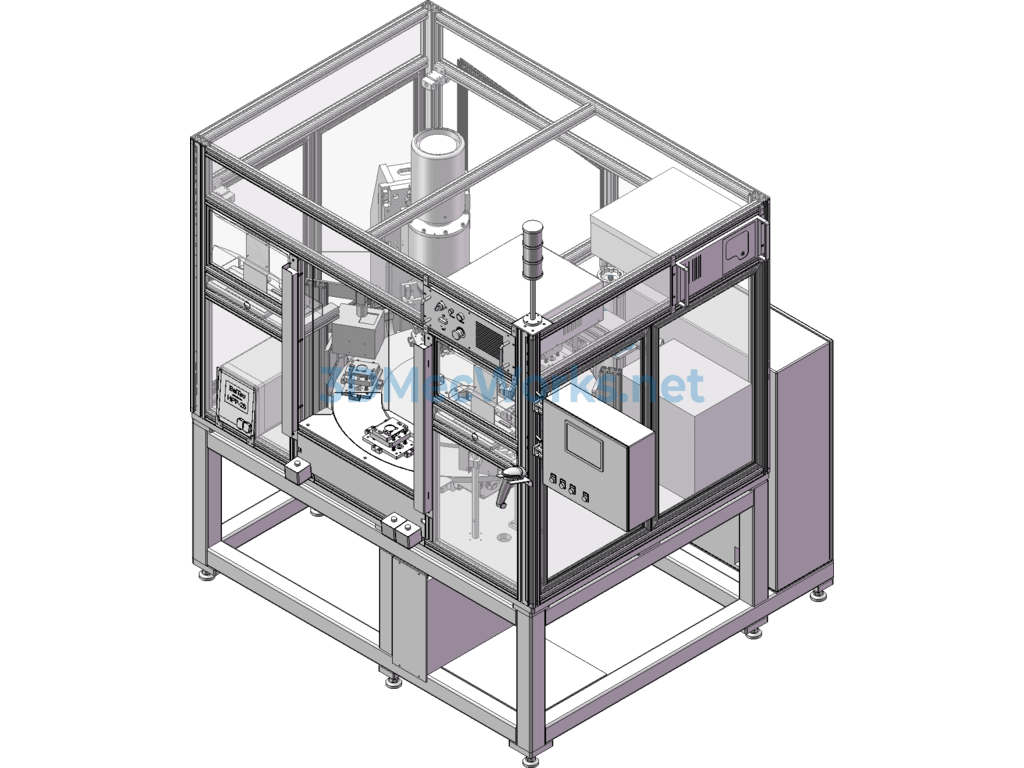

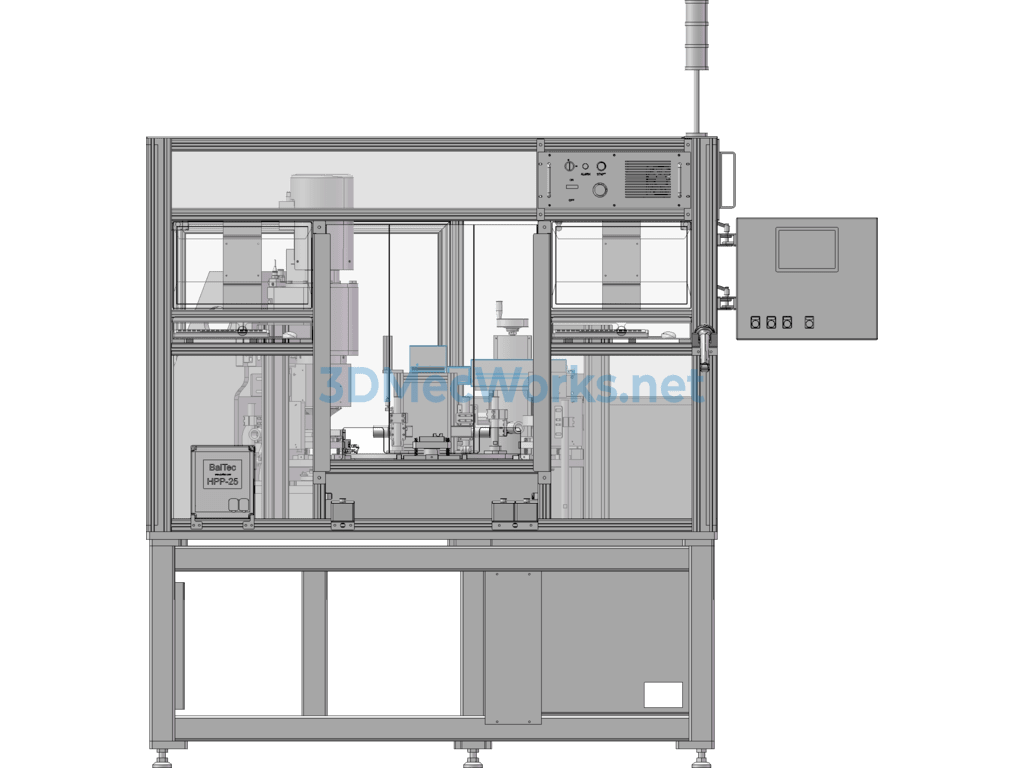

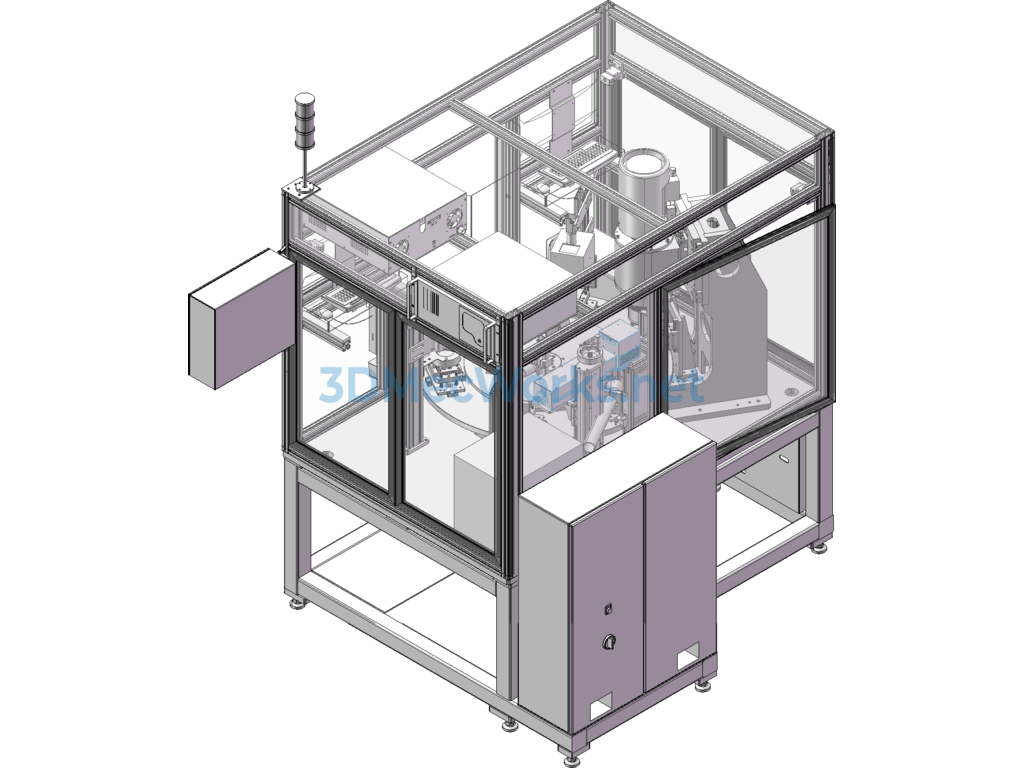

The overall style of the valve stem rotary riveting machine equipment is a 6-station turntable form, including a manual loading station and a visual inspection station; an automatic riveting station; a laser marking station; The positioning fixture floats on the turntable, and pre-positioning must ensure accuracy. The positioning fixture needs to meet the requirement of rapid product changeover; The laser marking machine is equipped with a vacuum cleaner to collect dust and smoke generated by marking; The laser marking machine needs to work in a light-proof environment to prevent laser spillage from causing harm to the operator’s eyes; To prevent oil film on the workpiece surface from affecting detection, this station adds air blowing for cleaning;
