Upper Subframe Sheet Metal Single Part Welding Jig

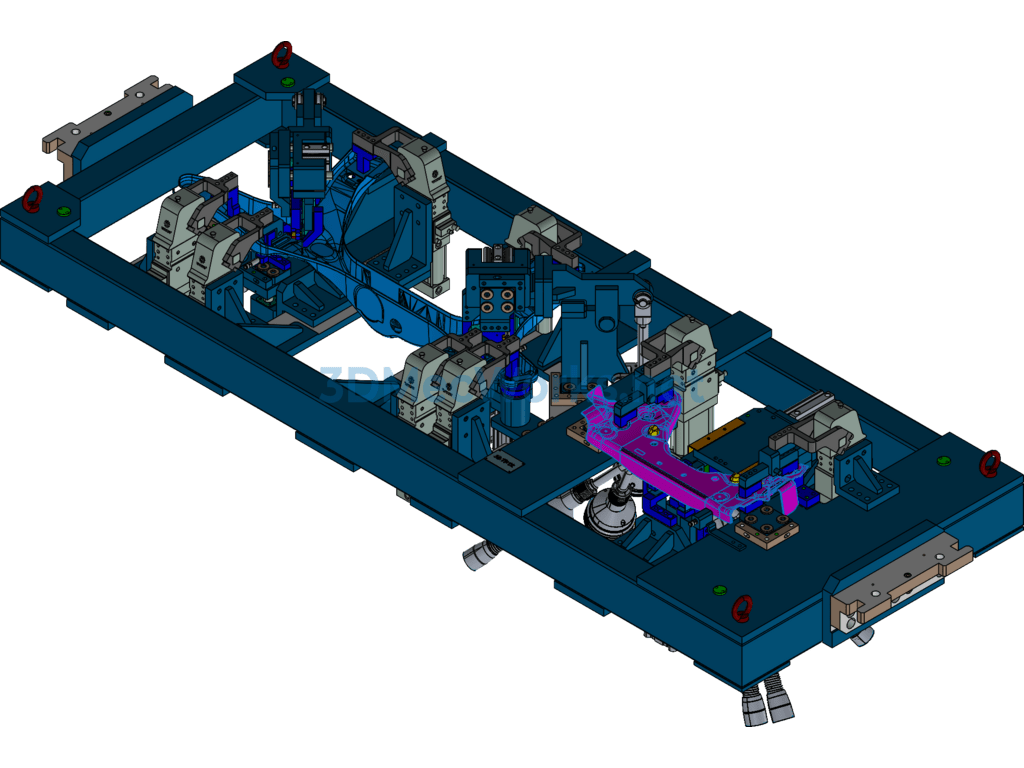

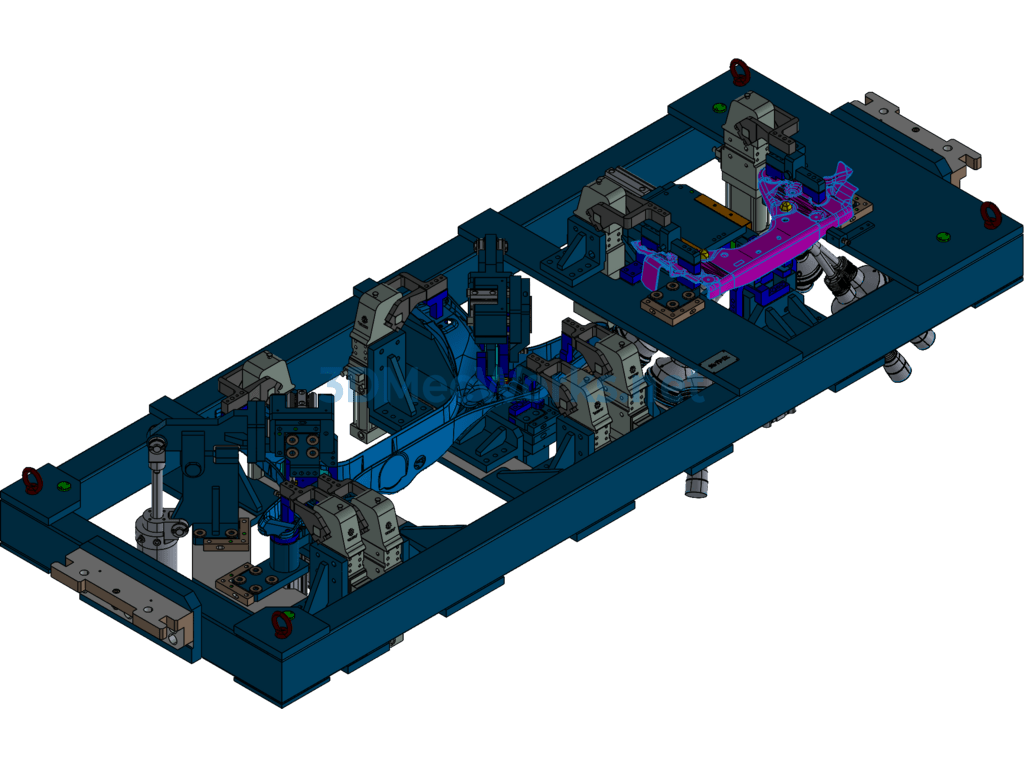

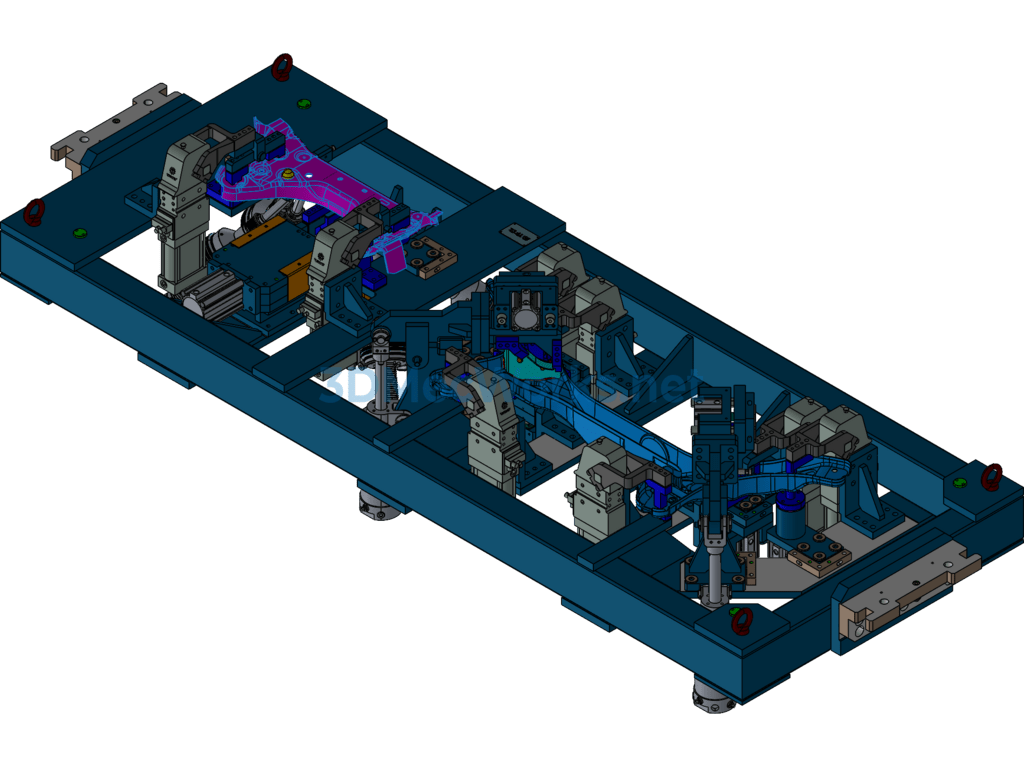

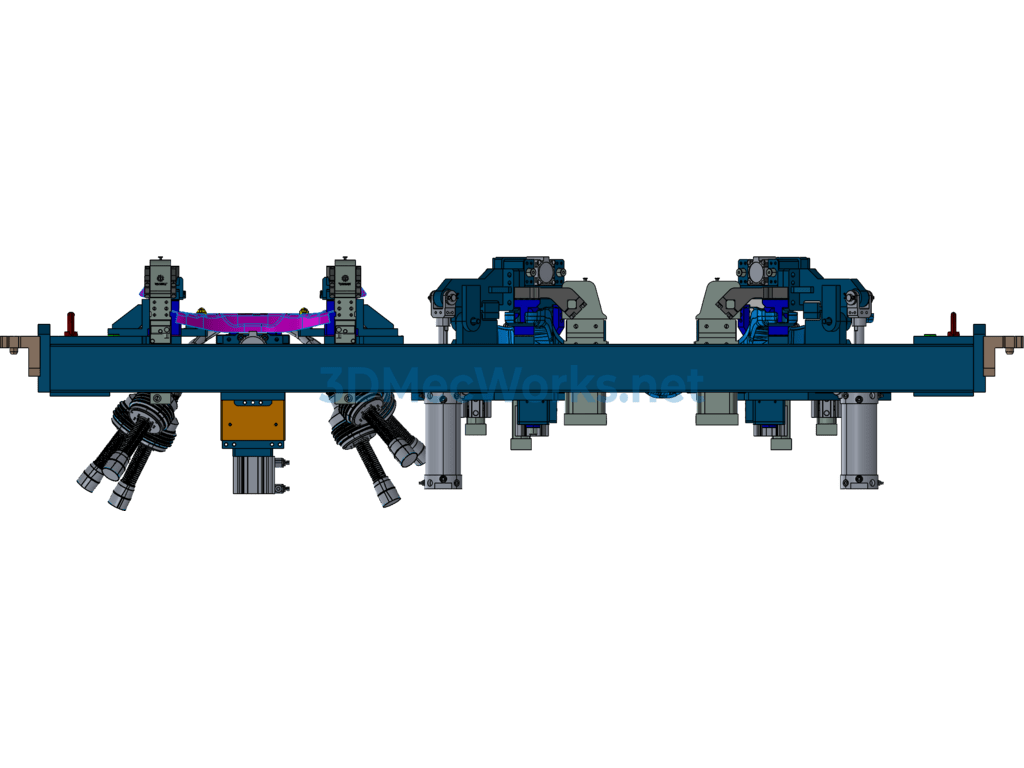

Upper Subframe Sheet Metal Single Piece Welding Fixture: This fixture is used for welding three sheet metal single pieces of the upper subframe. The primary focus of this fixture is the L-shaped small parts, which are positioned using dowel pins and a pressing mechanism to secure the individual welded products. The design layout of this fixture is quite aesthetically pleasing and can serve as a reference design for similar fixtures. The upload format is UG10.0, assembly.
