Ultrasonic Welding Machine (welded Bumper + Reversing Radar Bracket)

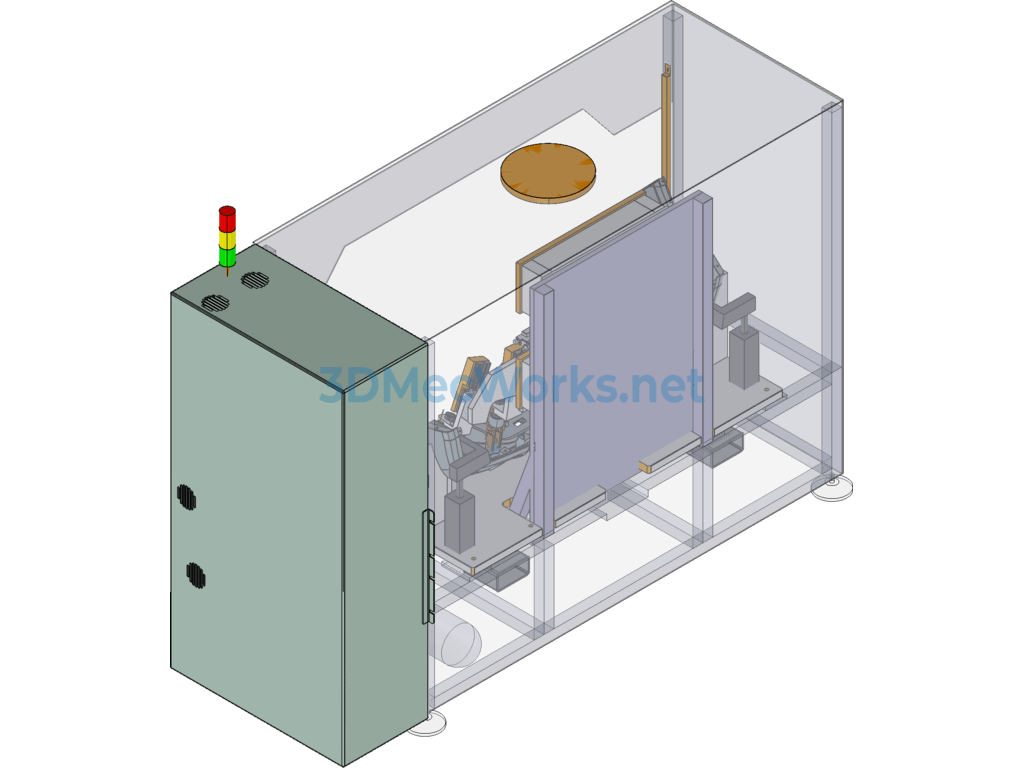

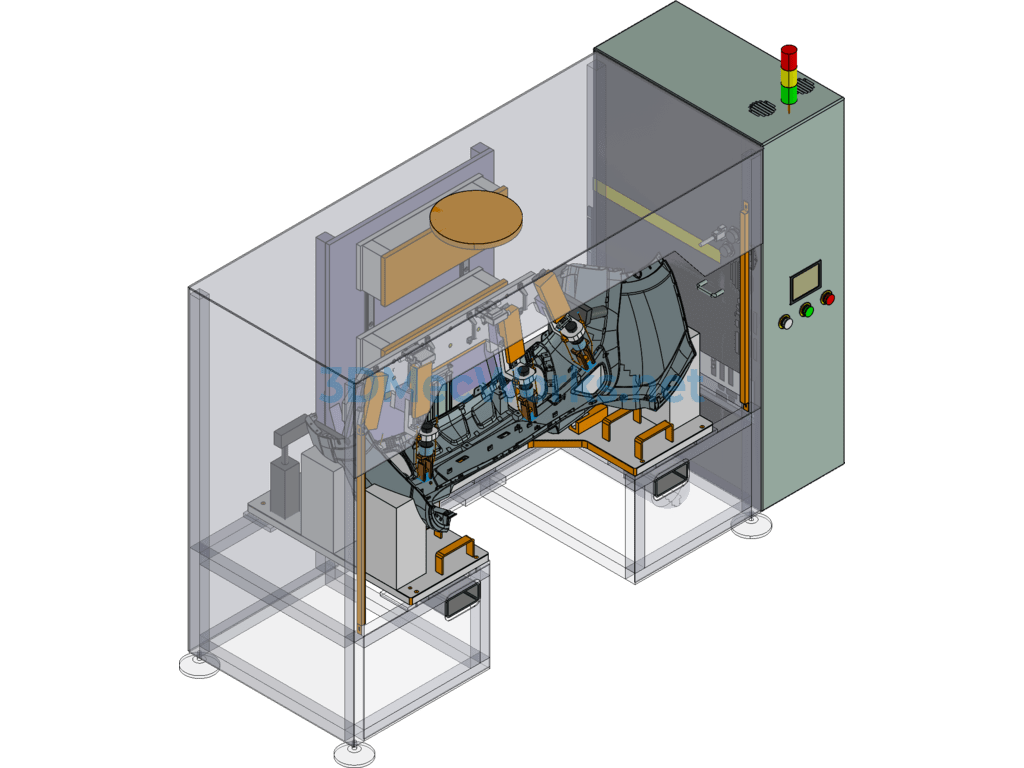

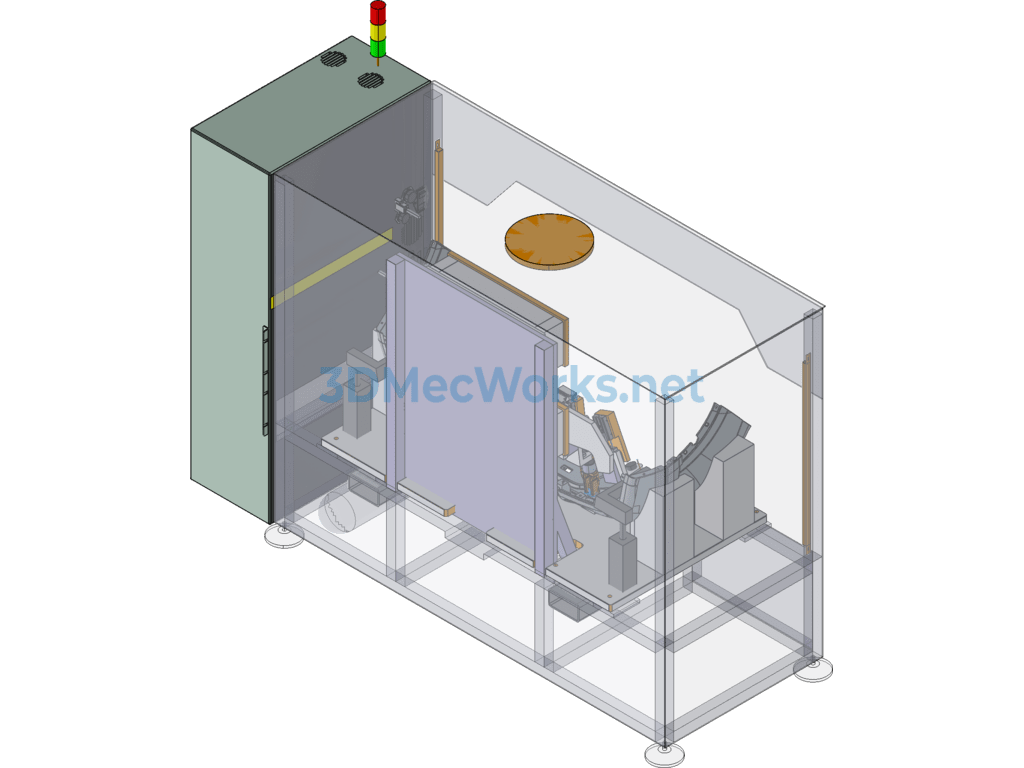

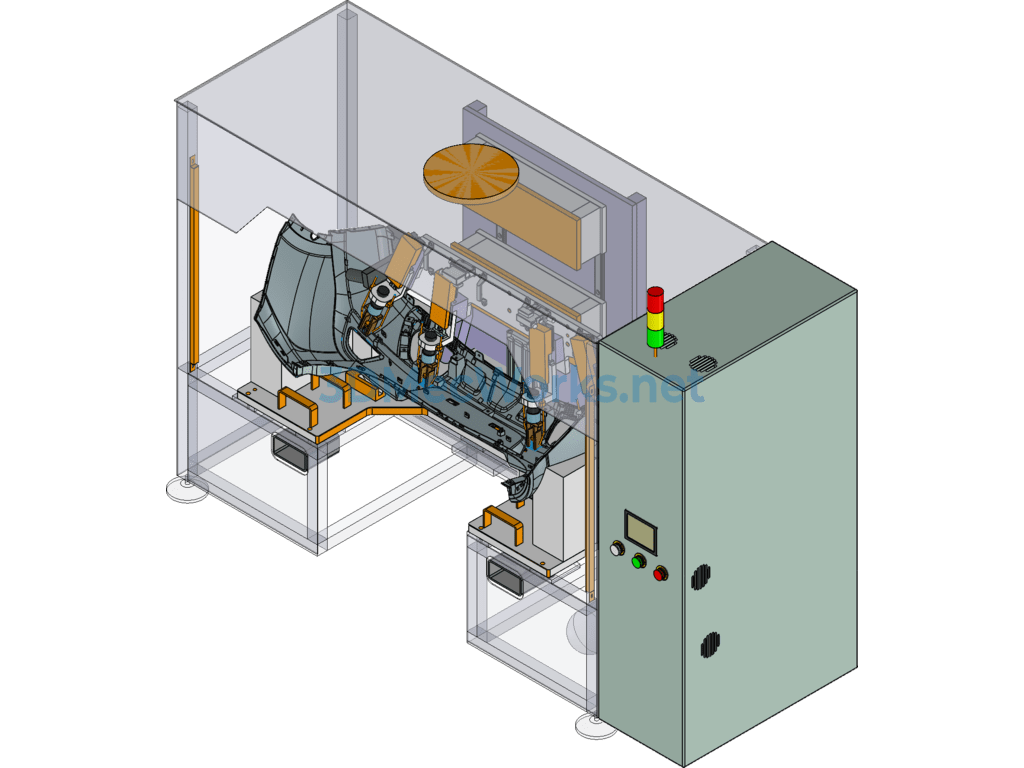

A 3D model of an ultrasonic welding machine, used for welding rear bumpers and reversing radar brackets, a non-standard automation device. After decompression, the model is about 100MB in size. STP document is shared. The design structure is reasonable, and the representation is realistic, offering great reference value. Welcome to download!

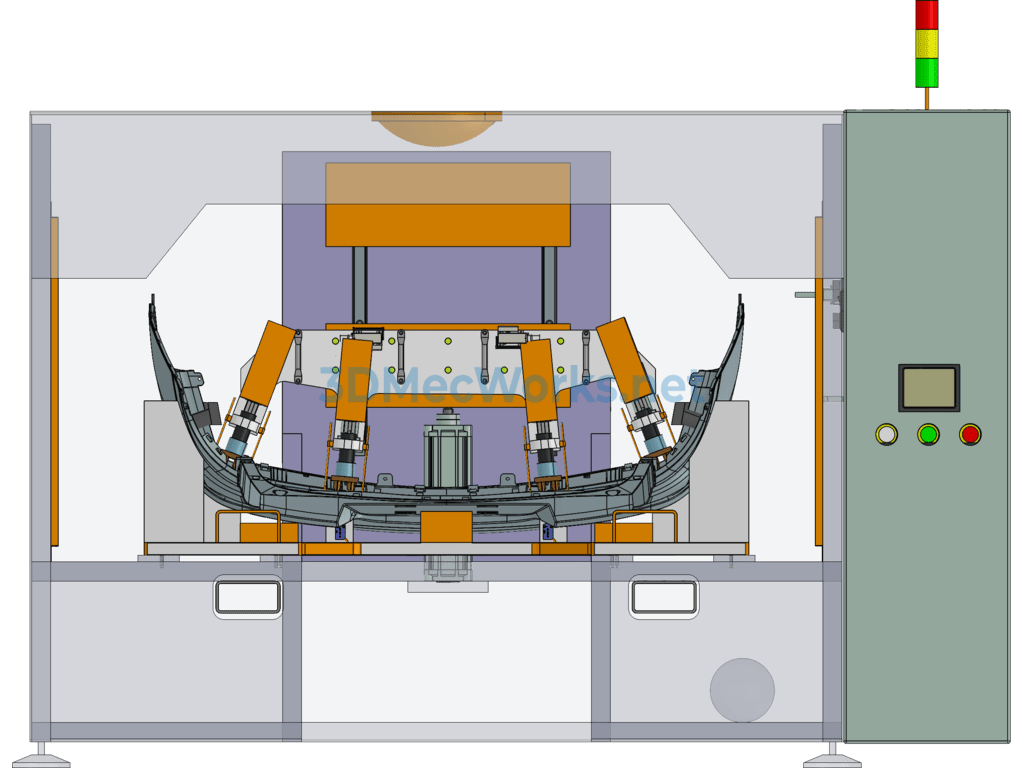

Equipment function: To achieve the welding of the radar bracket and the bumper body, using 1 set of ultrasonic generators and 4 sets of welding units to complete the welding of the entire part.
