Ultraclean Sewage Treatment Equipment - Creo.Parametric - Free Download

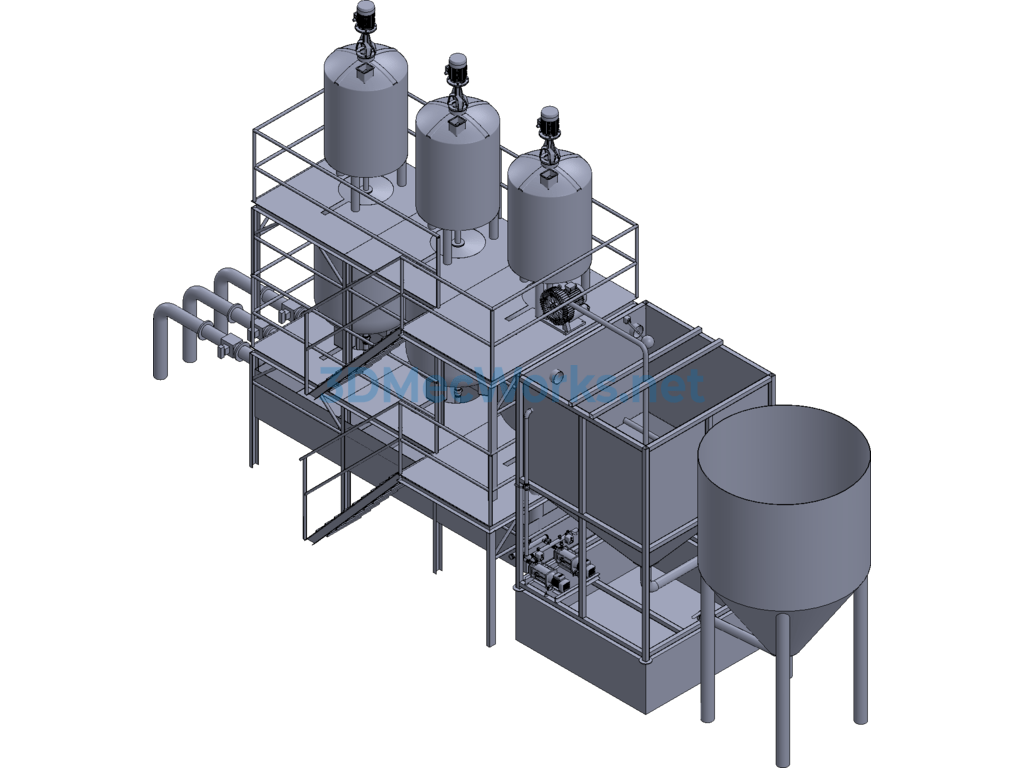

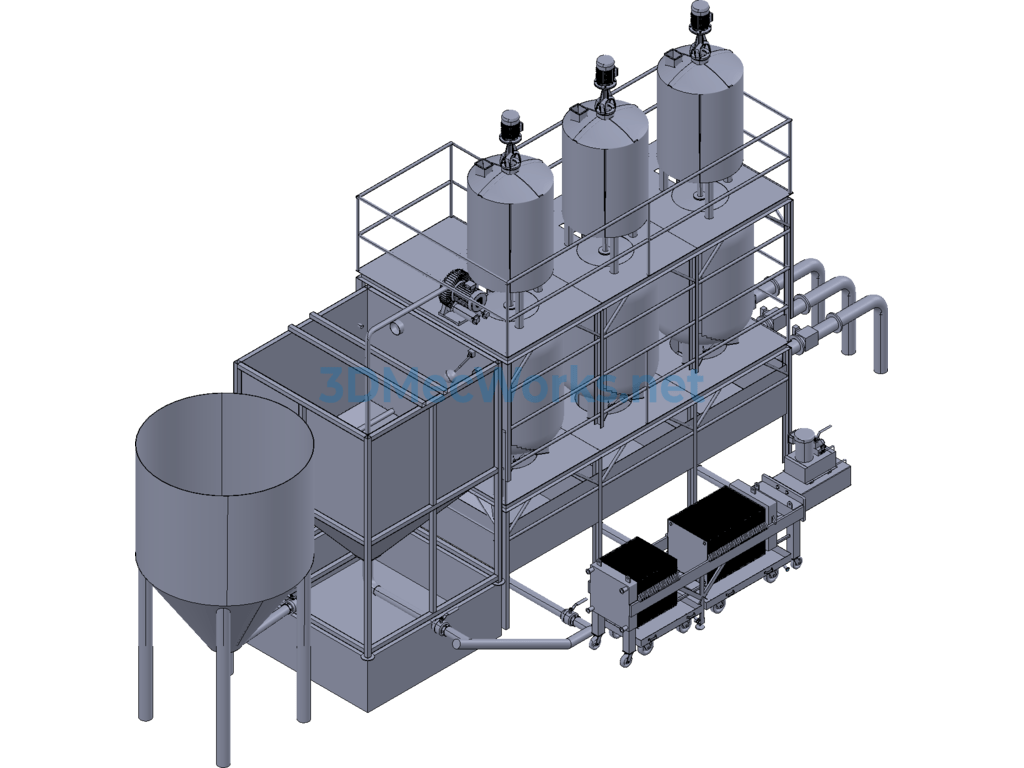

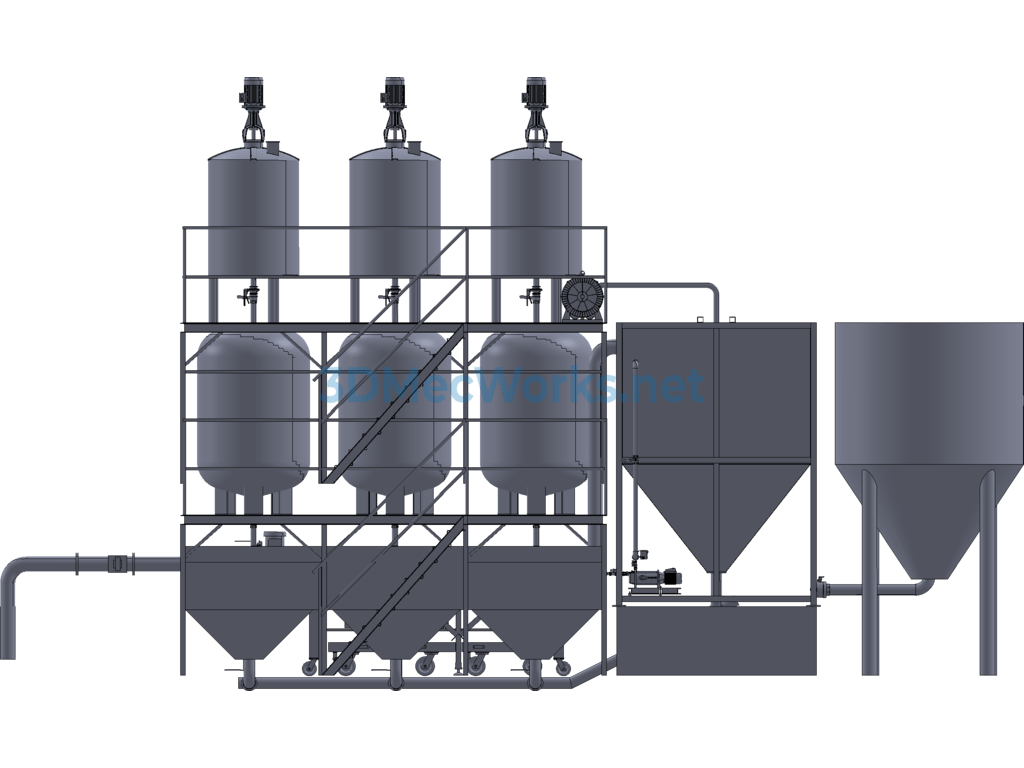

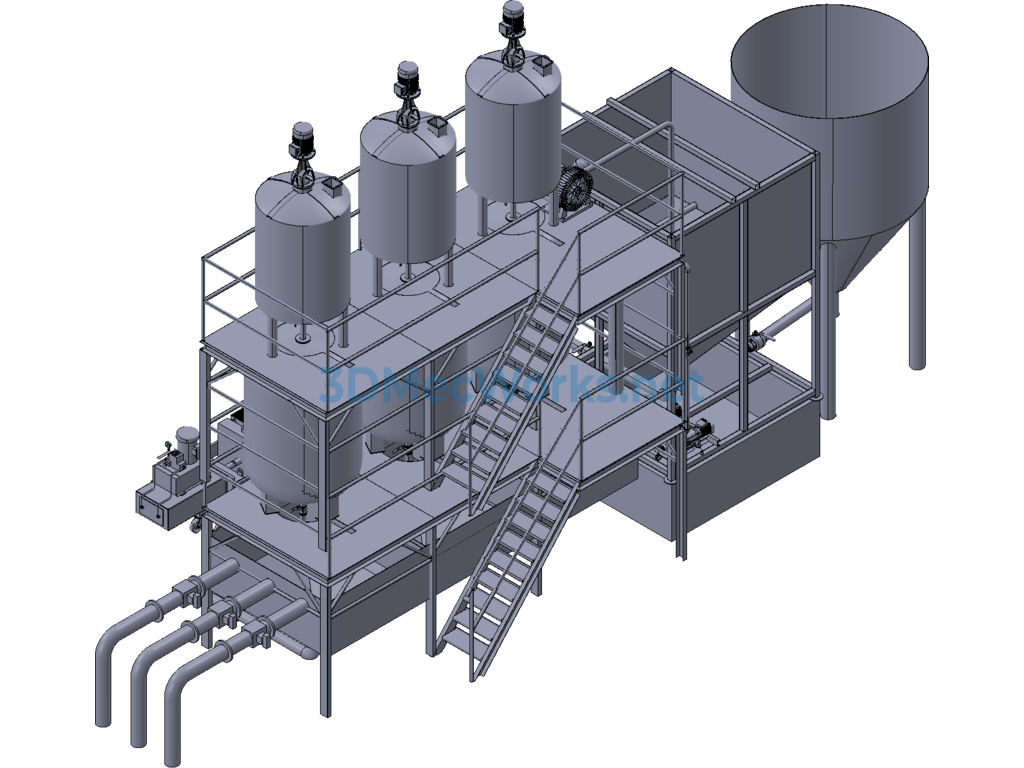

The ultra-clean wastewater treatment equipment processes the plant’s post-flue gas treatment wastewater through cycles of aeration, chemical dosing, and filter press filtration. The treated wastewater is then re-supplied to the wet electrostatic water source for recycling. Main components include the sewage pool, aeration tank, aeration pipe, sewage pump, alkaline solution tank, filter press, mixing tank, dosing tank, sedimentation tank, steel structural frame, pipes, and accessories.
