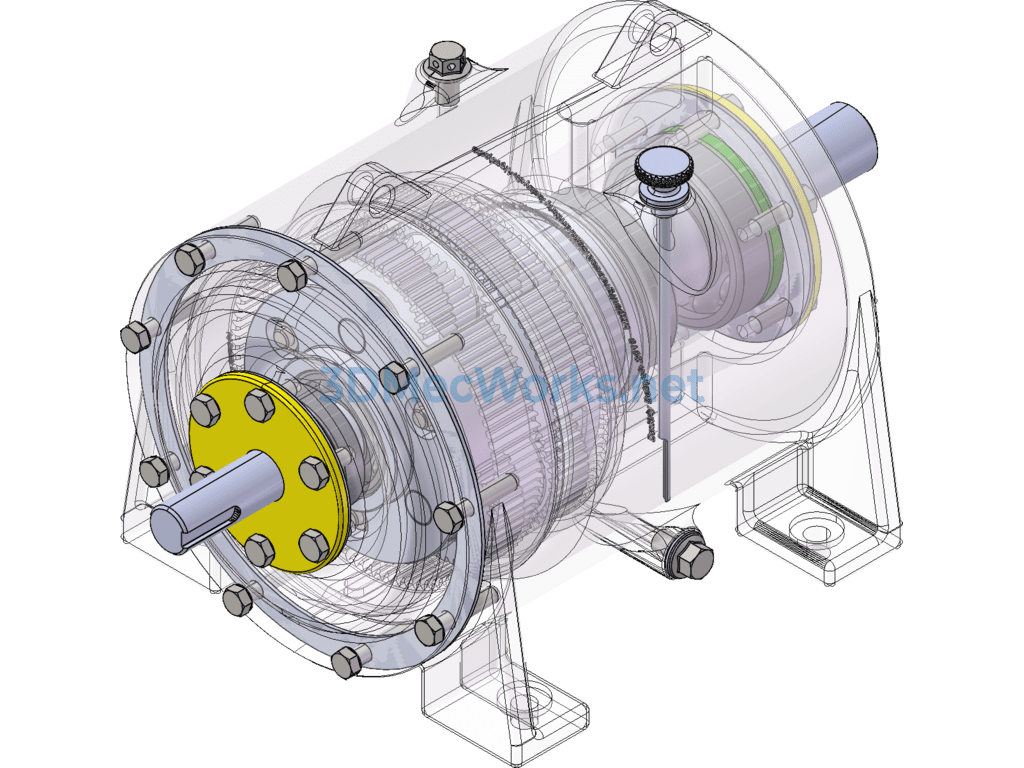

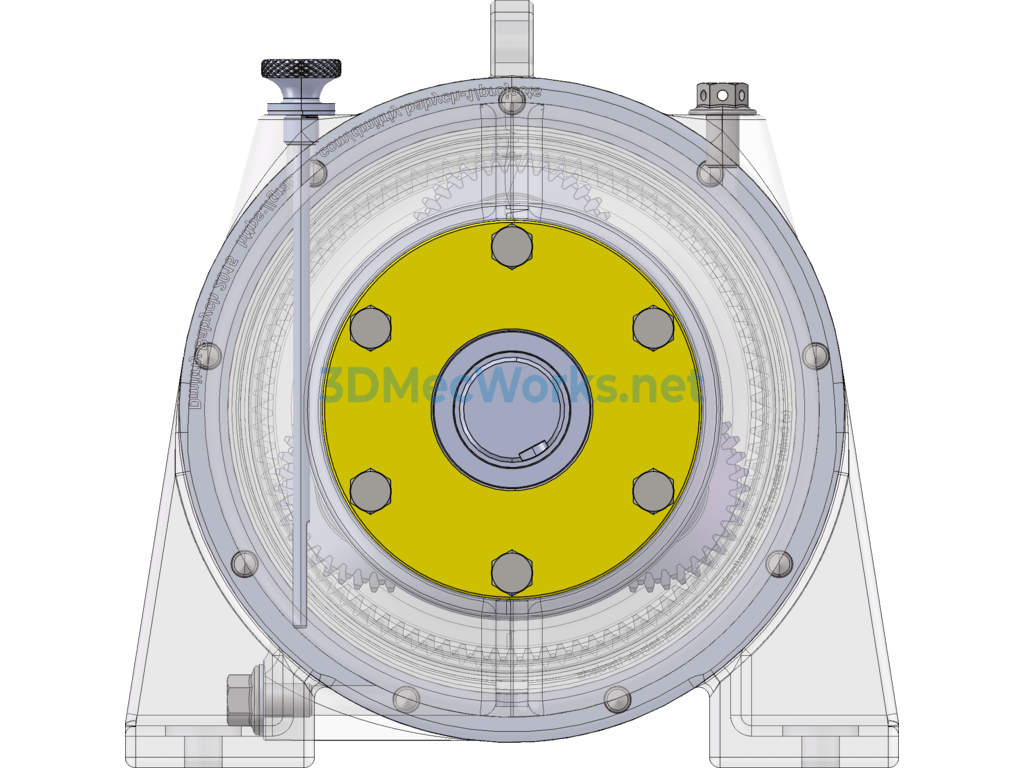

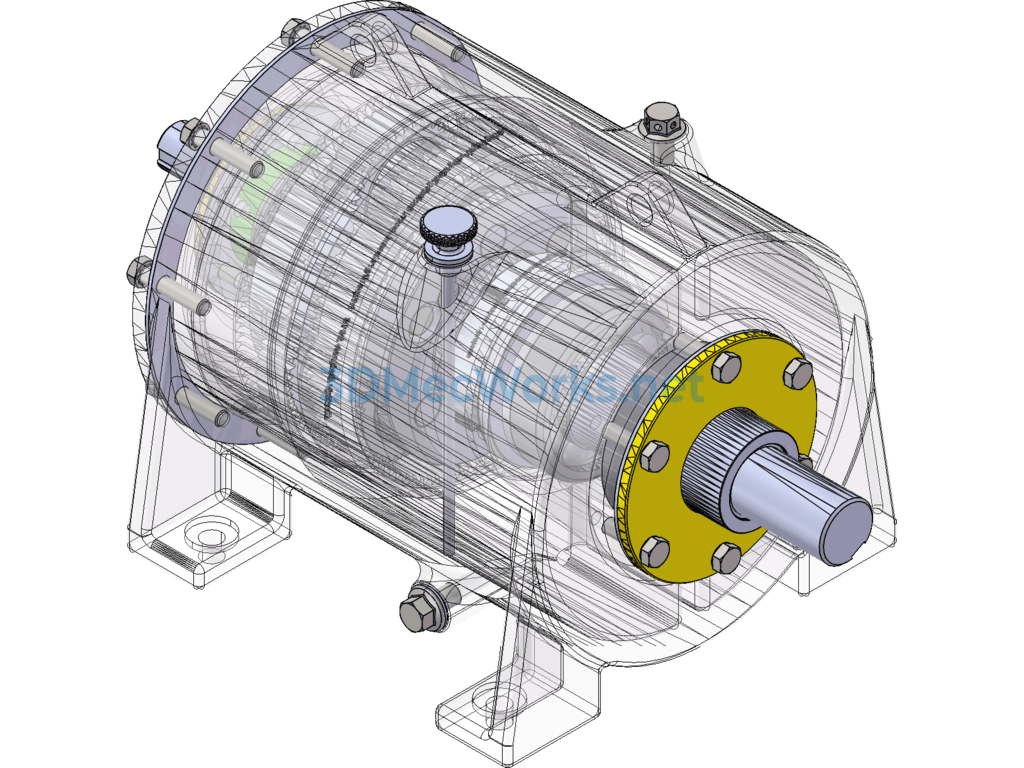

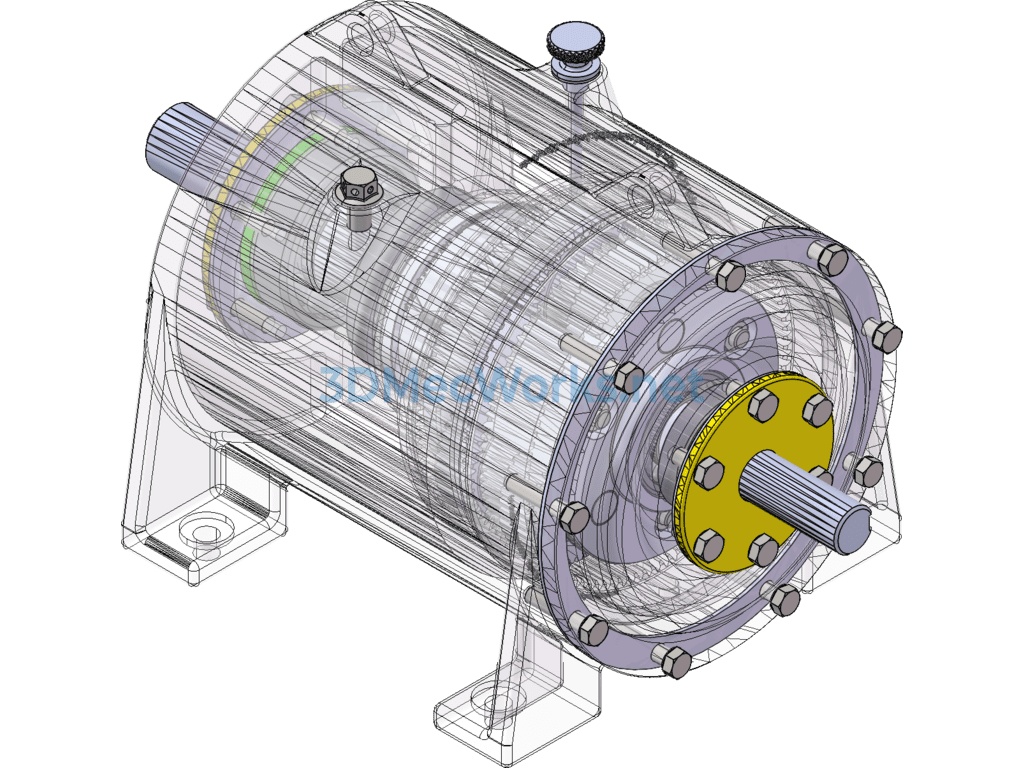

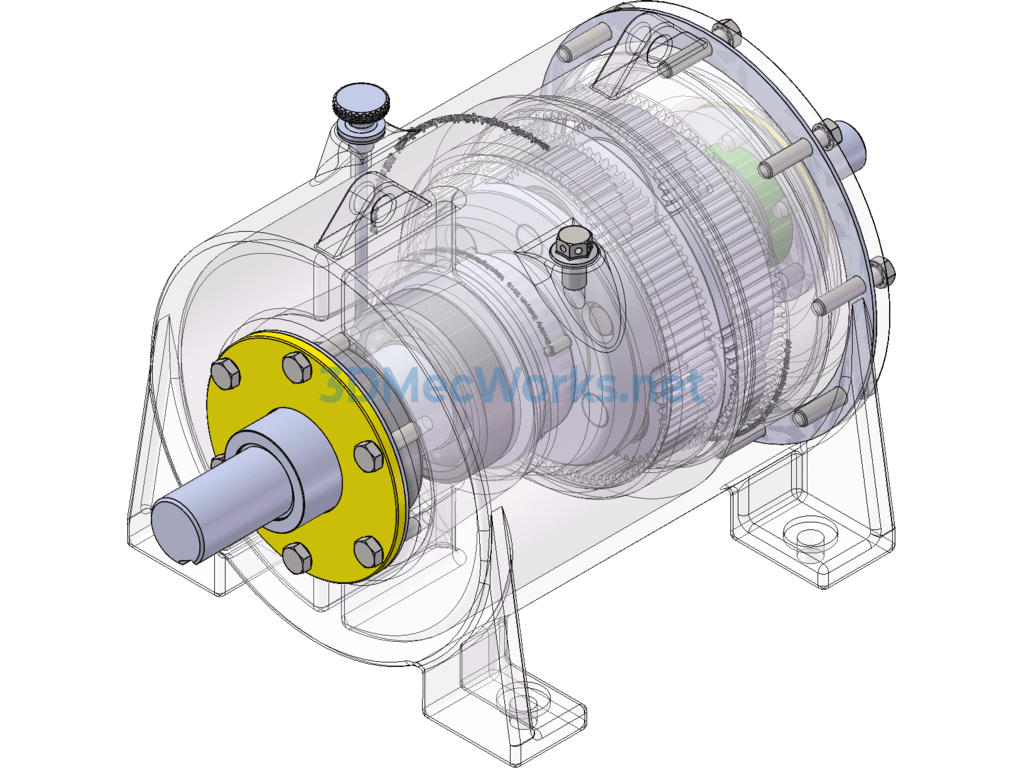

A two-stage planetary gearbox 3D model available for sharing. SW design source files are available for download.
The maximum torque of this two-stage planetary gearbox can reach 2400 Nm, with 13 standard gears and 8 standard gear ratios. The maximum reduction ratio can reach 4.5:1, and the increase ratio can reach 1:3.
Specification: Two-Stage Planetary Gearbox (sw Design)
|
