Two-Axis Rotary Table Diagram

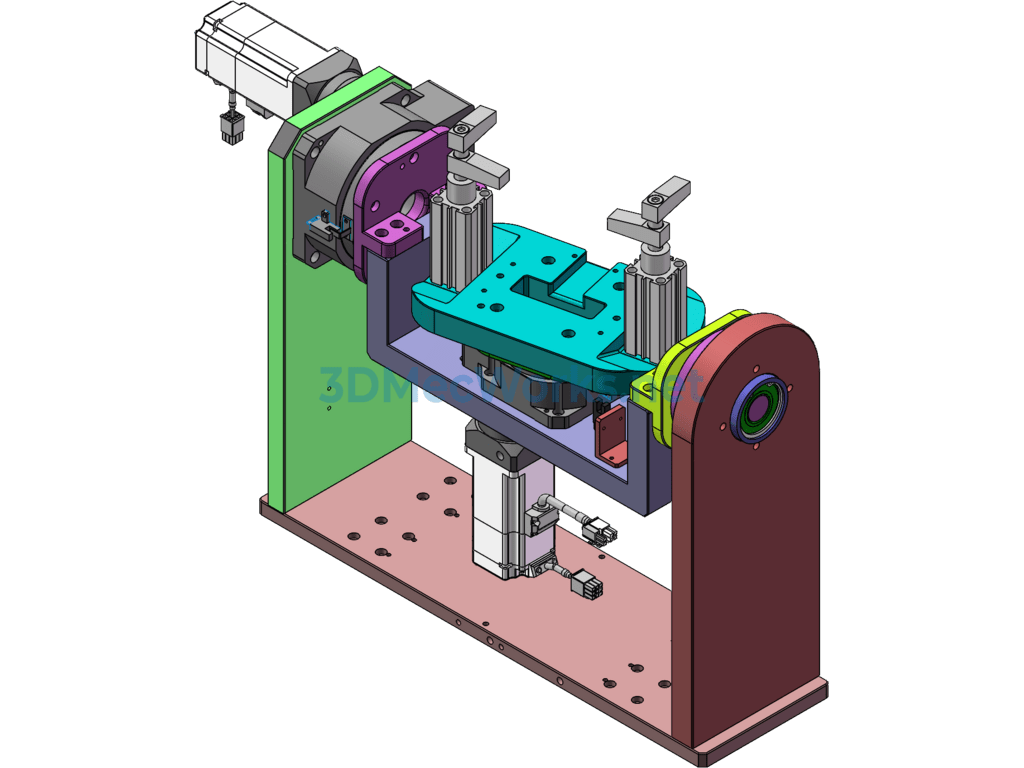

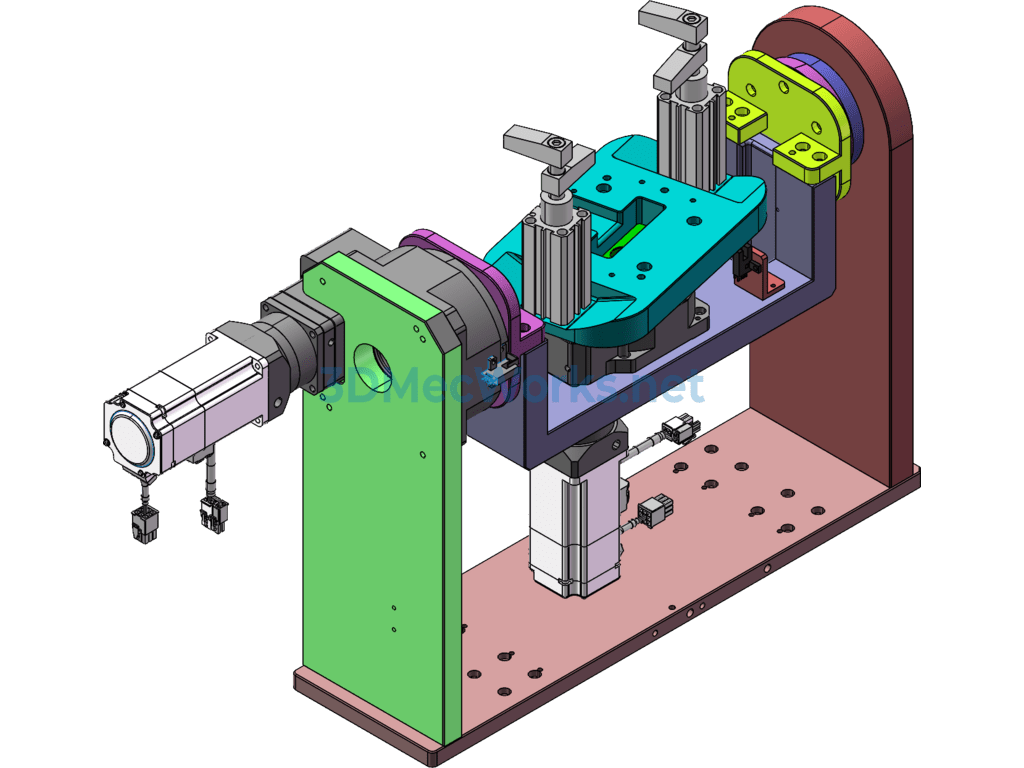

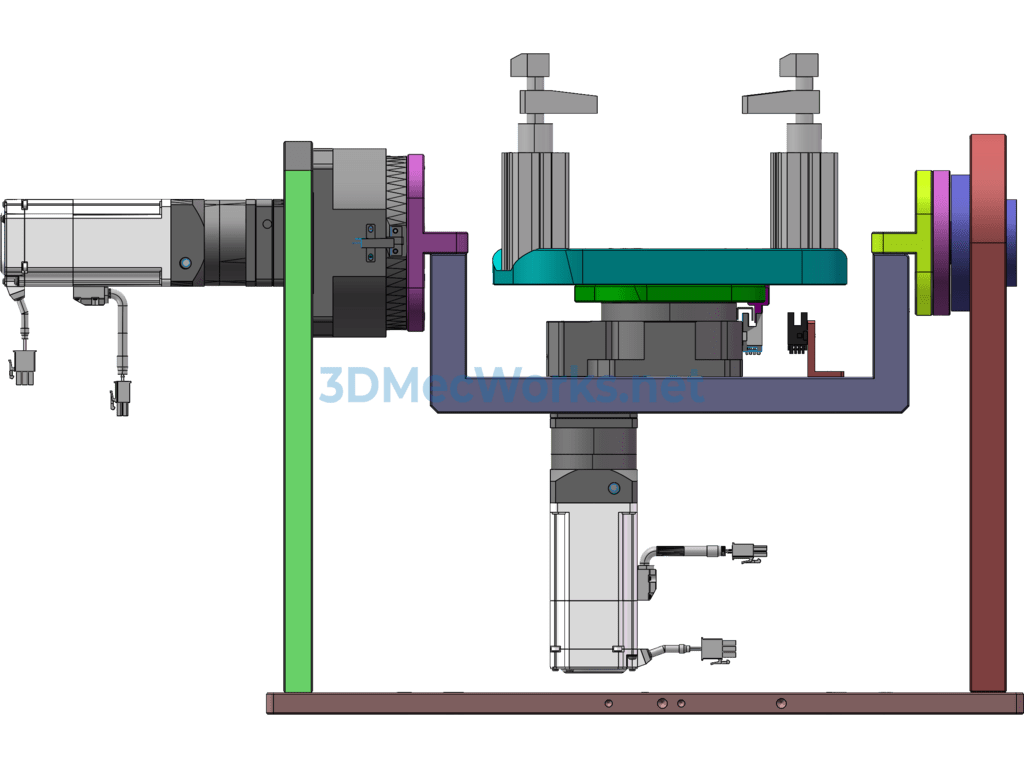

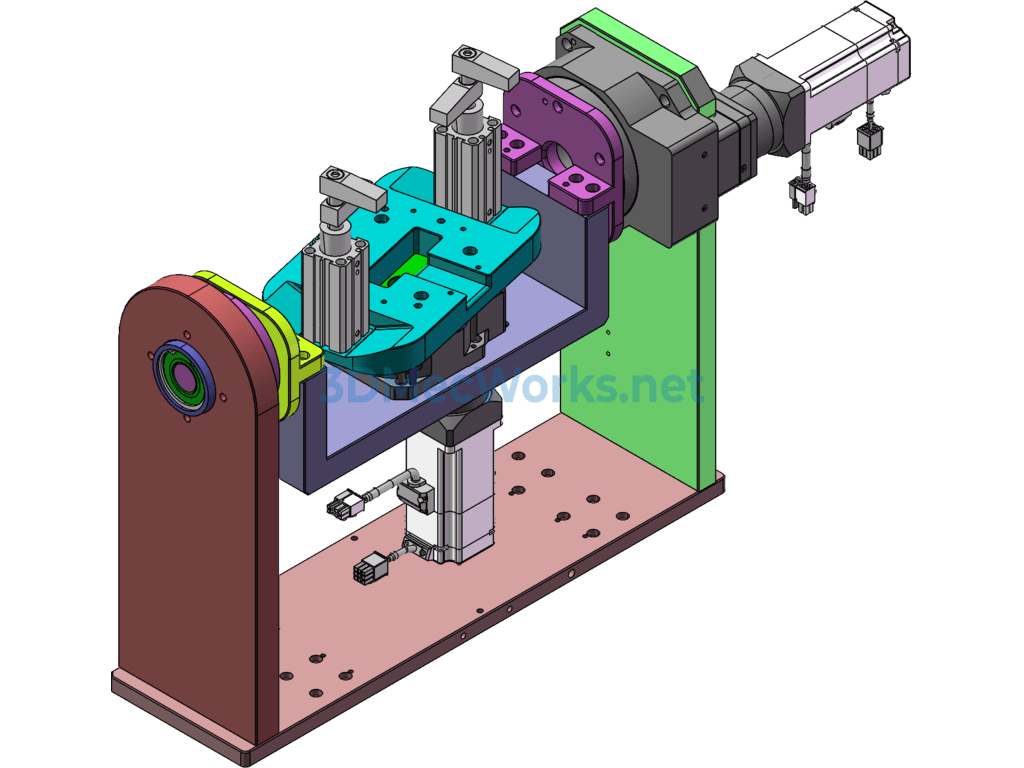

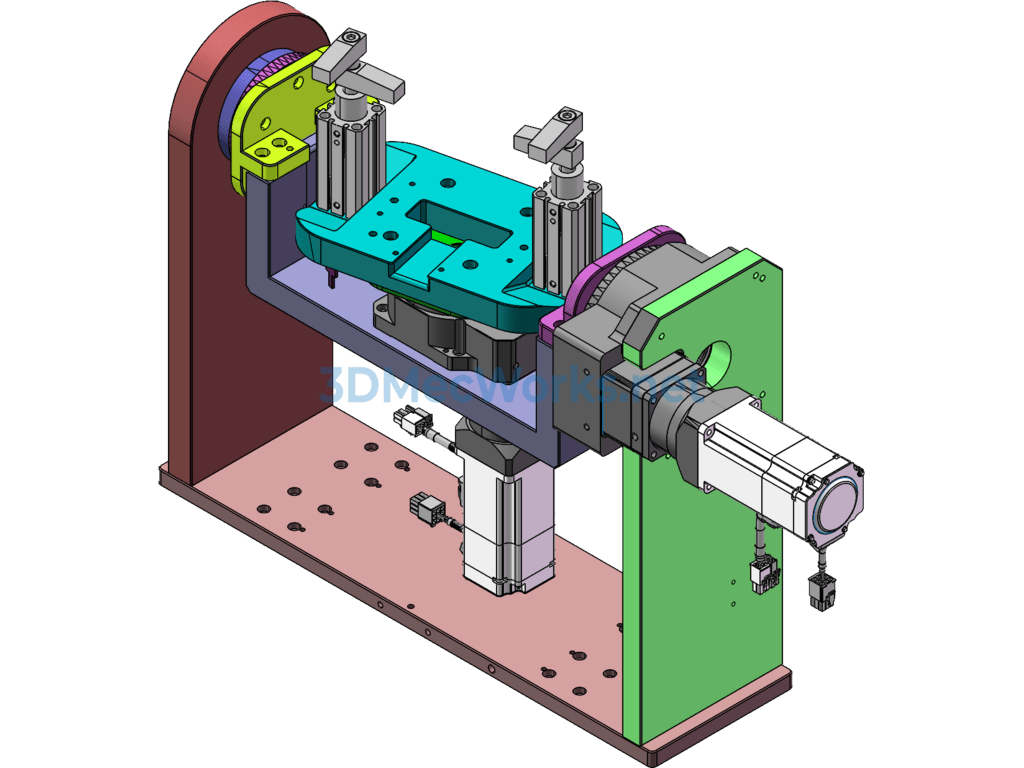

A two-axis rotary table design model for reference and study. The first rotation axis is for planar rotation, and the second rotation axis is for vertical rotation. Both rotation axes are driven by stepper motors, making it suitable for small rotary tables used in dispensing lasers. The drawings are in SW format and include STEP/X_T formats.
Specification: Two-Axis Rotary Table Diagram
|
