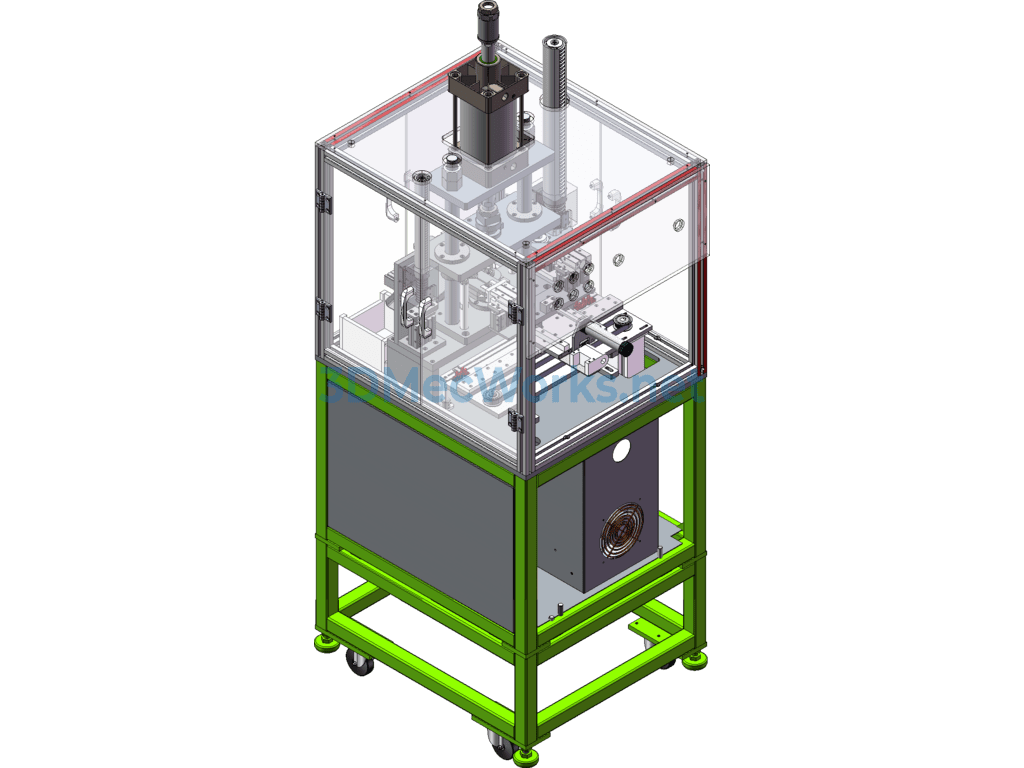

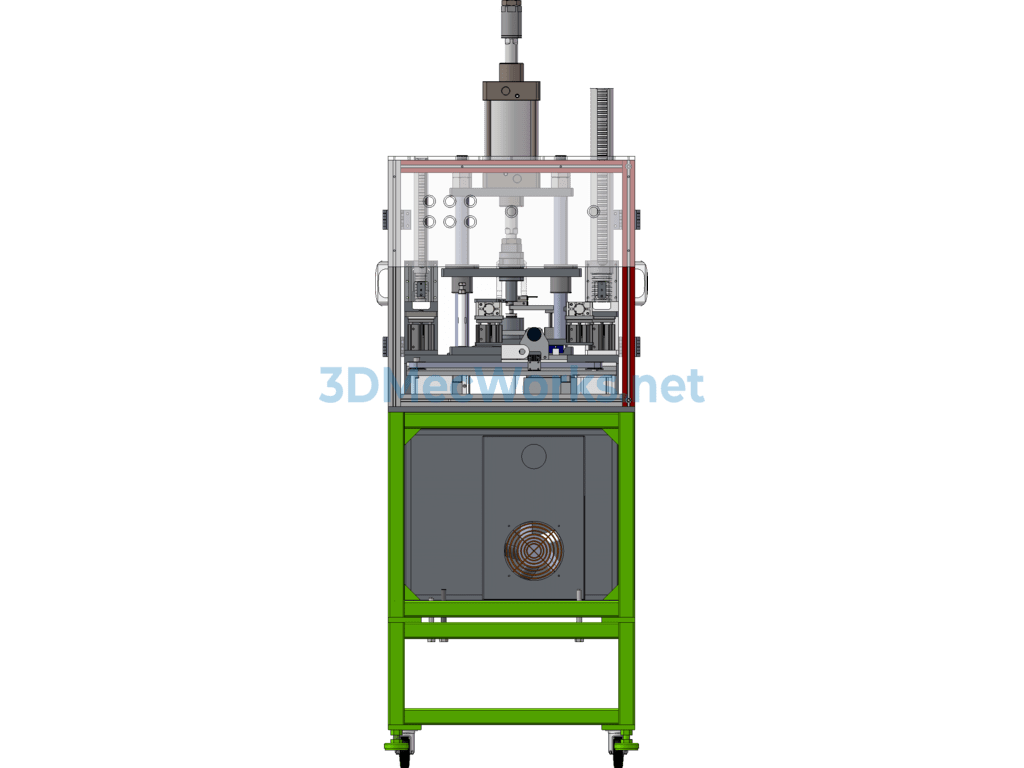

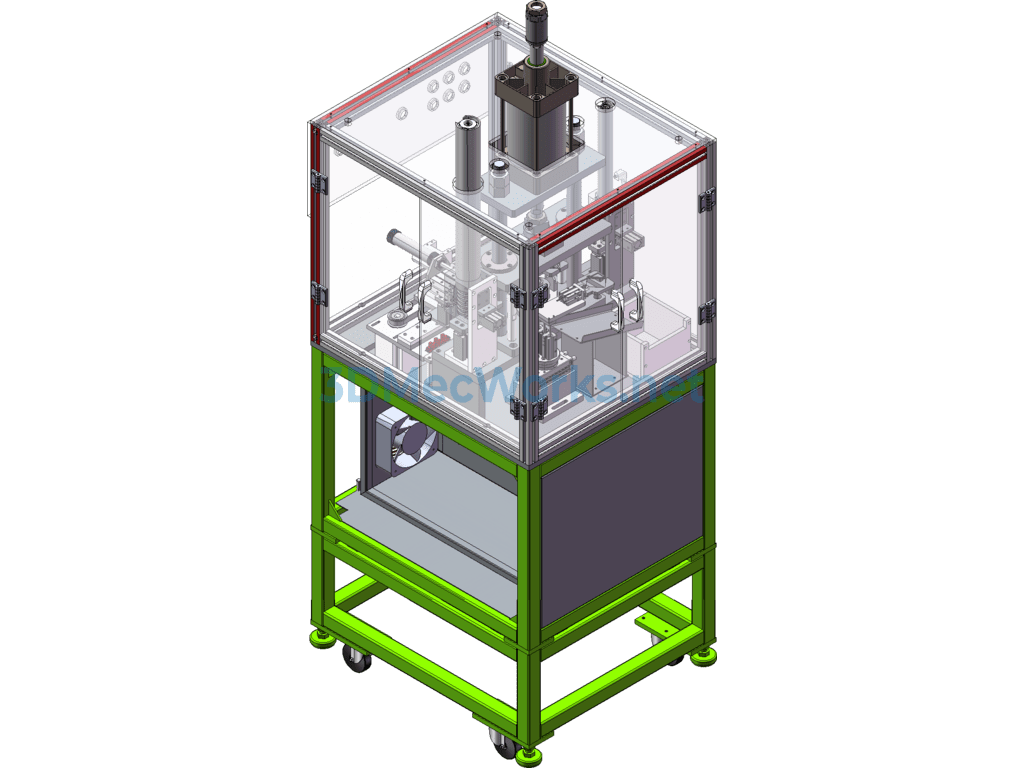

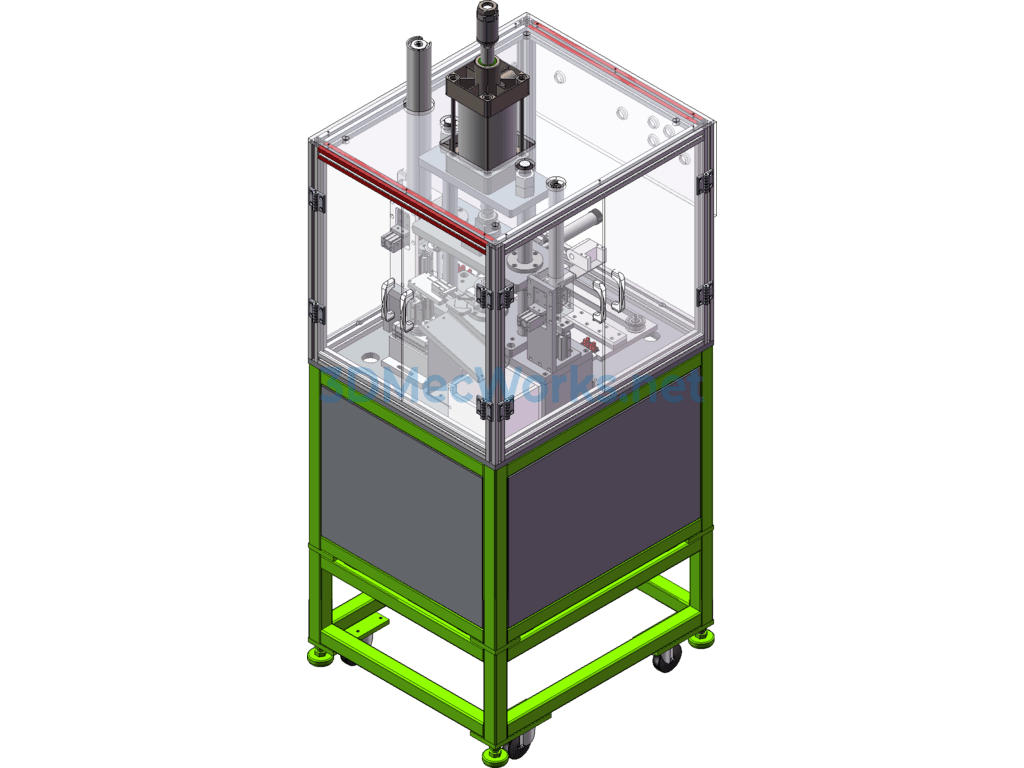

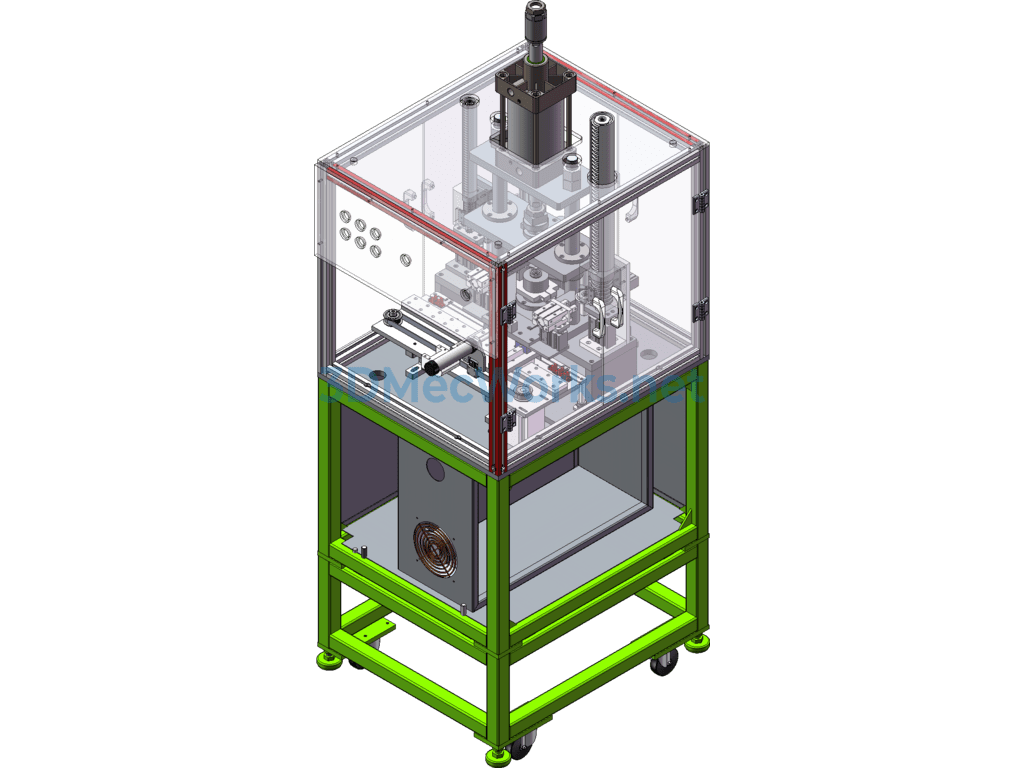

Bearing press equipment bearing assembly machine TTI non-standard fully automatic bearing press machine (including BOM list) bearing hardware automatic assembly machine. This equipment assembles the bearing and hardware cover together, belonging to the assembly type of automated machines. The main working principle of the equipment is, left and right side feeding, middle processing, and rear discharging station. First, the left bearing feeding position stacks the bearings with a distribution cylinder at the bottom to clamp them away, and the right side operates similarly for hardware products that need to be assembled with bearings. The front picking manipulator first picks the bearings, placing them into the middle fixture, then proceeds to the right to pick the hardware parts. The two parts are then placed together and pressed by a large cylinder in the middle. After each assembly, the rear picking cylinder removes the finished product. This method of operation meets the needs while also being the simplest method. The design idea is very good, so the complete drawings are uploaded for everyone to learn from. If interested, feel free to visit the homepage to download more original quality drawings. Thank you.
