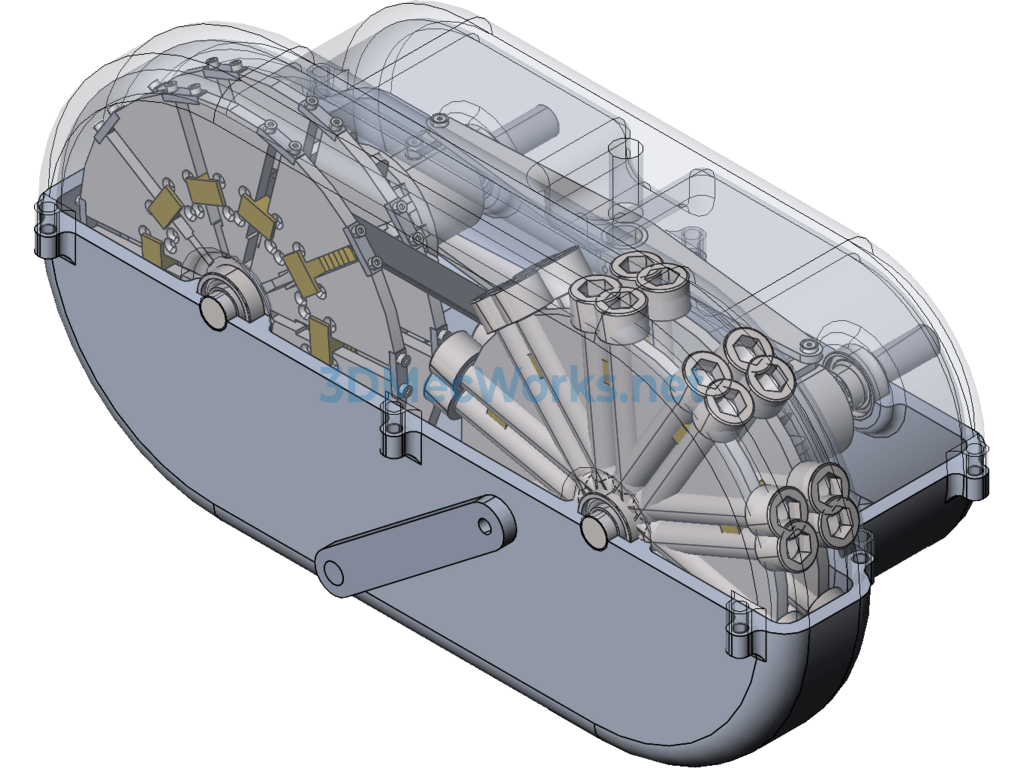

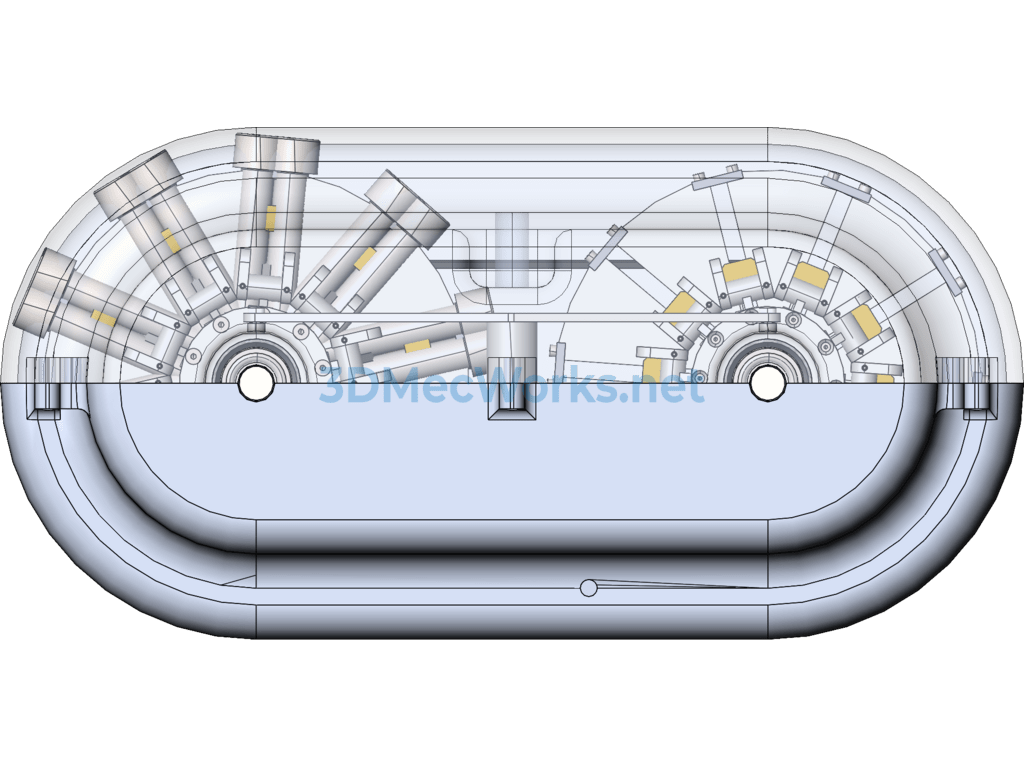

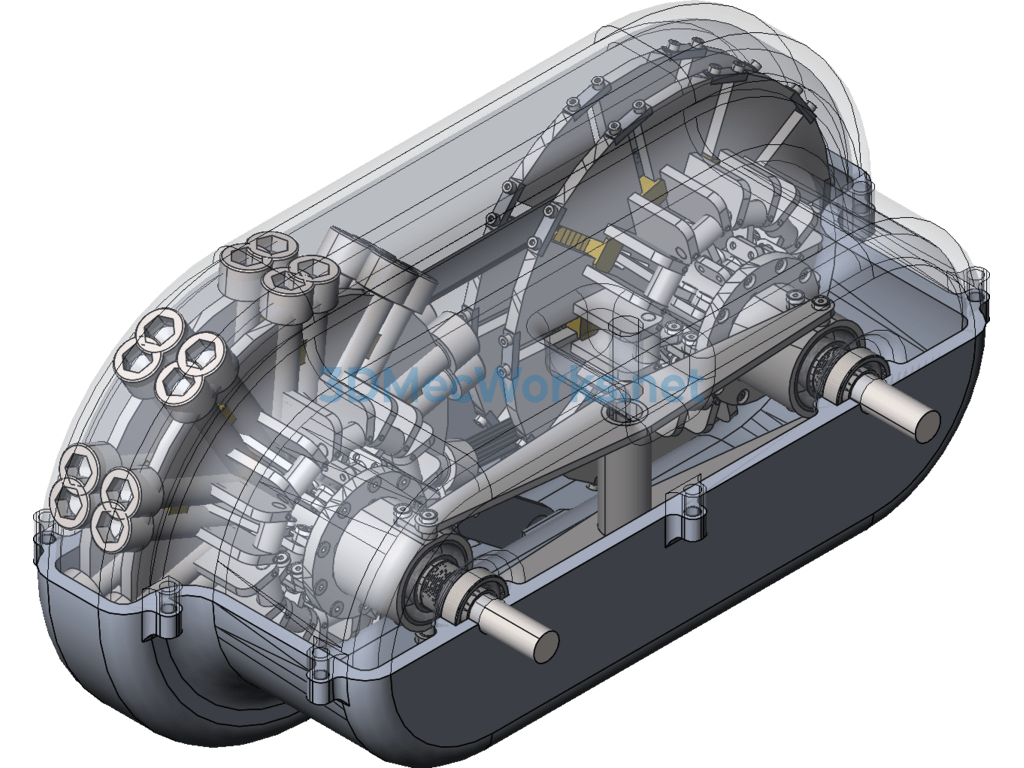

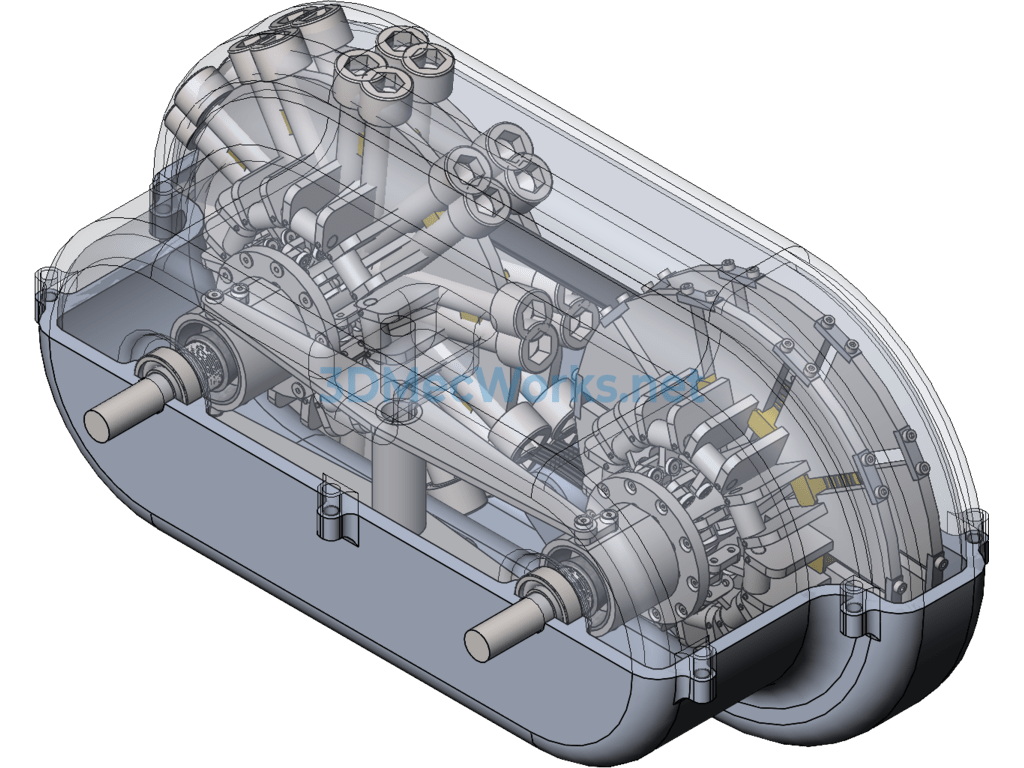

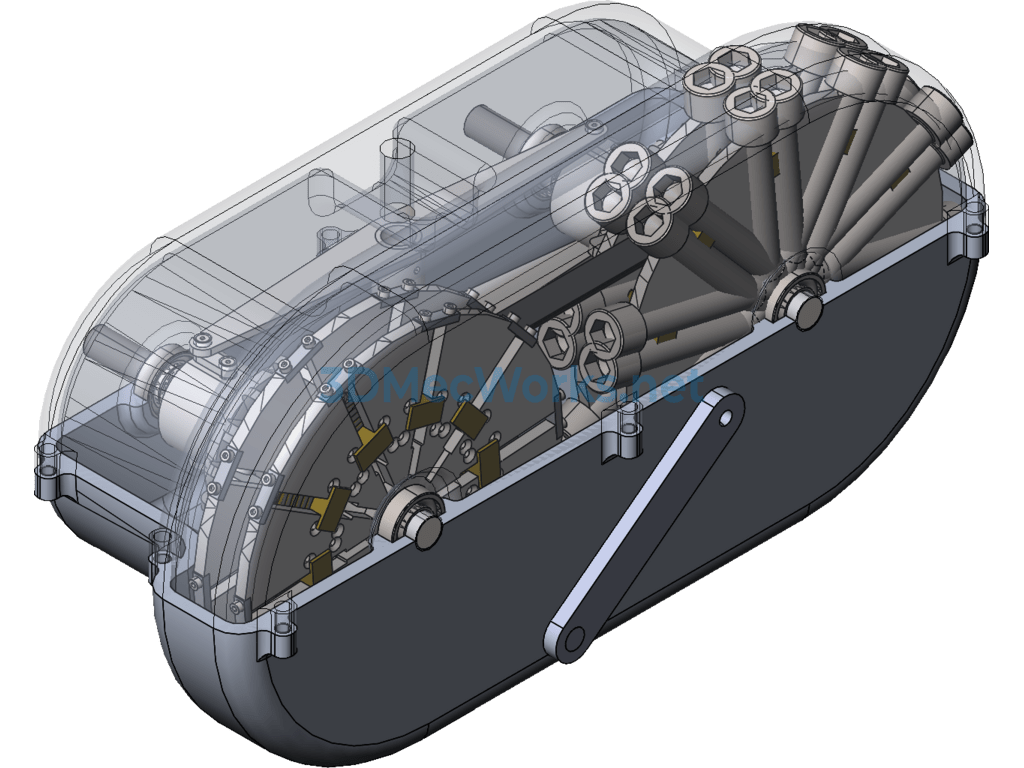

3D Model of Transmission Device: SW Design Source Files Sharing.

The device’s first driving gear and second driving gear are set on the main shaft, with the two gears connected to the main shaft via splines. Three driven gears are installed on the drive shaft. The first driven gear is fixedly connected to the second driven gear through the first connecting ring. The second driven gear and the third driven gear are fixedly connected through the second connecting ring. The external part of the three driven gears is housed in a gear chamber. The right side of the first driven gear is positioned on the gear chamber through the right thrust bearing, while the left side of the third driven gear is positioned on the gear chamber through the left thrust bearing.
