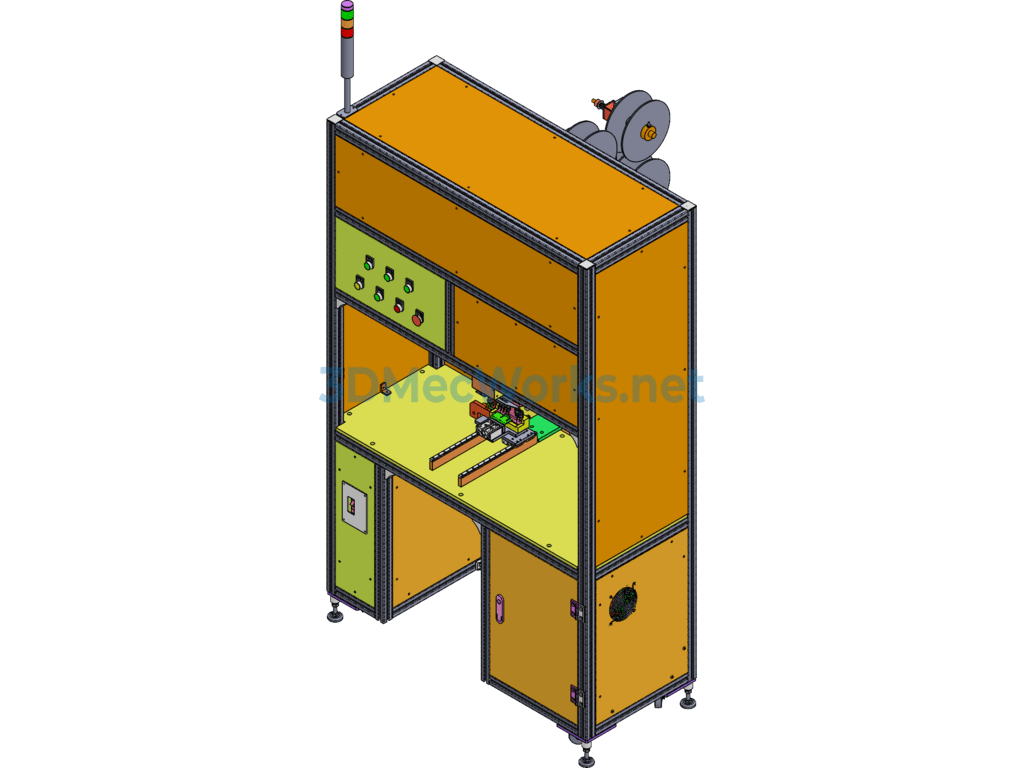

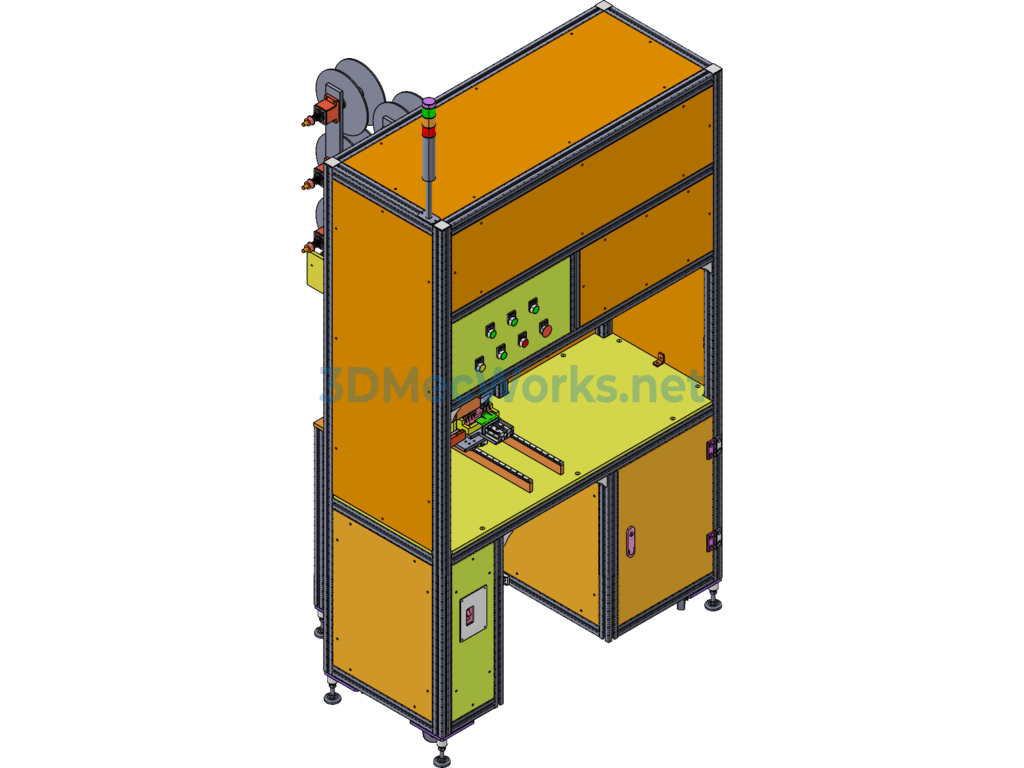

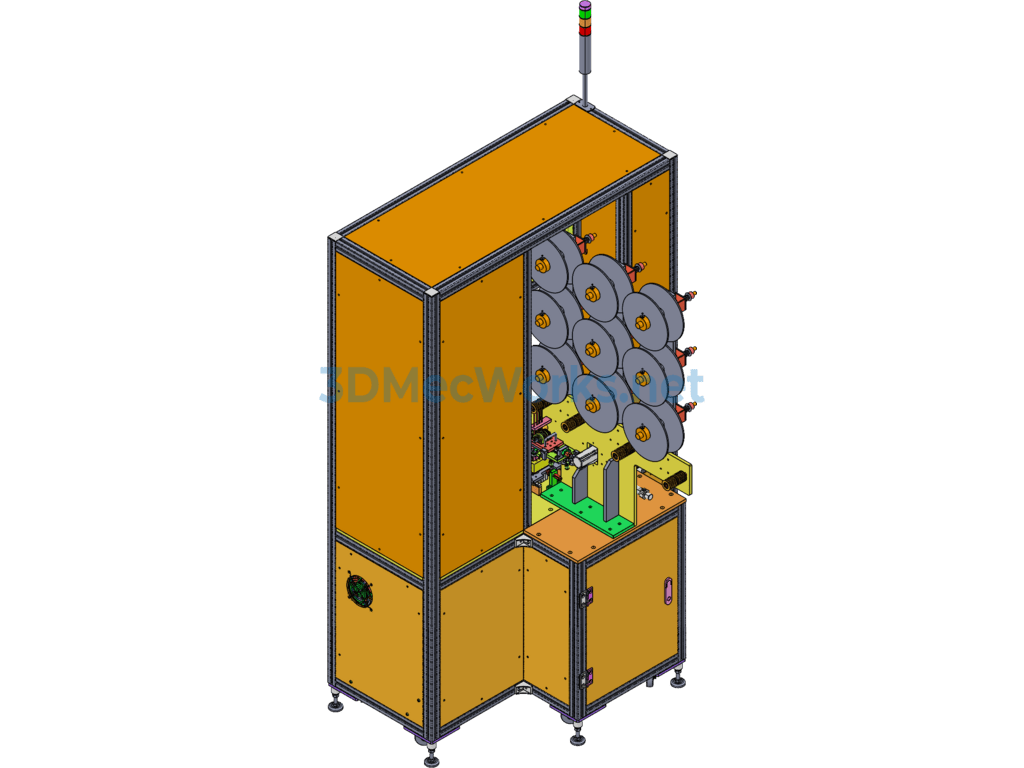

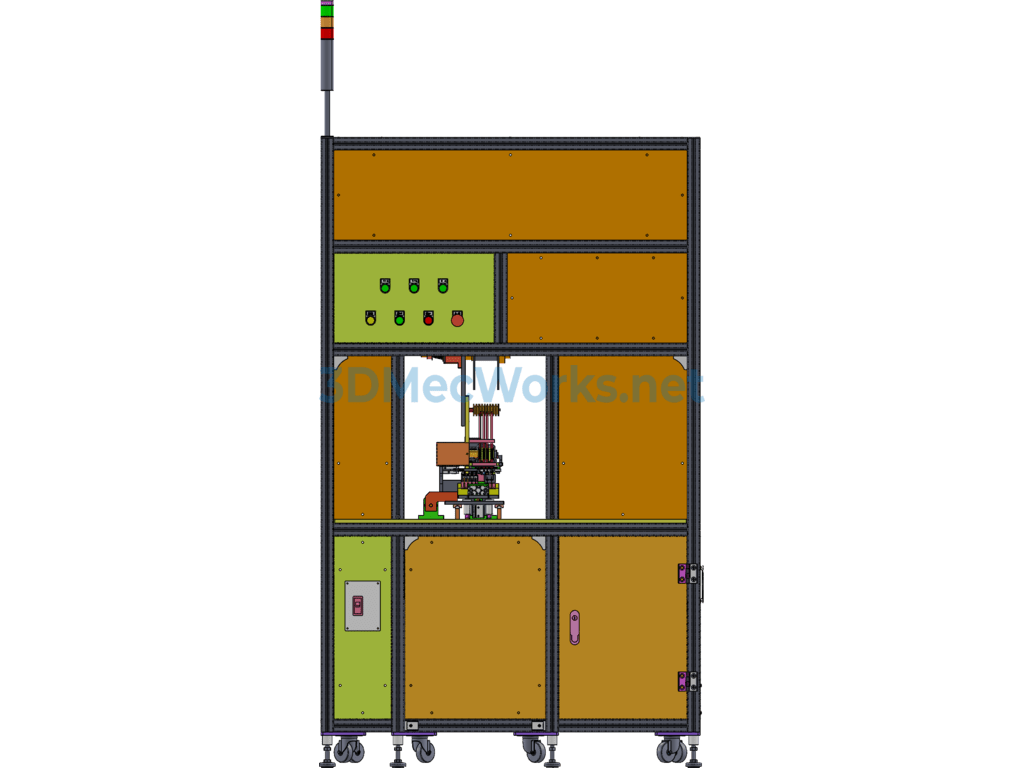

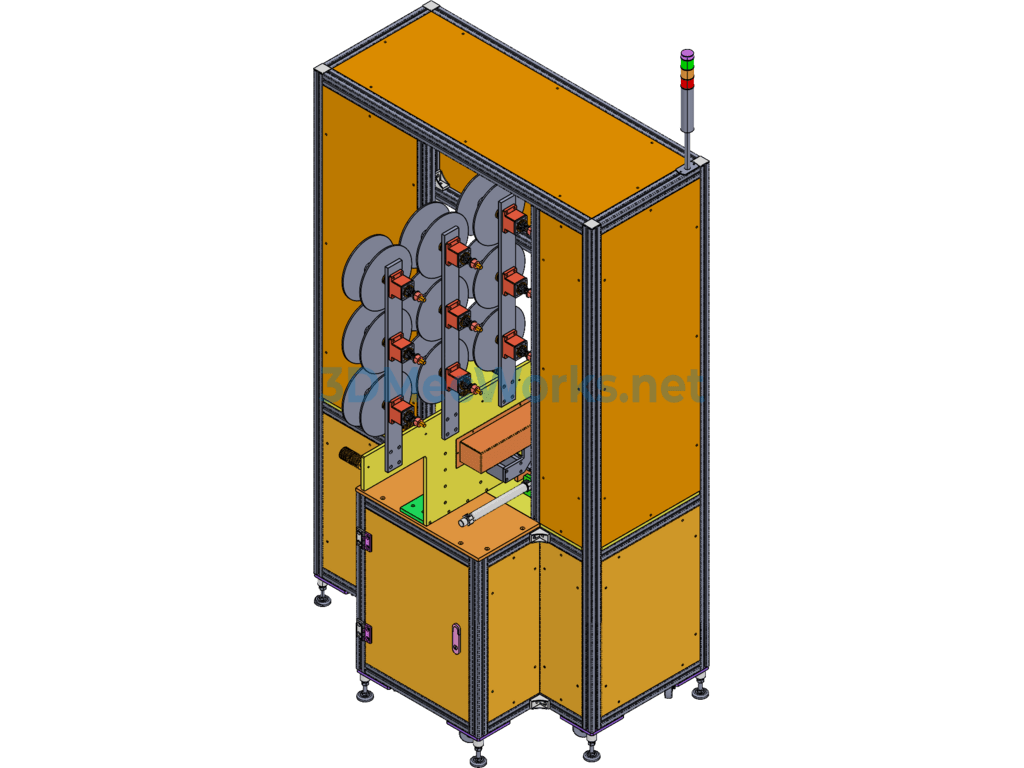

Transistor Fully Automatic Tubing Assembly Machine - ProE Creo.Parametric - Free Download

This machine is for inserting sleeves into transistors, with automatic feeding, automatic insertion, automatic cutting, and automatic discharge after completion.
This machine uses an AC220V power supply and filtered compressed air as the air source, with a pressure of 0.5-0.7Mpa.

A. Production requirement (10-13) per minute.

B. Defect rate < 2‰. C. Functional requirements (automatic feeding, automatic sleeve insertion, automatic cutting.)  The machine is controlled by a programmable controller.  The frame is connected with aluminum profiles, ensuring strong, reliable, and stable performance.  The sleeve positioning uses a servo motor for positioning.  The sleeve is automatically cut with a cylinder.  All pneumatic components are products from Taiwan Airtac.
