TLKM Electronic Hardware Plug Connector Terminal Assembly Machine

0
Sold by
@ MrBlue
[mecworks-btn]

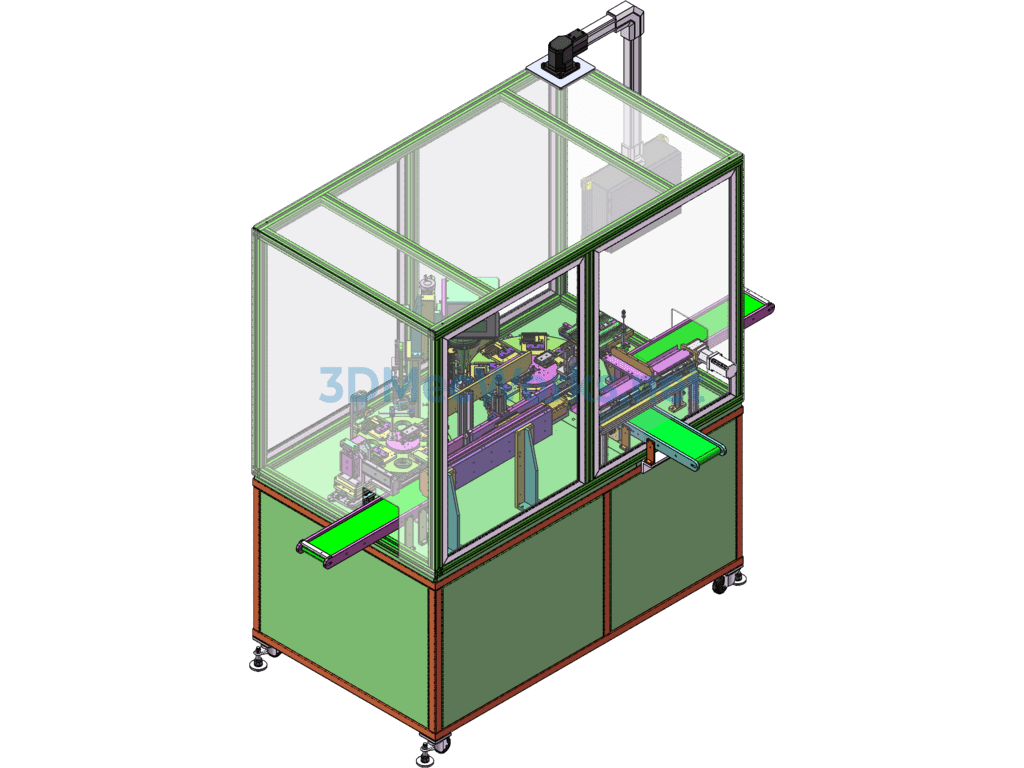

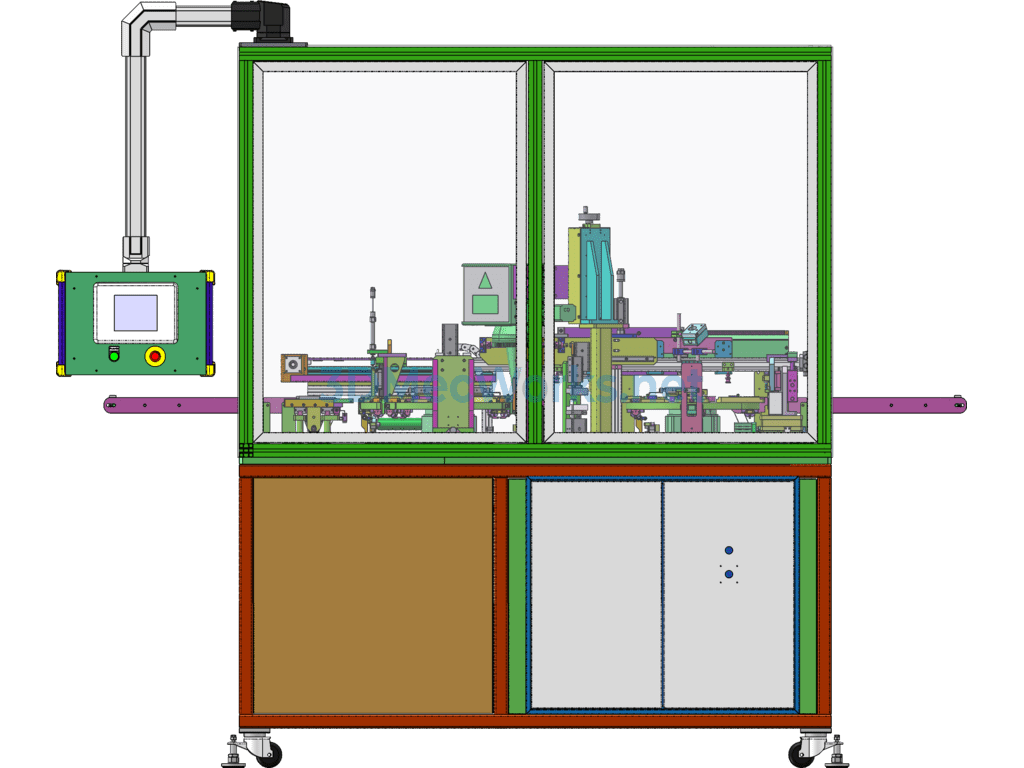

This is a semi-automatic electronic product terminal connector assembly equipment. The model drawings have already been used in actual production and processing. The structural design is complete, reasonable, and the equipment is highly efficient. It is a specialized piece of equipment. The equipment structure features two index plates as the main components. Various mechanical hands grab tooling, cut, and apply adhesive, and there are also feed and discharge conveyors. The drawing format is SolidWorks2018, welcome to download for reference.

Specification: TLKM Electronic Hardware Plug Connector Terminal Assembly Machine

Design Software

Editable

,

File Formats

,

Industry Application

Mechanical Equipment

Sharing Level

Version
