TL-200 Model – Inclined Conveyor Belt Delivery

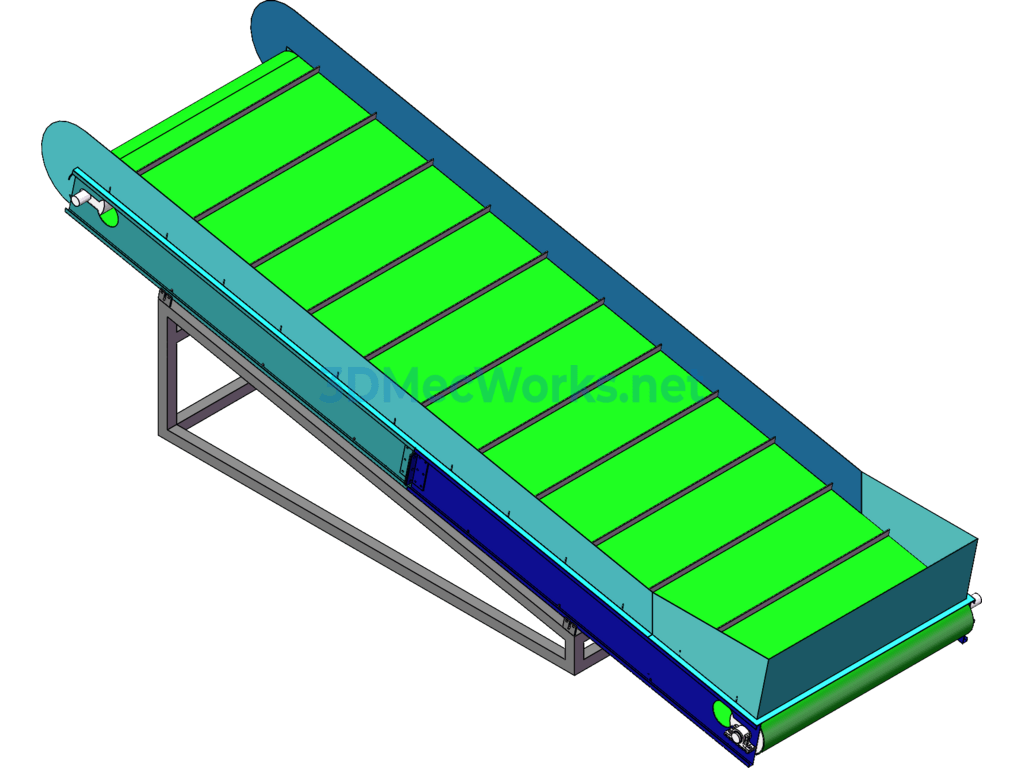

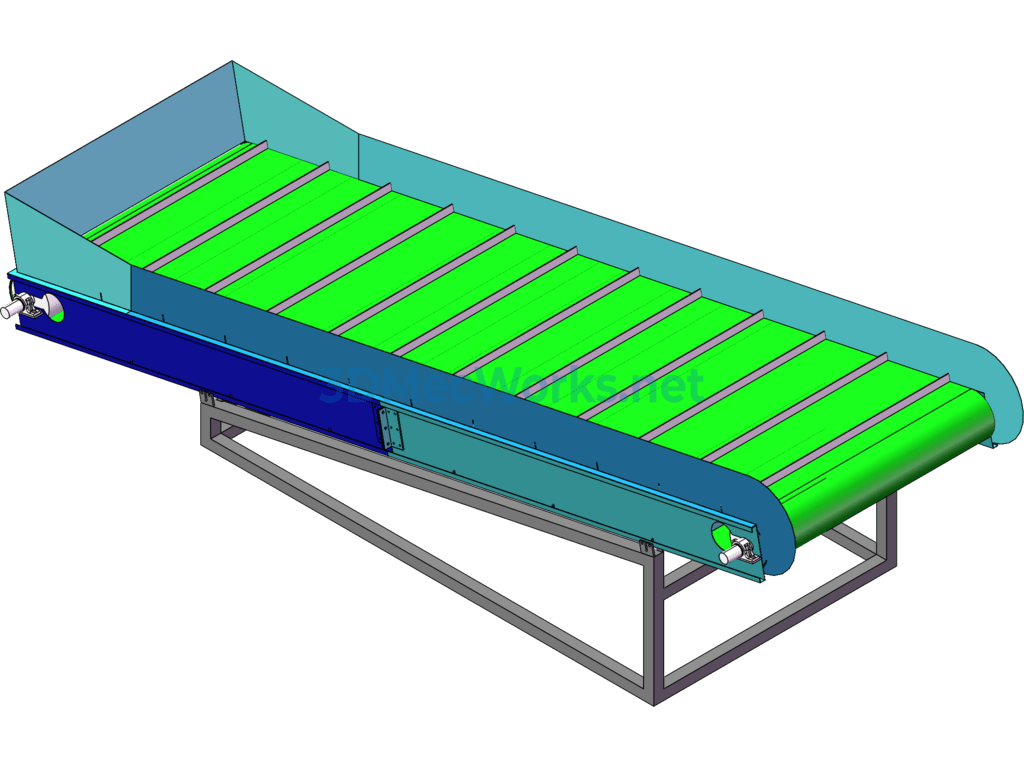

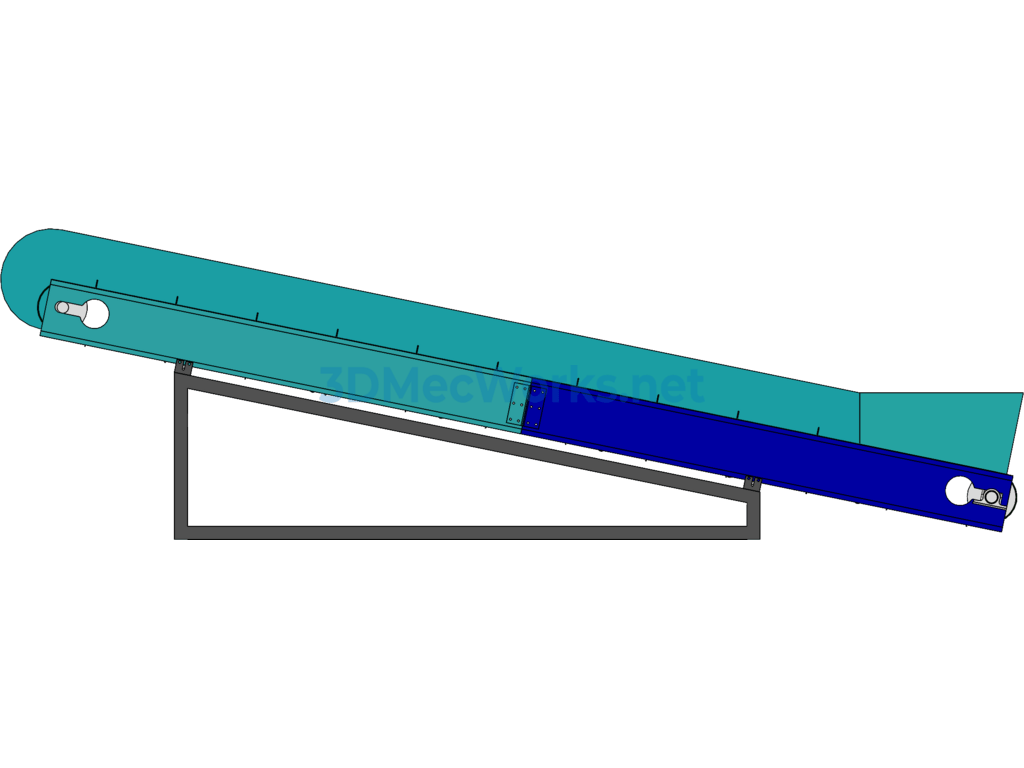

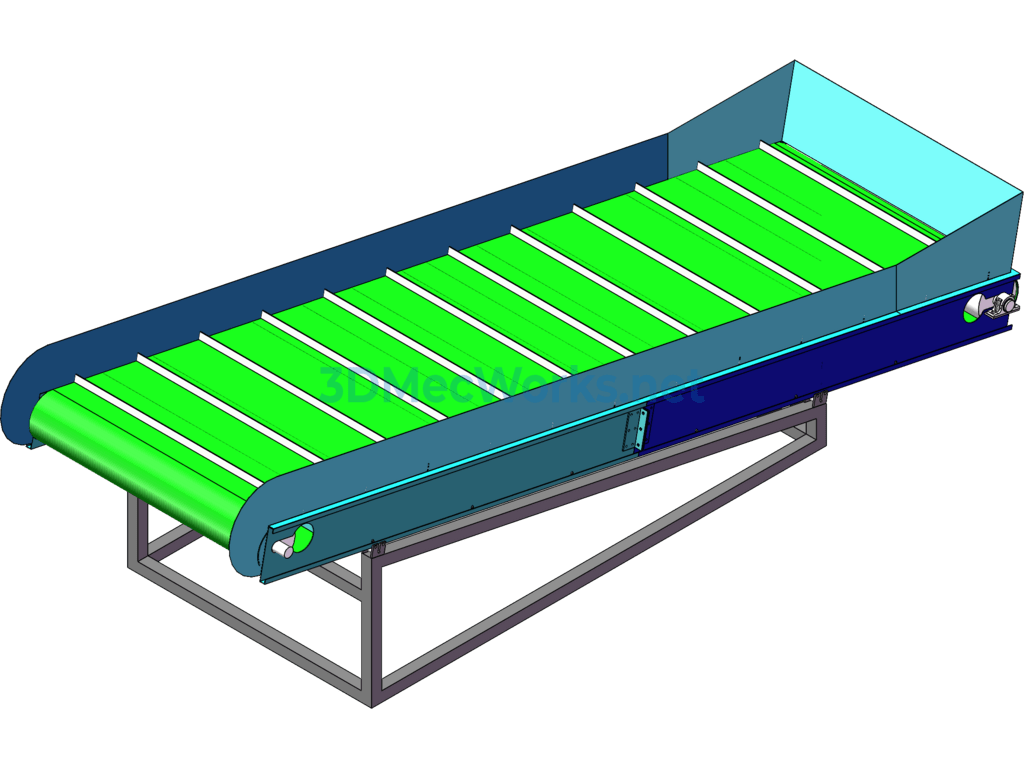

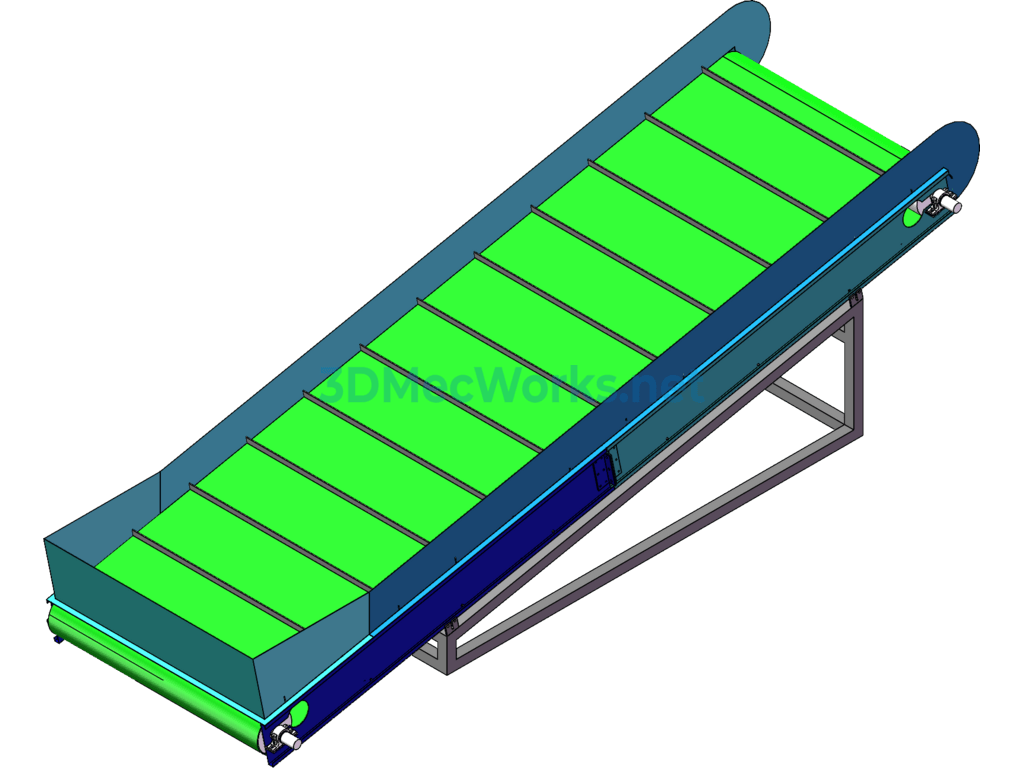

This is an inclined conveyor belt used for places where there is an elevation difference between loading and unloading. The inclination angle is generally not more than 30°. For angles greater than 30°, a bucket elevator belt should be used. When the angle is less than 30°, anti-slip plates can simply be added to the belt.

The belt is 1.8 meters wide and 6 meters long. It is recommended to use a motor of at least 15KW to drive it. The drive method can be either a V-belt or a chain sprocket.
