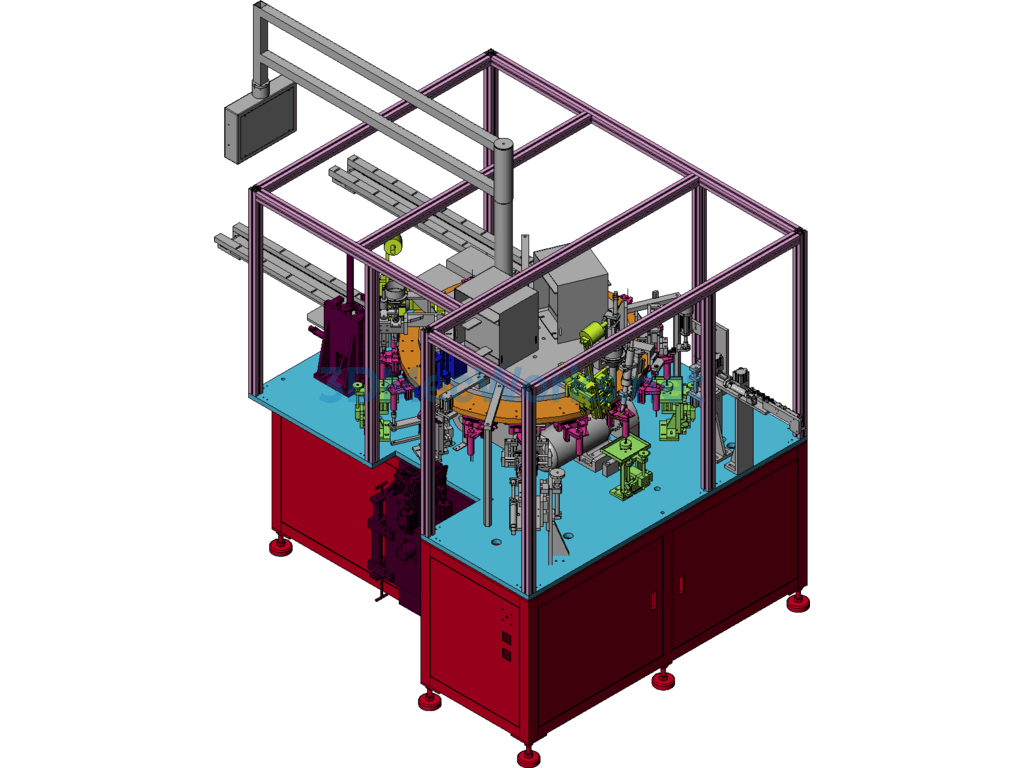

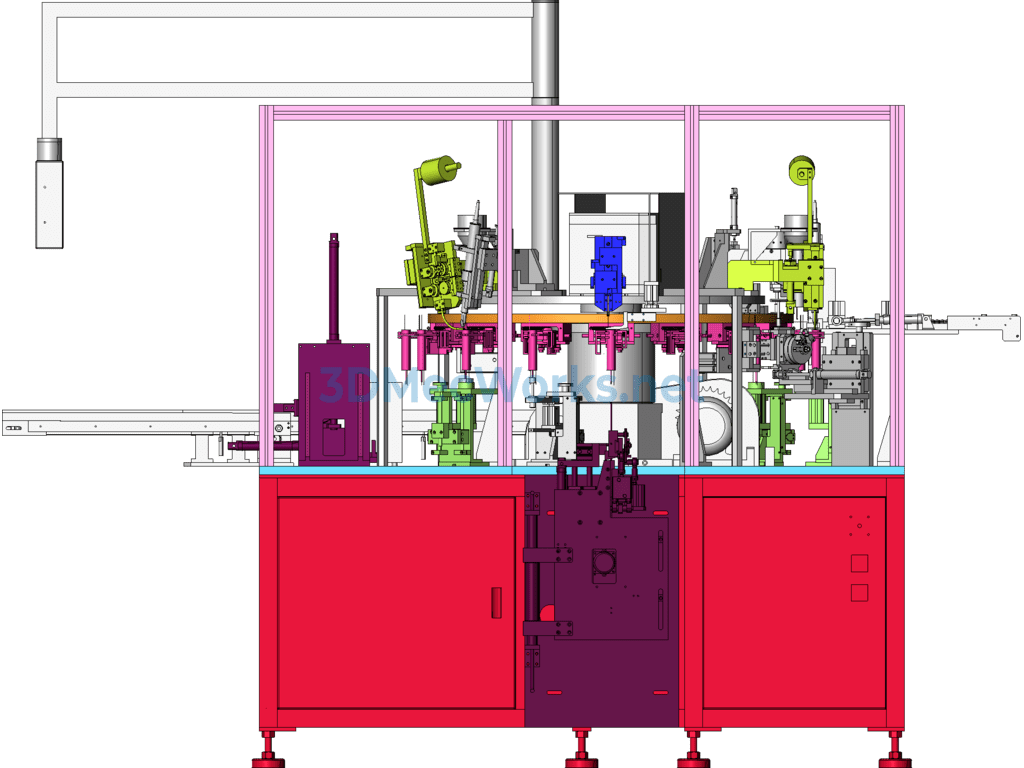

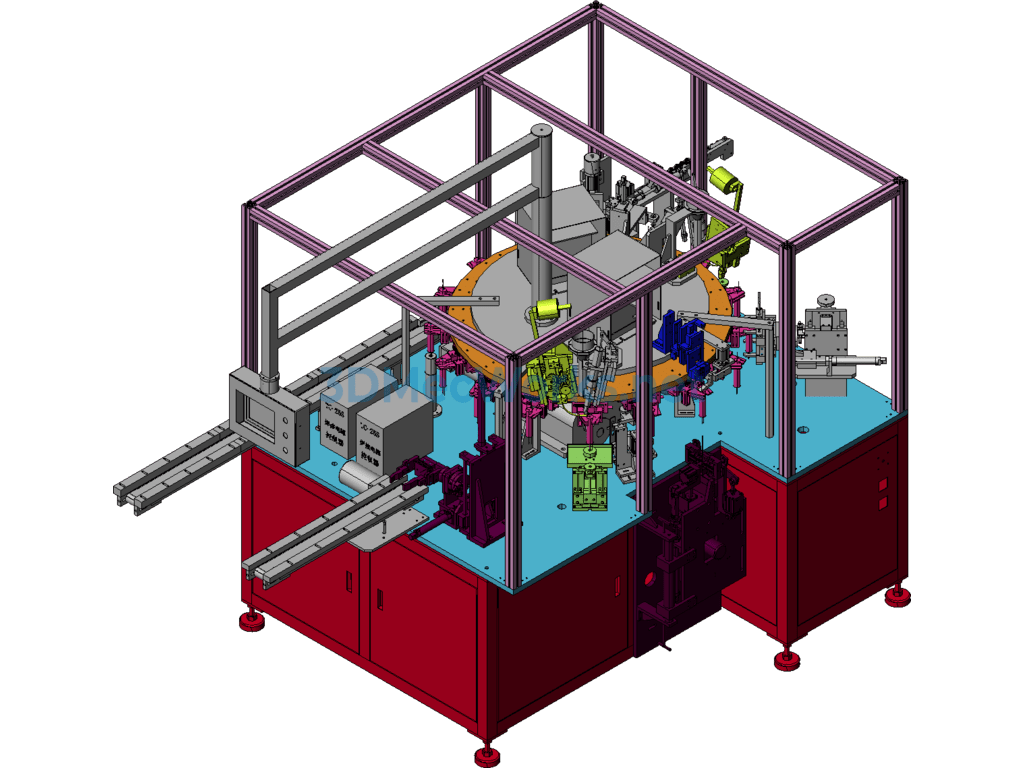

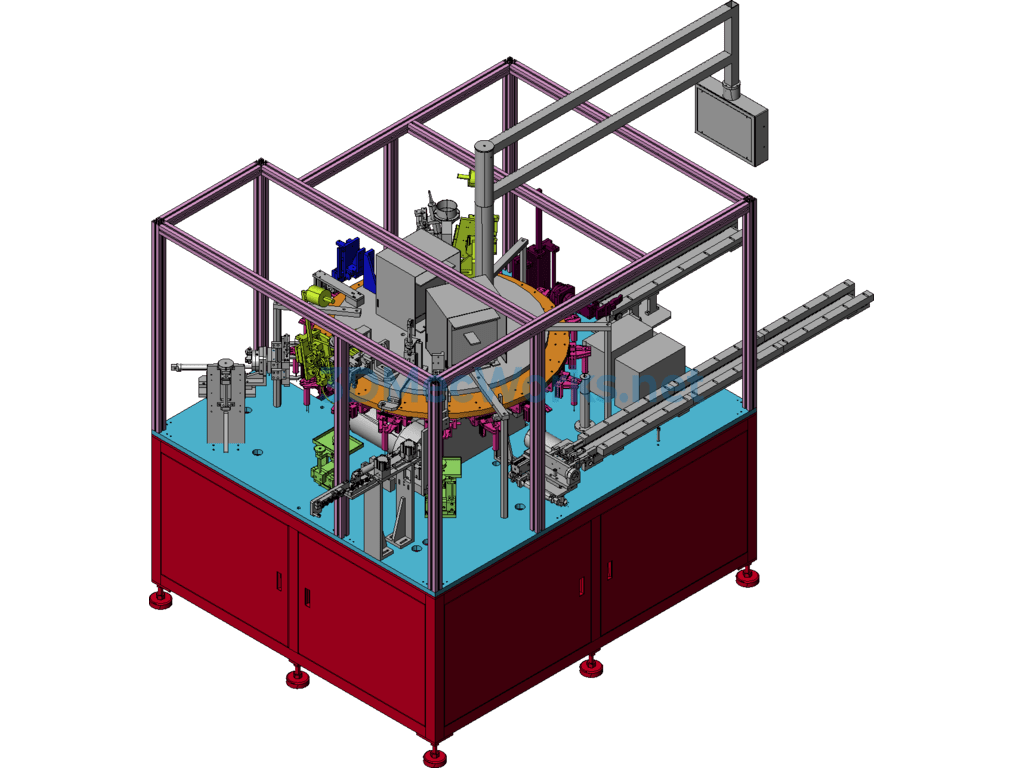

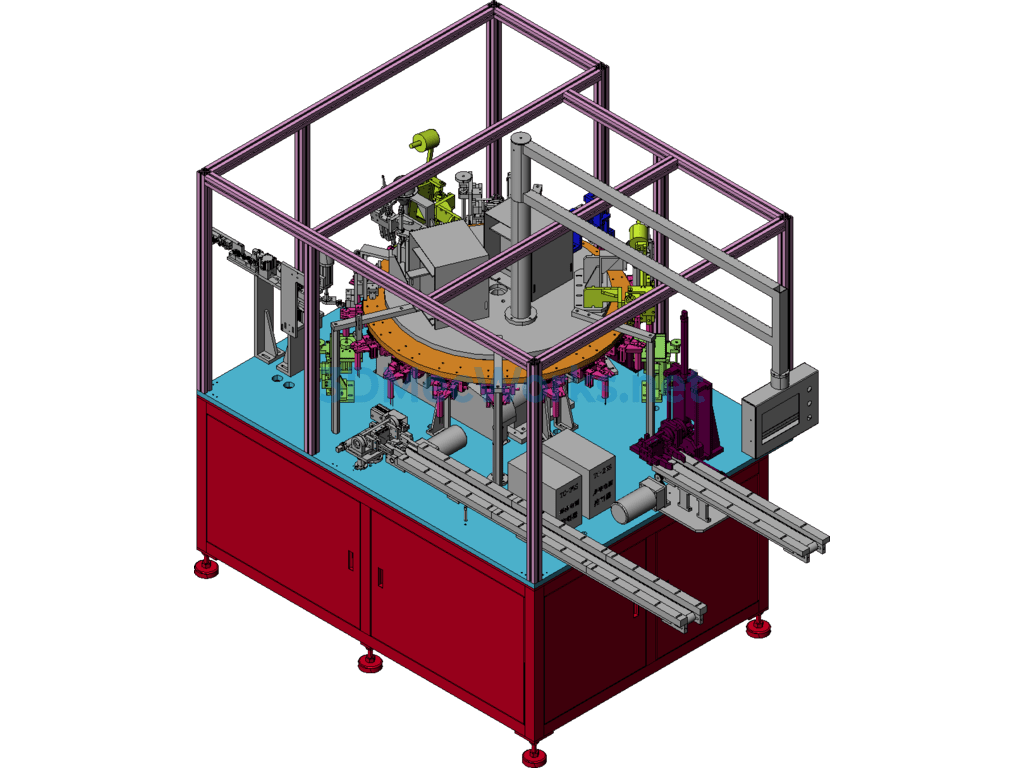

A round capacitor through-hole welding machine 3D model for an electronic product, SW design source files shared, 700 files provided, welcome to download.
This through-hole capacitor welding machine adopts a turntable structure design with numerous automation mechanisms, including a grabbing manipulator, flipping mechanism, adjusting mechanism, fine wire feeding mechanism, cam linkage mechanism, etc. The equipment is of great reference value and has been in mature operation with high stability and precision.
Characteristics of the capacitor welding machine: Used for welding leads to round metallized capacitor cores, automatic core feeding, and automatic lead stripping.
Specification: Through-Hole Capacitor Welding Machine (automated Equipment)
|
