Three-Lamp Uv Curing Machine (mobile Screen Uv Curing Equipment)

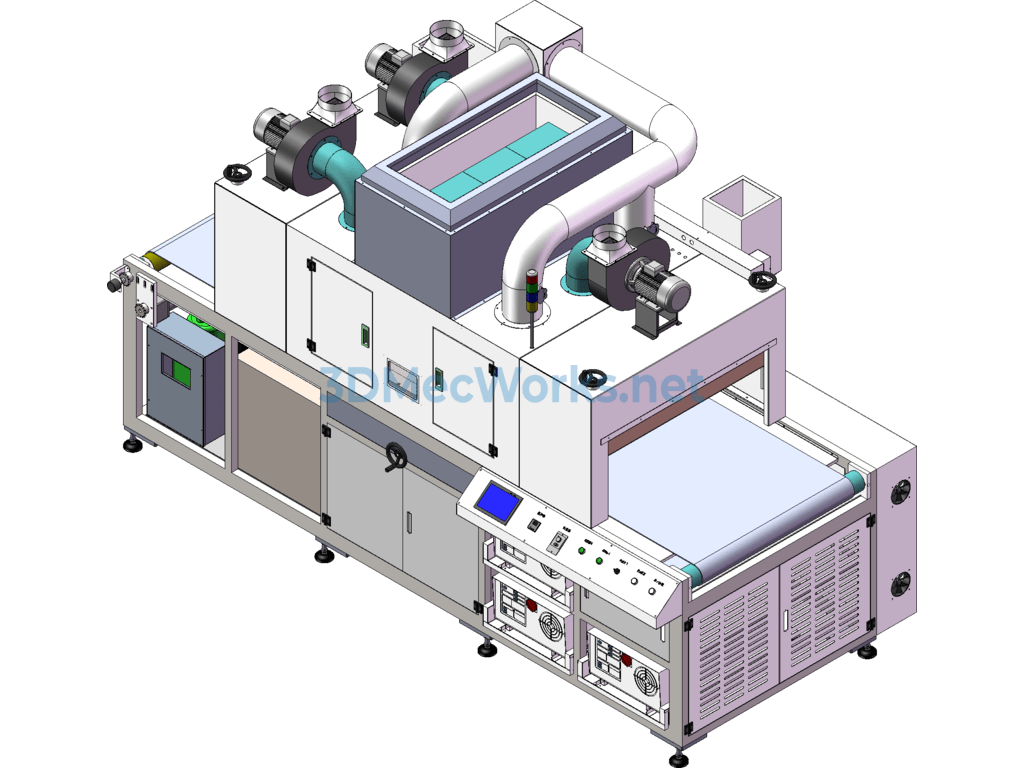

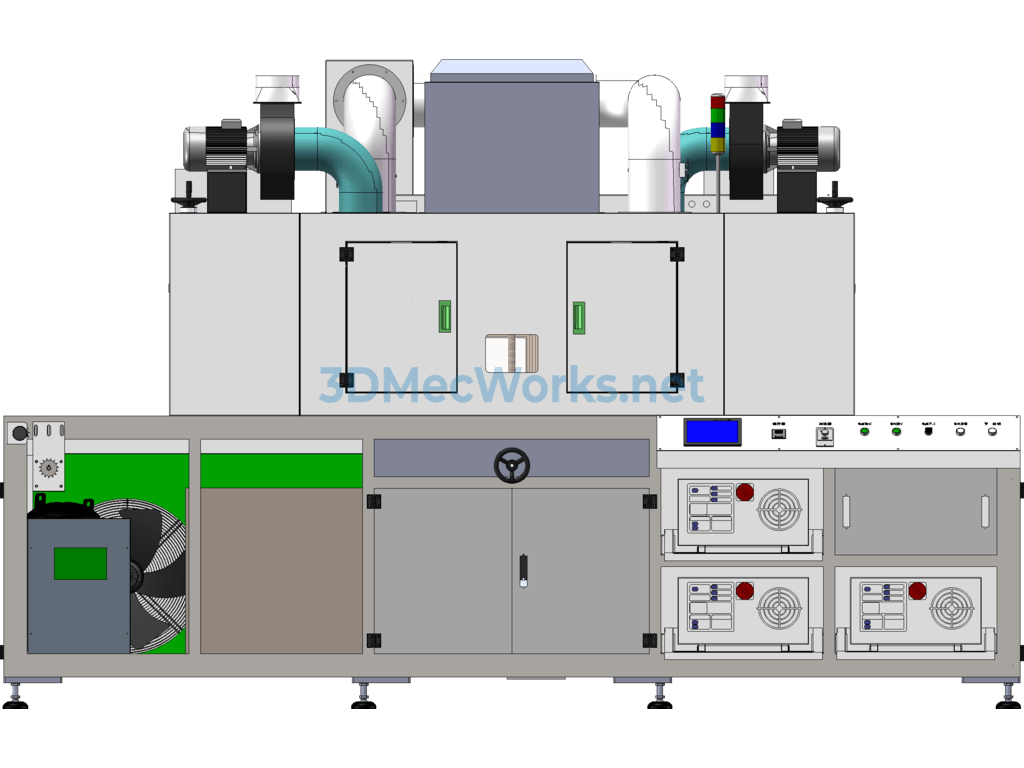

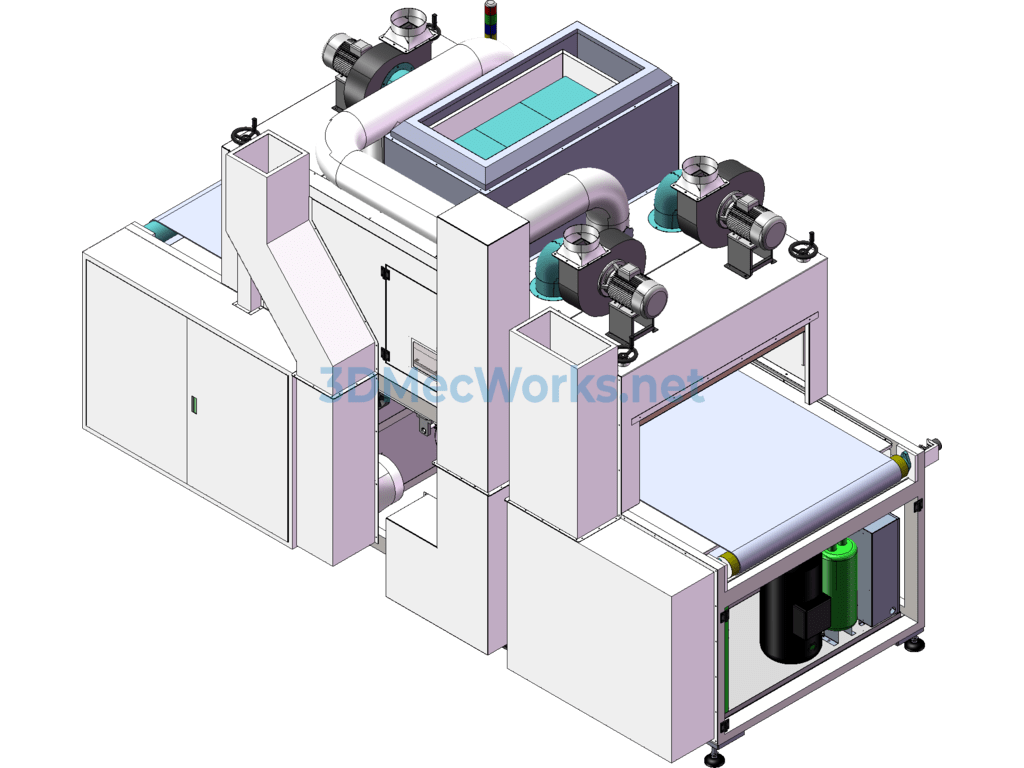

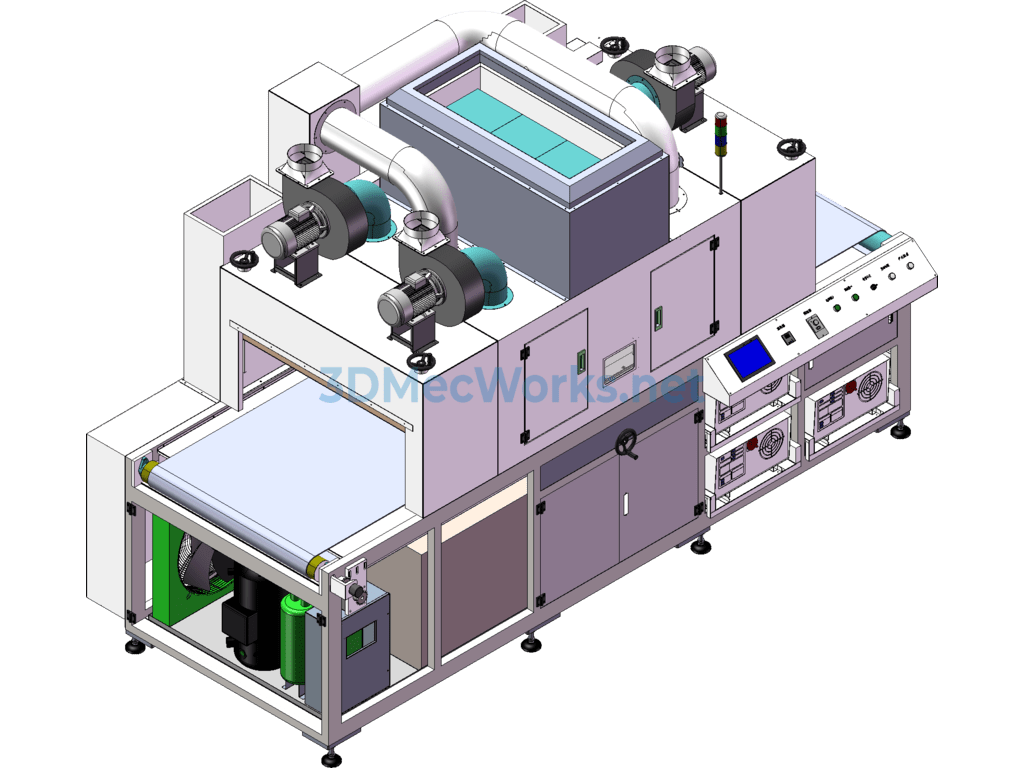

Three-lamp UV Cure Machine 3D Model A three-lamp UV cure machine from O-Film, SolidWorks source files are parameter editable, including 3D files + full set of engineering drawings + parts list BOM + procurement list, etc., and a complete set of CAD drawings for the three-lamp UV machine. Welcome everyone to download.
Mobile Screen Automatic UV Machine, start system, adjust guide conveying speed, adjust material width, select appropriate program.
Employees manually place glass workpieces onto the material position transmission slot on the conveyor belt.
After UV curing, the glass jig flows out following the conveyor belt.
Smooth workpieces flow into the UV component for UV curing operations.
When UV light curing is complete, the glass workpiece flows off the conveyor belt and the UV-cured workpiece is manually taken away.
Repeat the above actions
Equipment Features
Equipment composed of conveyor belt, UV curing furnace, UV curing lamp group, lamp cover, etc.
Adjustment frame quickly positions workpieces.
Conveyor belt transports glass workpiece into the furnace for curing.
UV lamp group finalizes the curing of the glass needing curing.
Overall Dimensions: 6600x800x1850(LxWxH)
Voltage: 380V 50HZ
Logistics conveying speed: 0 ~ 200MM/S
