Three-Coordinate Platform System (applied in Chip Mounters, High-Speed Inspection Machines)

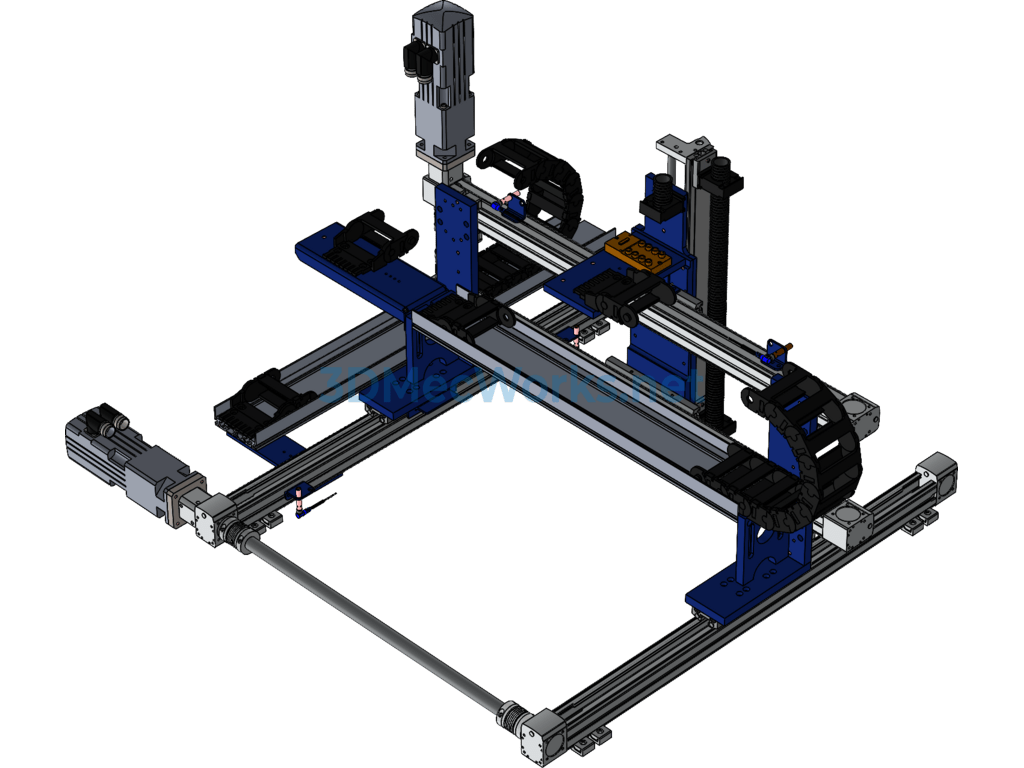

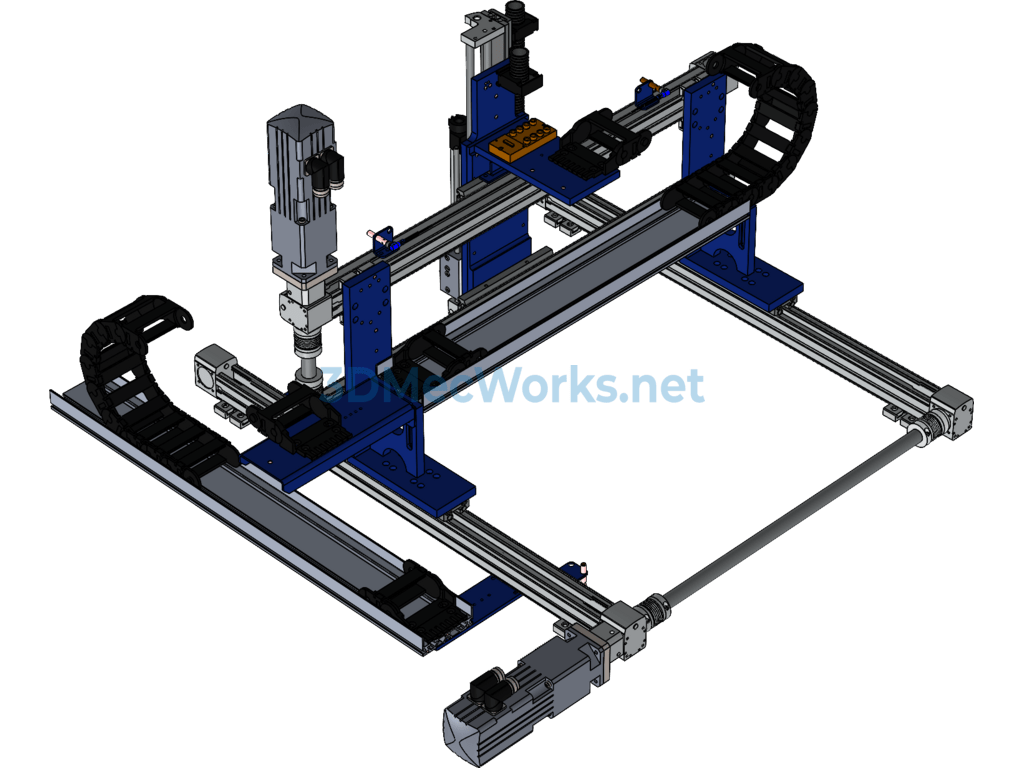

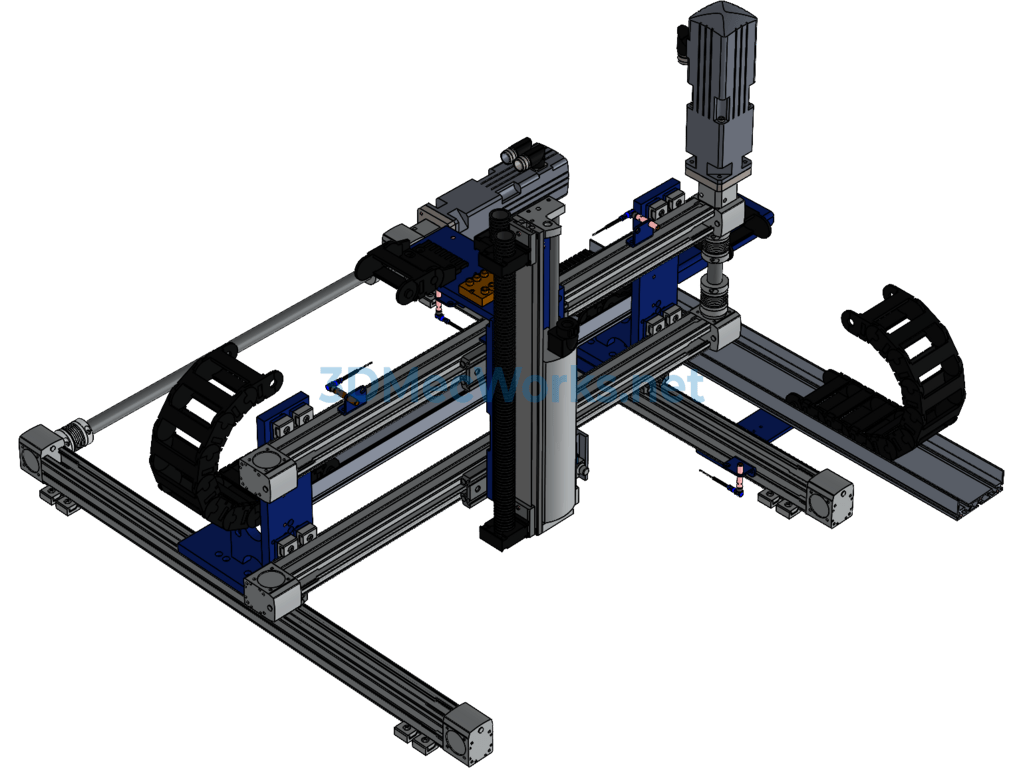

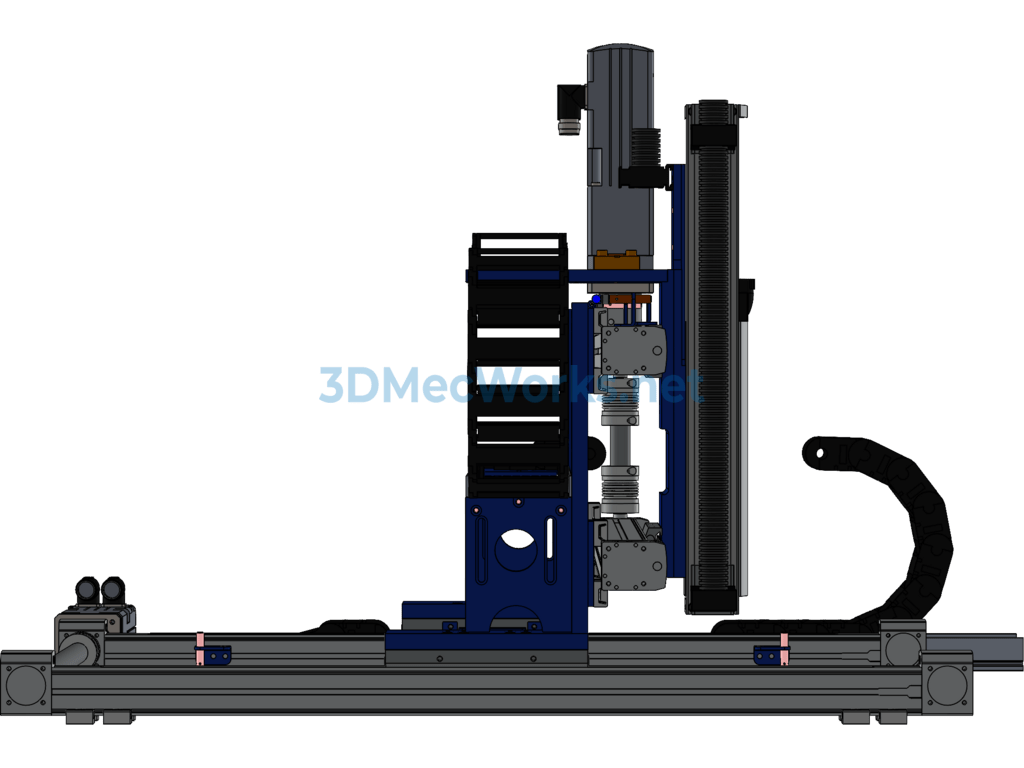

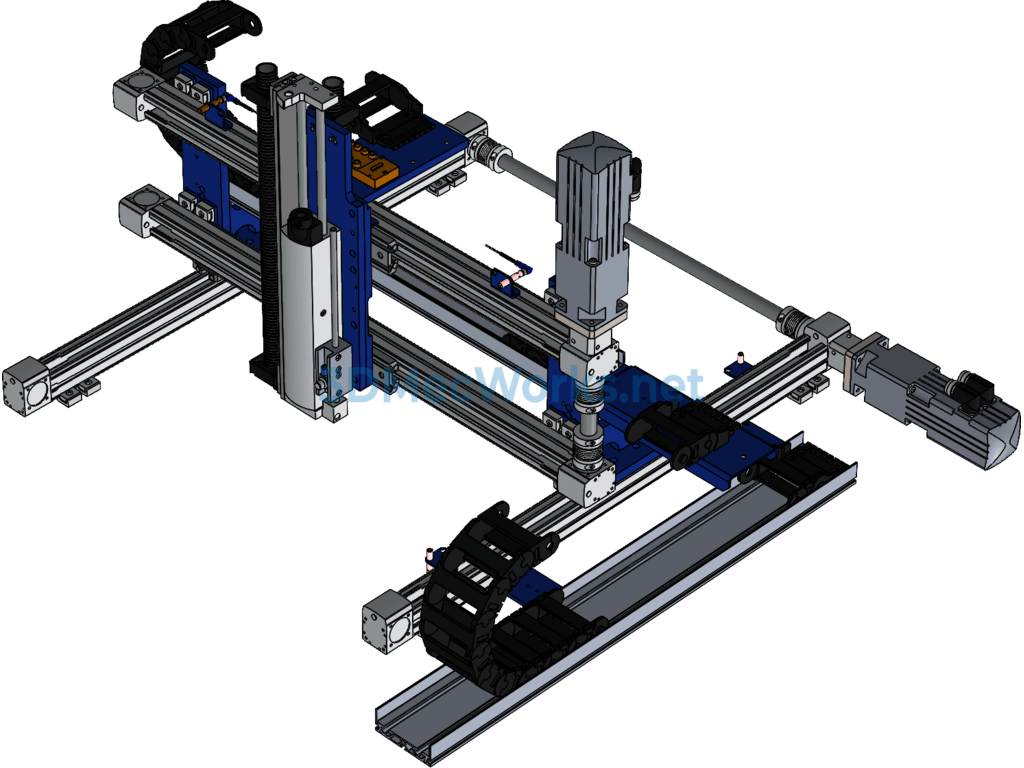

This 3D model of the three-coordinate platform system comprises motors, lead screws, and X, Y, Z axes, totaling three sets of motor lead screw balls, cable carriers, probes, measuring platforms, and more. This model has a wide range of applications, commonly used in high-speed electronics industry equipment. The mechanism device employs servo control, ensuring extremely high precision. It operates stably in pick-and-place machines and high-speed detection machines, with a mature structure. The model includes parameters and is of great reference value. You are welcome to download it.
