Three-Axis Servo Injection Molding Machine Robot

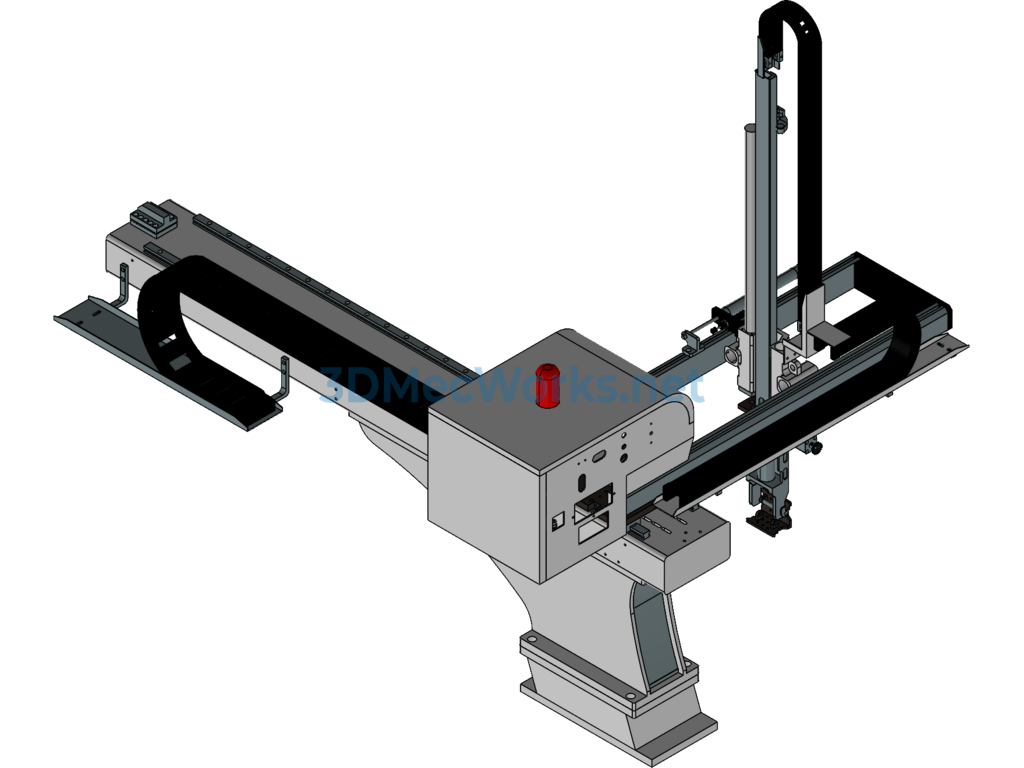

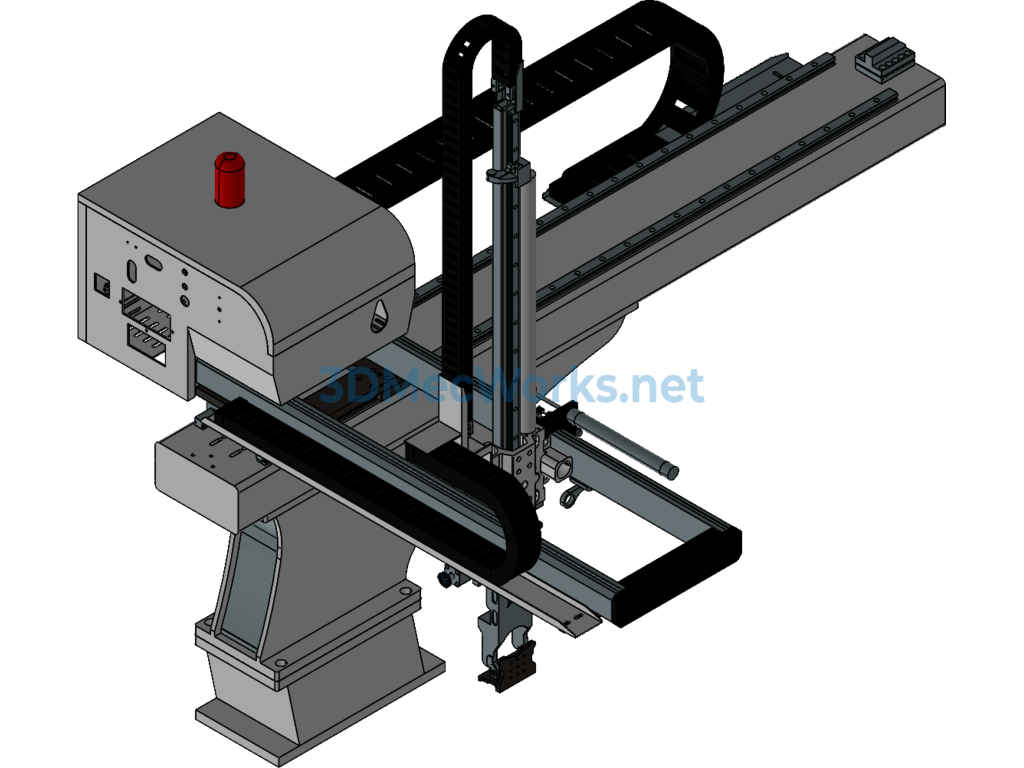

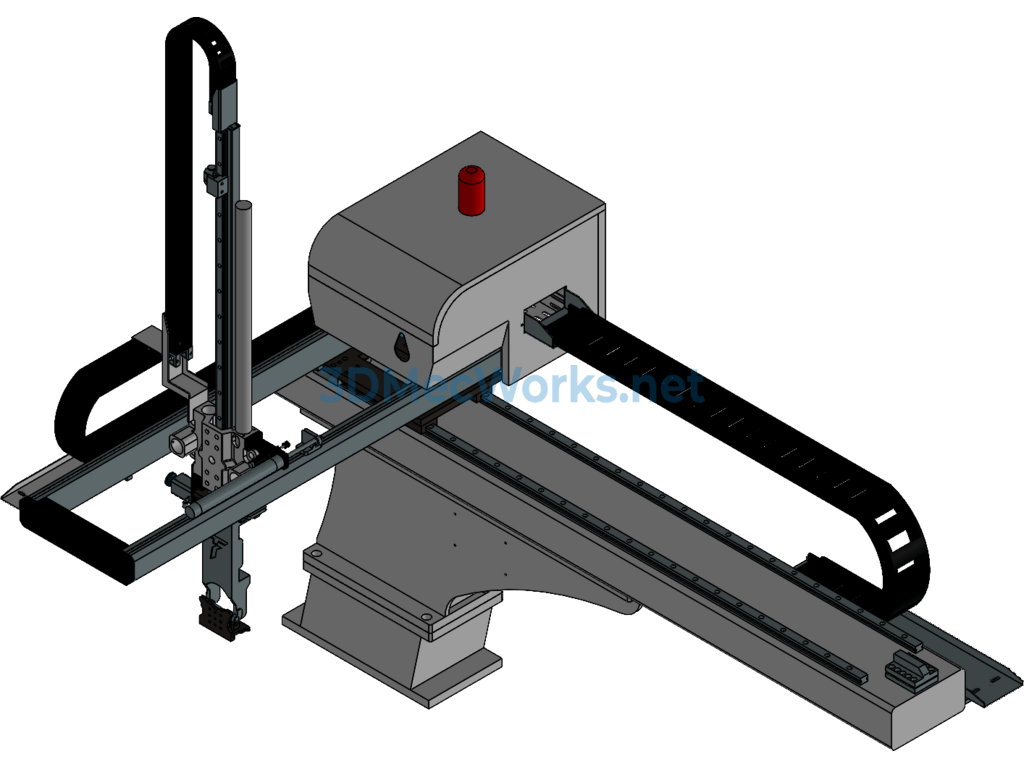

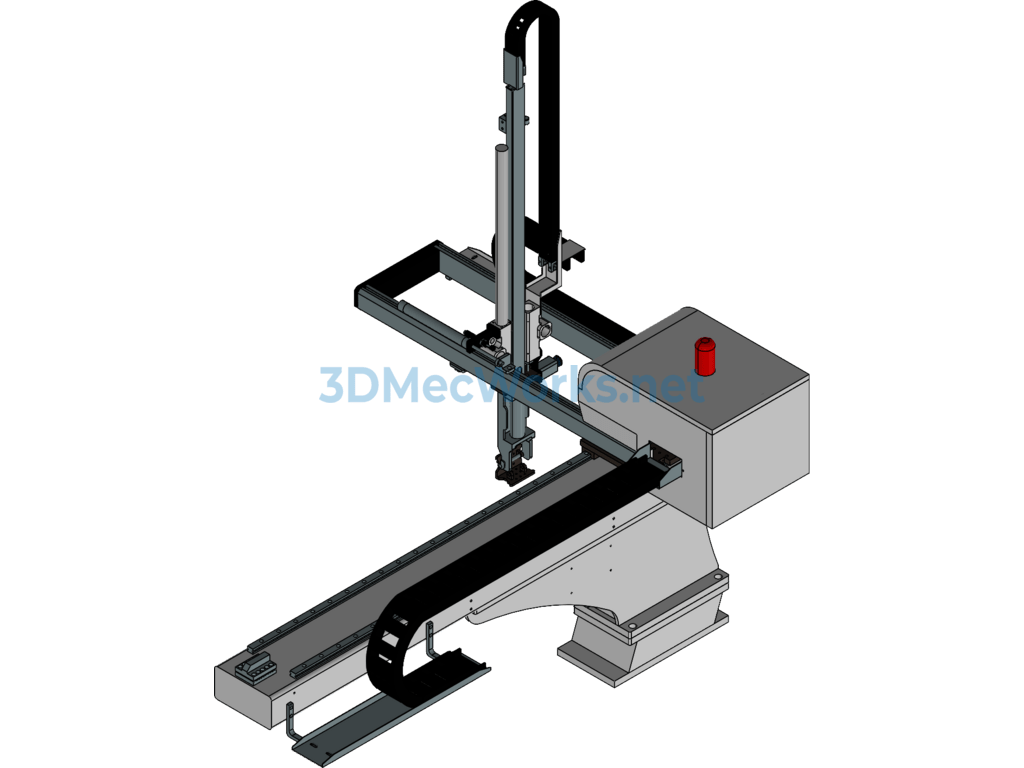

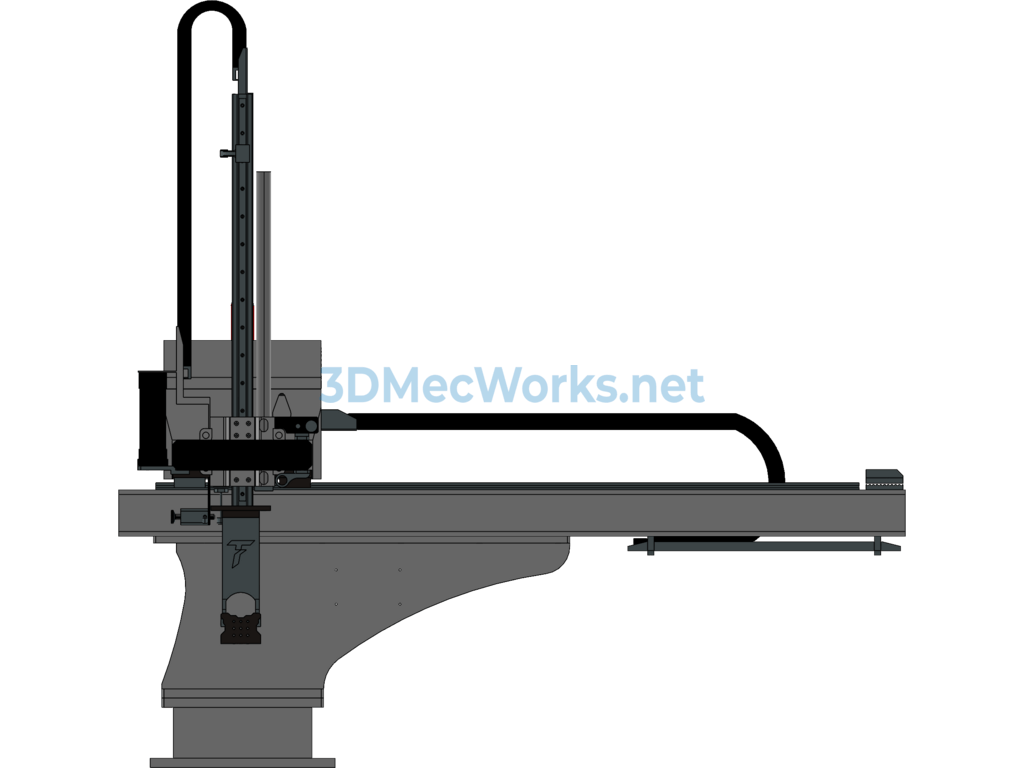

This three-axis servo manipulator is designed for mold material handling. This drawing is complete. This type of manipulator offers higher precision compared to traditional manipulators, enabling extremely precise operations such as product removal and in-mold insertion. The manipulator can quickly remove products from the mold by moving the three axes simultaneously. The transmission method of this manipulator is rack and pinion, and the jig of the manipulator is fixed on the mounting plate beneath the Z-axis.
