Thermal Power Generator

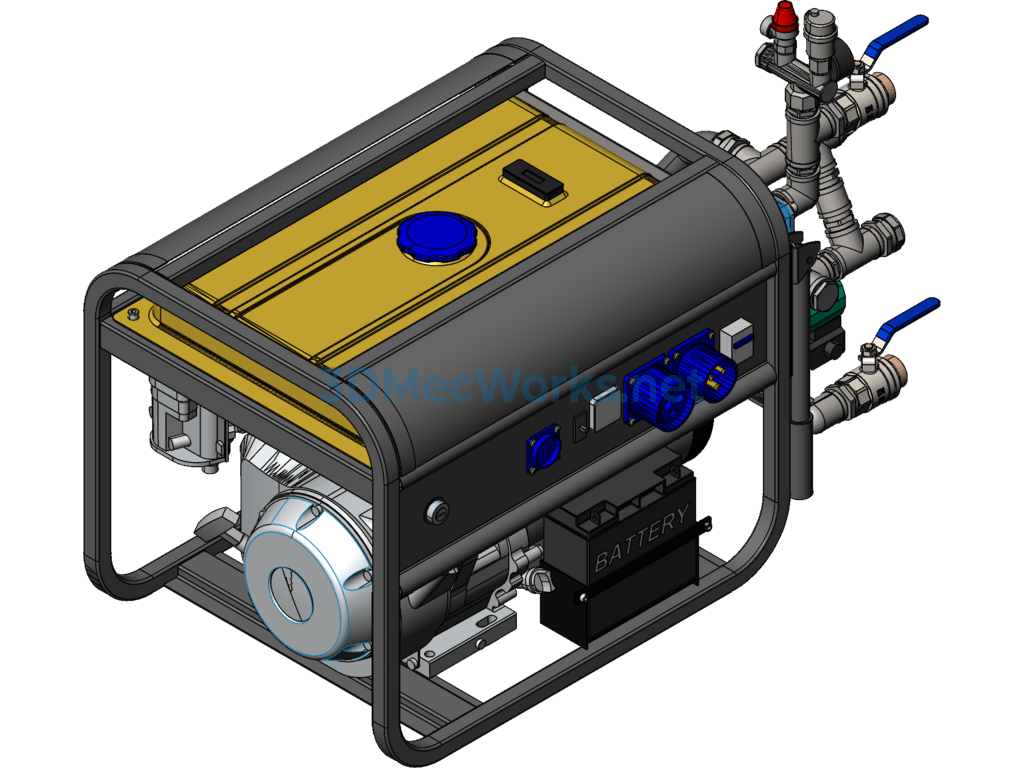

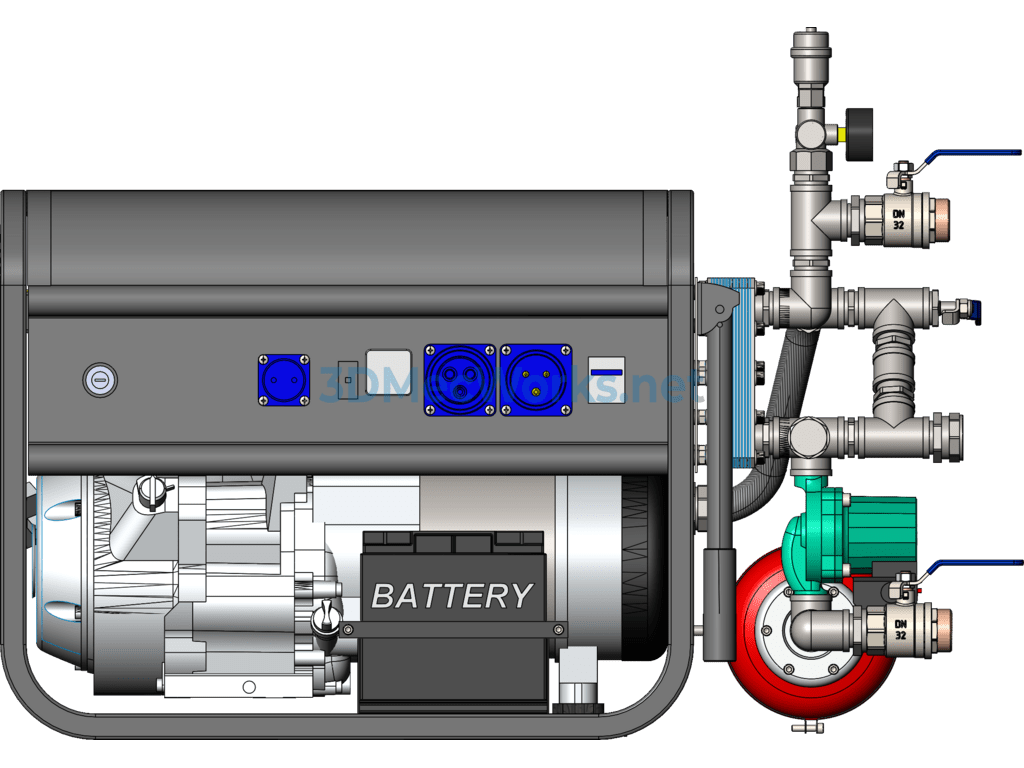

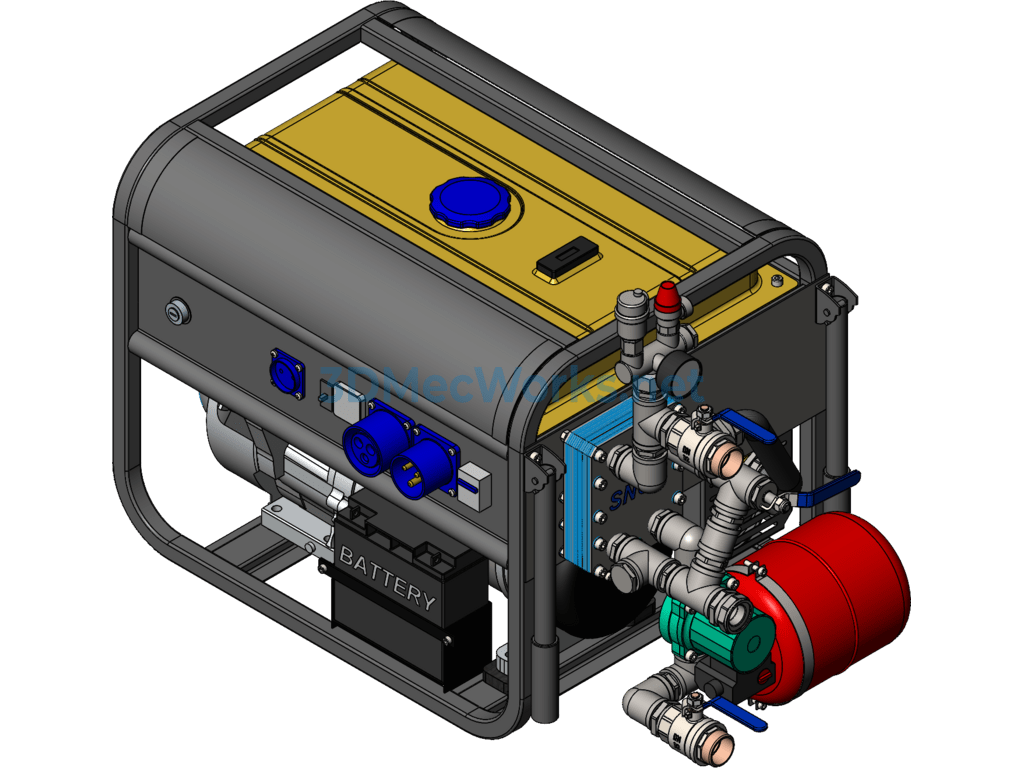

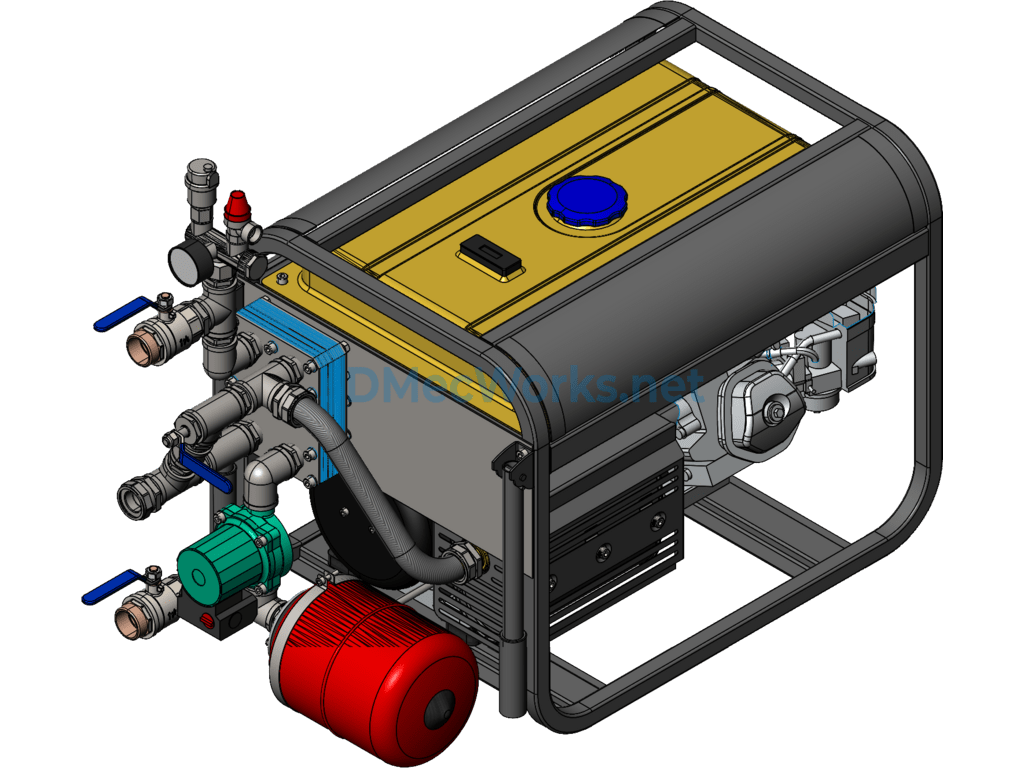

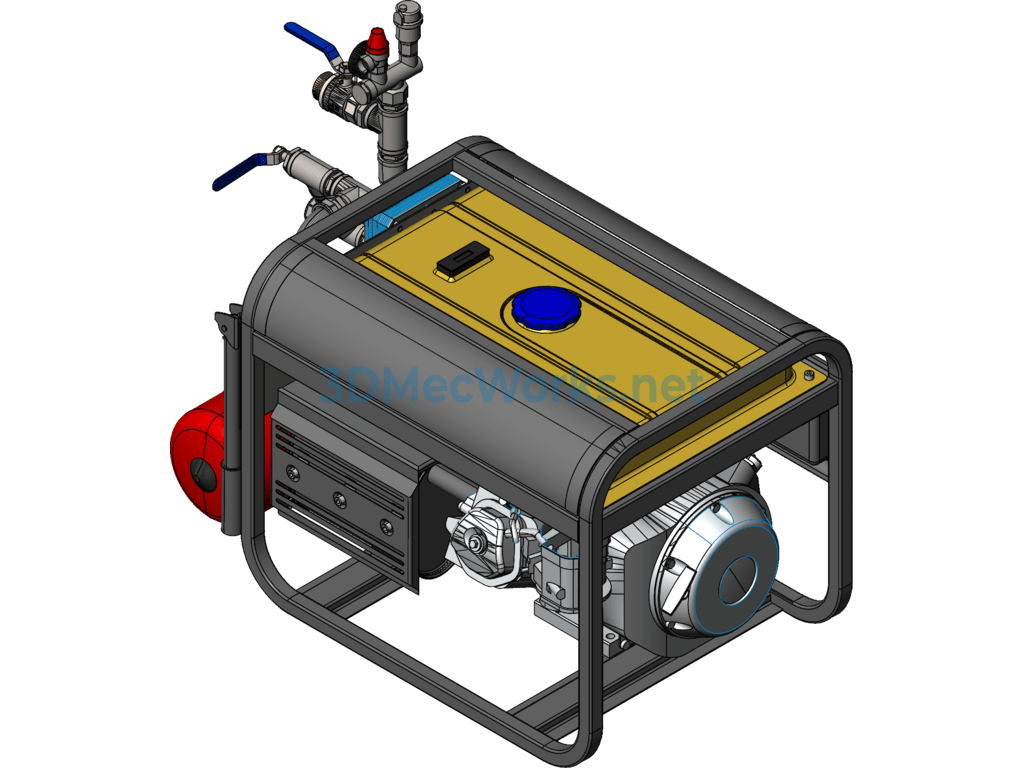

This is a complete 3D model of a thermoelectric generator designed with SolidWorks. The equipment mainly generates electricity using oil and gas, making it suitable for use in small power plants. It is cost-effective, practical, safe, and reliable. The model includes all SolidWorks files, available for download.

The structure of the thermoelectric generator consists of: a flask-shaped heat-receiving body, an insulated thermal conductive film, a conductive mesh; thermionic emitters attached to the conductive mesh; an electron collecting plate; an exhaust valve; and a source providing an excitation electric field.
