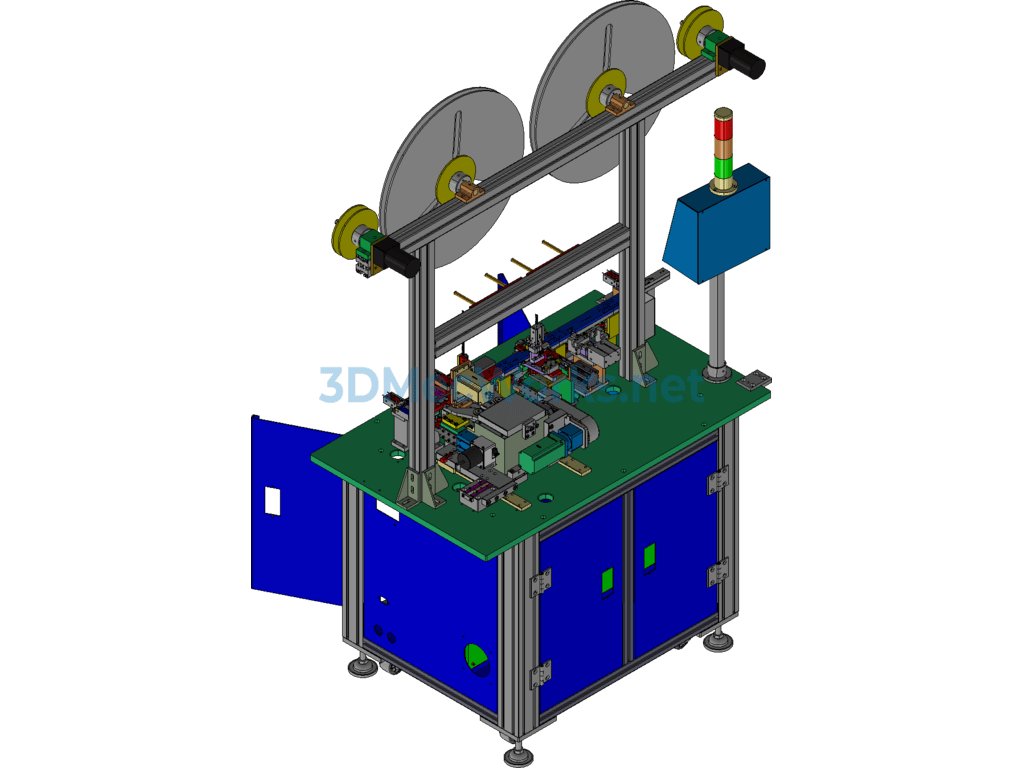

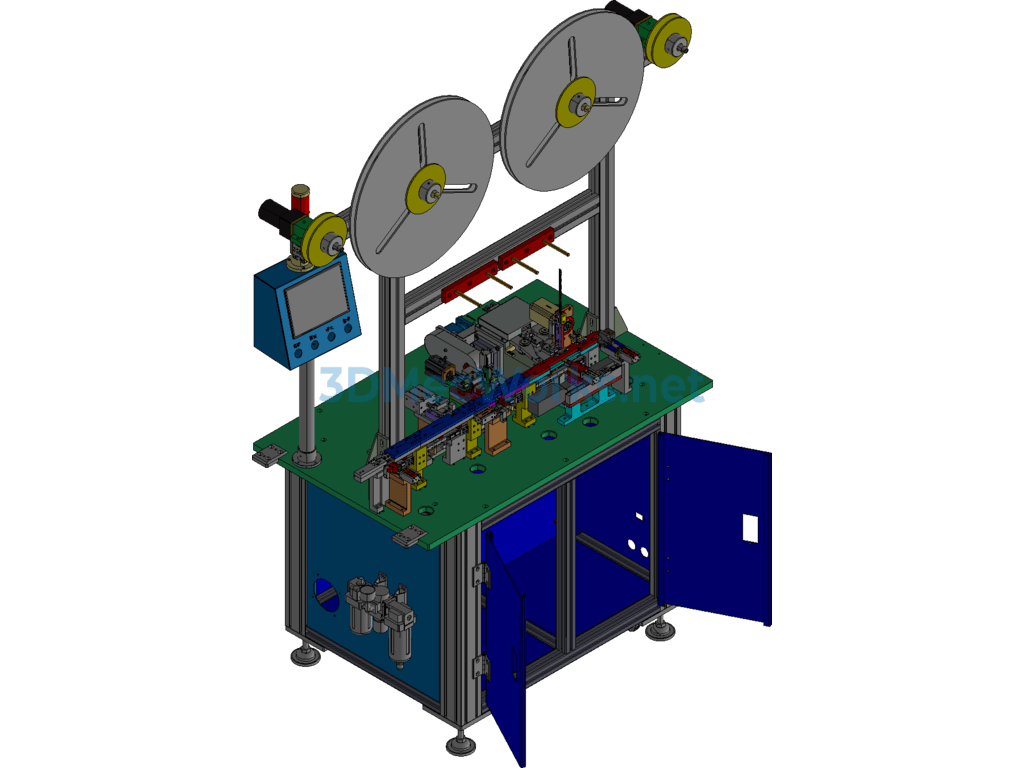

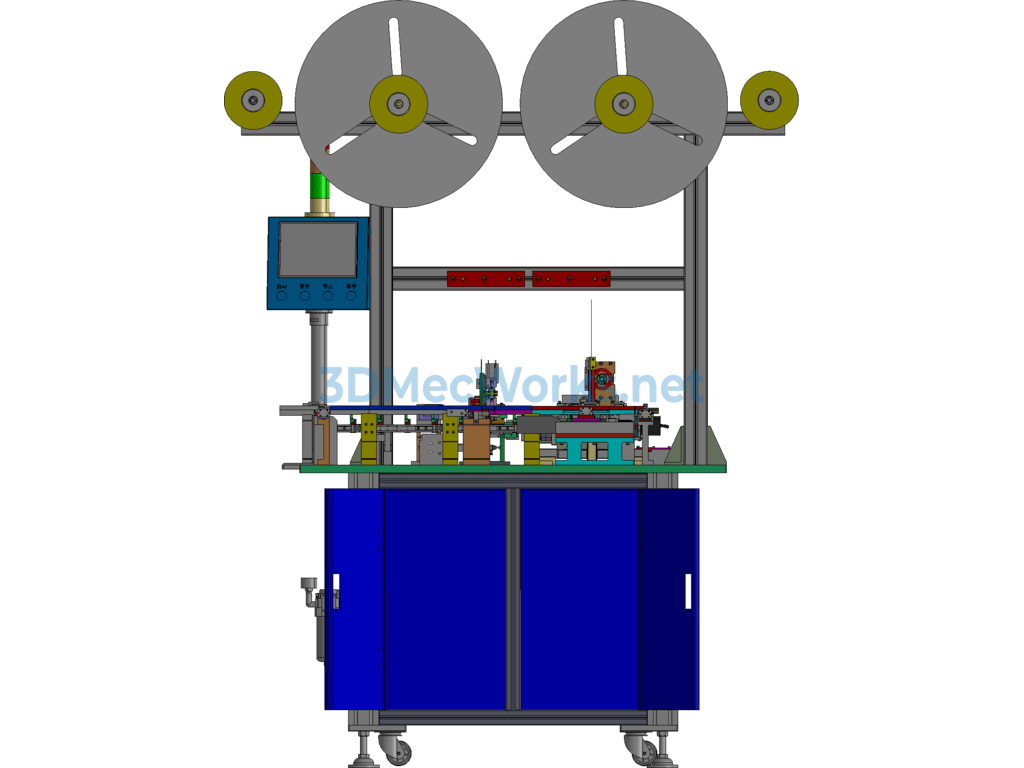

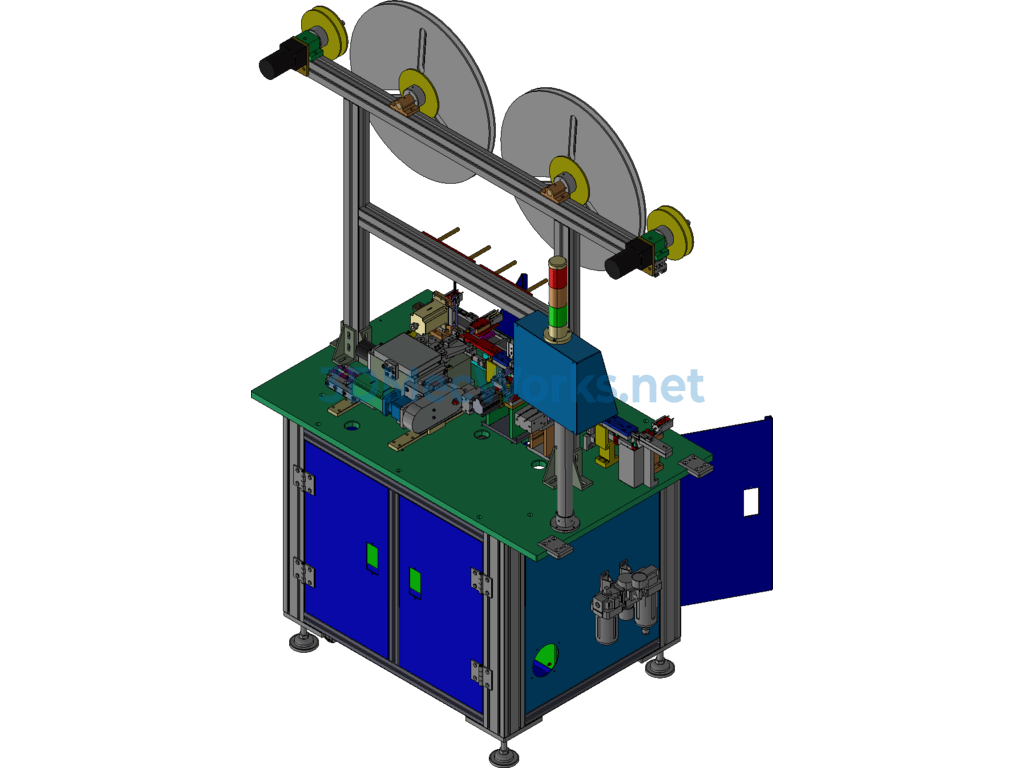

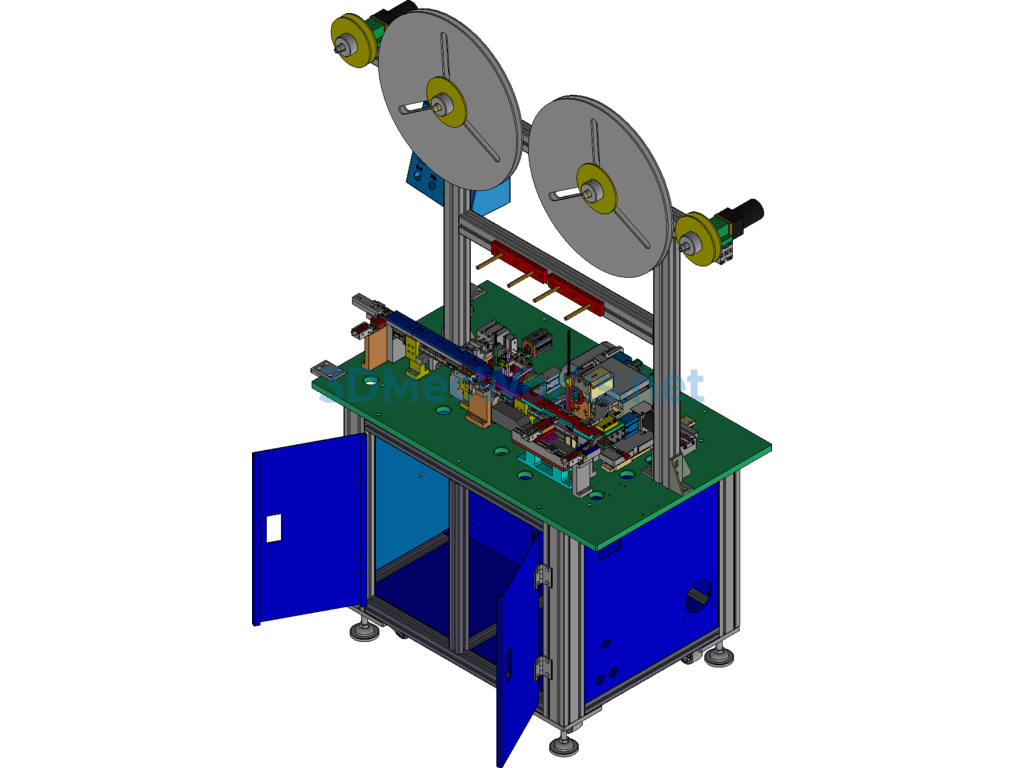

A pin insertion machine featuring a novel cylinder pin insertion mechanism and cam pin insertion mechanism_x000D_
1. A cam pin insertion mechanism capable of high-speed pin insertion for connectors with multiple pins along with terminals;_x000D_
2. An innovative cylinder pin insertion mechanism utilizing planar cam mechanisms and linkage mechanisms to achieve pin insertion with fewer pins, ensuring low-cost plug welding, latch, etc. Simple structure, stable performance._x000D_
3. This machine has already achieved mass production. Feeding mechanisms like the vibrating plate are omitted for confidentiality purposes. Users are advised to install them by reference.
