The Phone Case Is Riveted At 15 Points. - SolidWorks - Free Download

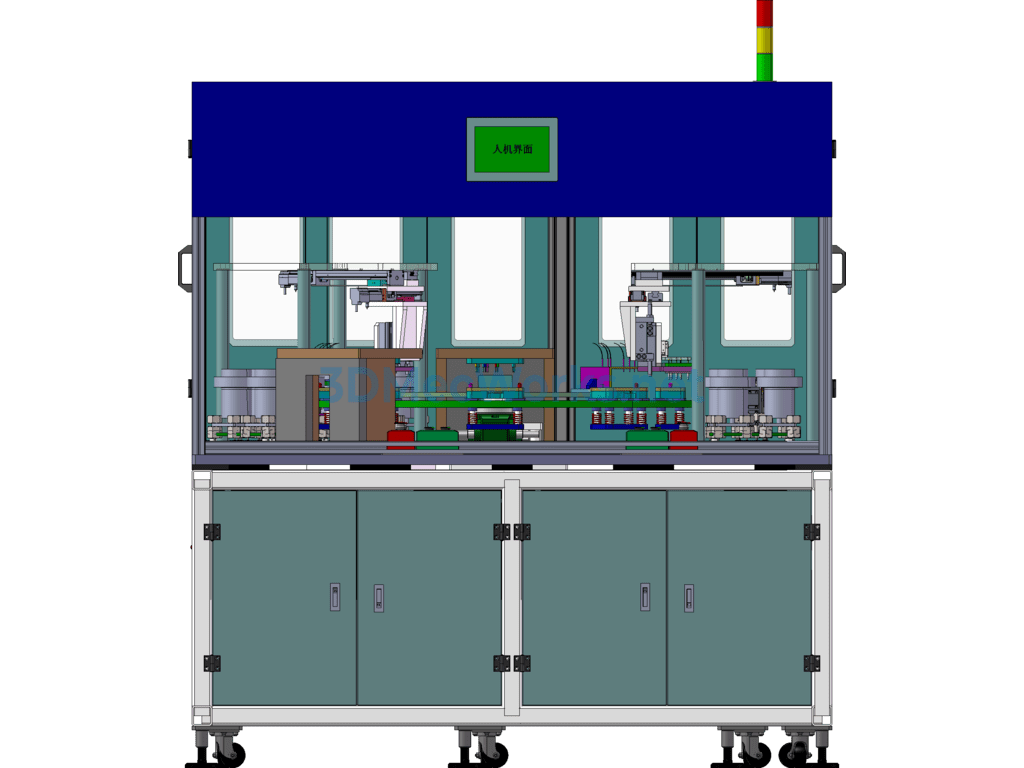

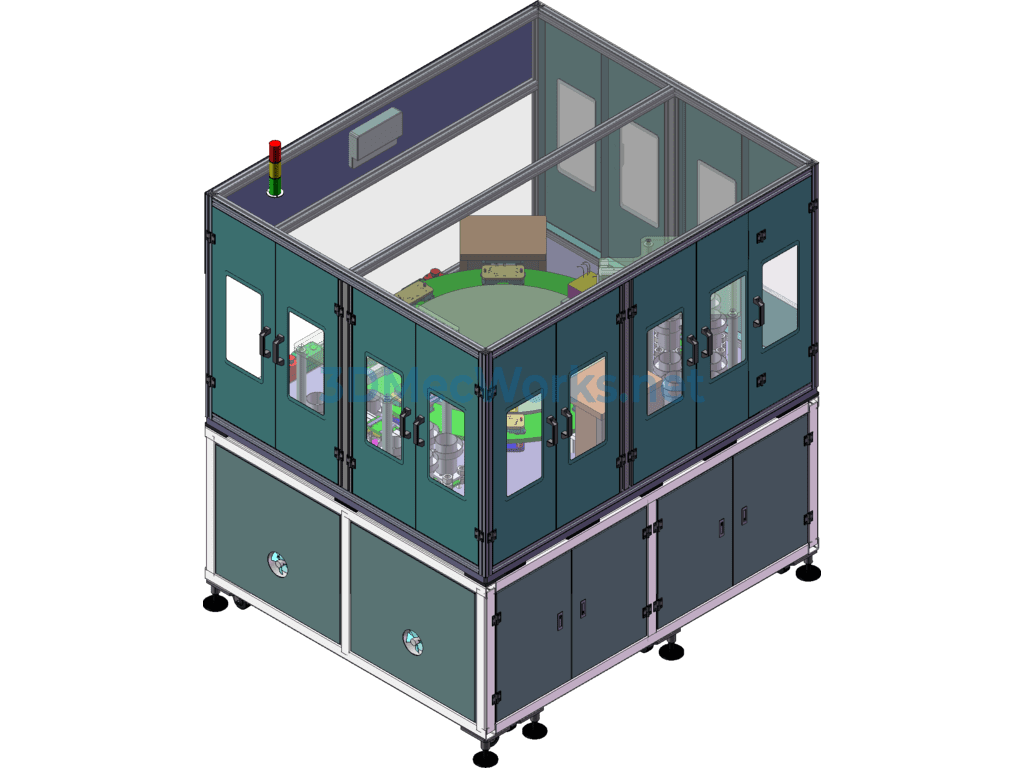

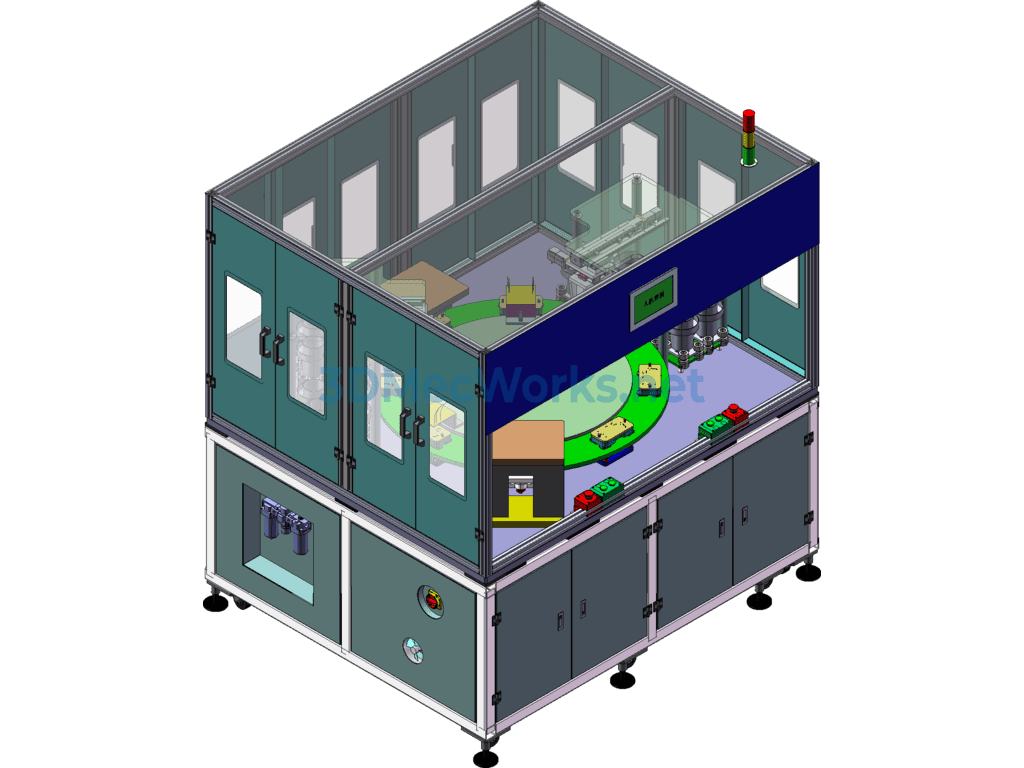

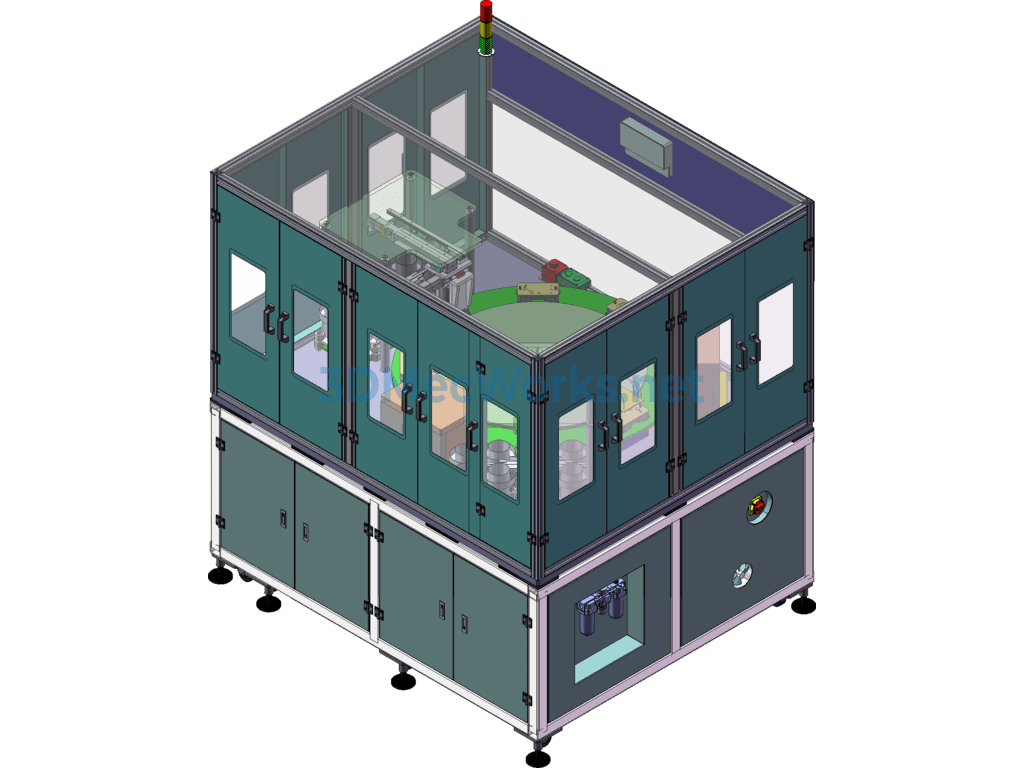

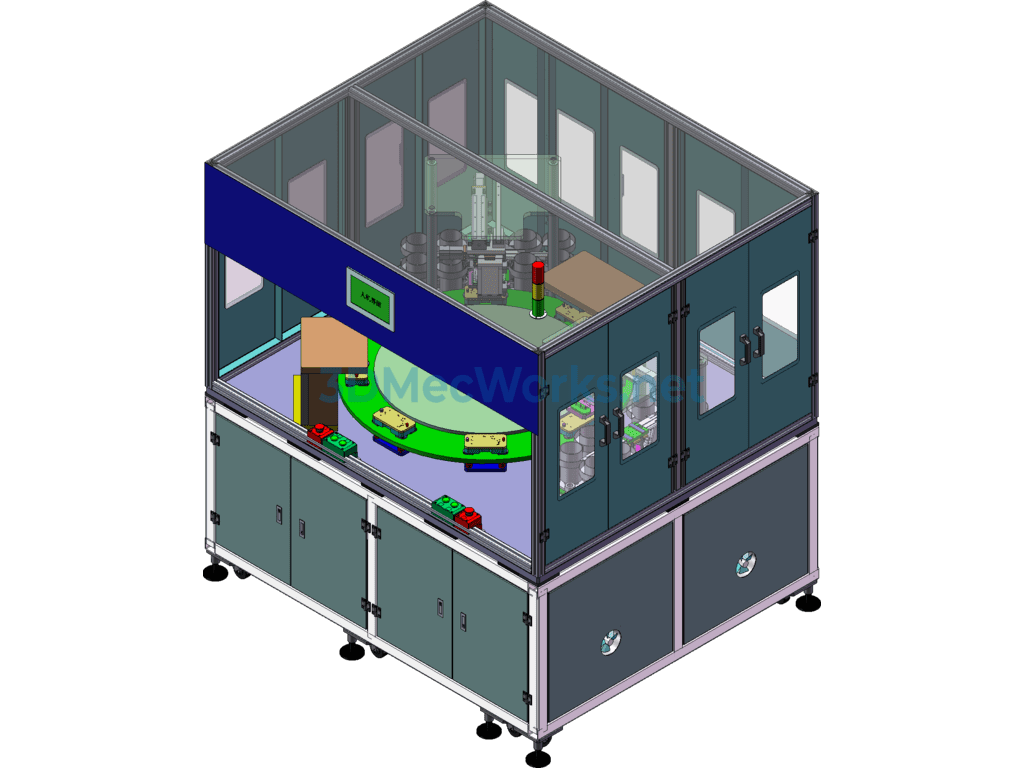

The mobile phone casing riveting machine, which handles 15 fastening points, utilizes an M24 foot cup. The table board has a thickness of 30mm, and the lower frame is welded from 60x60mm square tubes. The door is made from painted iron plates, while the upper frame uses aluminum extrusion for the framework. The door is made from painted iron plates and embedded with transparent acrylic. All doors of the upper frame are equipped with sensors that provide alarm notifications when opened. The equipment is equipped with an air storage tank, an air filtration unit, etc. The turntable is driven by an 8-division divider.
