The Oil Cylinder Drives The Rack To Detach From The Threaded Mold. - UG(NX) - Free Download

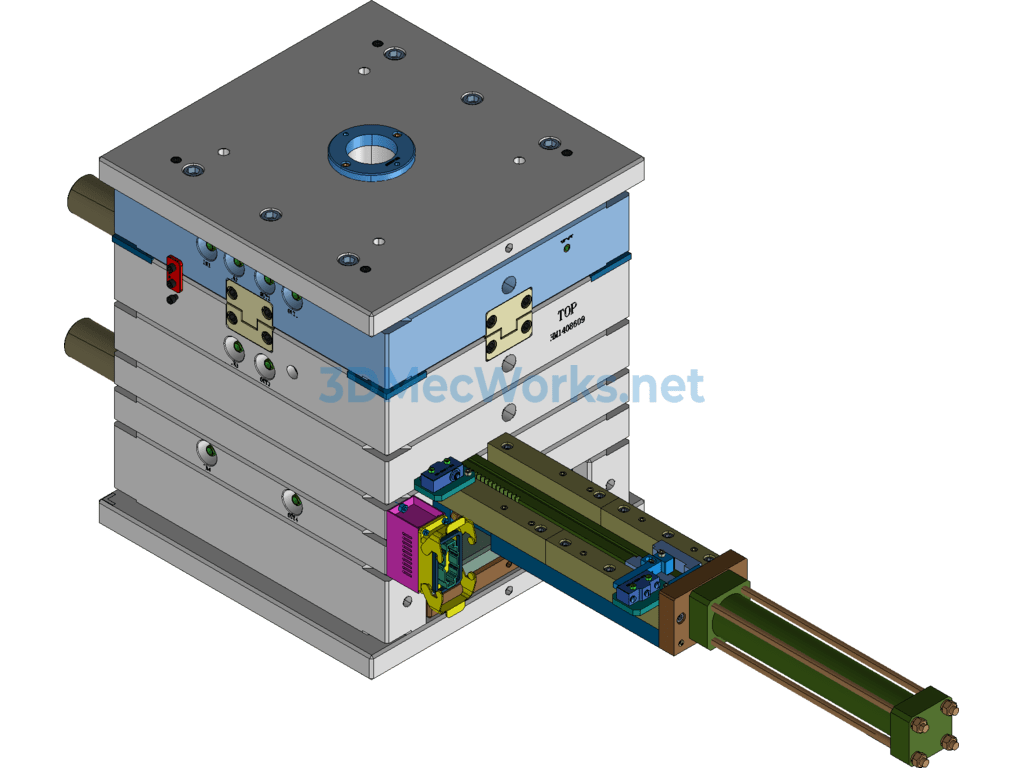

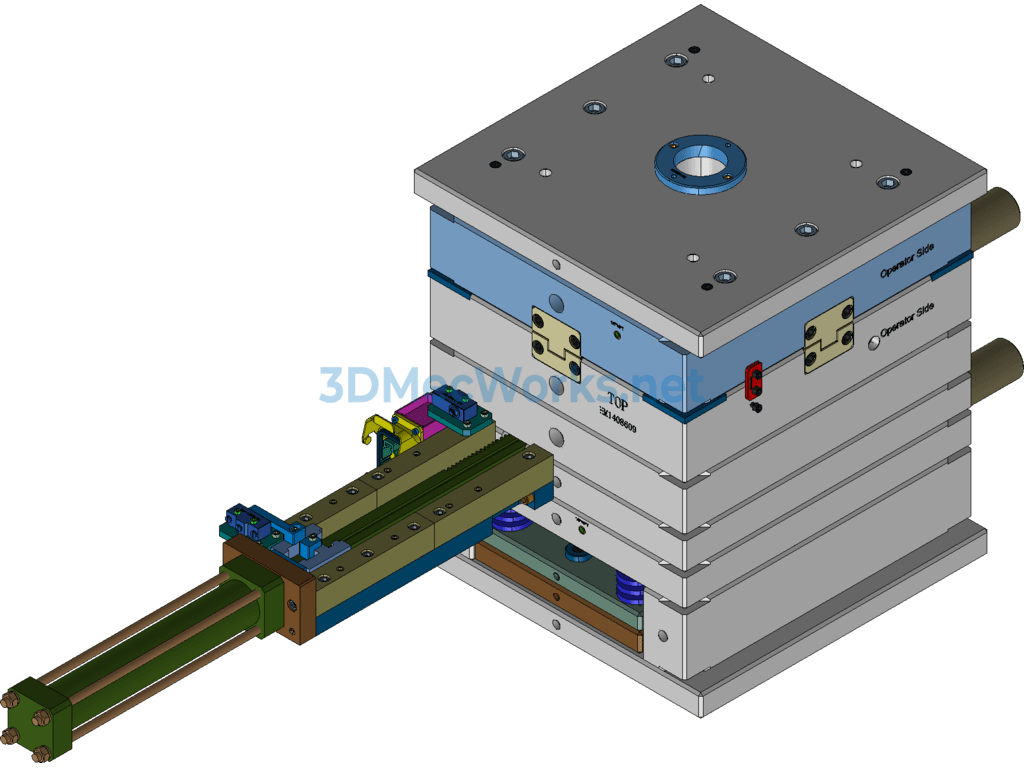

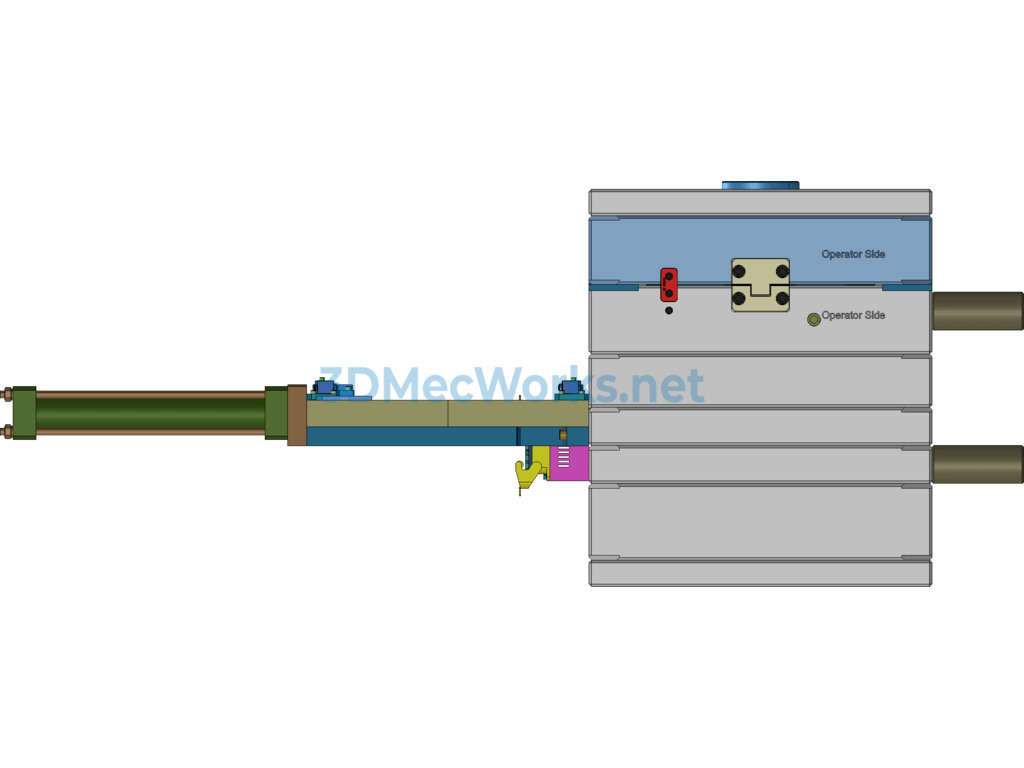

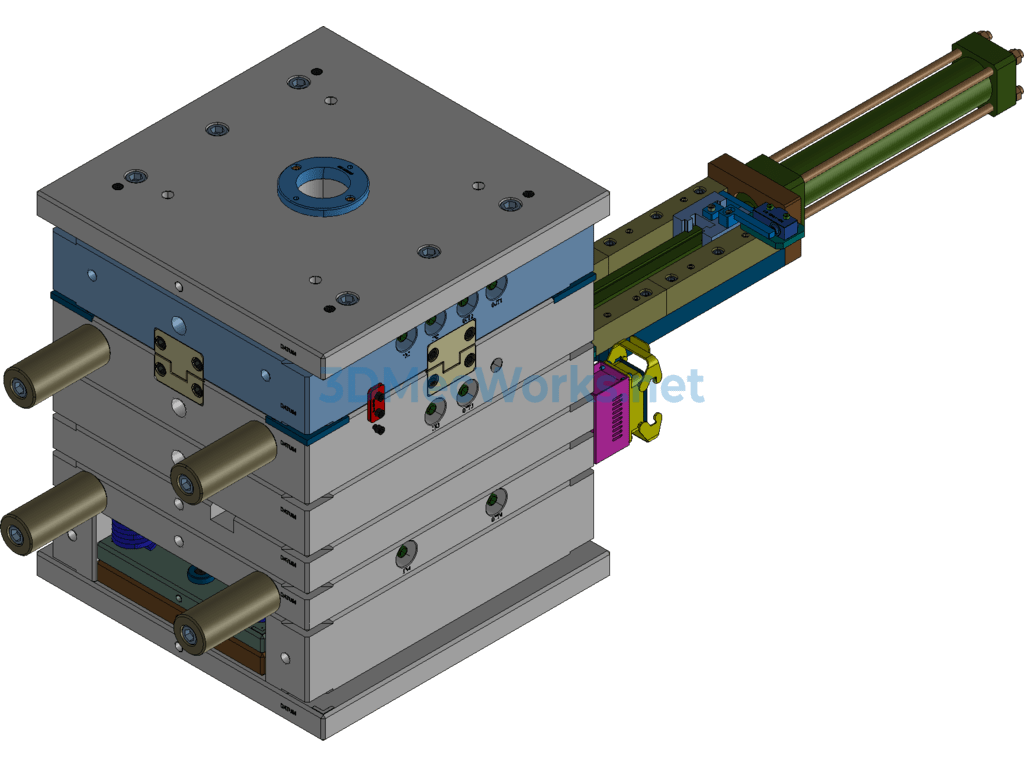

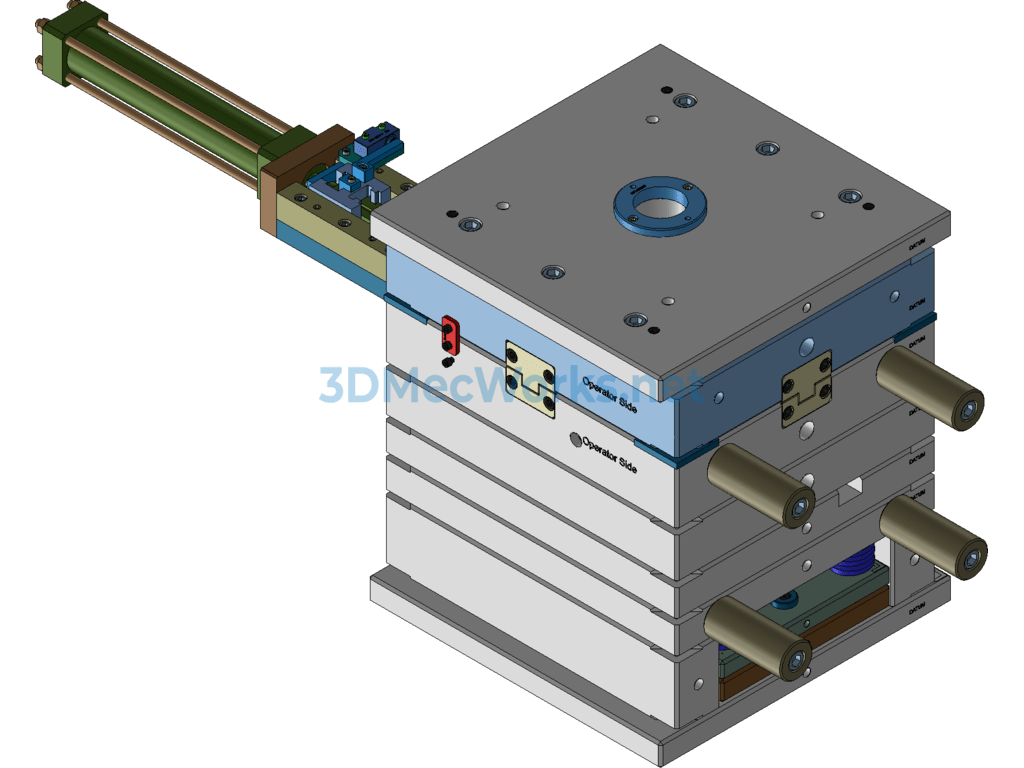

The cylinder drives the rack to detach the thread mold 3D model UG NX8.0 design prt document provided, the mold structure for threaded plastic parts is different from general molds, mainly in the detachment of the thread within the mold and the demolding of the plastic part. The demolding of threaded plastic parts is largely related to the size of the thread, material, and forming method. If the thread is relatively shallow and the material is softer, forced demolding can be used._x000D_
A very good reference for learning the 3D diagram of thread detachment mold design, worth learning and collecting.
