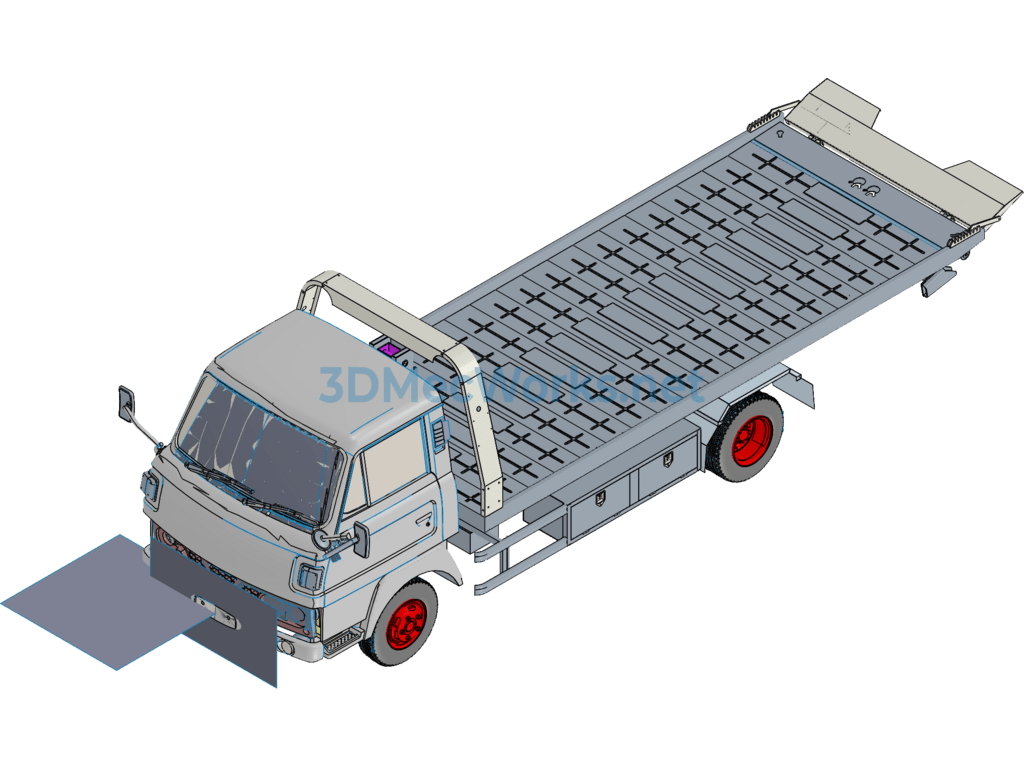

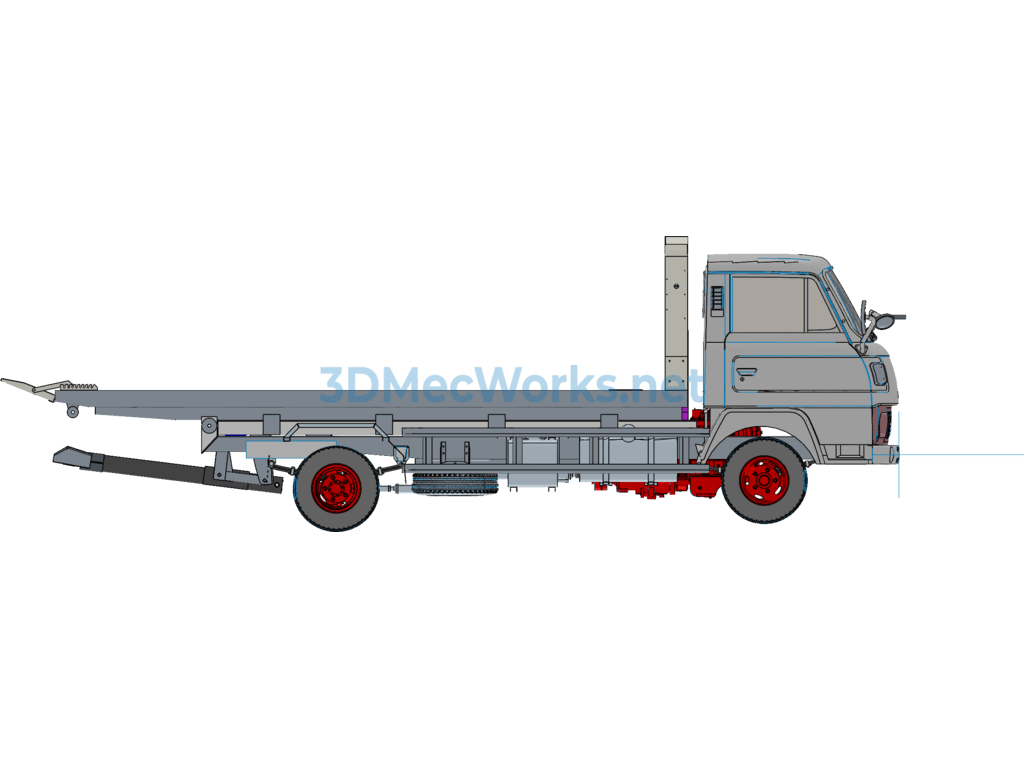

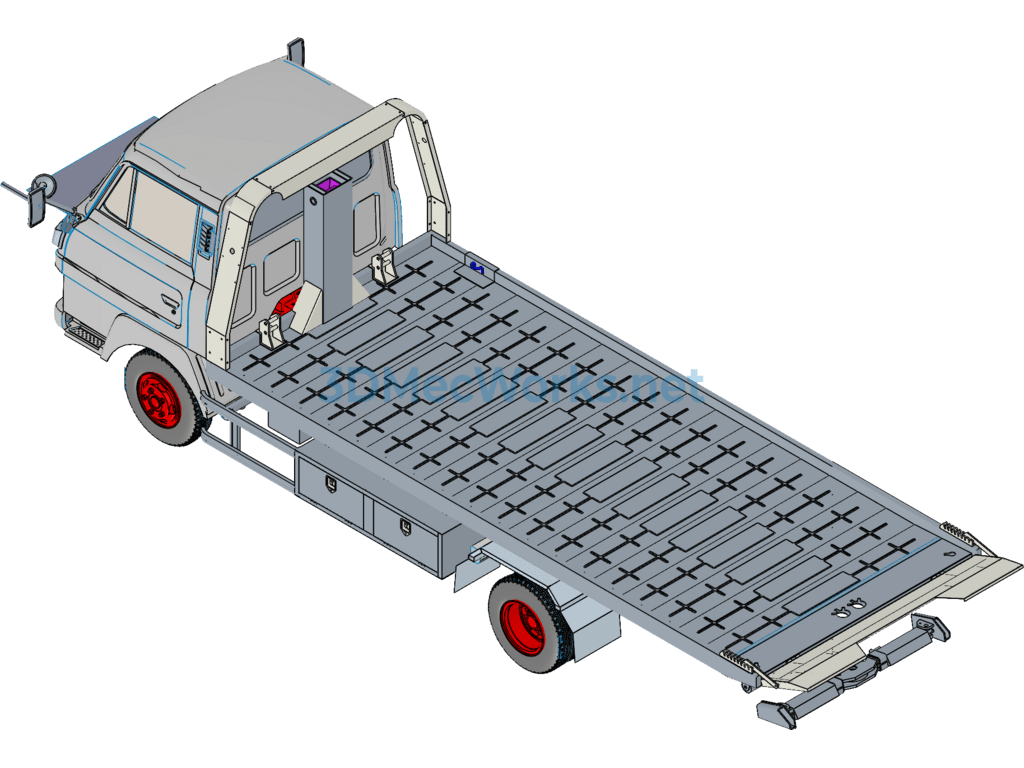

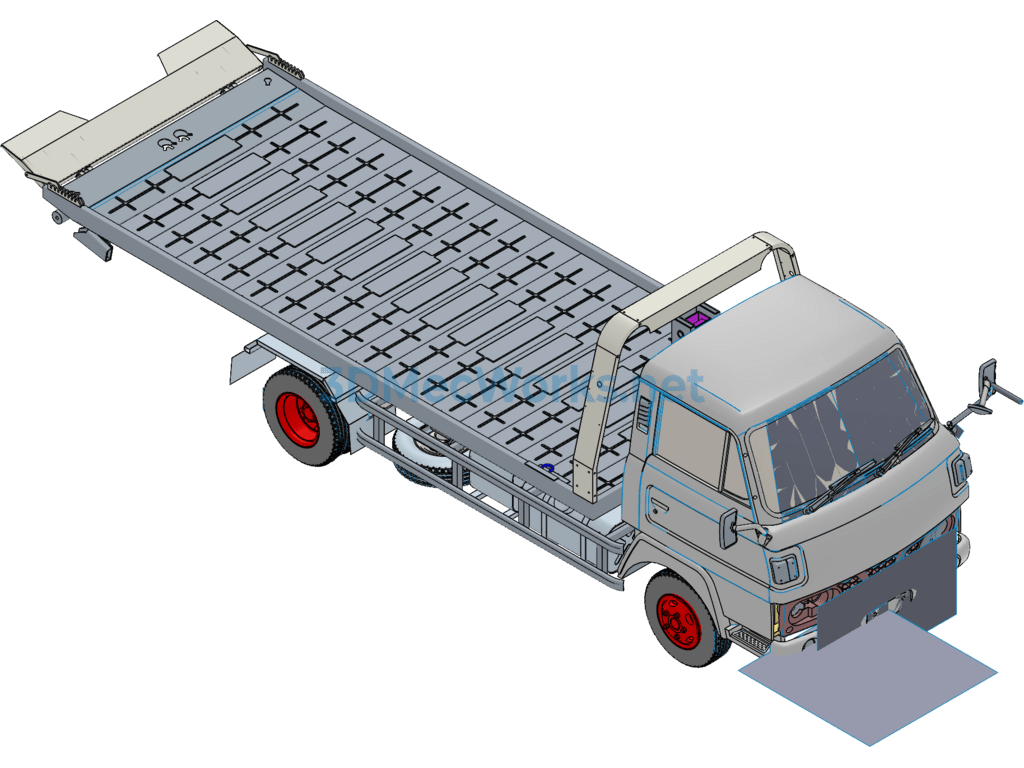

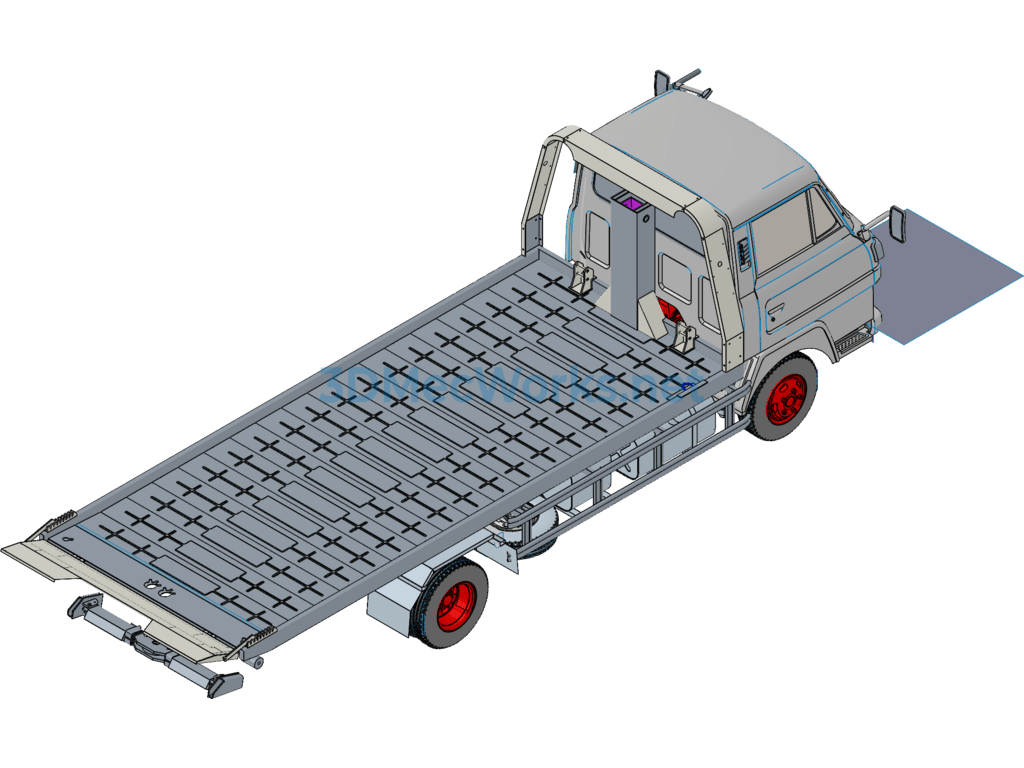

The floor-level tow truck model mainly consists of a chassis system, auxiliary frame, flatbed, guardrail, and lifting mechanism. It is primarily used for transporting cars with low chassis, such as sedans, sports cars, and F1 race cars. The flatbed can tilt 10° to the ground and is equipped with a hydraulic winch to assist with vehicle loading. At the rear, there is a lifting mechanism capable of transporting two vehicles simultaneously. The tail end of the flatbed includes a hydraulic cylinder that can automatically flip the tailboard. The main challenge of this vehicle model lies in controlling the dimensions of the three-section hook arm, with high tolerance precision requirements to ensure that the flatbed does not interfere with the auxiliary frame during deployment, with clear assembly levels. The structure is detailed. Each component has detailed modeling steps and includes a mechanism motion simulation file. Welcome to download and study. The name of the total assembly drawing is Full-Ground Level Tow Truck – Modification.
