The Complete Set of 4-Axis Vertical Polishing, Grinding, and Finishing Equipment

Vertical Four-Axis Polishing, Grinding, and Buffing Equipment – Original with Complete Set of Engineering Drawings SLDDRW

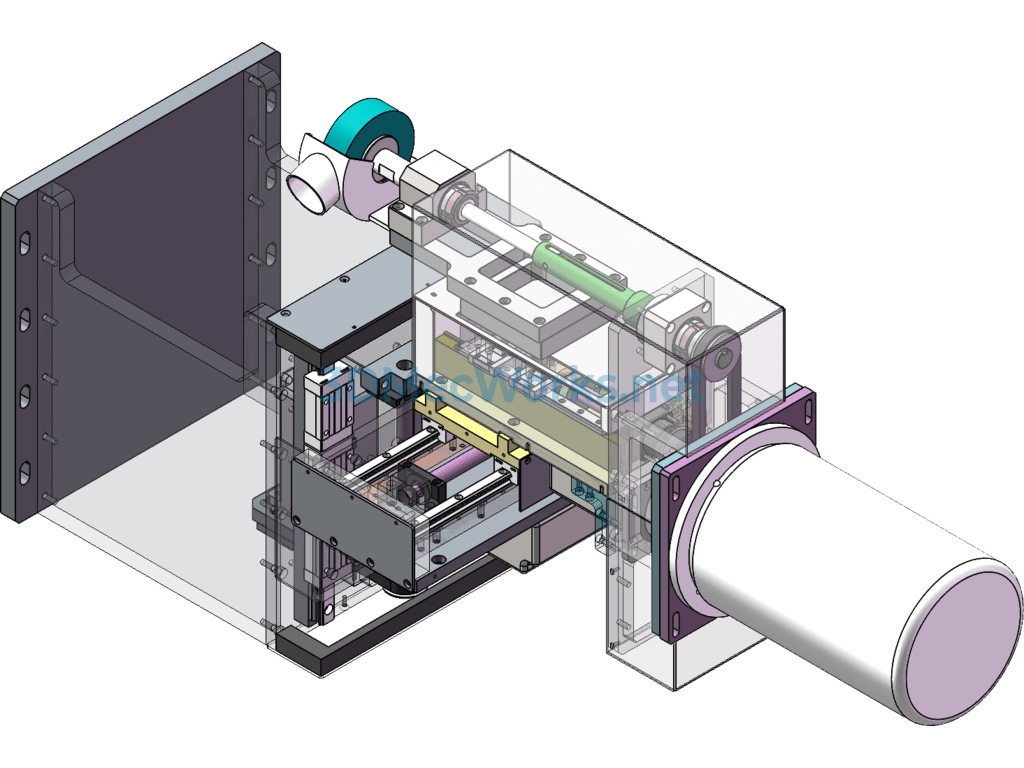

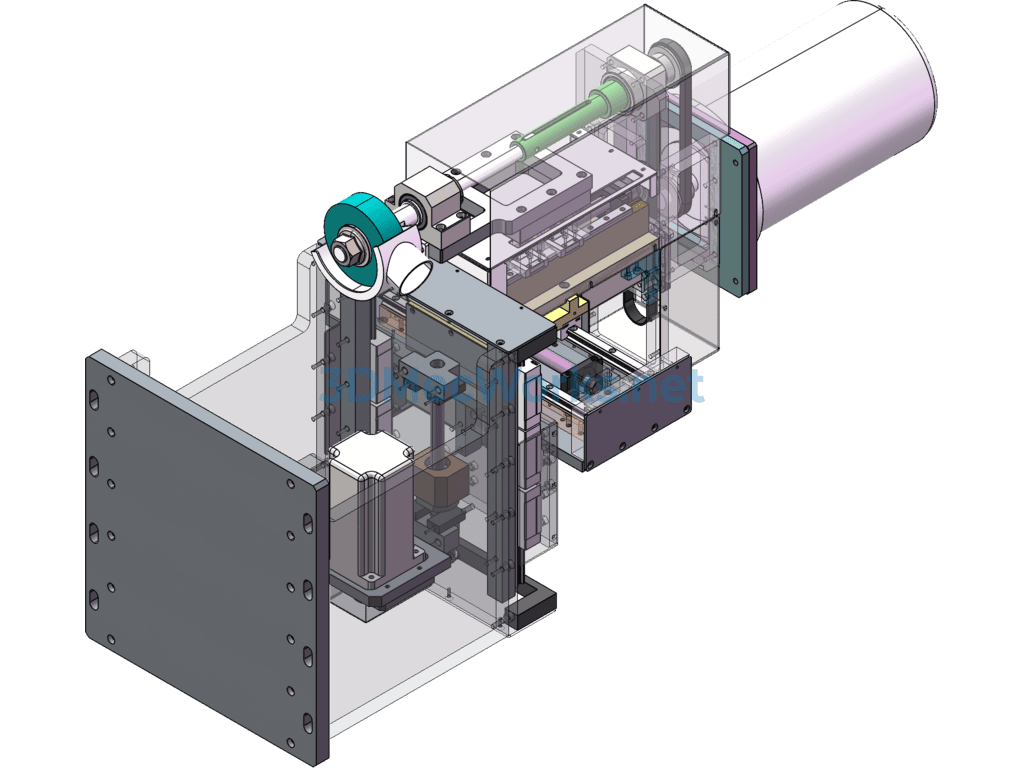

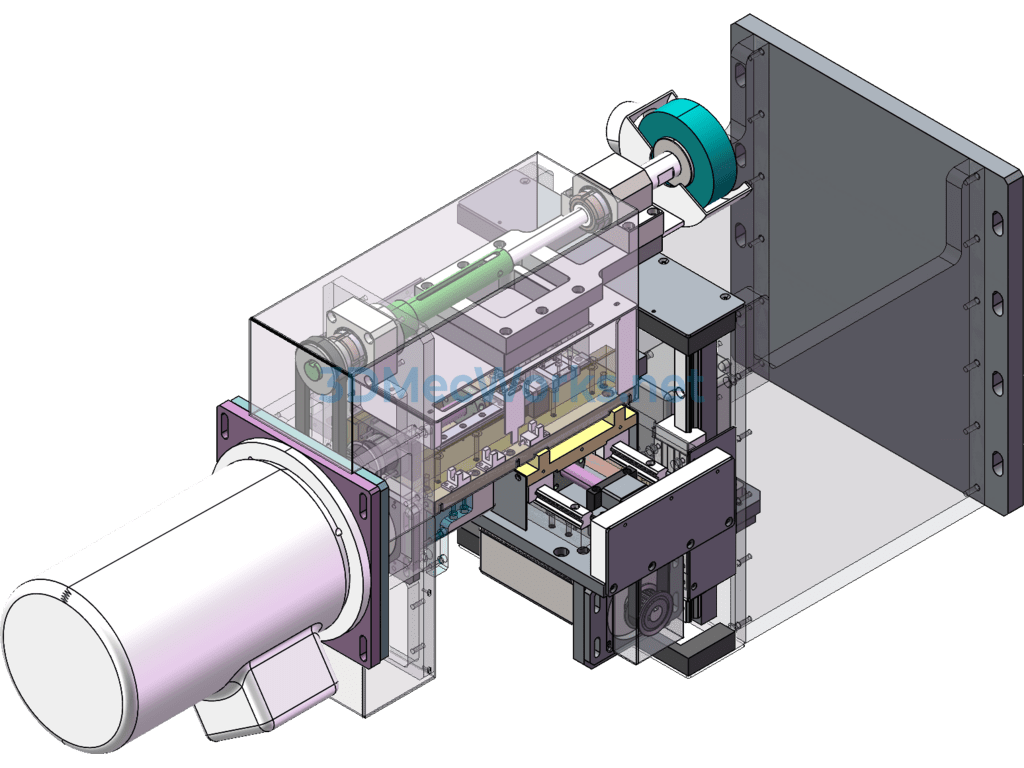

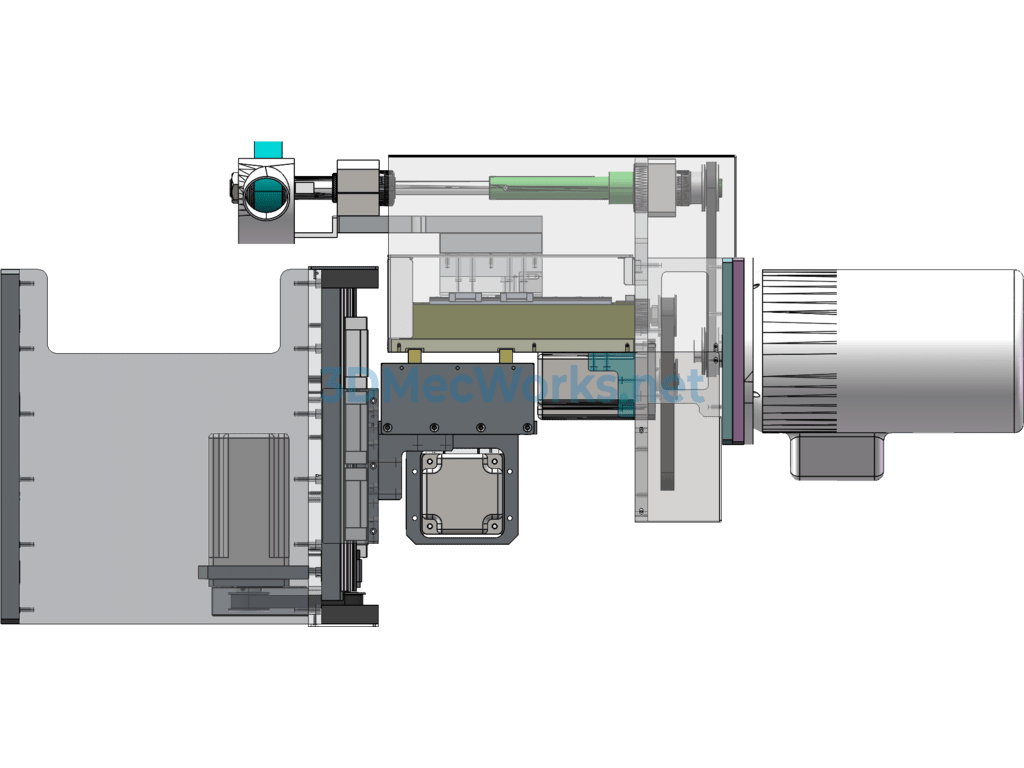

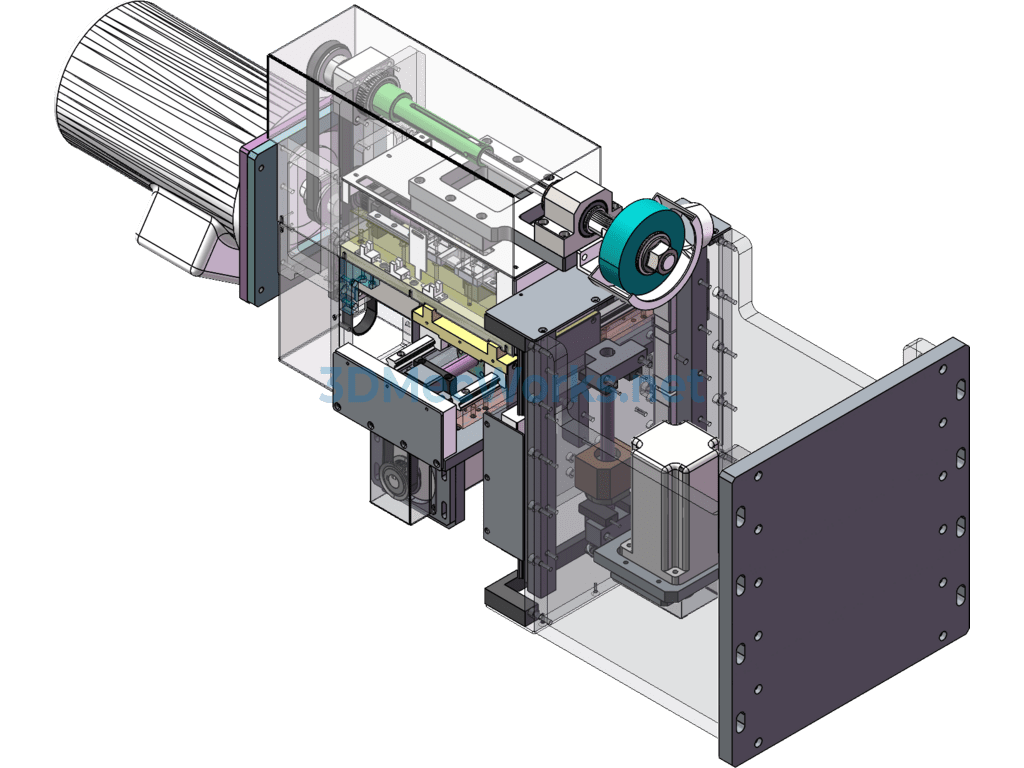

A set of diagrams for a vertical polishing and grinding equipment. This equipment is equipped with a 4-axis linkage capable of polishing and grinding various flat and curved surfaces. The equipment is stable and mature, having been widely used in the mobile phone and hardware industries. It features a stable design and an aesthetically pleasing structure. The overall structure consists of a three-axis movement system utilizing lead screws and sliders. The drive motor is an 86-step stepper motor, connected laterally with a synchronous belt pulley transmission. The spindle rotation speed can reach up to 50,000 RPM. The grinding head includes data compensation functions that automatically compensate for grinding wear based on the amount required for different products. The grinding area is equipped with an exhaust device to reduce environmental pollution. The complete set of drawings for the vertical polishing machine is accompanied by engineering drawings. Interested parties are welcome to download.
