Terminal Cutting Carrier Tape Packaging Machine Equipment Introduction:_x000D_
1. Terminals attached to each other automatically reach the cutting position via the feeding end. The terminals use a dual ratchet mechanism, allowing loading and unloading to achieve zero waste of terminals. There is a waste cutting and collecting mechanism at the rear end of the feeding mechanism;_x000D_
2. The carrier tape is transported through a stepper motor and ratchet mechanism;_x000D_
3. The automatic suction mechanism simultaneously holds 3 products, then cuts at the cutting position;_x000D_
4. The handling mechanism adjusts the pitch of the cut terminals during transportation, then places them in the carrier tape. The handling mechanism uses a servo motor cam mechanism, which is fast and low-noise;_x000D_
5. Automatic sealing tape._x000D_

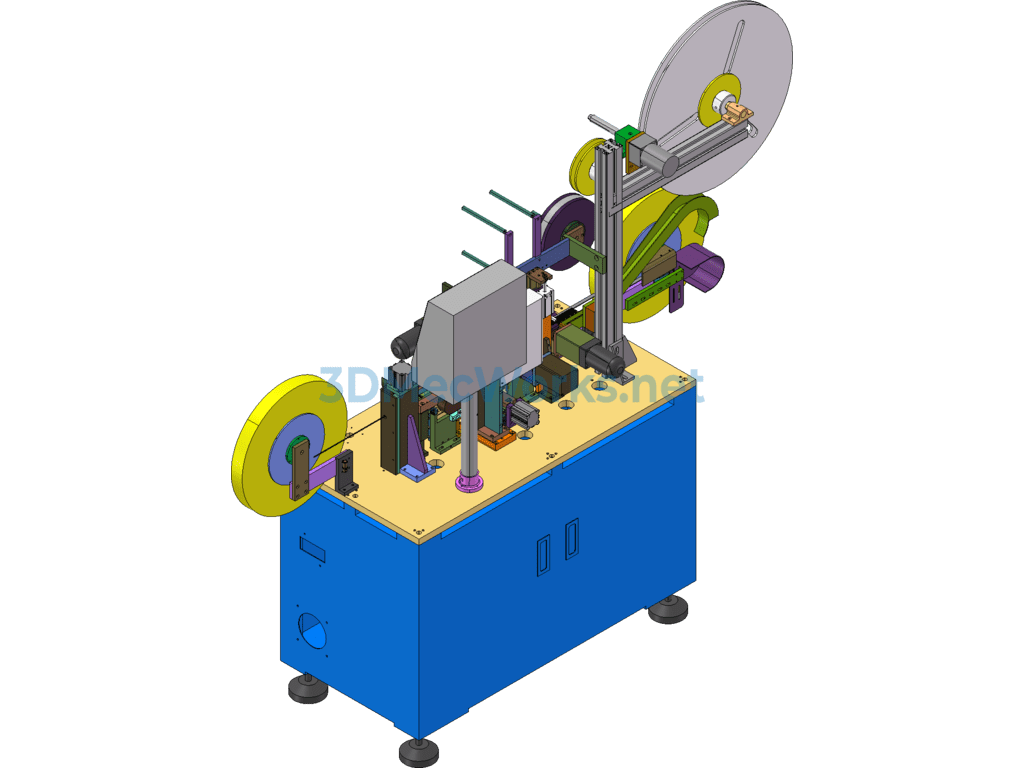

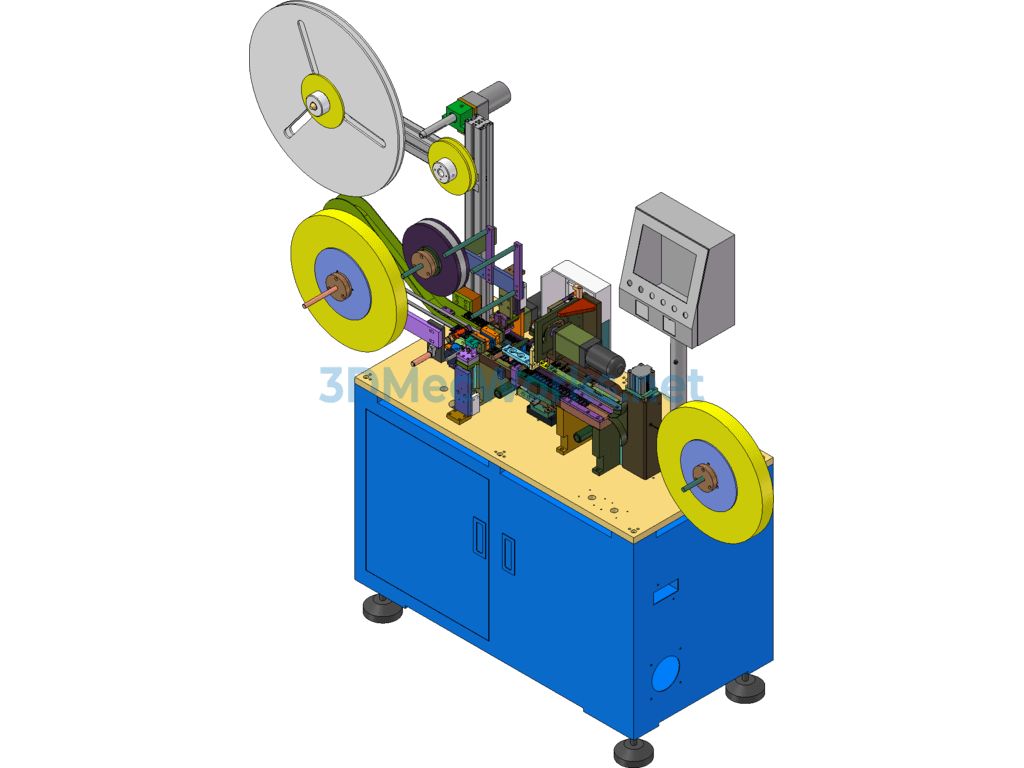

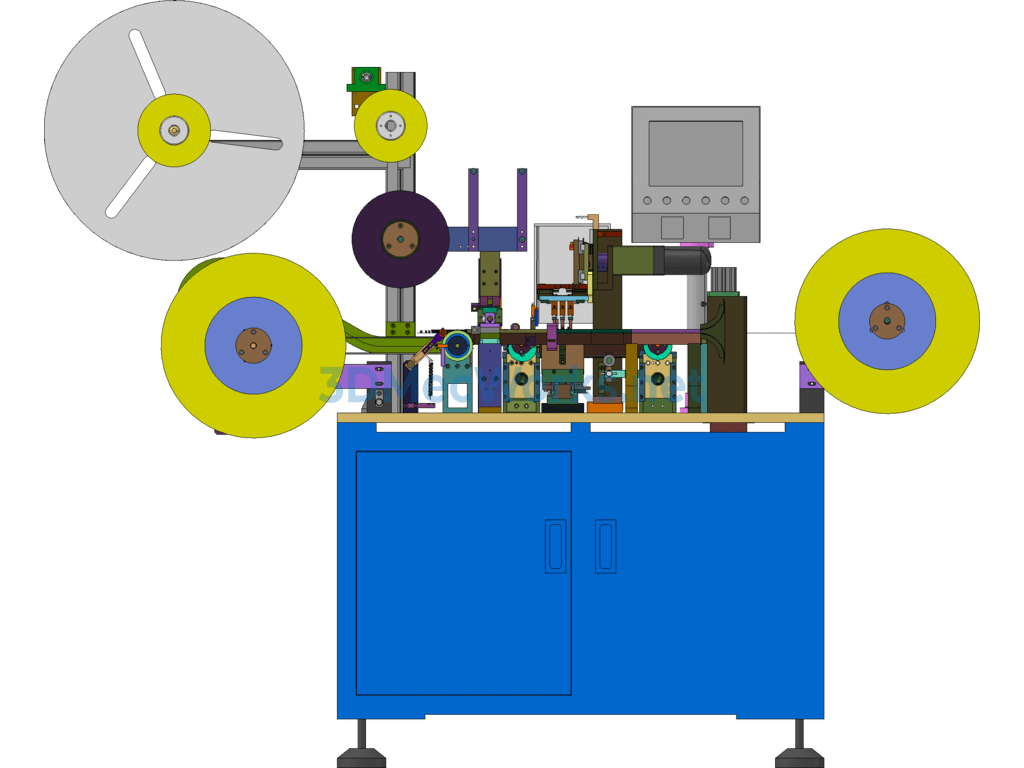

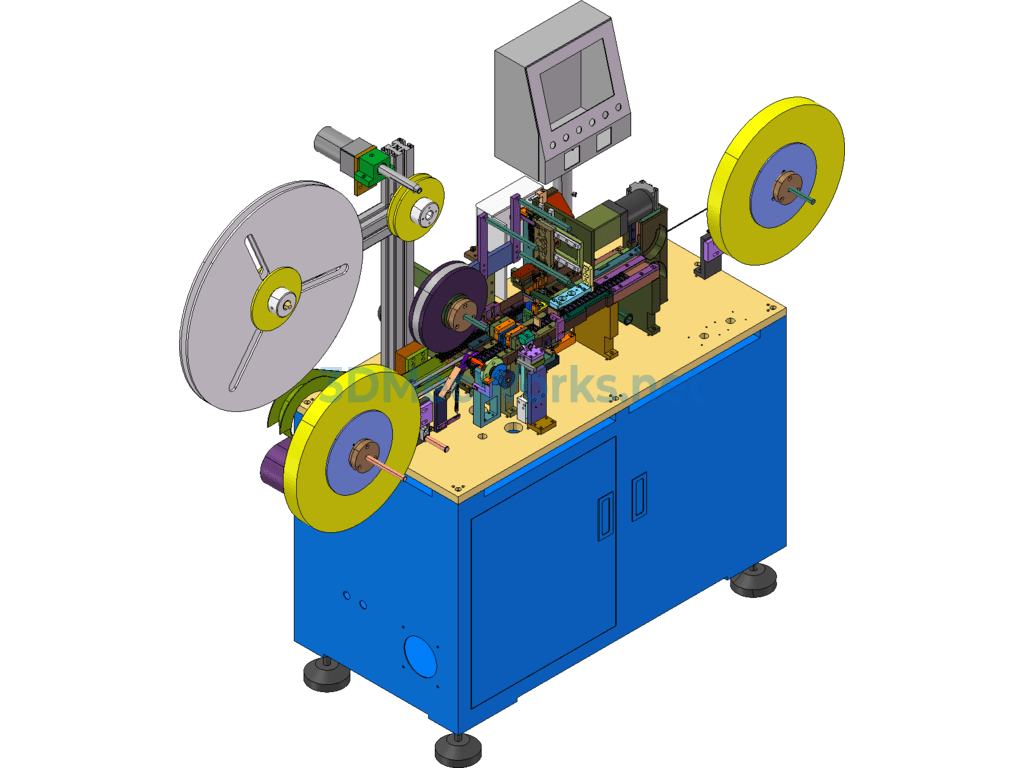

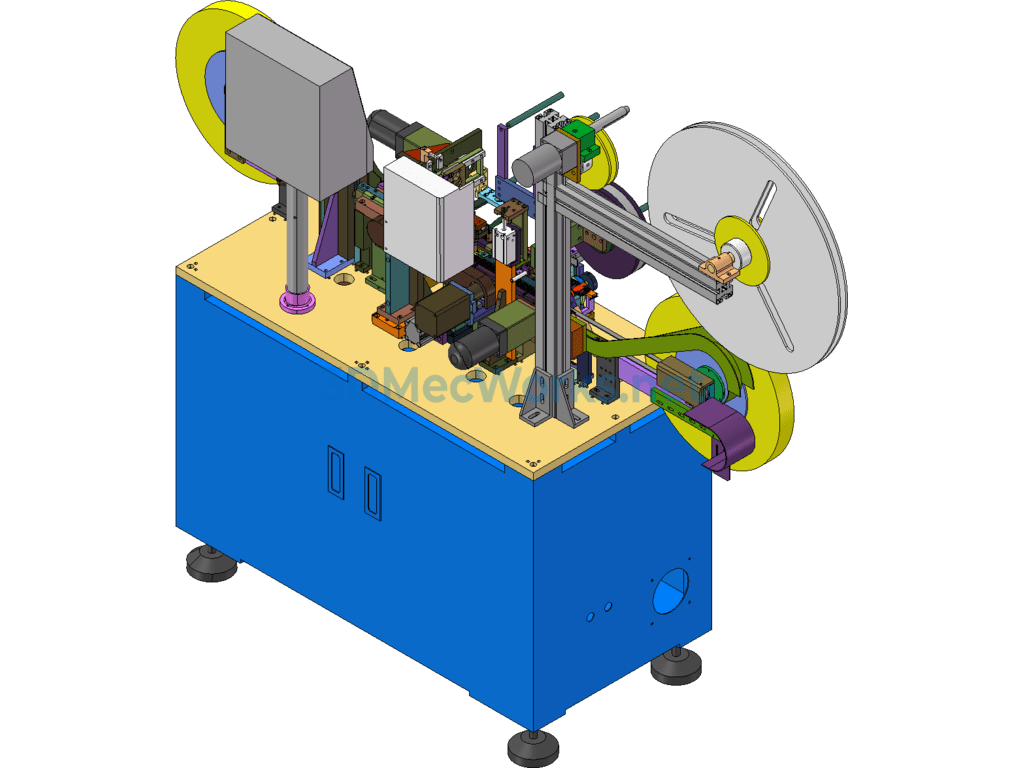

This equipment has been put into production and has 3D and 2D engineering drawings.
