Taping Machine Manipulator for Fast Material Retrieval and Taping Packaging Machine (complete Set of Drawings)

Tape Packaging Machine Manipulator for Fast Material Handling
(Schematic Drawings Included)

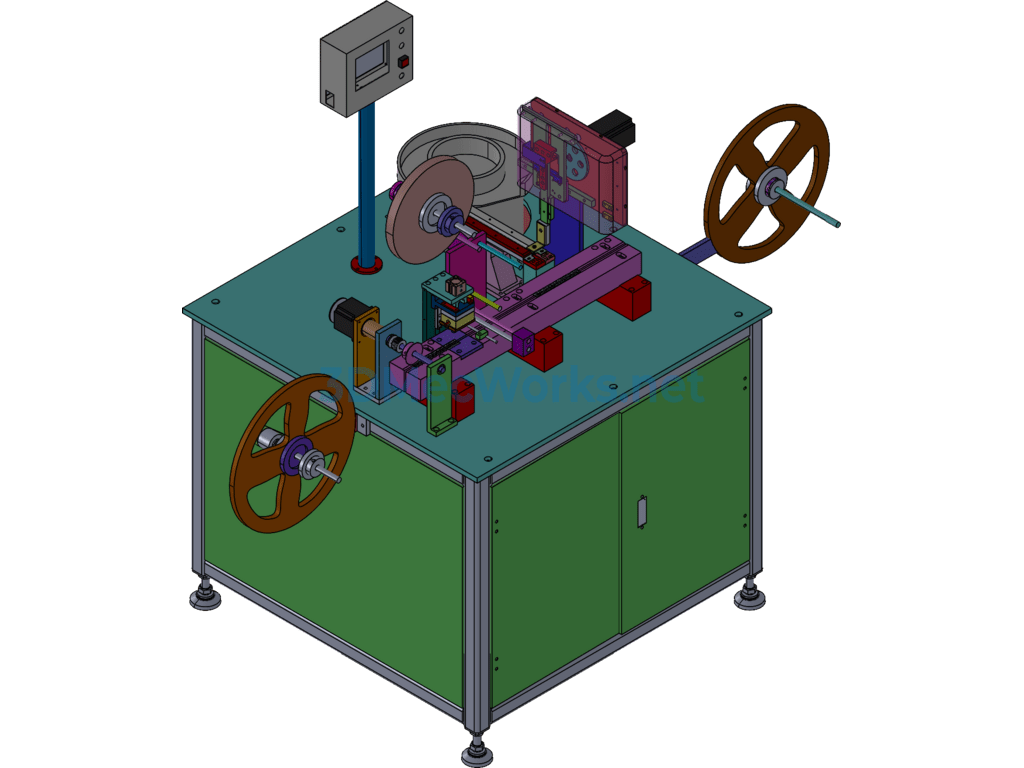

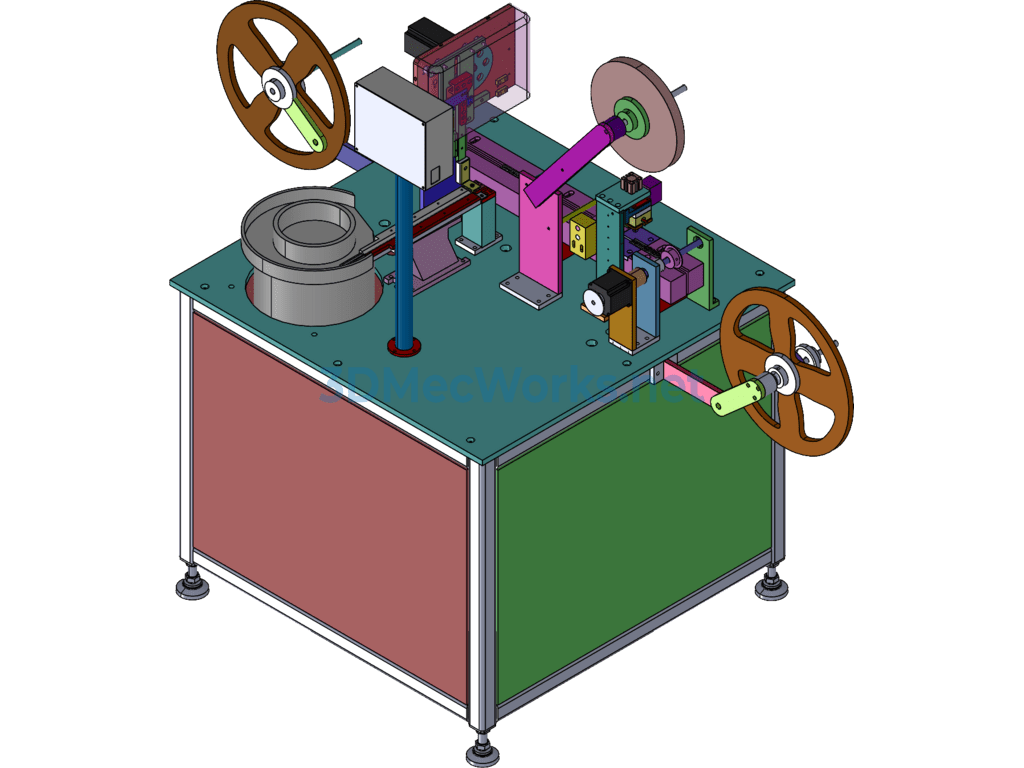

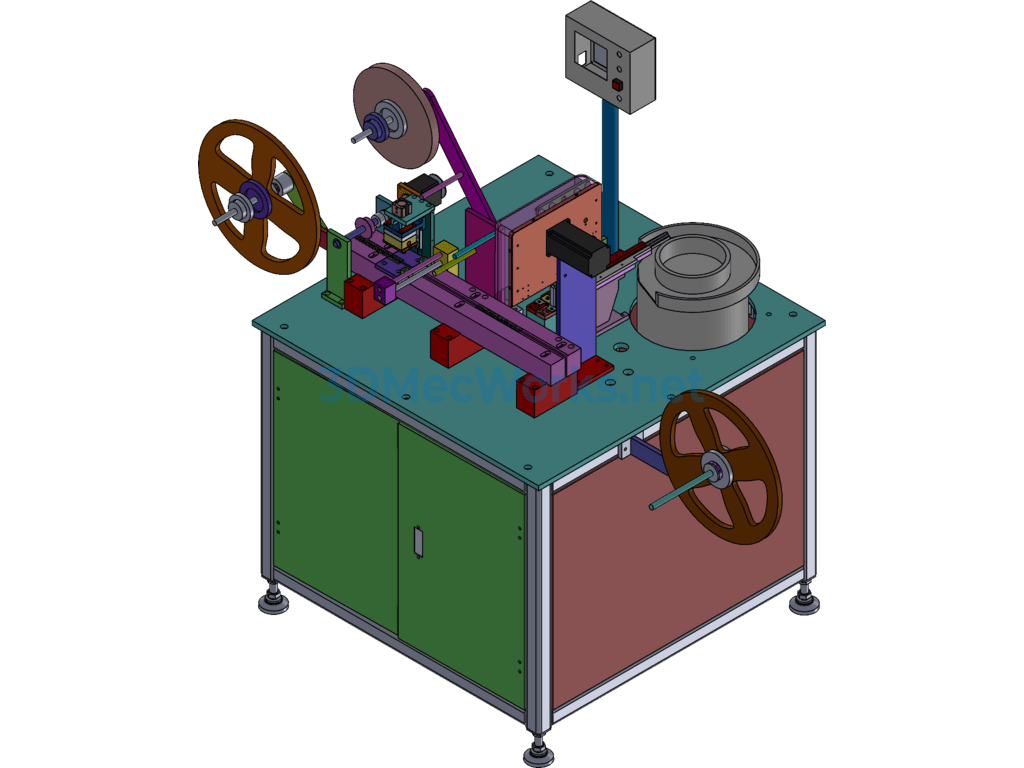

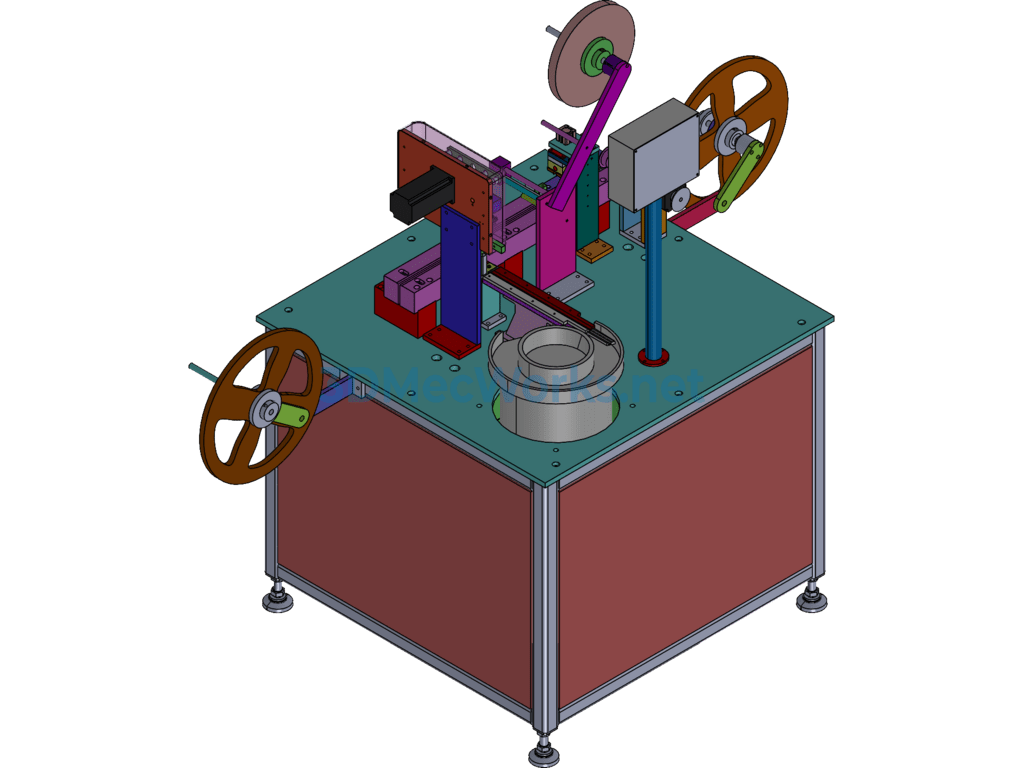

This is a set of high-speed tape packaging machines with a cleverly designed structure unlike previous models. The taping section employs a high-speed material handling manipulator that rotates 180 degrees horizontally. Many taping mechanisms use a turntable, but in consideration of cost, this low-cost taping machine was designed. It is fast and functional.
A set of new tape packaging machine drawings is available for download for those who are interested. More and better SMT industry drawings are available on the homepage.
