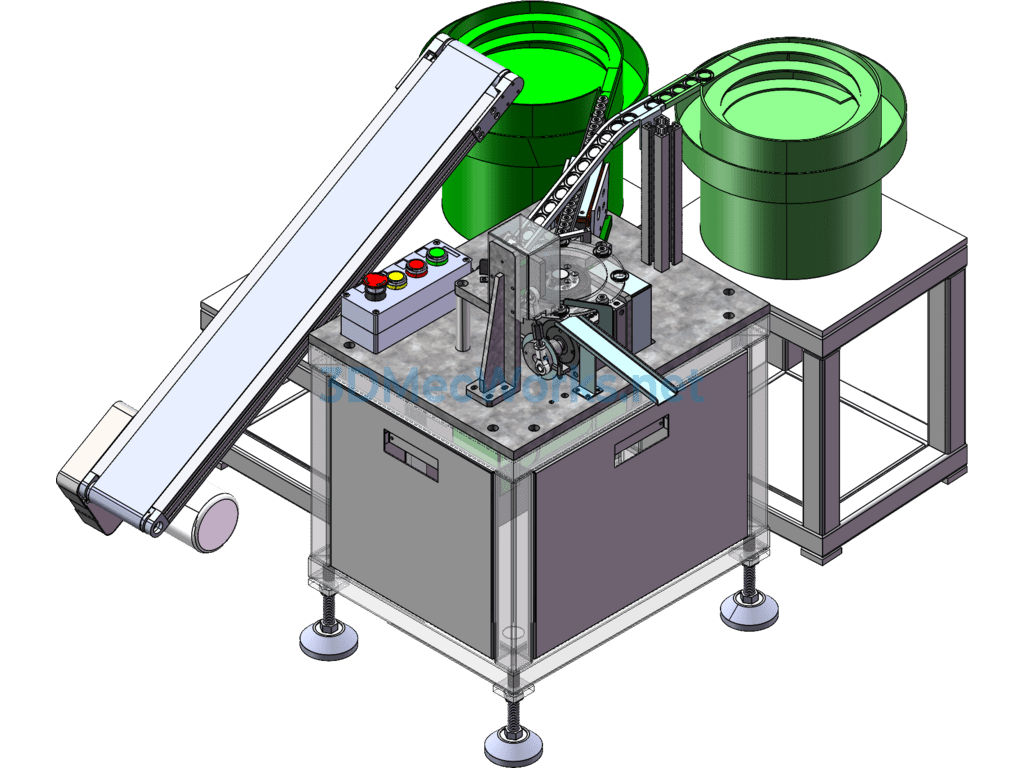

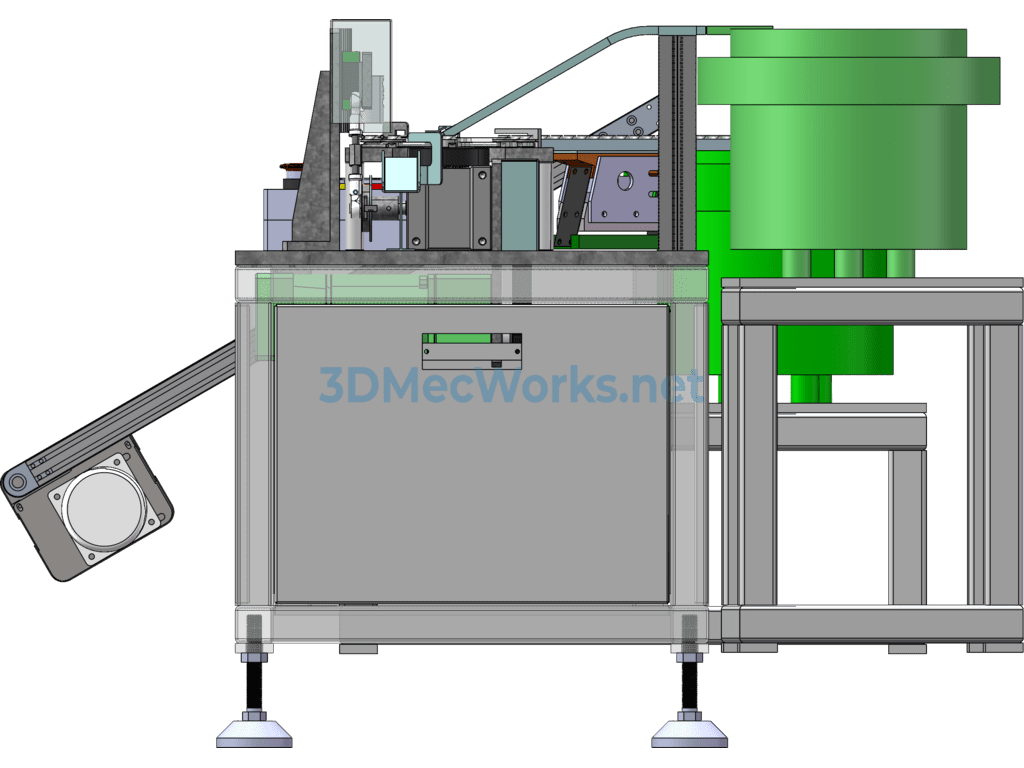

This drawing file is a solidworks 3D drawing of a nut and washer crimping assembly. The entire assembly uses automatic feeding and crimping, with a cam and motor press-fit structure. The mechanism is simple and easy to operate, cost-effective, and highly efficient.

Specification: Tapered Nut Washer Pressing Machine - SolidWorks - Free Download

Design Software	SolidWorks
Editable	Editable, With parameters
File Formats	Sldprt~\|~Sldasm
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2020
