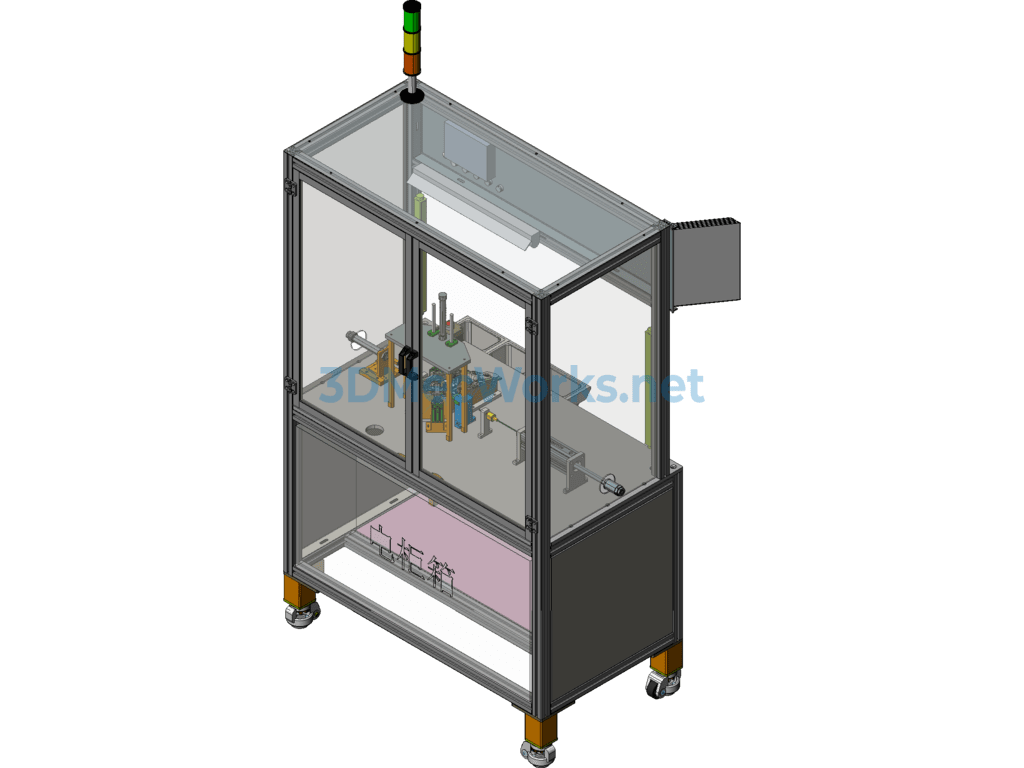

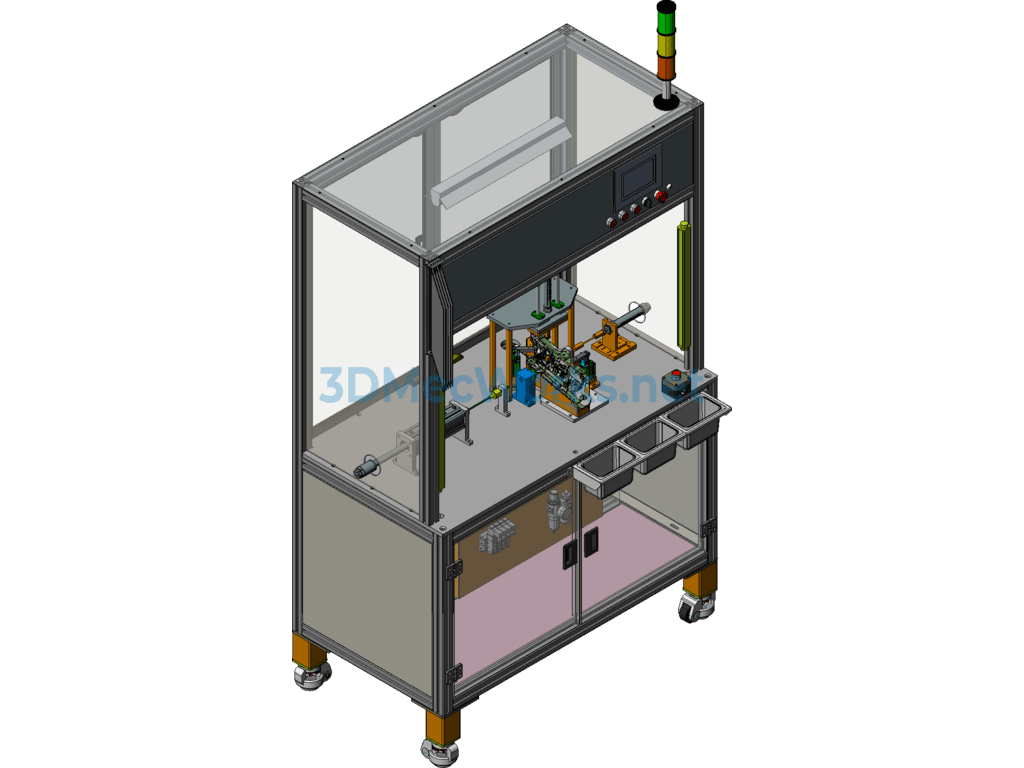

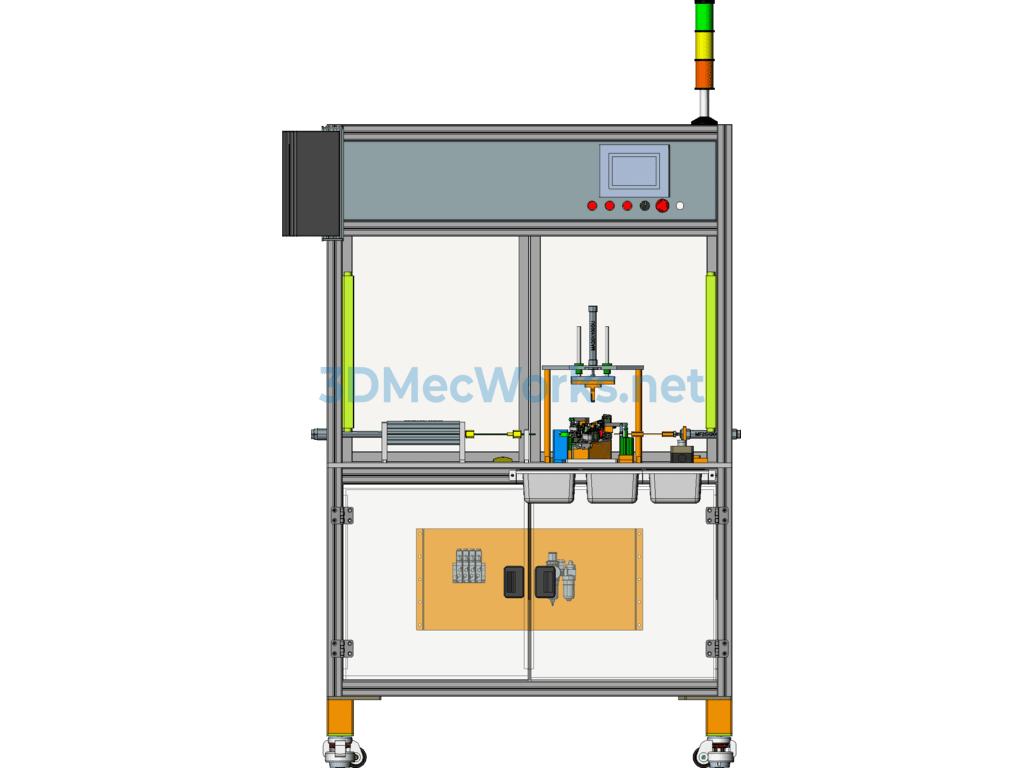

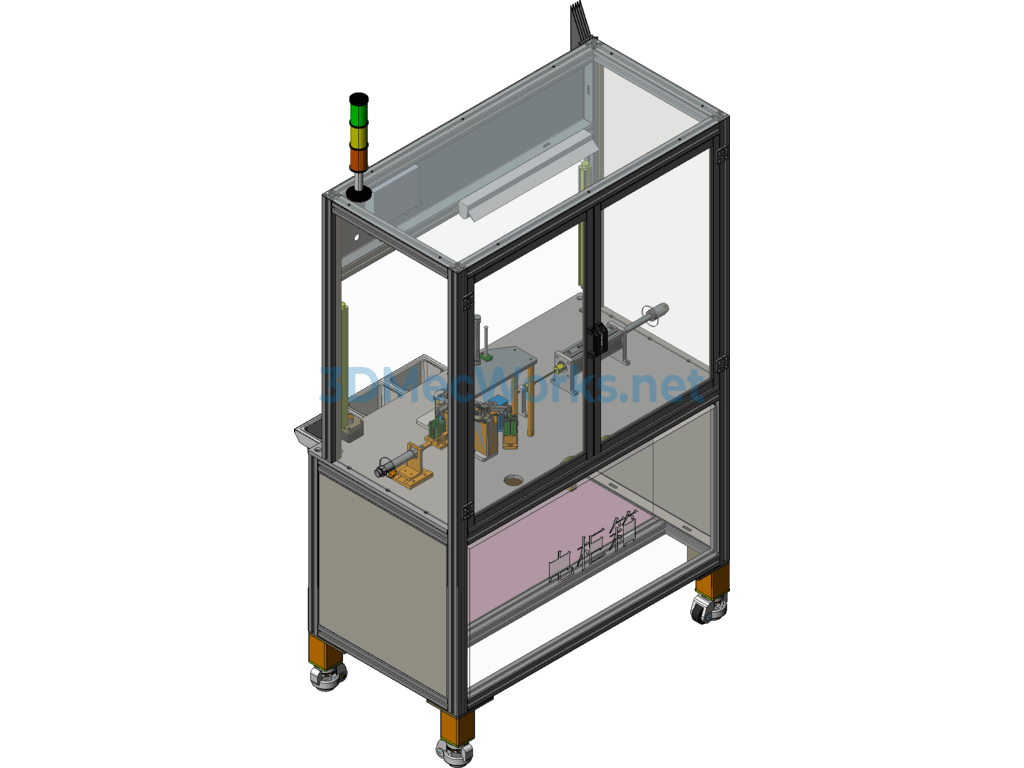

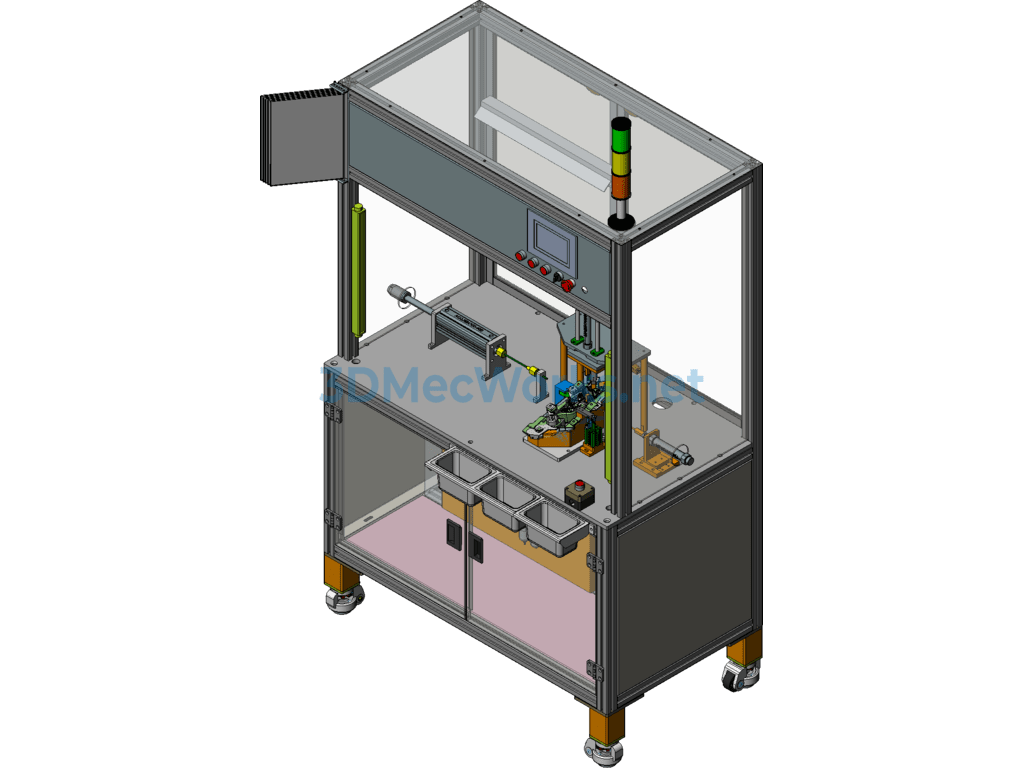

Inward-opening handle assembly equipment, used for the assembly of springs and pins in handles. Includes upper and lower frames, spring pressing mechanism, pin pressing mechanism, pin pulling mechanism, product clamping mechanism, complete control elements. Includes BOM and technical manual.

Specification: SX5F Inward-Opening Handle Assembly Equipment - SolidWorks - Free Download

Design Software	SolidWorks
Editable	Editable, No parameters
File Formats	Sldasm, Sldprt, x_t
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2018
