Subframe Four-Cylinder Welding Jig

Subframe Four-Cylinder Welding Fixture

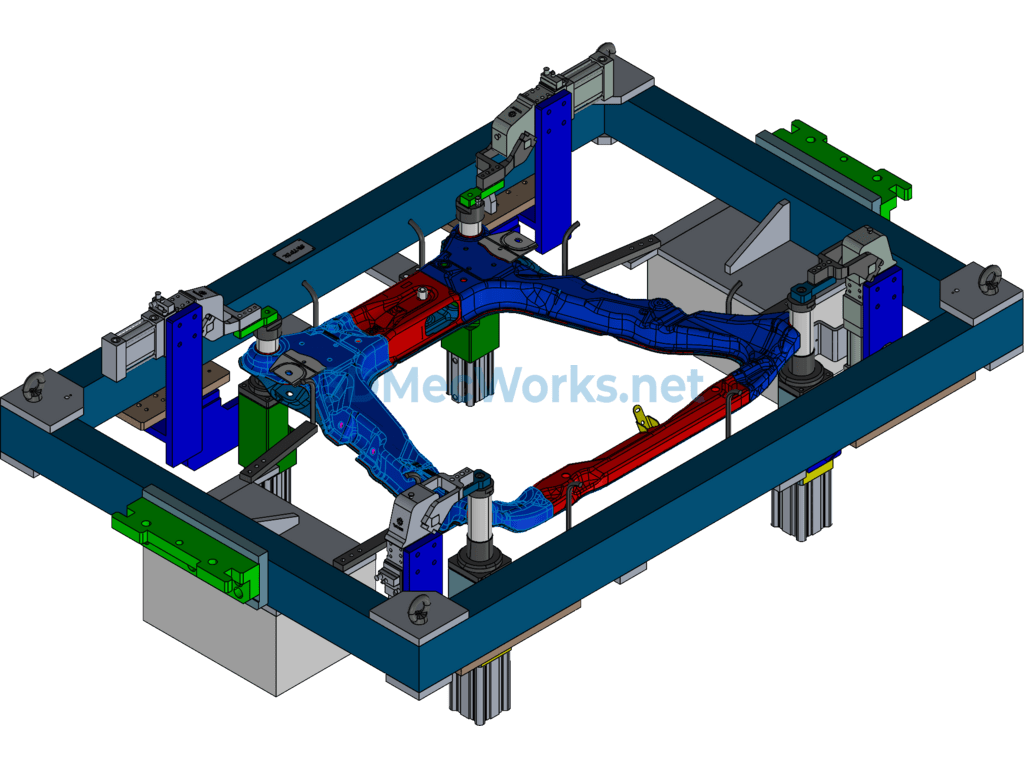

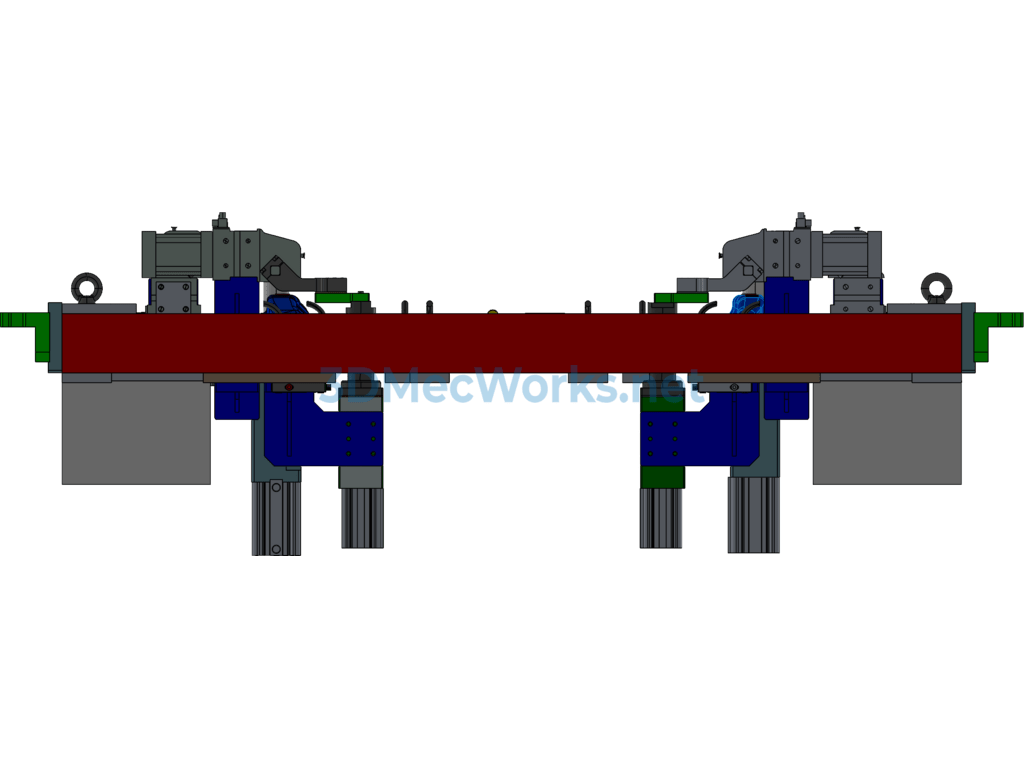

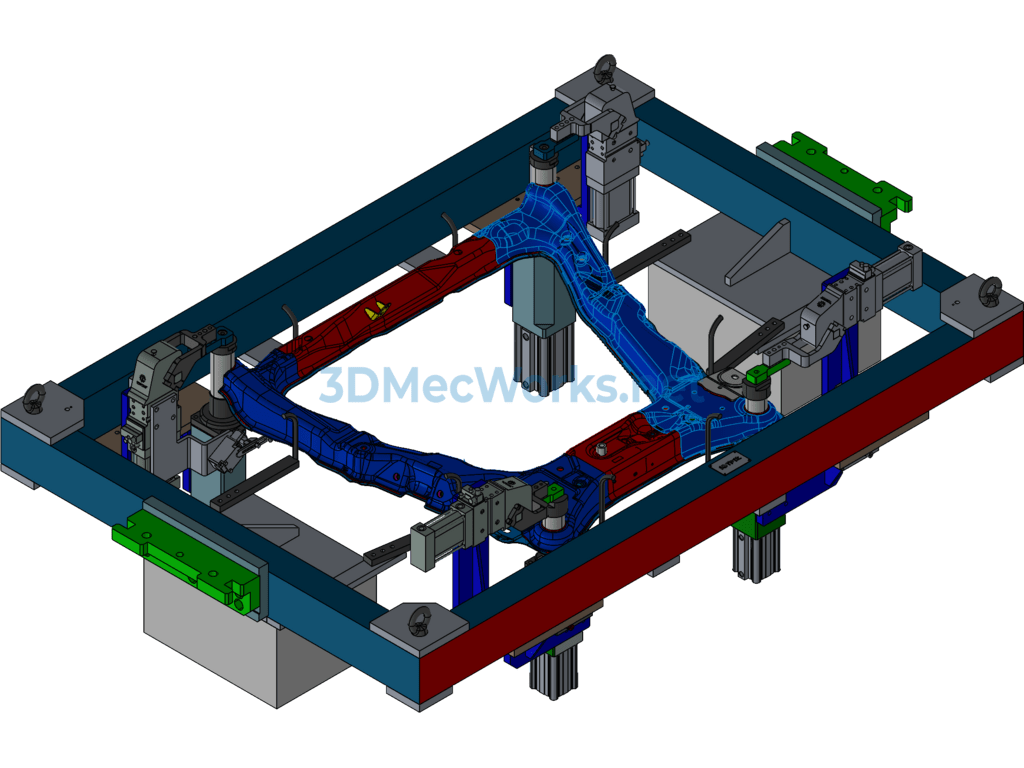

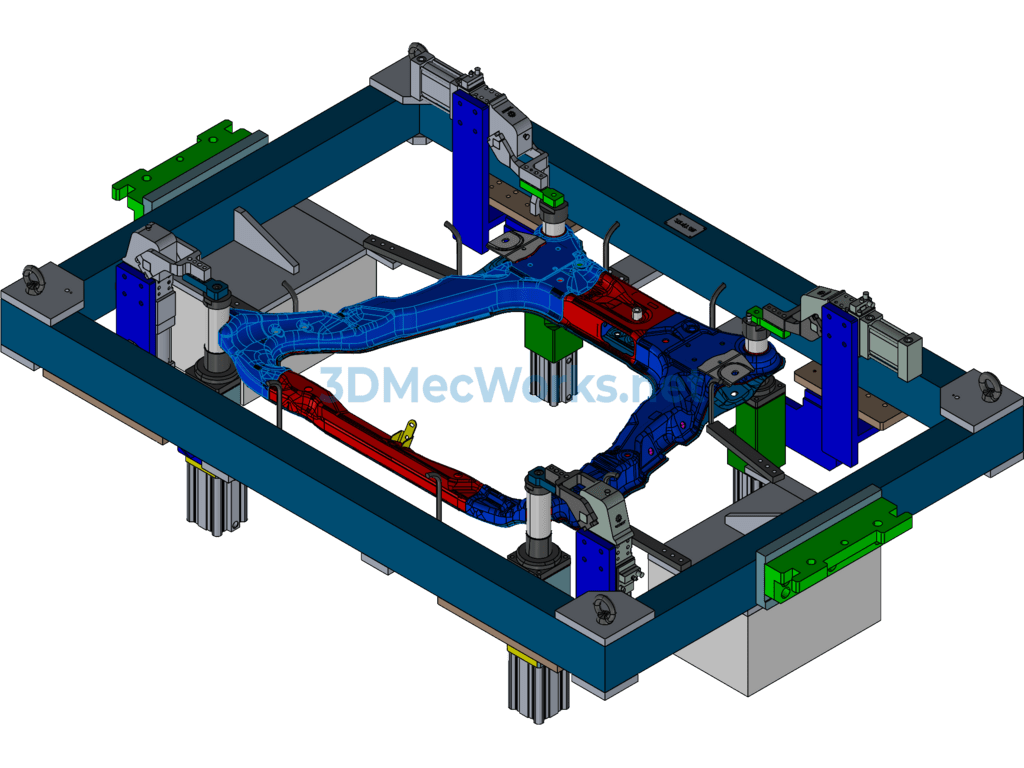

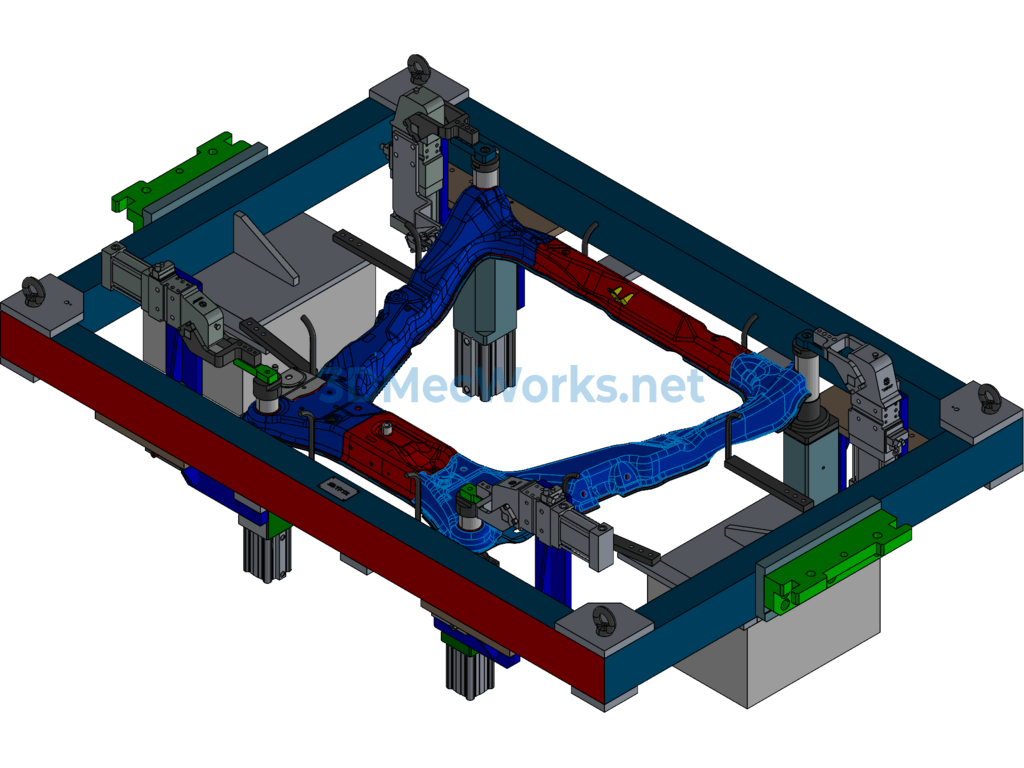

The welding fixture for the subframe consists of four cylinders welded at the four corners. It adopts a limit design for the outer edges of the product, allowing it to be quickly assembled during installation. All positioning pins use pull-out pins, making it easy to remove the product. The fixture is designed with lifting rings for easy replacement. The upload format is XT, and it is a fully assembled model that can be edited.
