Straight Arm Hinge Assembly Machine / Fully Automatic Hardware Hinge Assembly Machine

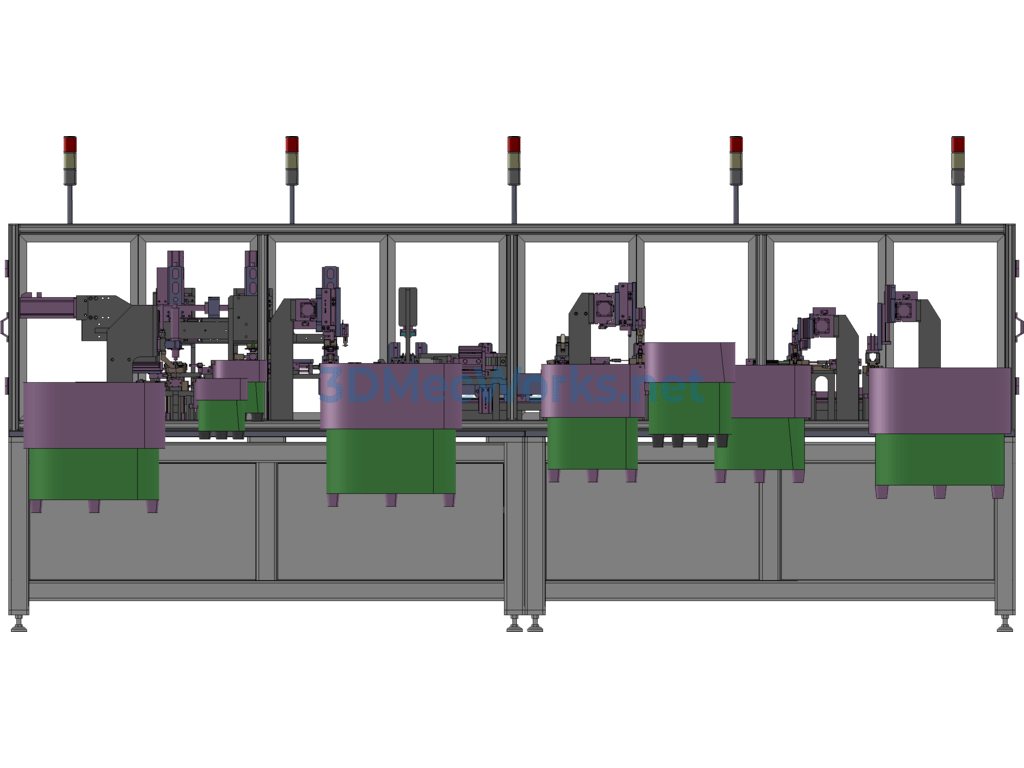

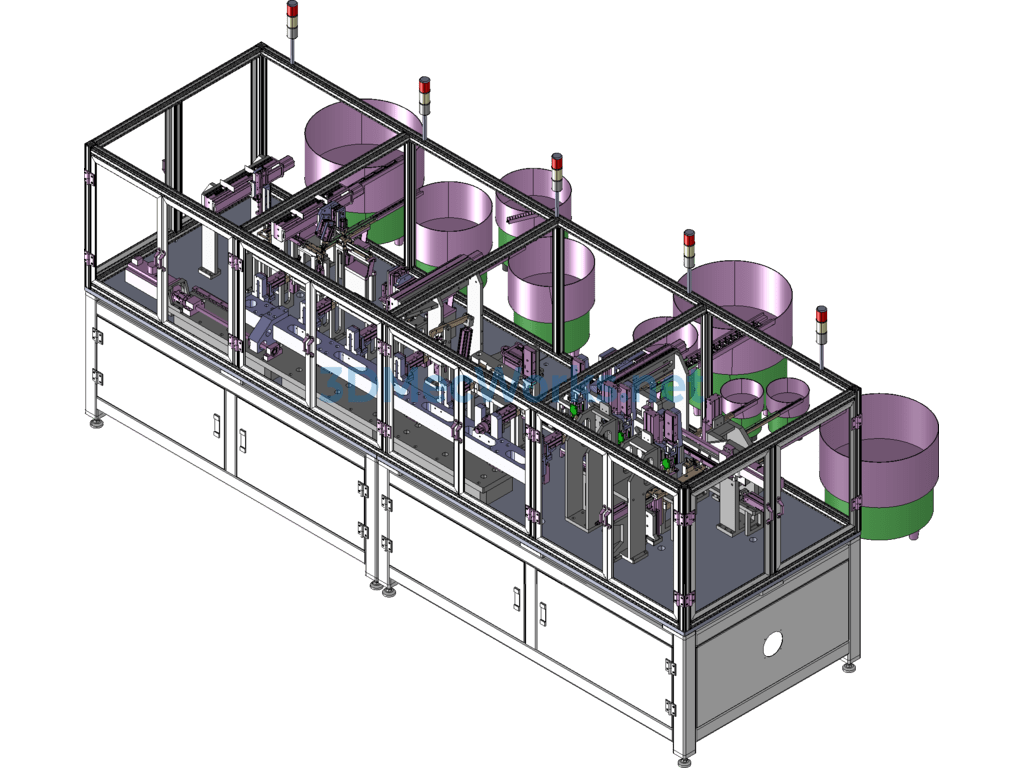

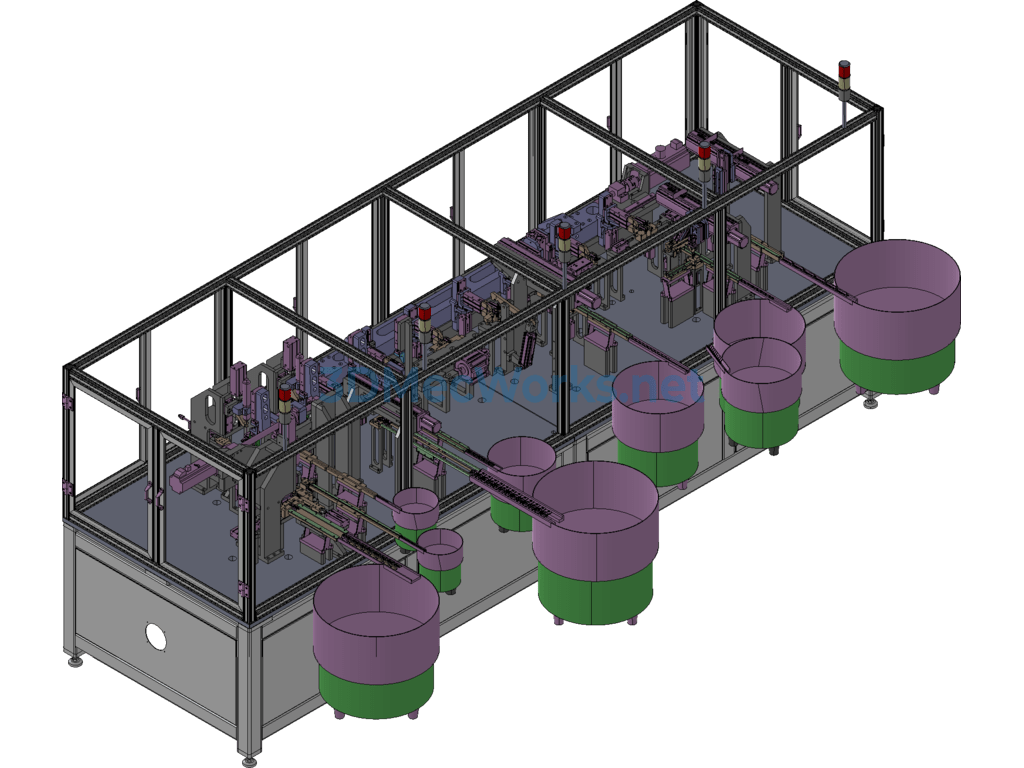

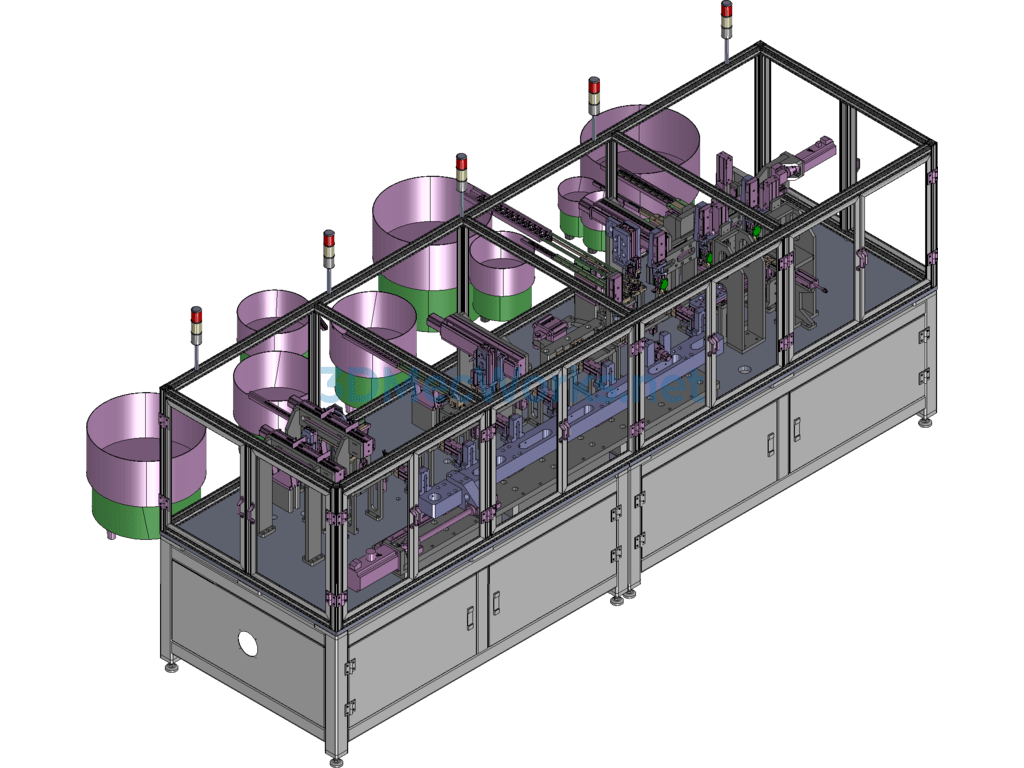

Straight Arm Hinge Assembly Machine 3D Model + Engineering Drawings + PDF cad Drawings, this equipment is used for linear transportation of hardware hinges, fully automatic assembly. The entire assembly produces products. 30 units per minute. The included mechanisms are base assembly, first section transportation, jack assembly, second section transportation assembly body, machine frame base plate, lever assembly, rivet flanging assembly, in-arm assembly, four-hole spring assembly, adjustment screw assembly, external processing drawings + purchased part quotations.
