Stator Core Shaping And Inspection Machine - SolidWorks - Free Download

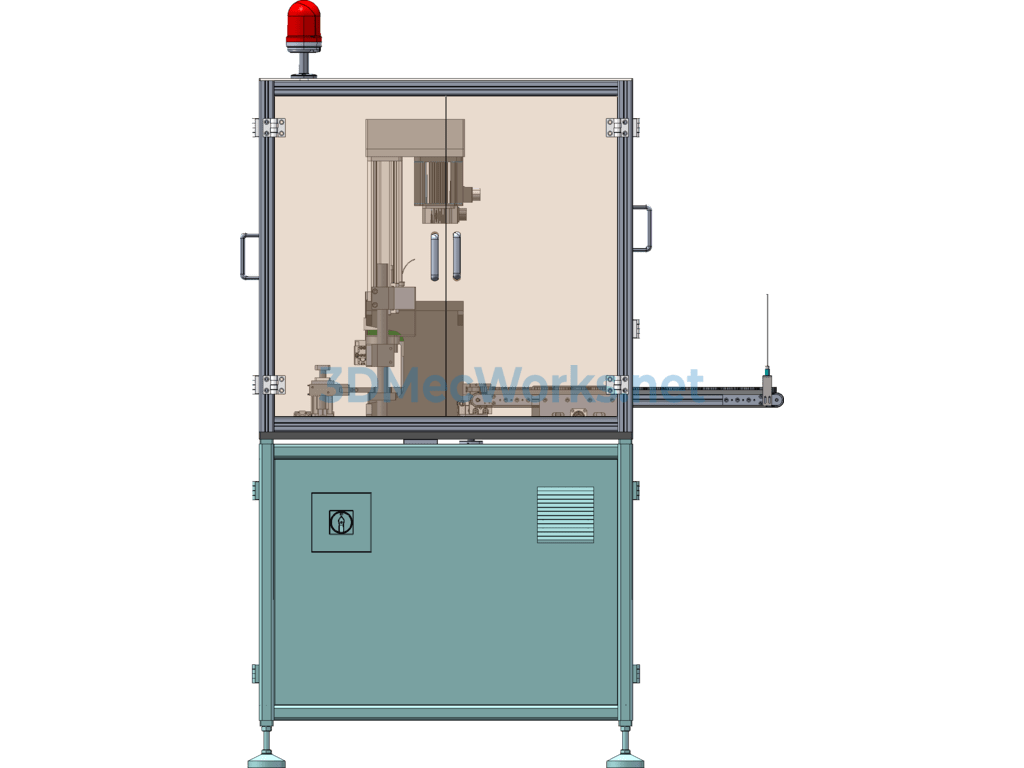

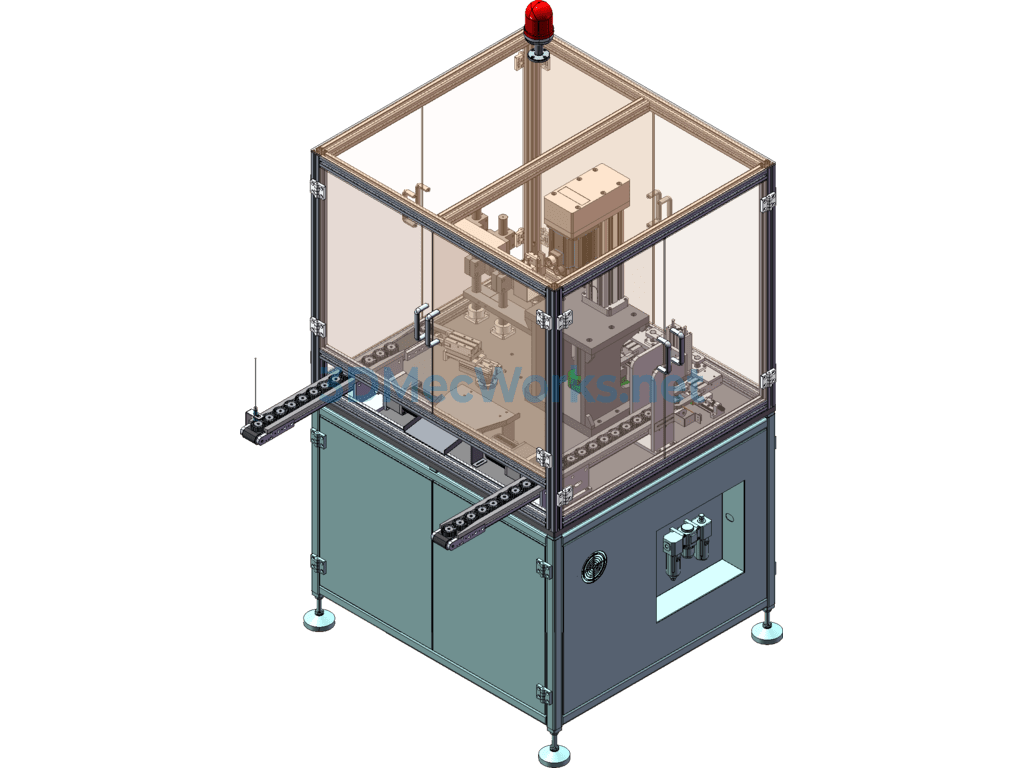

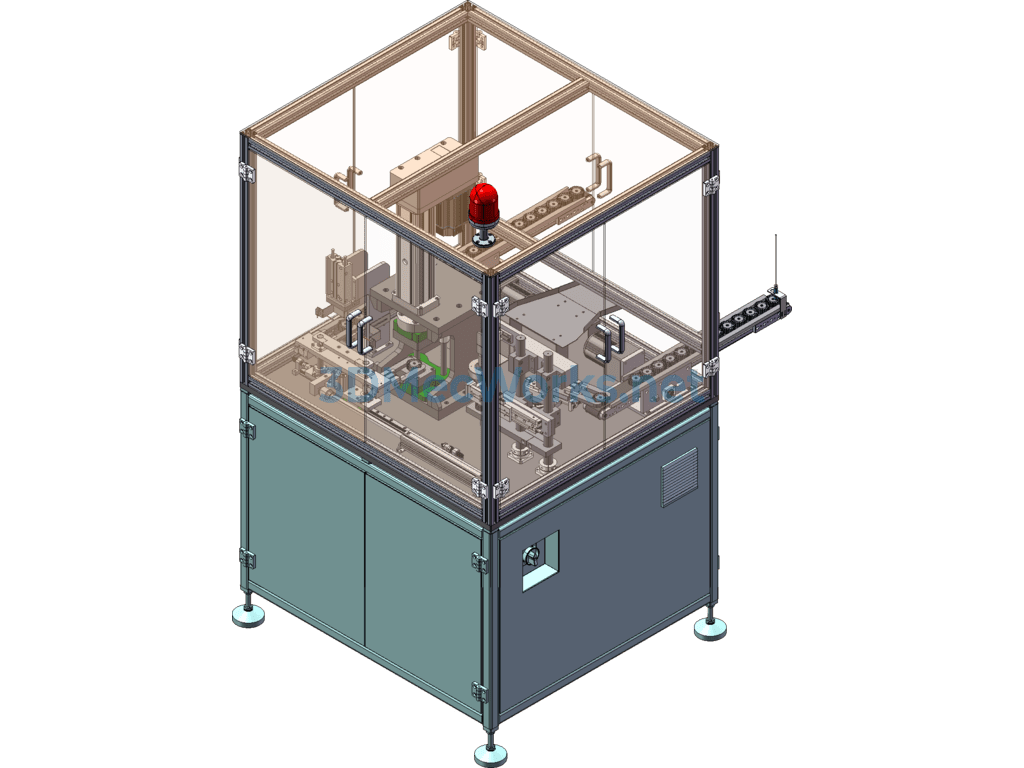

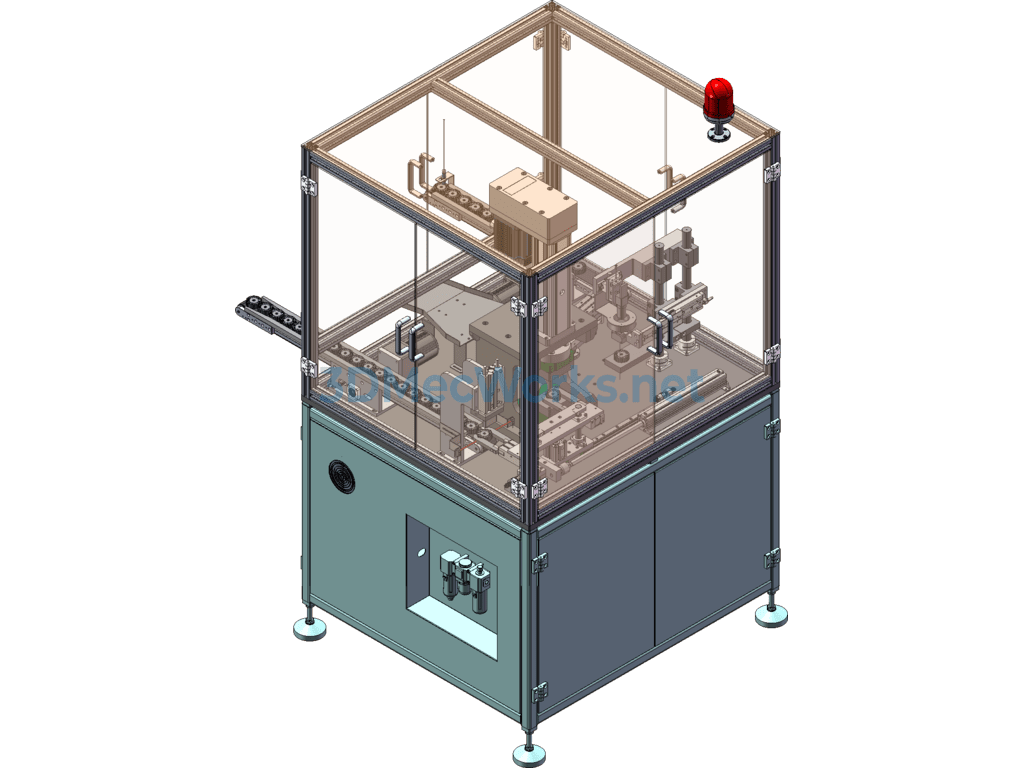

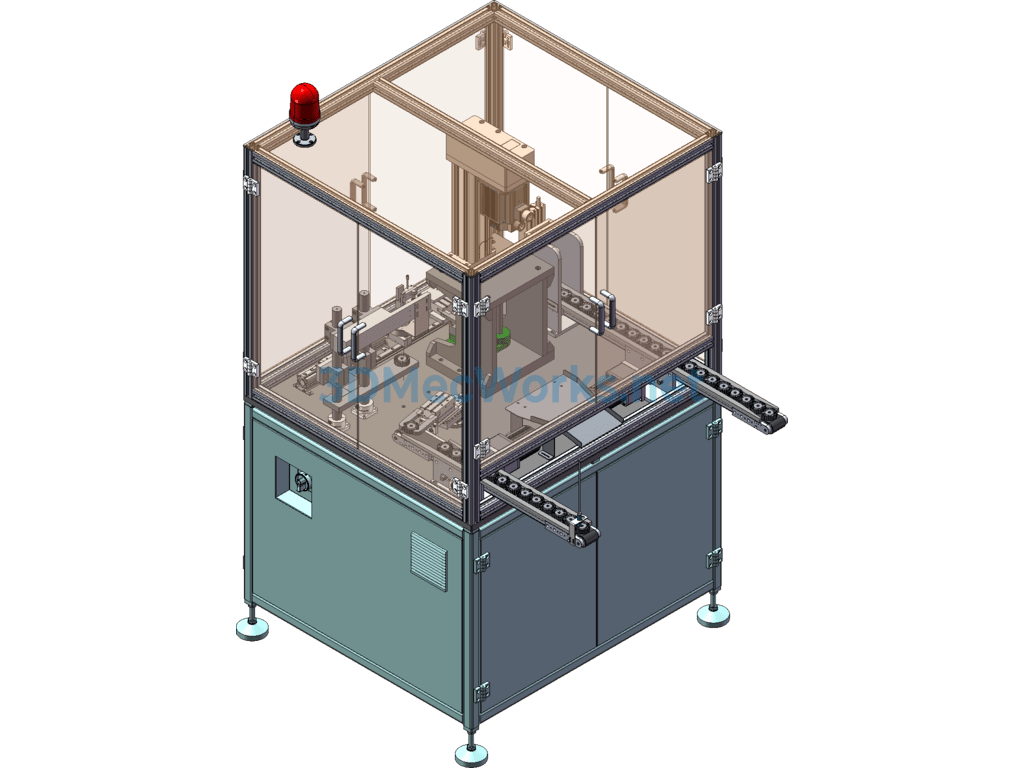

This model set is designed using SolidWorks 2018 and is used for the shaping and inspection of stator and rotor cores in motor manufacturing plants. The cores are loaded via a conveyor belt, and a gripper transports the core to the riveting station for shaping. After shaping, it is moved to the inspection station by a transport mechanism, where a laser displacement sensor checks the core’s thickness. Upon passing inspection, a camera captures an image to inspect the product’s appearance. The file package includes formats such as STEP, XT, IGS, and EASM for convenient use.
