Square Lithium-Ion Battery Adhesive Application And Casing Machine (Automatic Insertion Of Lithium Battery Cells Into Aluminum Cases) - SolidWorks - Free Download

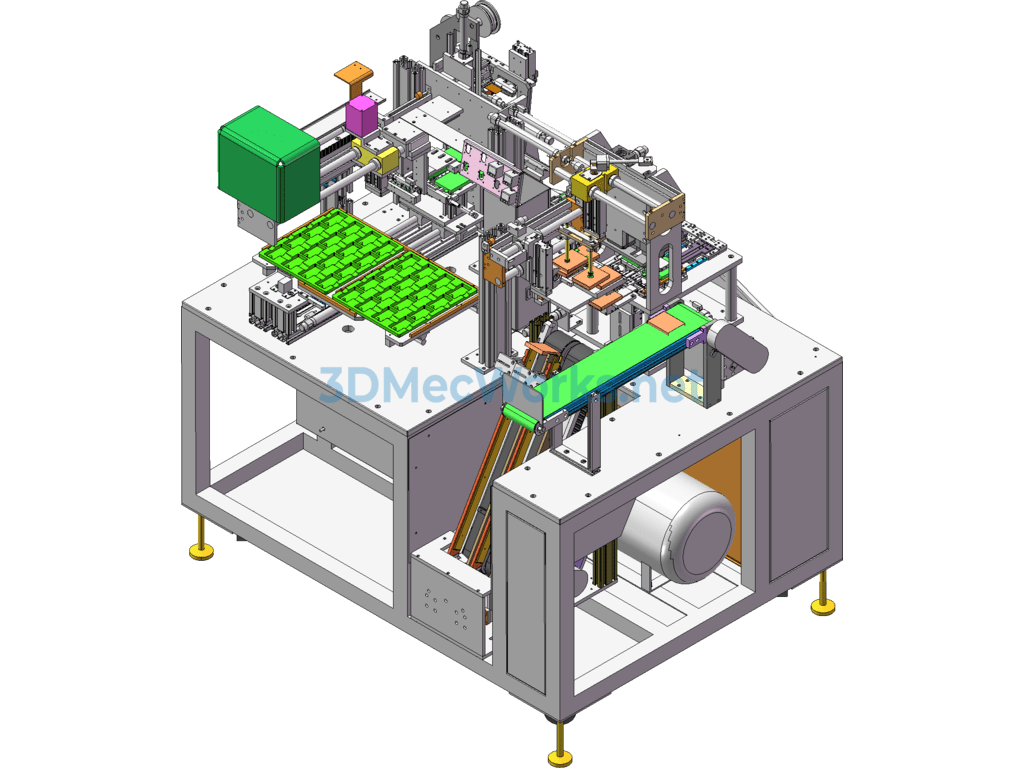

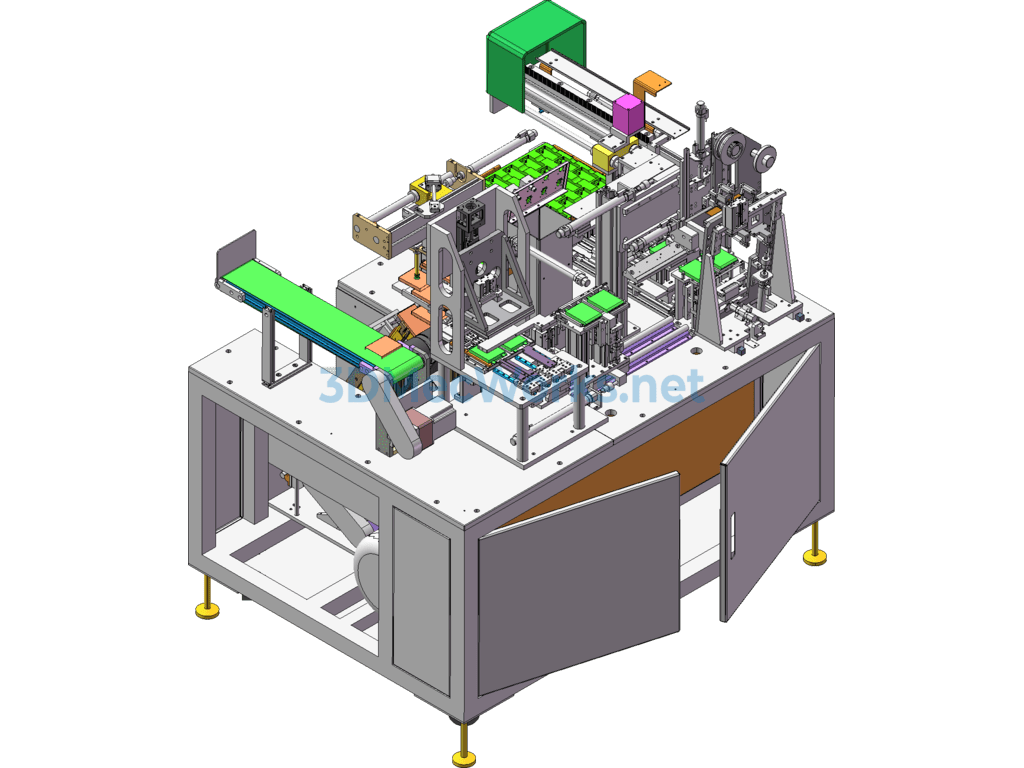

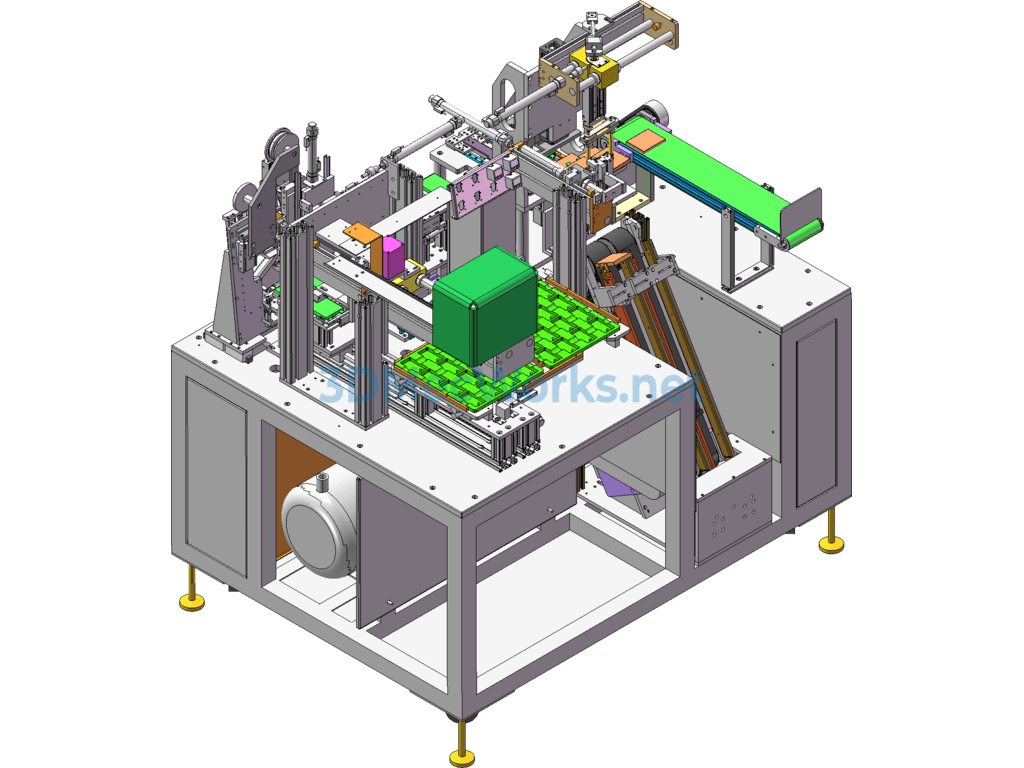

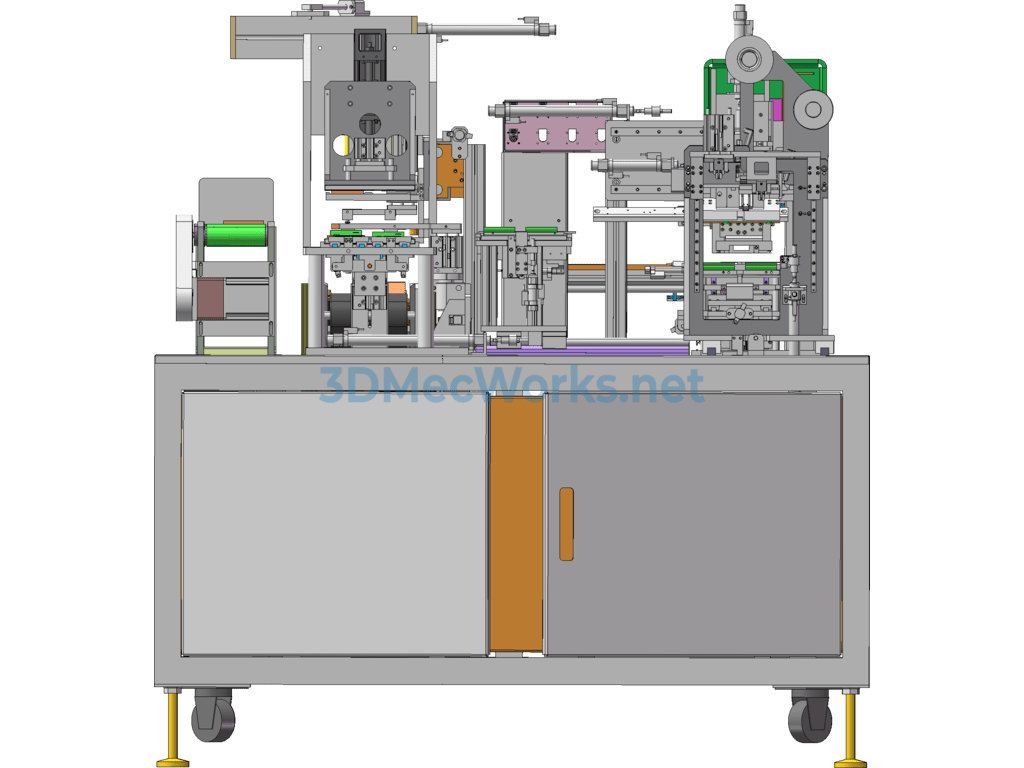

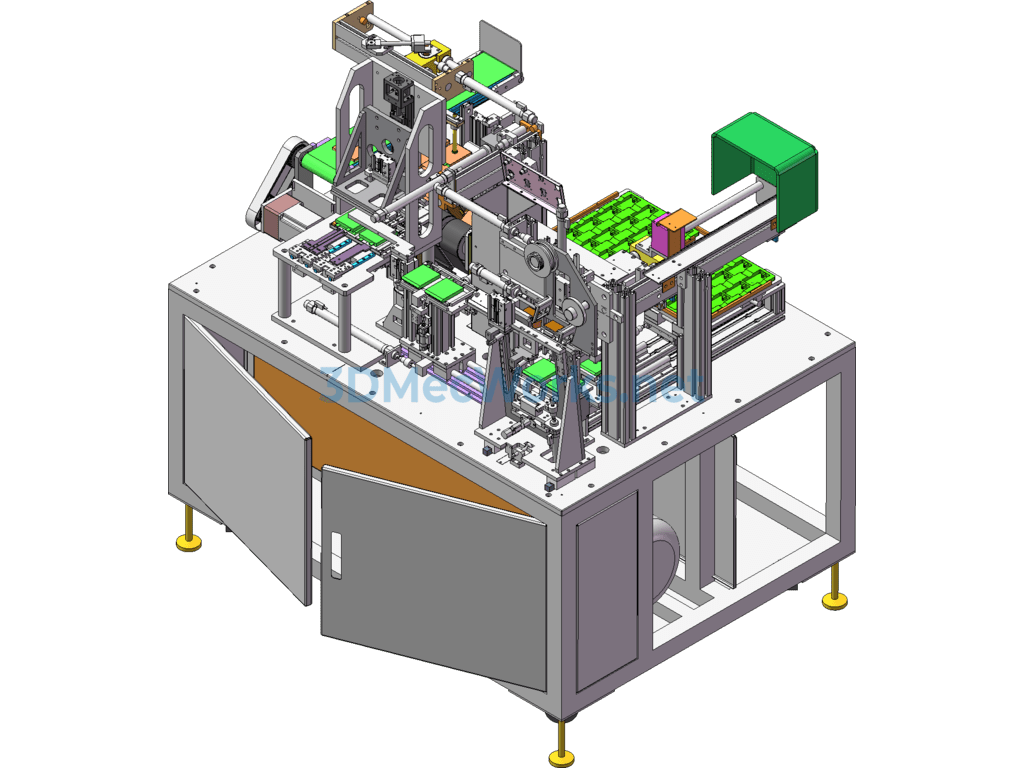

The 3D model of the square lithium-ion battery adhesive and casing machine equipment is provided as SW design sldasm and sldprt source files (approximately 1000 files). This equipment is exclusively used for the automatic insertion of square lithium battery cells into square aluminum cases. Suitable applications include: adhesive application at the positive tab position, adhesive application at the negative tab position, adhesive application at the blank line of coating, and adhesive application at the PTC position for finished pouch batteries._x000D_
_x000D_
The square lithium-ion battery adhesive and casing machine equipment applies adhesive to the bottom of the square lithium battery cell, automatically placing the cell into the aluminum case. Adhesive application section: 1. Straight-line adhesive feeding, where tape is cut after being adsorbed for a fixed length, and the tape length can be adjusted with a unified adhesive application position; 2. Adhesive application method is in a half-rolling form; 3. This machine is composed of precision mechanical processing, combined with high performance electrical components, suitable for a wide range of models; 4. The machine has a fault stop function, issues alarm information, and has an accurate counting function._x000D_
_x000D_
For the casing section: 1. The aluminum case feeding method uses a magazine stacking form; 2. The cell feeding method also uses a magazine stacking form, among others. The equipment structure is complex and worth referencing and studying. Welcome to download the square lithium-ion battery adhesive and casing machine.
