Square Battery Dimension Measurement Mechanism

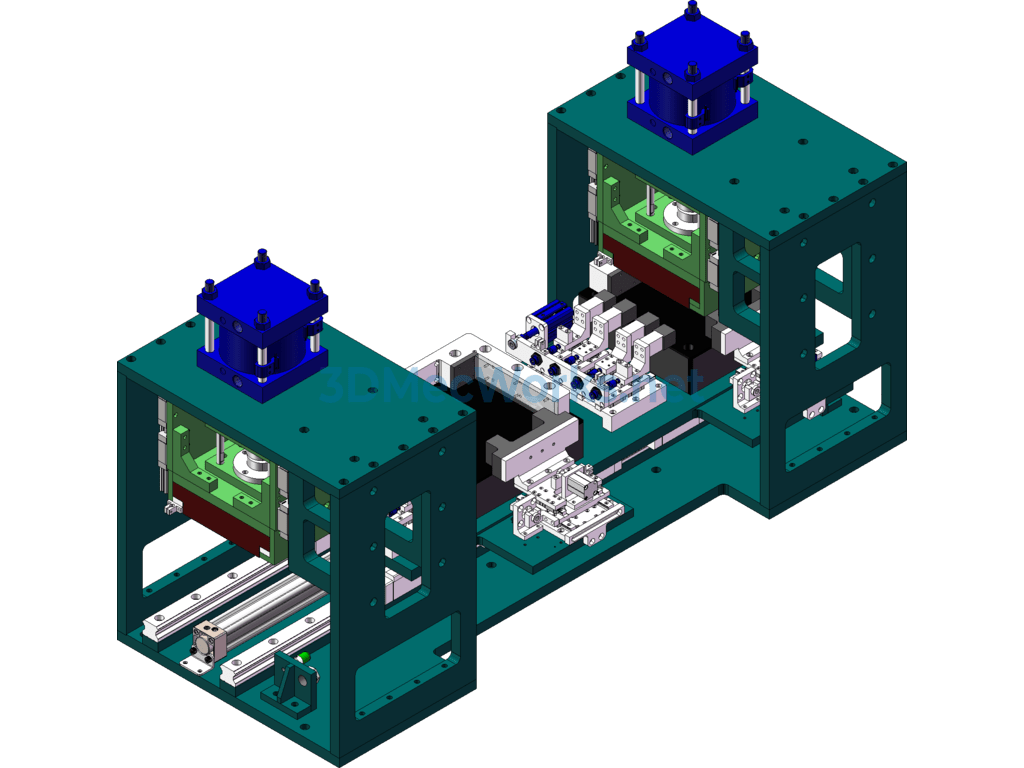

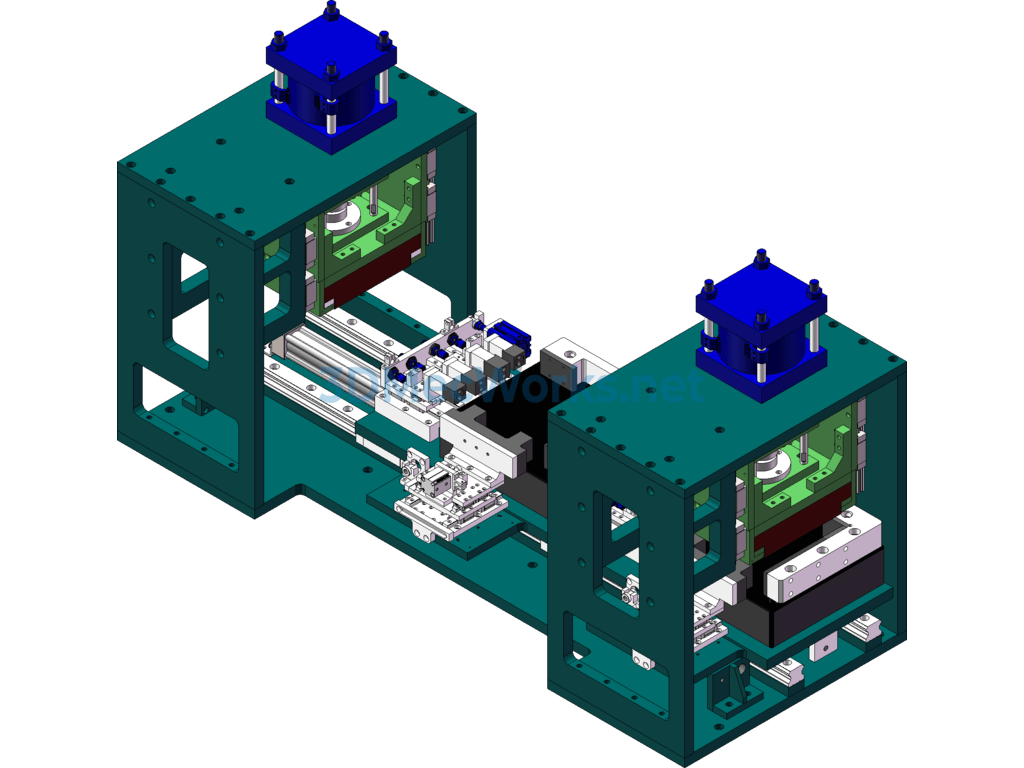

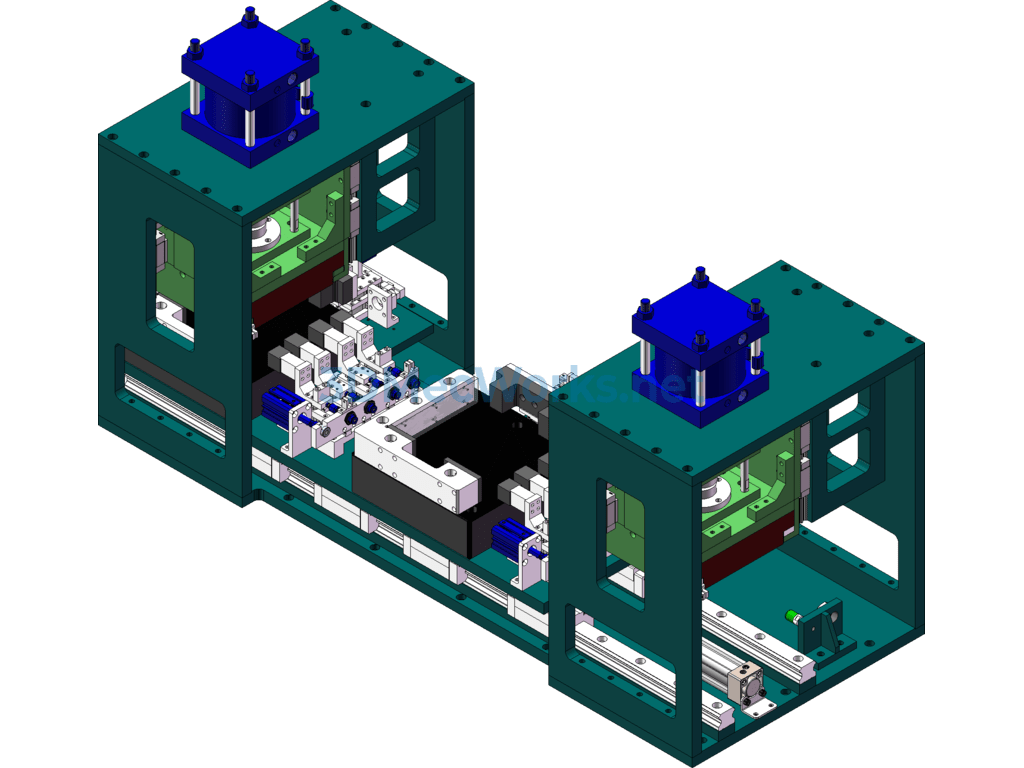

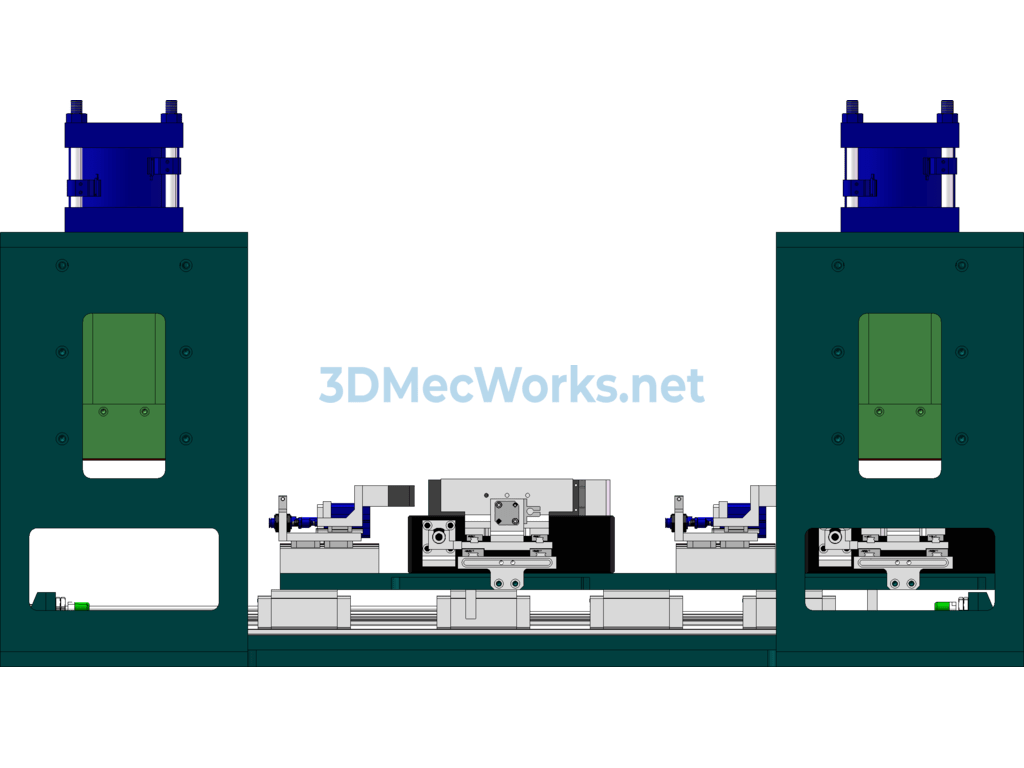

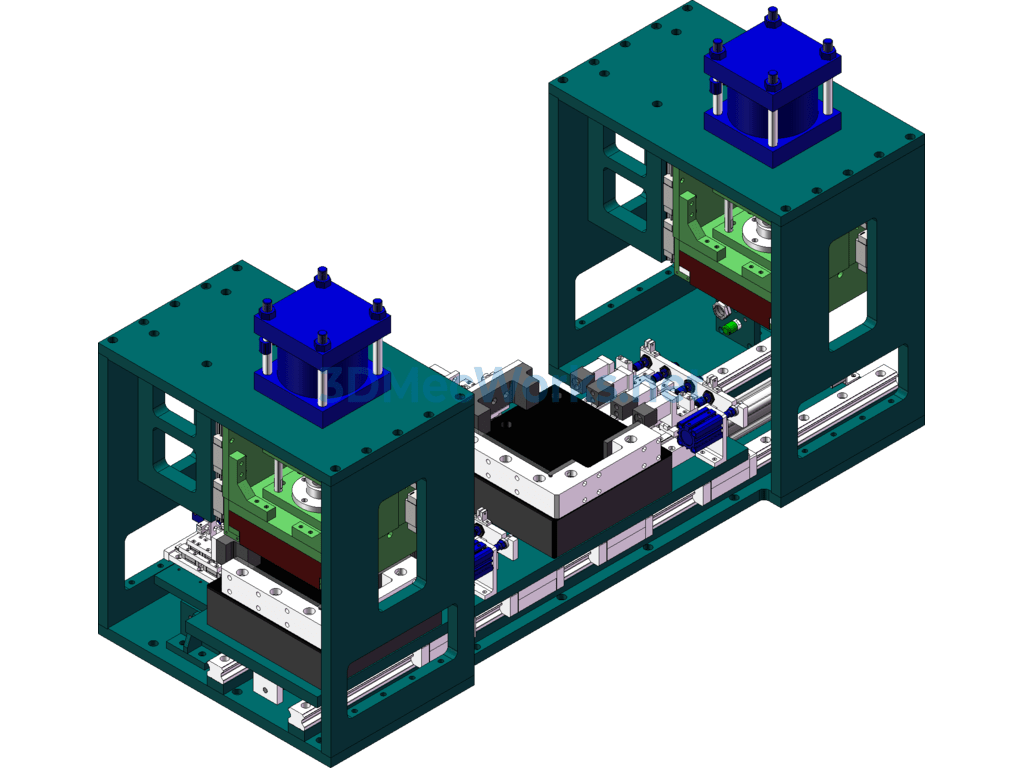

This mechanism is a specialized mechanism for measuring and reshaping the dimensions of prismatic power batteries. The battery is placed in the middle measurement jig, and the cylinder pushes it into the measuring position for reshaping and dimension measurement. Another station continues to load batteries. The measurement accuracy is plus or minus 0.005mm. Designed with SOLIDWORKS 2018, including editable parameters. Welcome to download for reference.
Specification: Square Battery Dimension Measurement Mechanism
|
