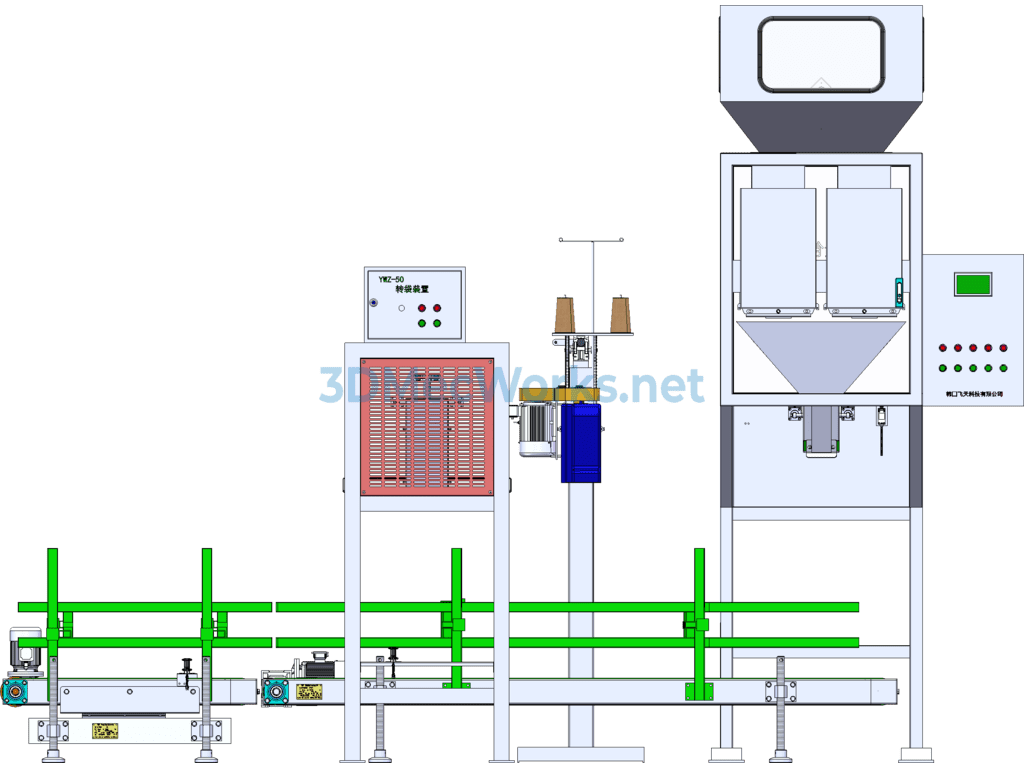

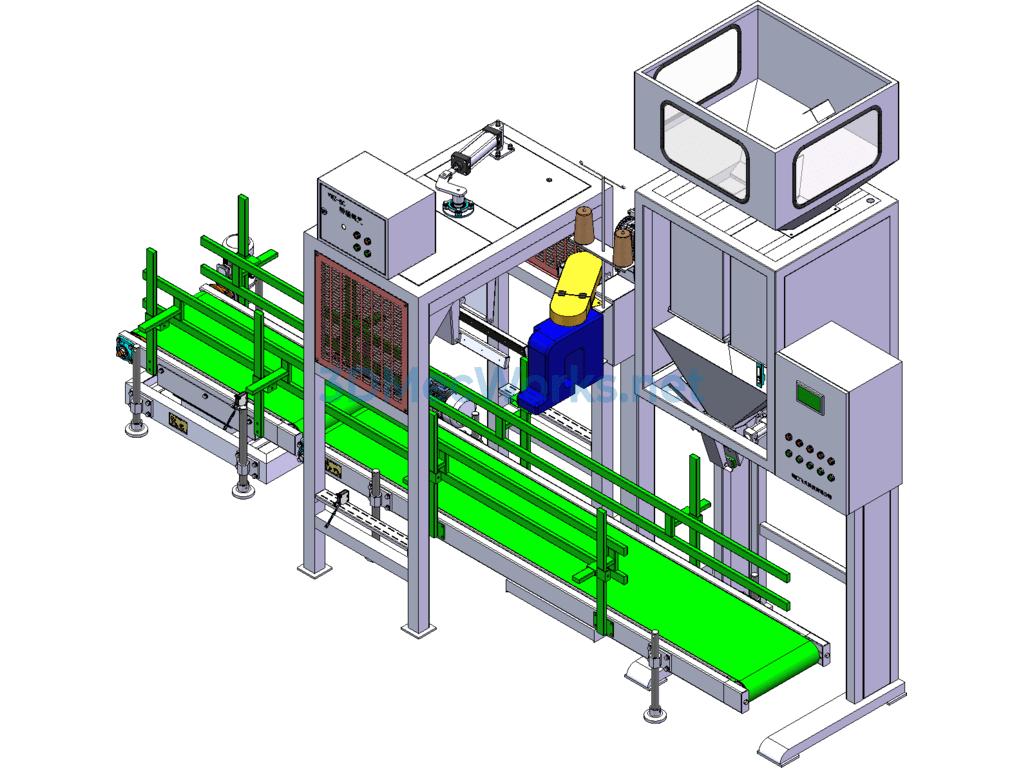

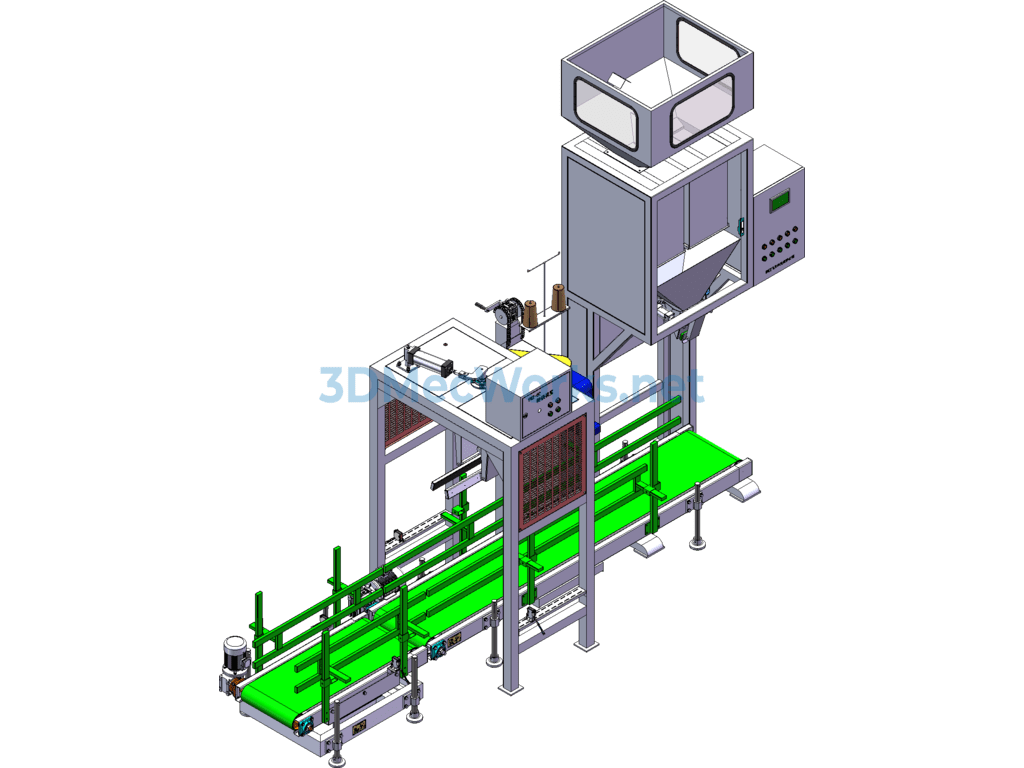

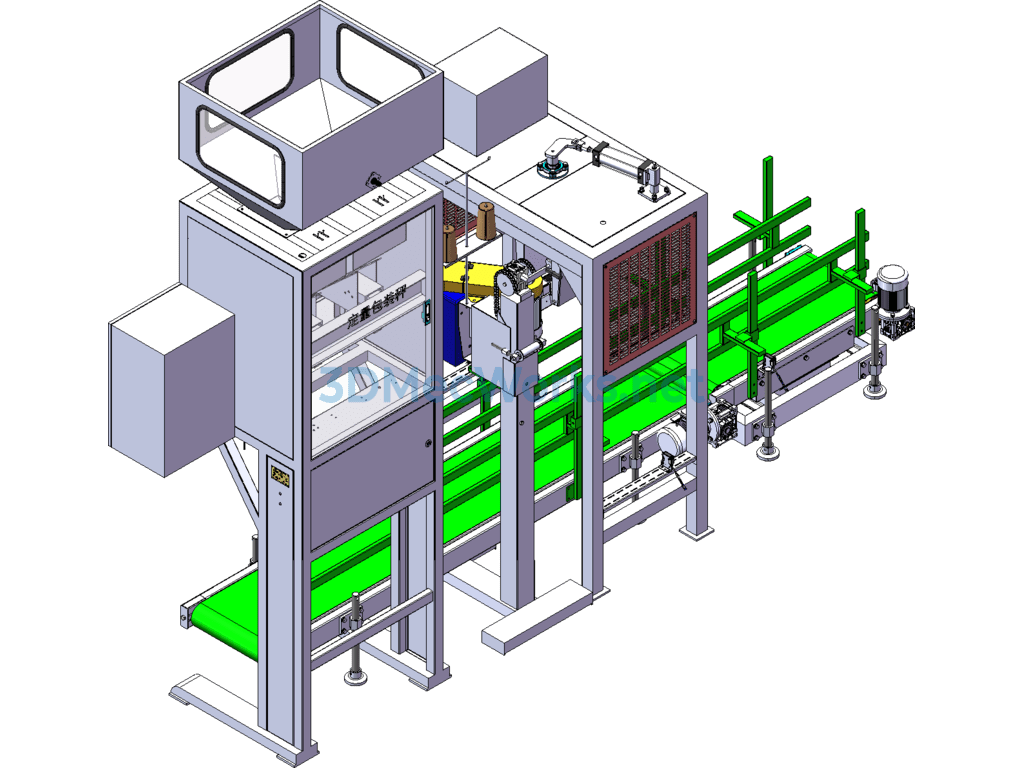

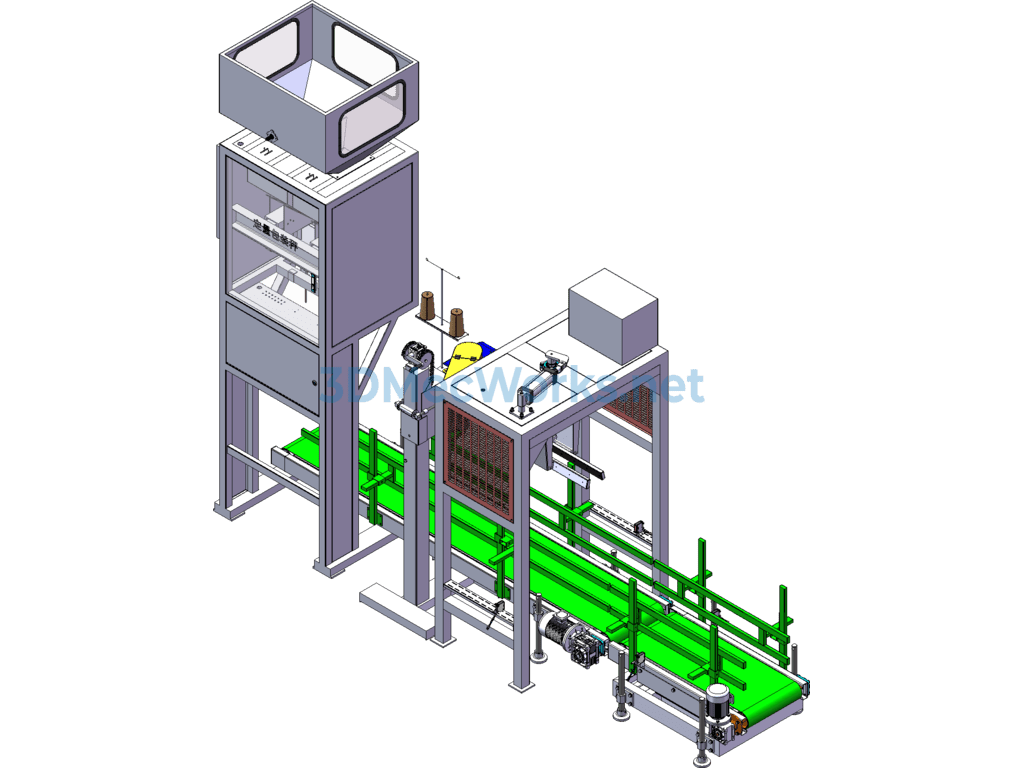

Sorting and Quantitative Packaging Machine (complete Set of Drawings)

Scope of Application:
Pharmaceutical, chemical, fertilizer, seed, pesticide, grain, food, and other industries for automatic quantitative packaging of granular materials.
This series of quantitative packaging machines is designed for quantitative packaging of various granular materials. It uses large, medium, and small grading feeding methods, controlled by sensors and PLC control, with graded feeding into the weighing hopper and packaging bag. When the material in the weighing hopper or packaging bag reaches the set weight, feeding stops. The bag clamp automatically opens, and the material bag is conveyed away via a conveyor belt, with fully automatic bag sewing (sealing) and sorting.
Technical Specifications:
Product Model: XIOC-L5B; Measuring Range: 0.5-25kg; Packaging Speed: 12-18 bags/minute; Packaging Accuracy: 0.2-1%F.S; Power: 3.7kw; Air Pressure: 0.4-0.6MPA.
Product Features:
◆ Independent packaging weight input, intelligent weighing weight display, display window adopts high-brightness LED display;
◆ Menu operation is simple and intuitive;
◆ Manual assistance for bag (or barrel) placement, pneumatic bag clamping; independent weighing system for high weighing accuracy and fast speed;
◆ Asynchronous motor PLC control, frequency converter speed adjustment, high control accuracy;
◆ Features such as automatic tare, compacting, data encryption, and time display;
◆ Single/double channel feeding method can be used, with fast, medium, and slow speed feeding to ensure speed and accuracy;
◆ Stable structure, small footprint, easy to clean and maintain;
