Soldering and Welding Equipment for Wire Harnesses

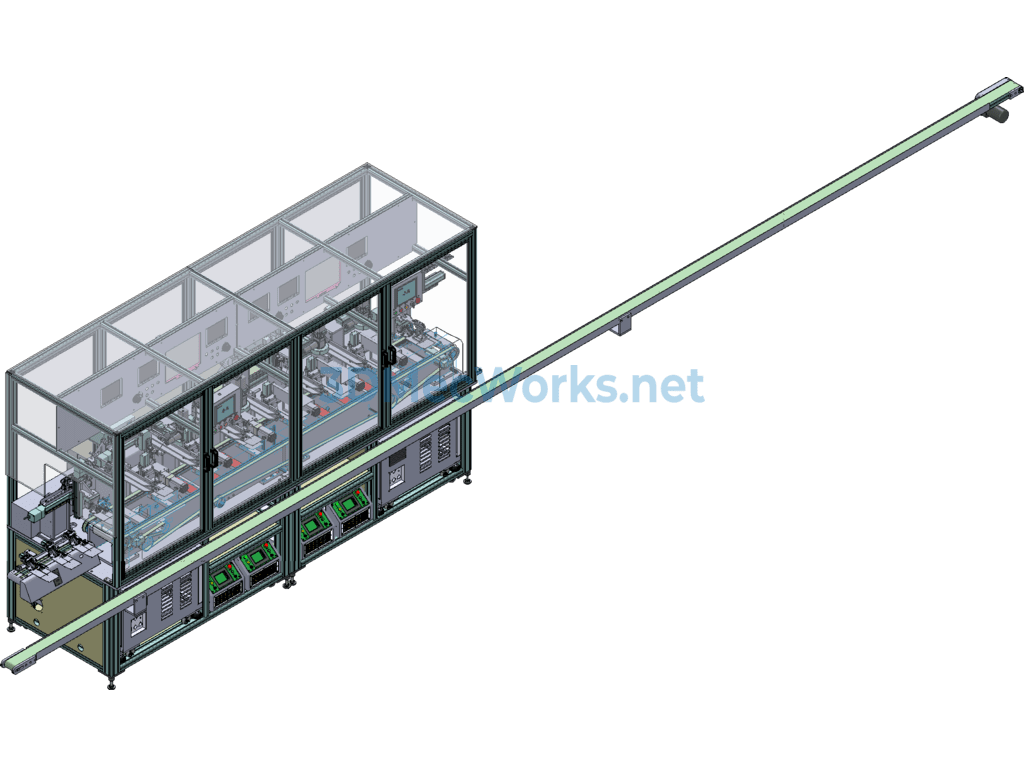

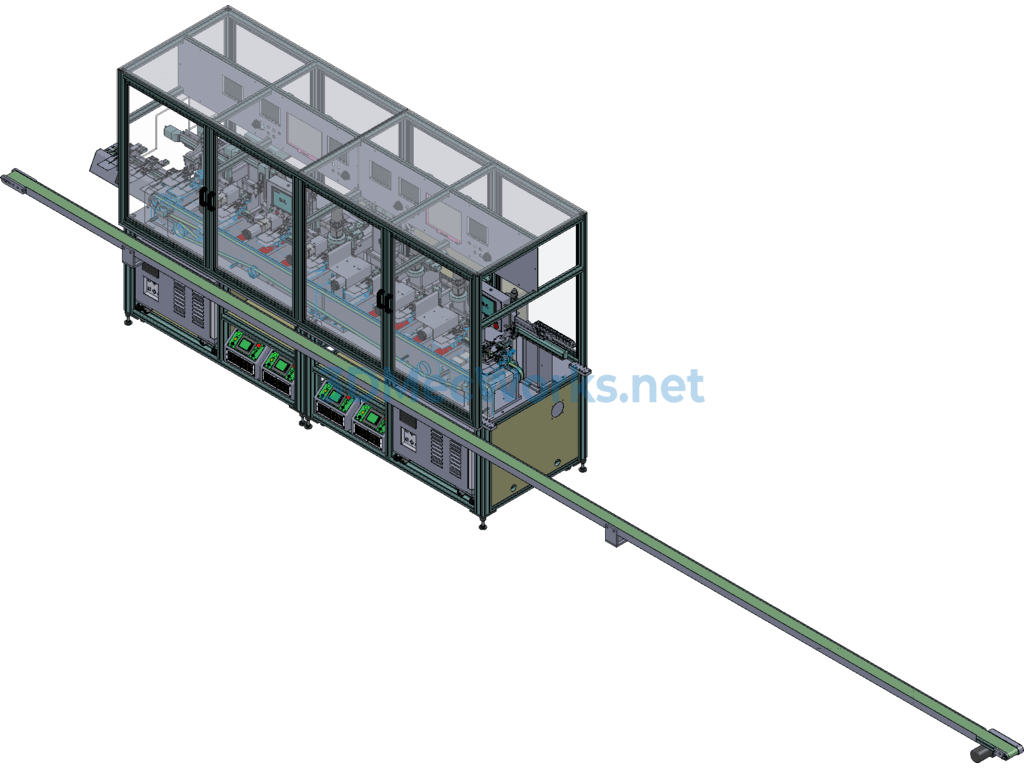

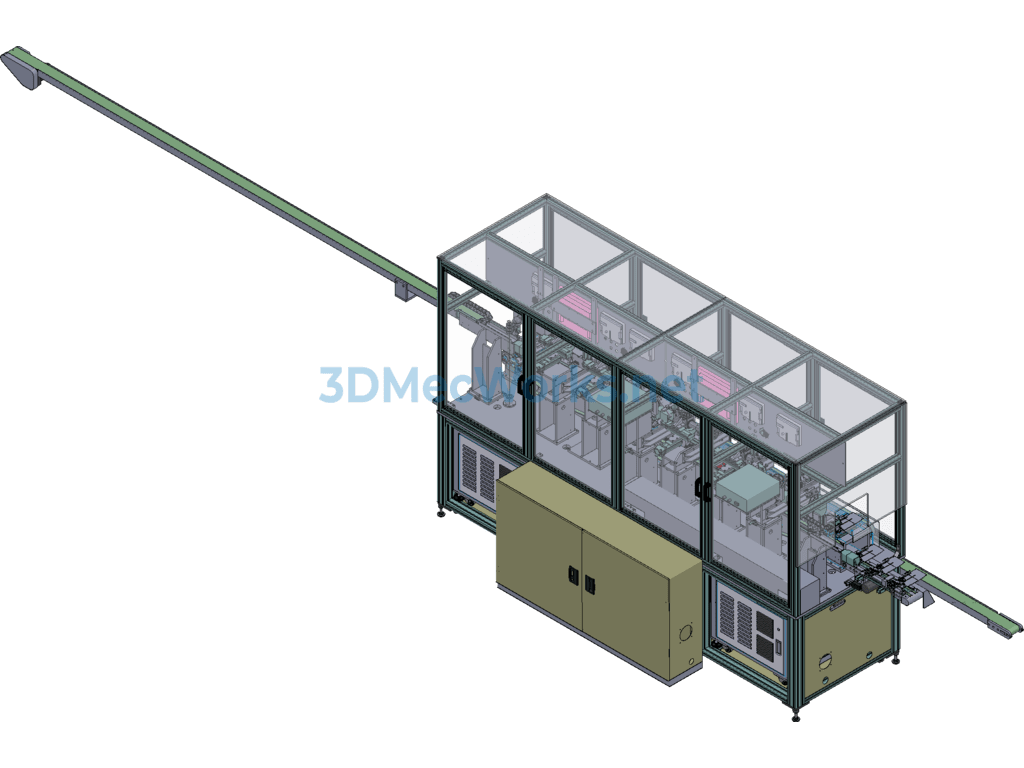

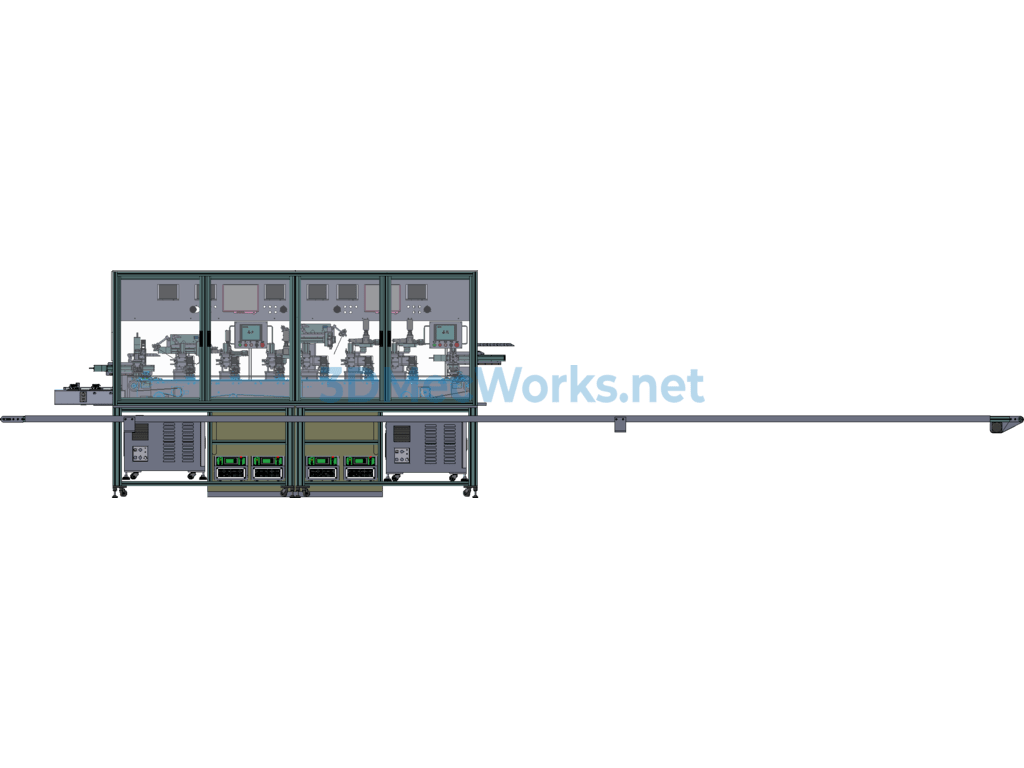

Automatic tinning and welding equipment: Realizing a fully automated welding system design model. This is a non-standard equipment with a practical mechanical structure design, including mature mechanisms such as CCD imaging, transfer modules, conveyor line mechanisms, welding systems, tinning systems, etc. The file format is a 3D model drawn in SOLIDWORKS 2014 version, which includes editable parameters, and is also uploaded in X-T and STEP formats. The model is clearly drawn, which is very helpful for learning design aspects of welding. Welcome to download and learn, thank you!
