Soft-Pack Cell Automatic Welding Line - SolidWorks - Free Download

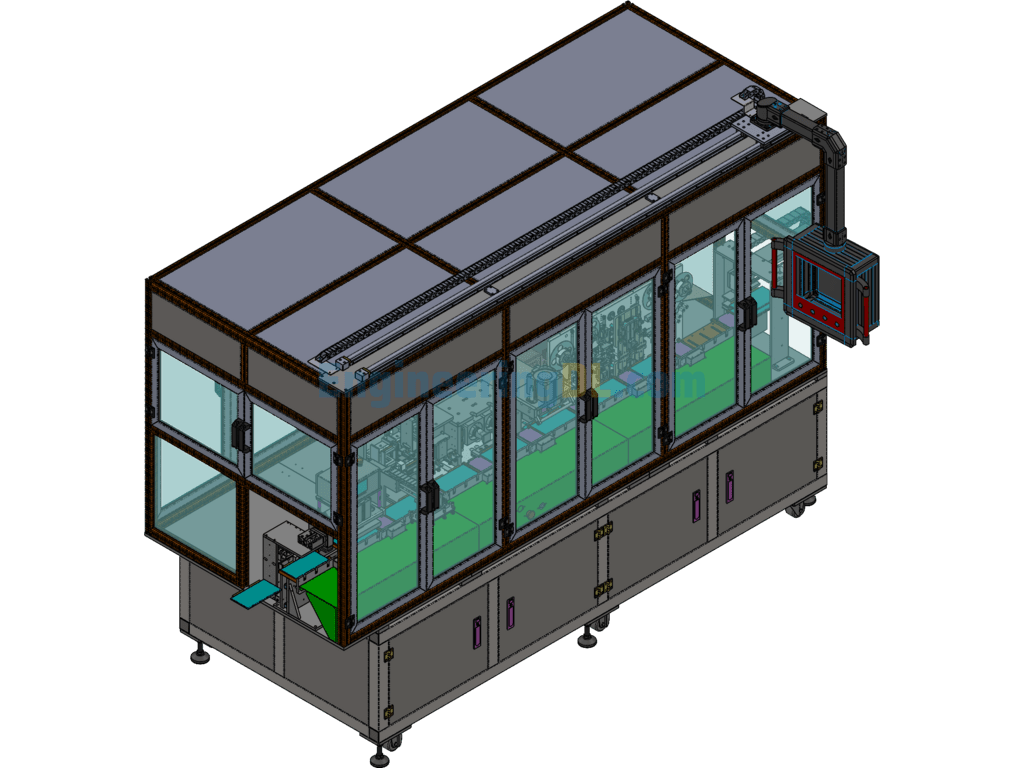

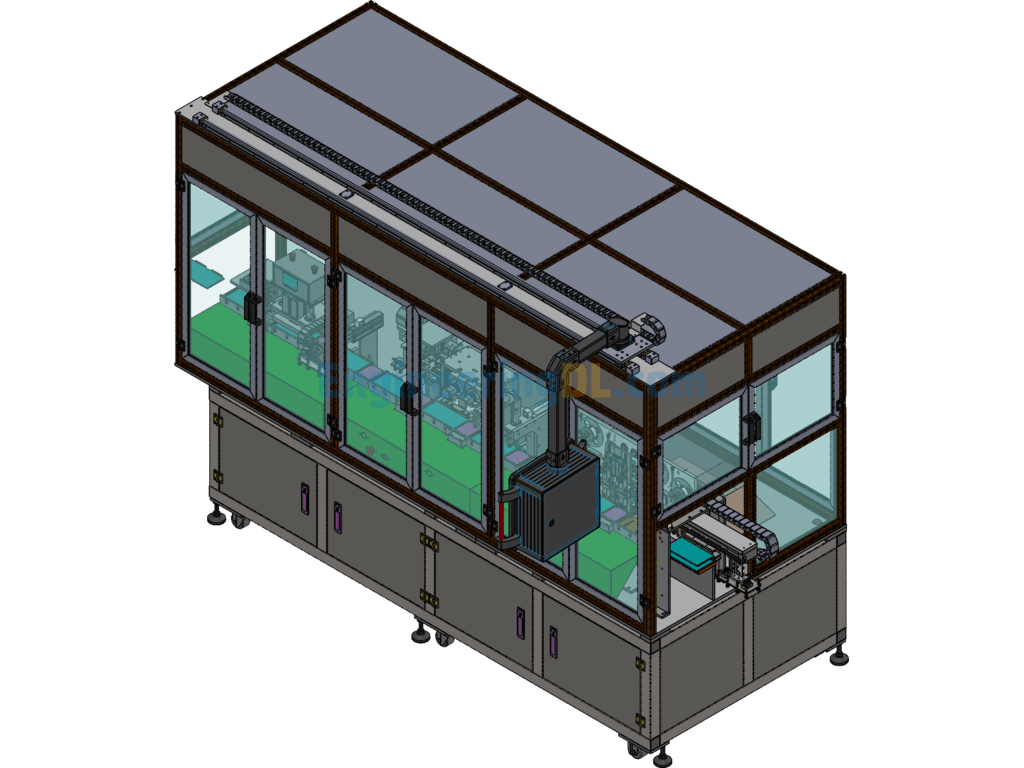

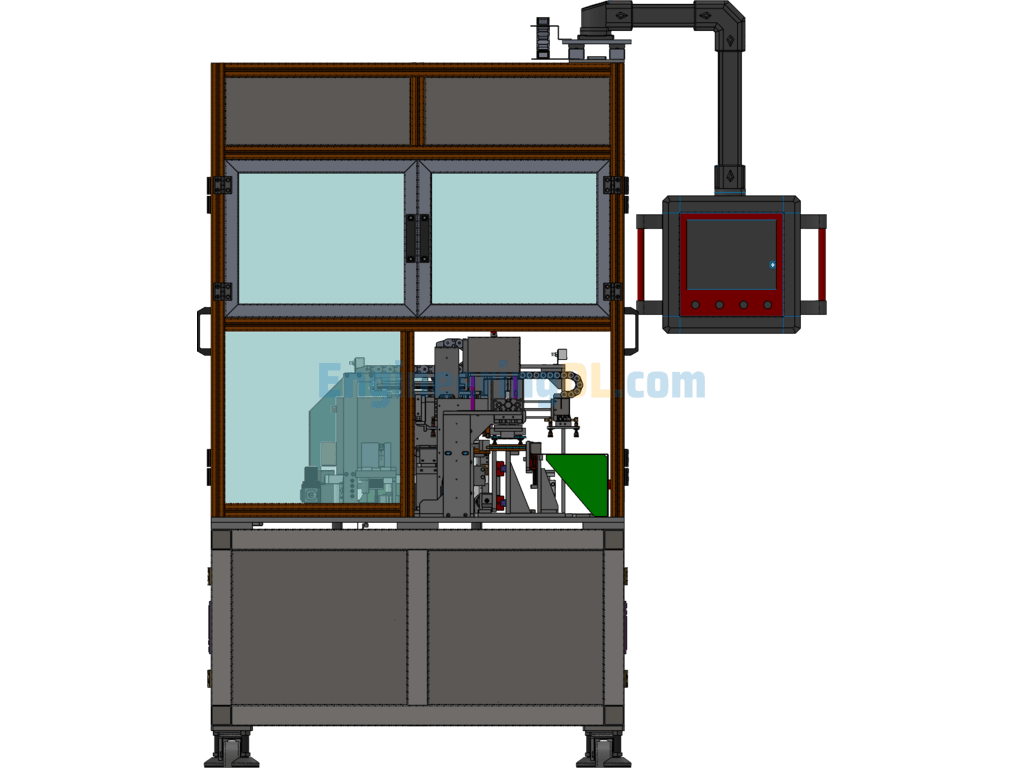

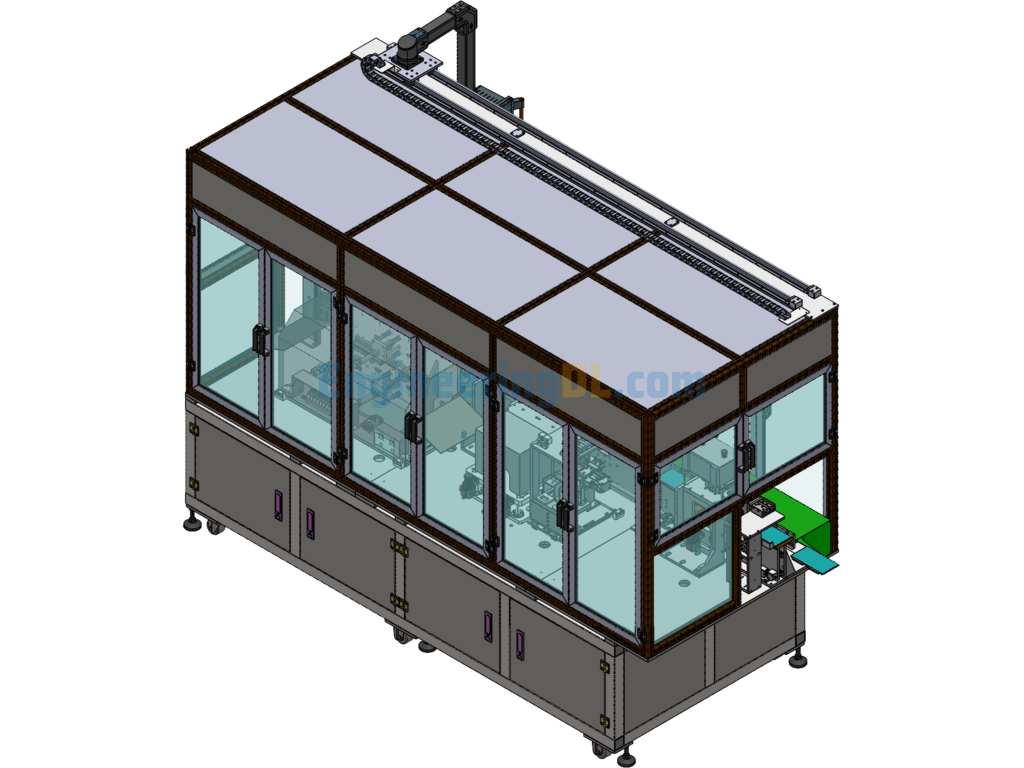

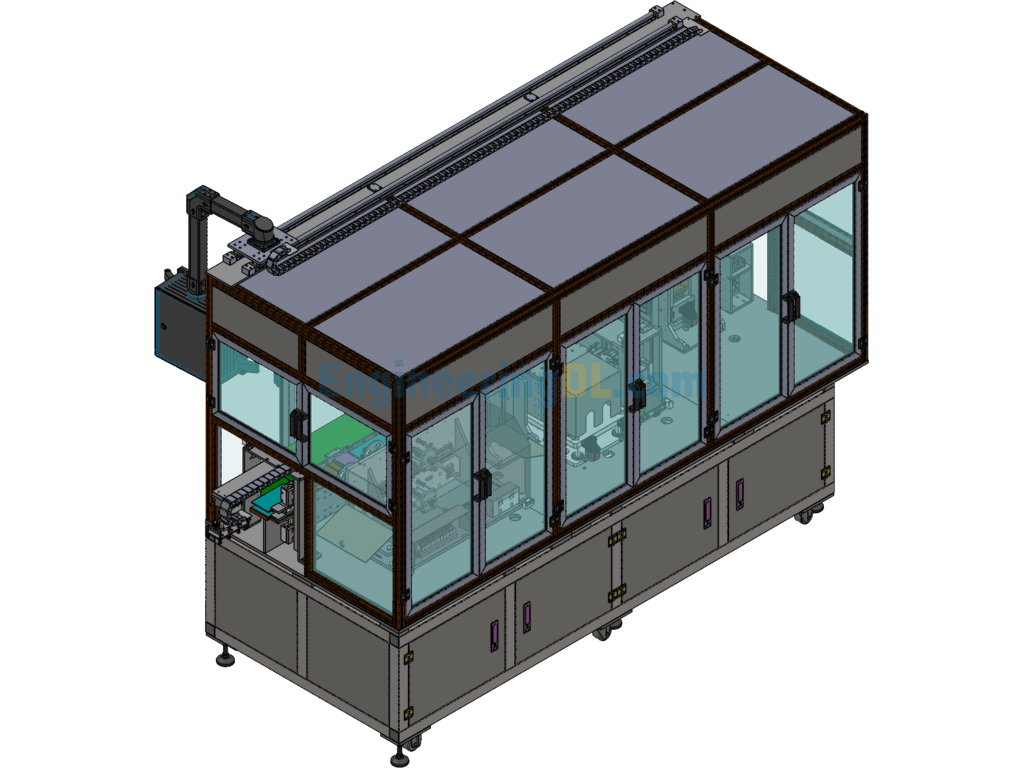

This equipment is an automatic welding machine for pouch cells, which includes: feeding mechanism, correction mechanism, short circuit test, defective product sorting, tab feeding, welding mechanism, weld shaping mechanism, adhesive application mechanism, tape shaping mechanism, and unloading mechanism. The structure is quite ingenious, with high stability, greatly improving the production efficiency of pouch cells and the stability of the batteries. Friends are welcome to download actively. It is designed in SolidWorks 2014 version, editable, and parameters can be changed!
