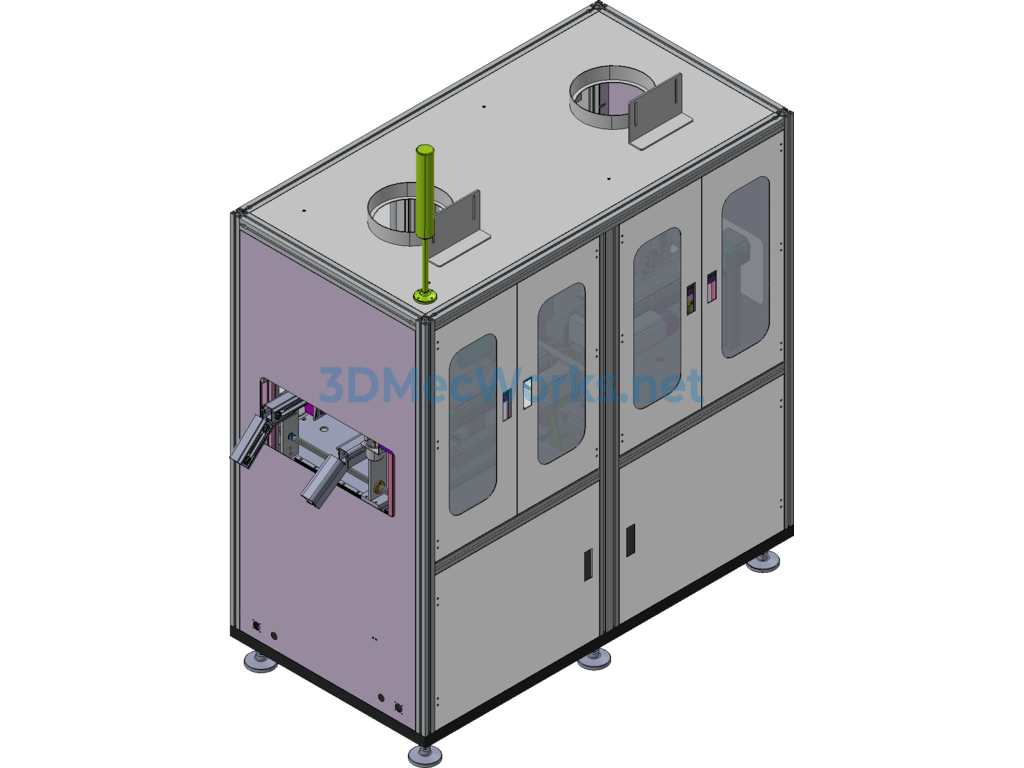

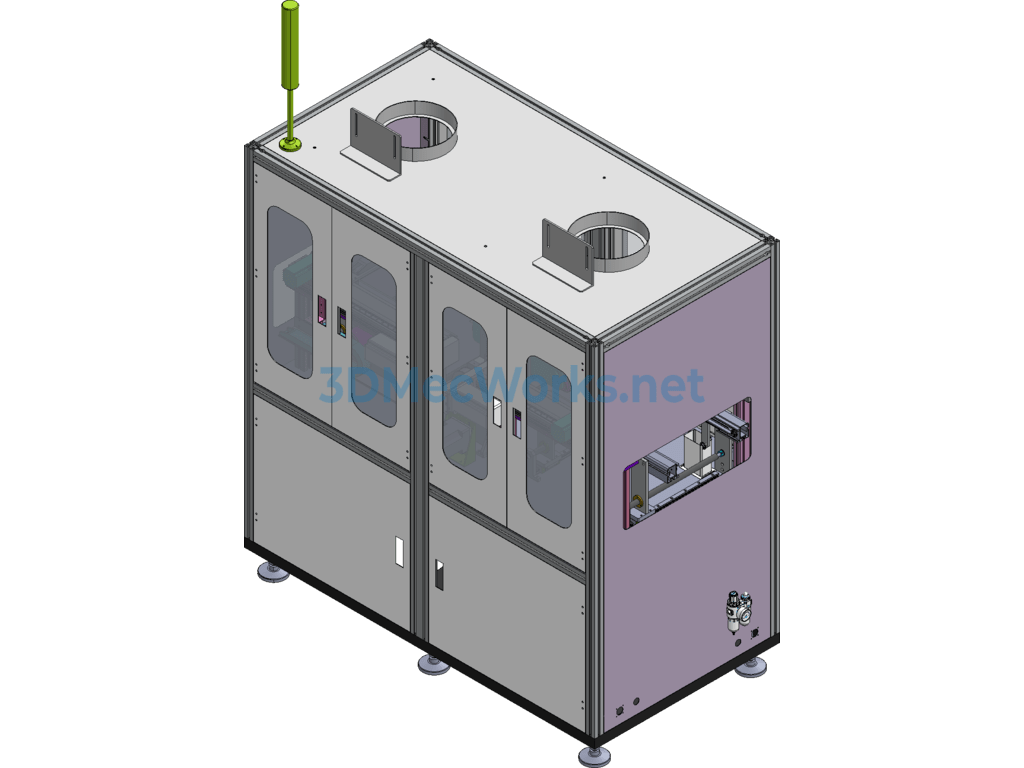

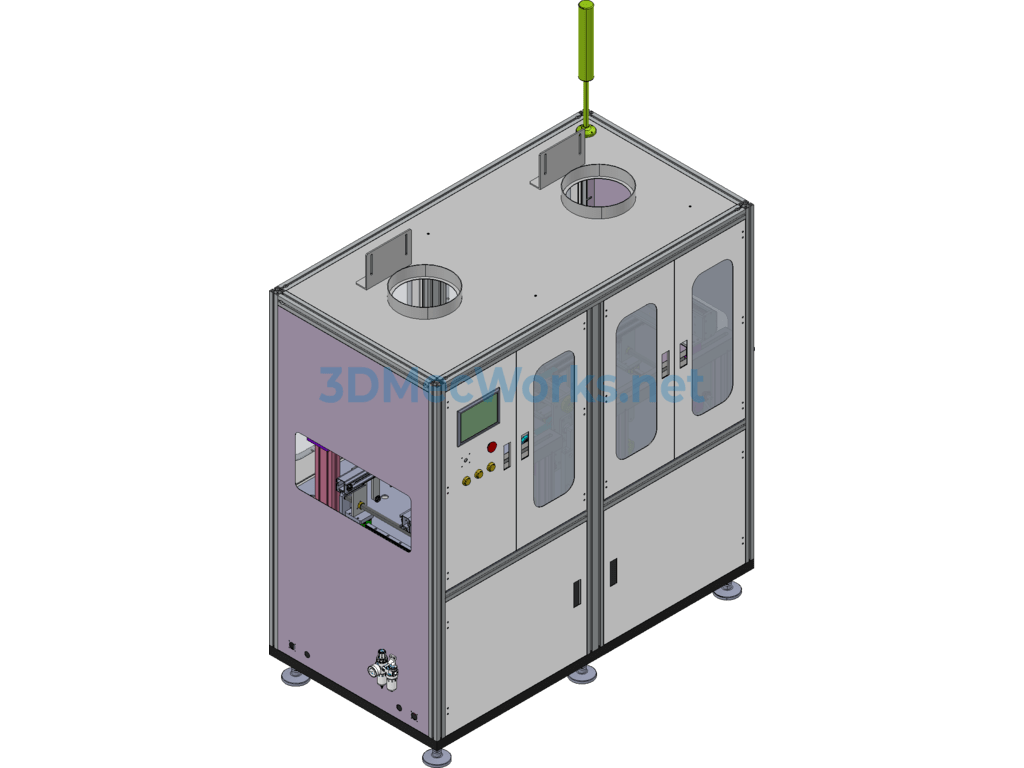

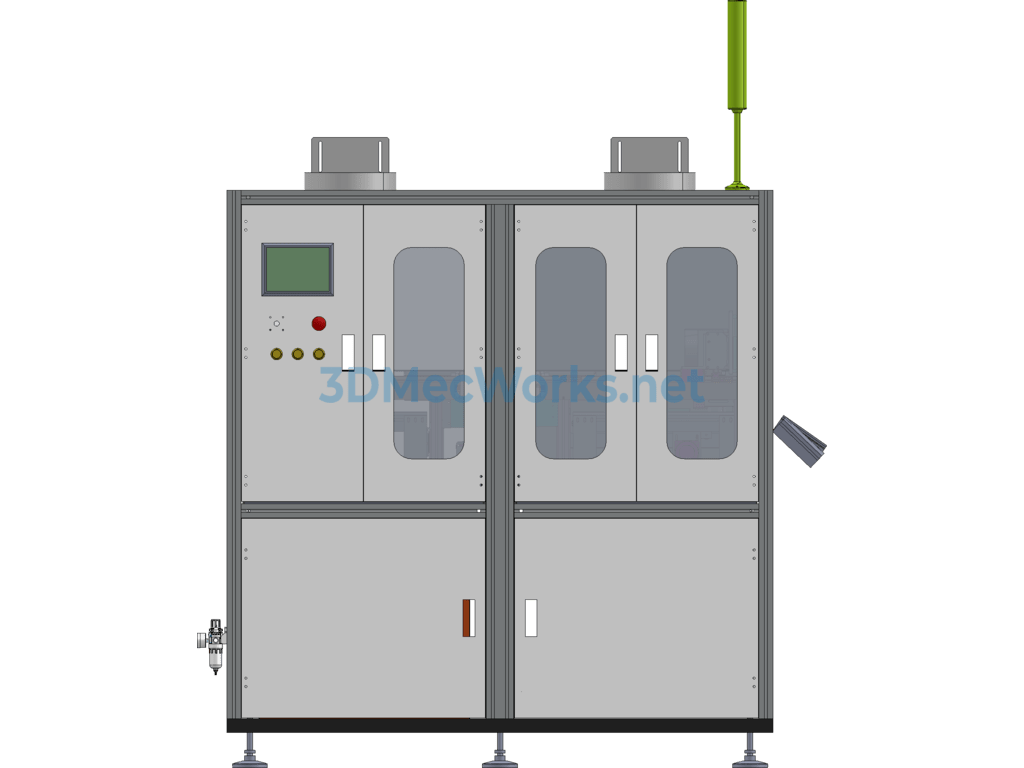

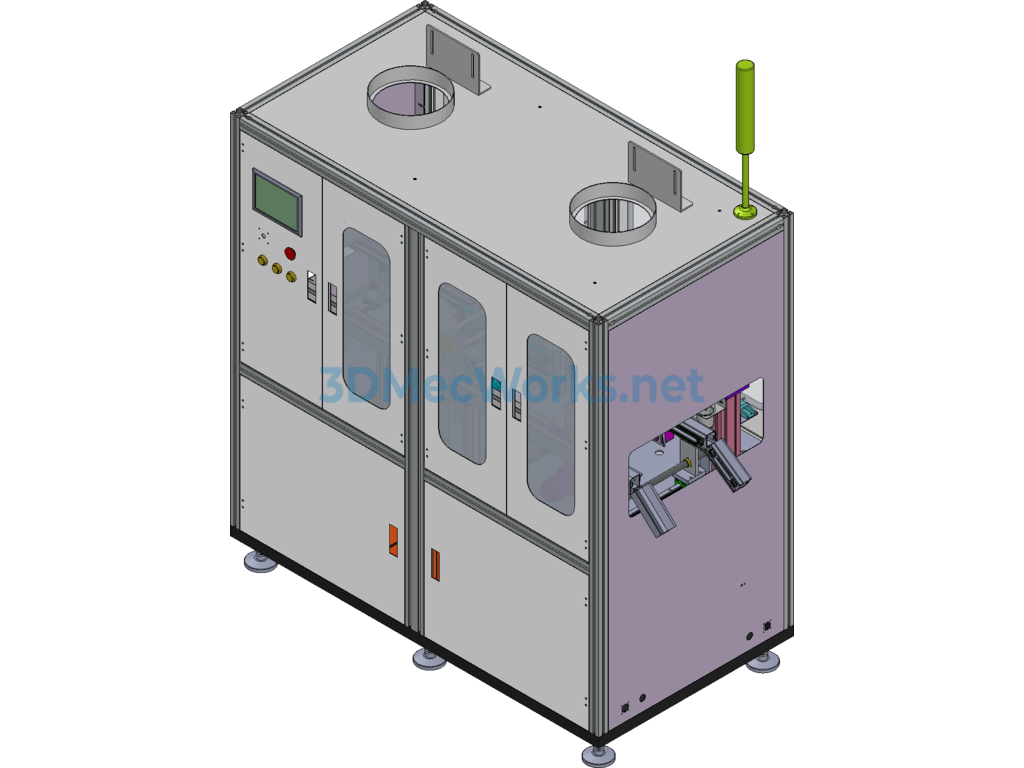

SMT full-automatic coating machine 3D model SW2015 design sldasm, sldprt source files provided. The SMT coating machine is mainly used in the mobile phone electronics and household appliances industry. Through this equipment, some paints and conformal coatings are sprayed onto the surface of PCBs to ensure the quality of PCB boards. The equipment shown in the picture is used in a Midea air conditioner factory. The automatic coating machine can be used for SMT production line operations or for stand-alone operations. When the PCB enters the equipment through a conveyor belt, coating operations begin, with the servo motor module moving at high speed.
The surface coating technology of the coating machine applies a new material on the product’s surface. The main functions of the surface spraying are to provide waterproofing, dustproofing, and anti-static protection. Surface coating forms a film layer on the substrate surface to improve and protect the surface. After spraying the new material onto the product surface, the chemical composition and structural organization of the coating layer can be completely different from the substrate material. The criteria include meeting surface performance, the bonding strength between the coating layer and substrate material meeting operational requirements, good economic feasibility, and environmental friendliness. The spraying thickness of surface coatings is several micrometers, or even less.
