SMT Cam Pin Insertion Machine - SolidWorks - Free Download

0
Sold by
@ MrBlue
[mecworks-btn]
SKU: A012501004365

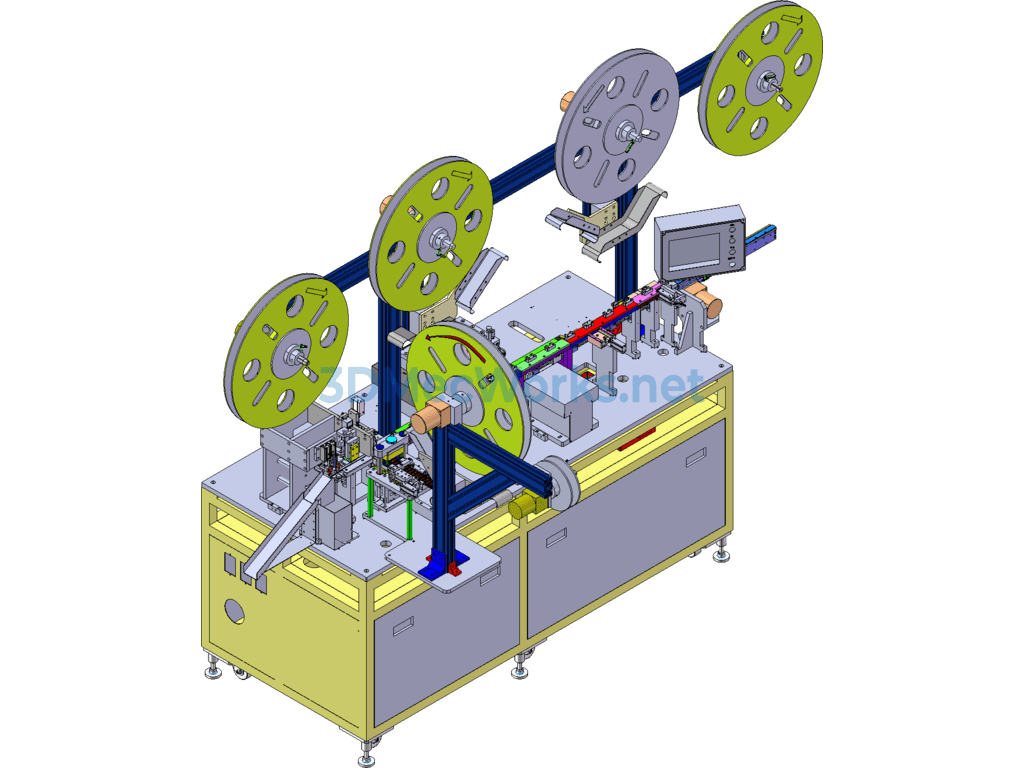

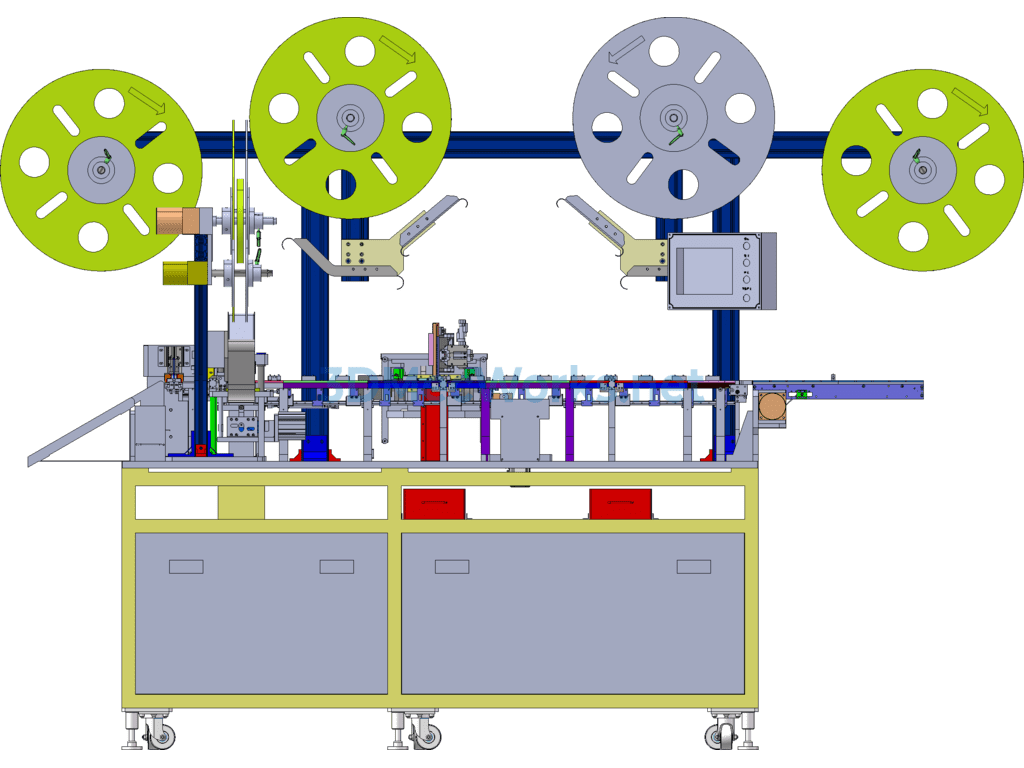

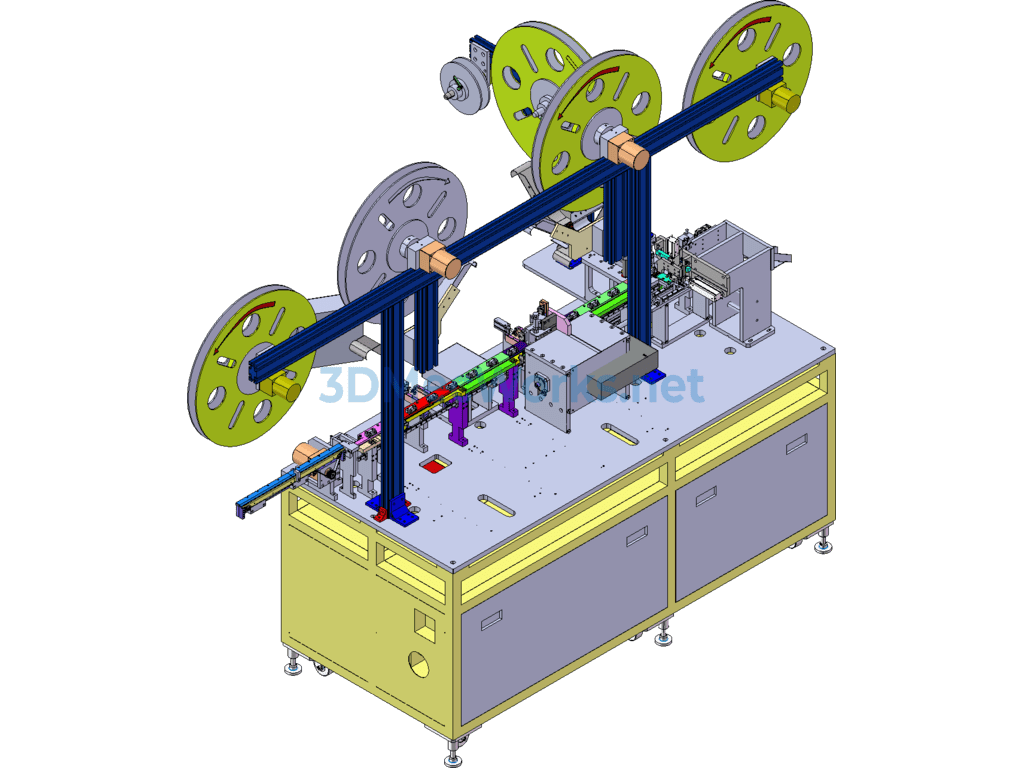

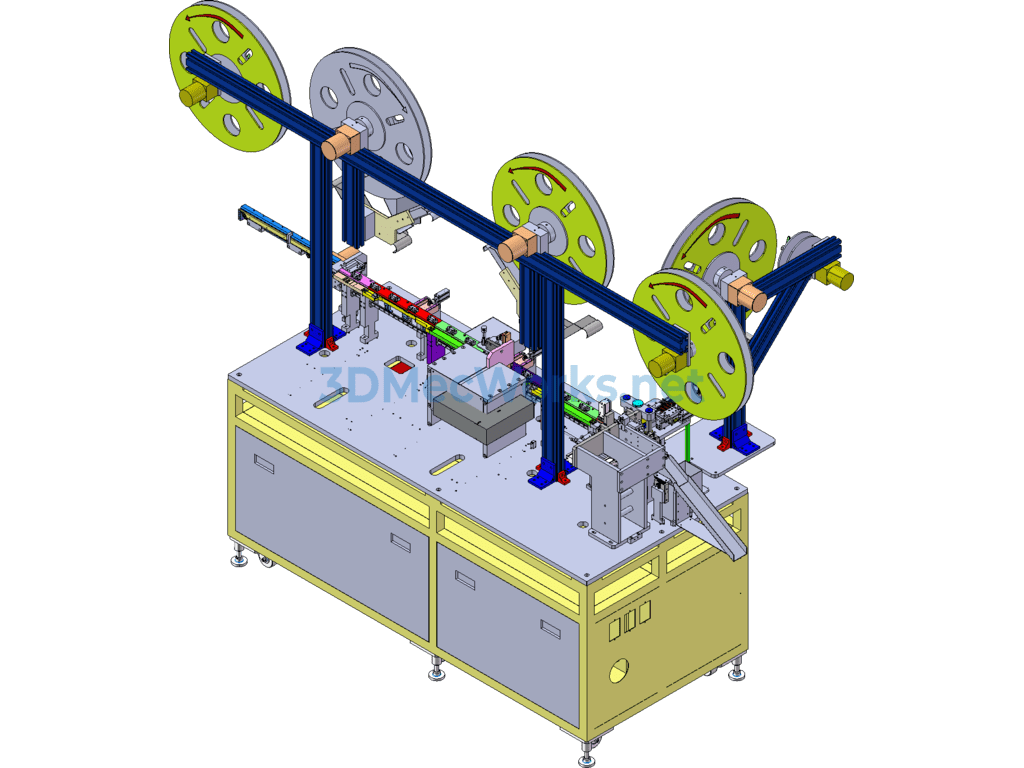

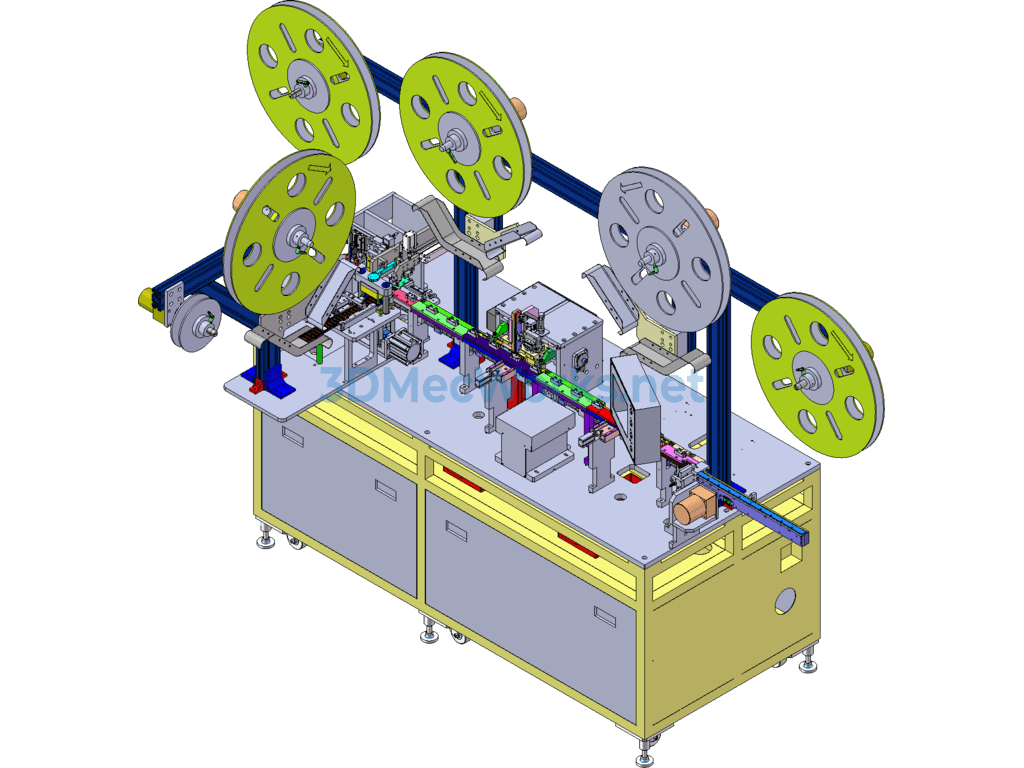

SMT Cam Pin Insertion Machine, equipped with step format Pin Insertion Machine Various Names: Pin Insertion Machine, Pin Insertion Machine Equipment, Automatic Pin Insertion Machine, Fully Automatic Pin Insertion Machine, Pin Machine, PIN Machine Equipment, etc. There is no computer chip inside the pin insertion machine, only a motor providing power, which drives the main shaft to rotate through the motor. The cam on the main shaft can move the needles on the pin insertion mold up and down for pin insertion. The assembly is not difficult, the maintenance is not complicated, the operation is very simple, and the work efficiency is high, while also achieving full automation.

Specification: SMT Cam Pin Insertion Machine - SolidWorks - Free Download

Design Software

Editable

File Formats

Industry Application

Sharing Level

Version
