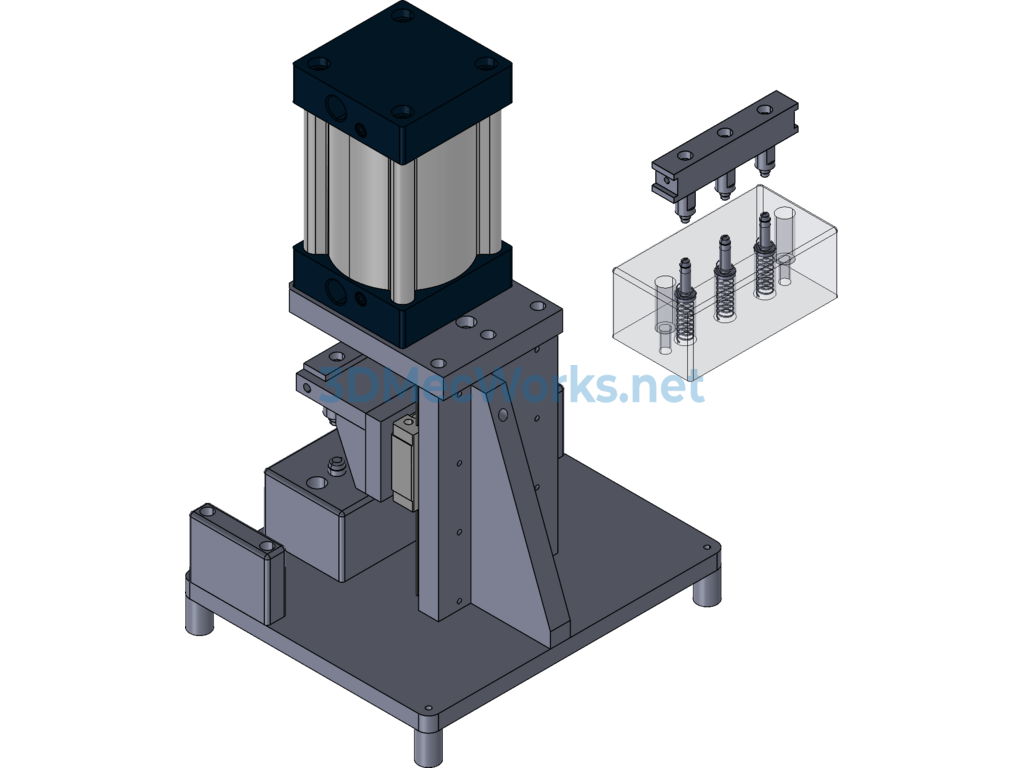

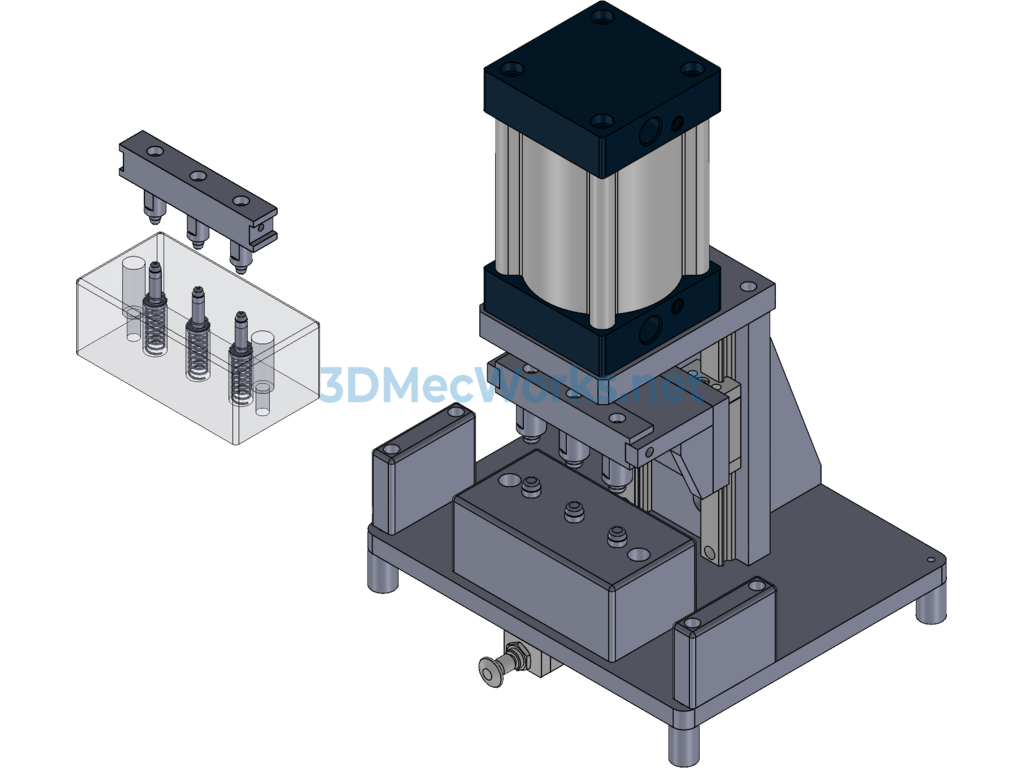

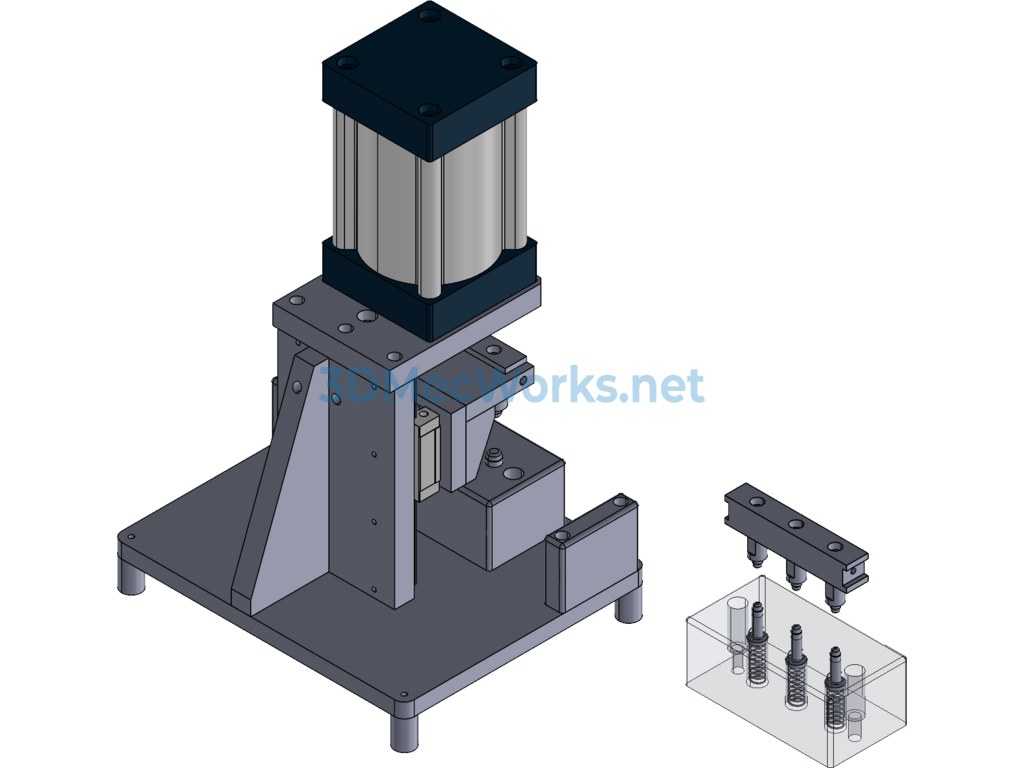

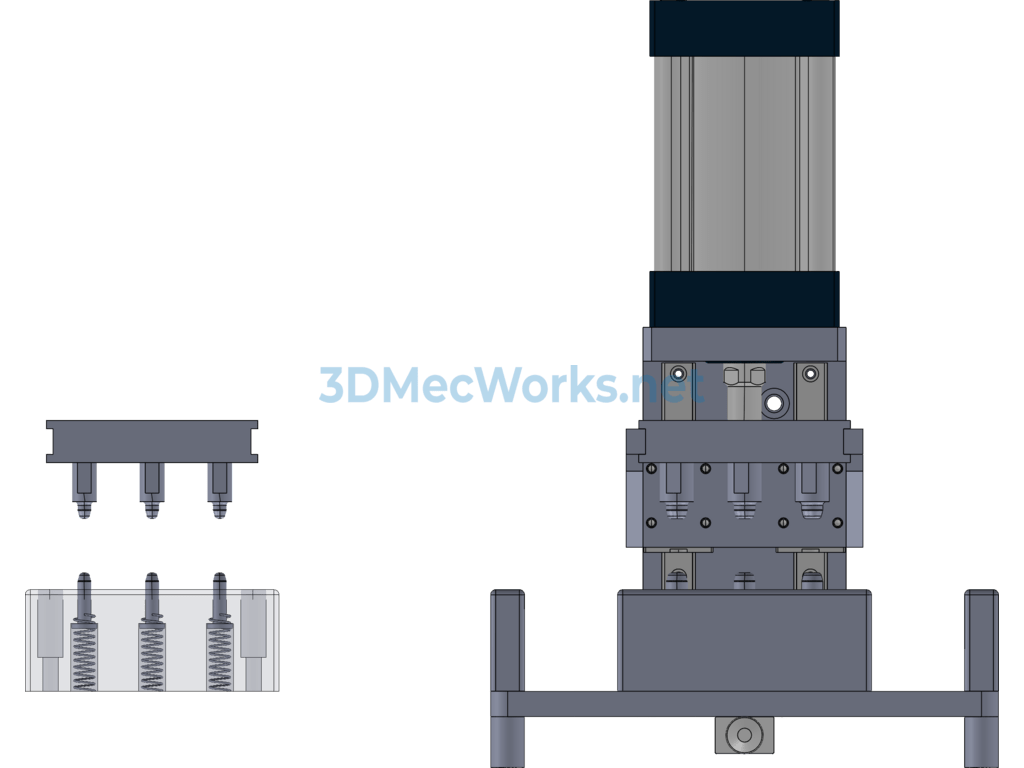

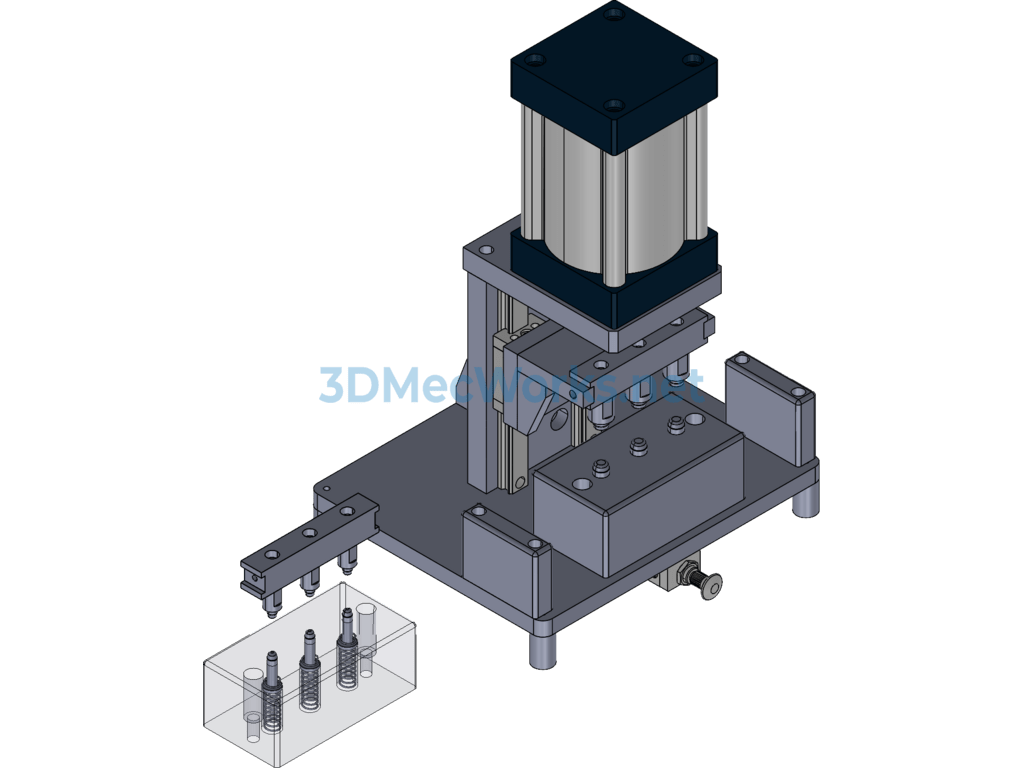

Smoking Machine Switch Bracket Riveting Fixture

Published by

46,106 views

32,735 downloads

SKU: B012501006046 Category: 3D Projects Tags: Fixtures, Non-Standard Equipment, Riveting Machine, VIP Project

For use in smoking machine housing
Switch bracket riveting
Compatible with multiple models
Files include 3D models + CAD drawings + parts list BOM

Specification: Smoking Machine Switch Bracket Riveting Fixture

Design Software	SolidWorks
Editable	Editable, With parameters
File Formats	dwg, Sldasm, SLDDRW, Sldprt, step(stp)
Industry Application	Mechanical Equipment
Sharing Level	Platinum
Version	2016
