Small Displacement Diaphragm Compressor

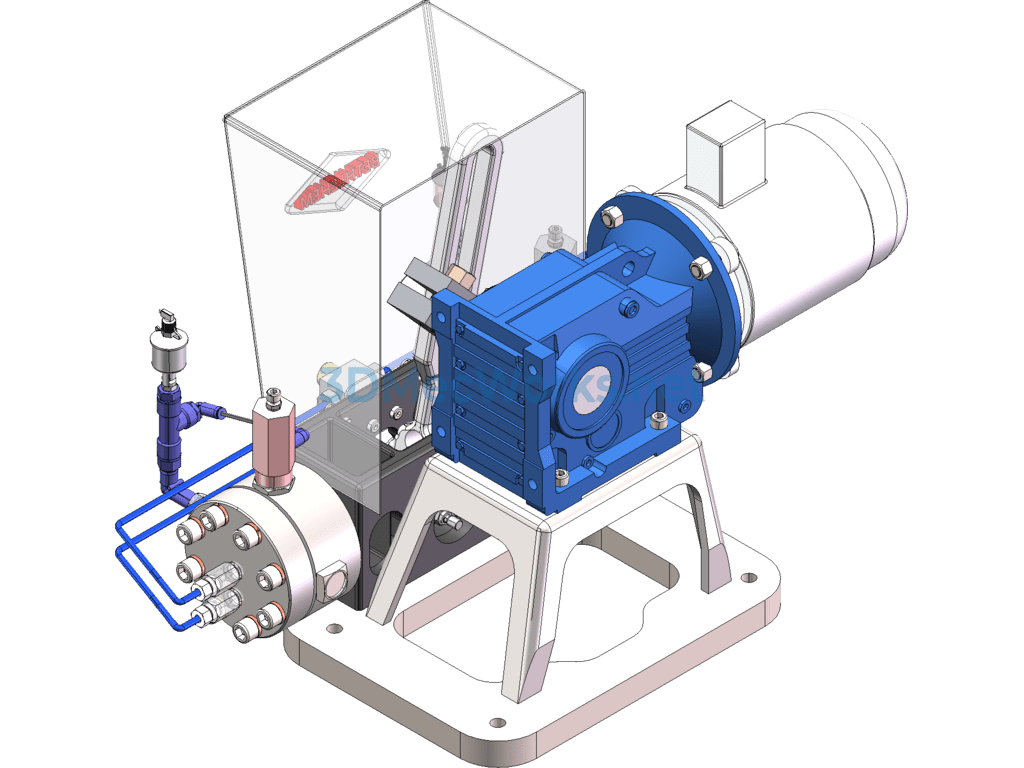

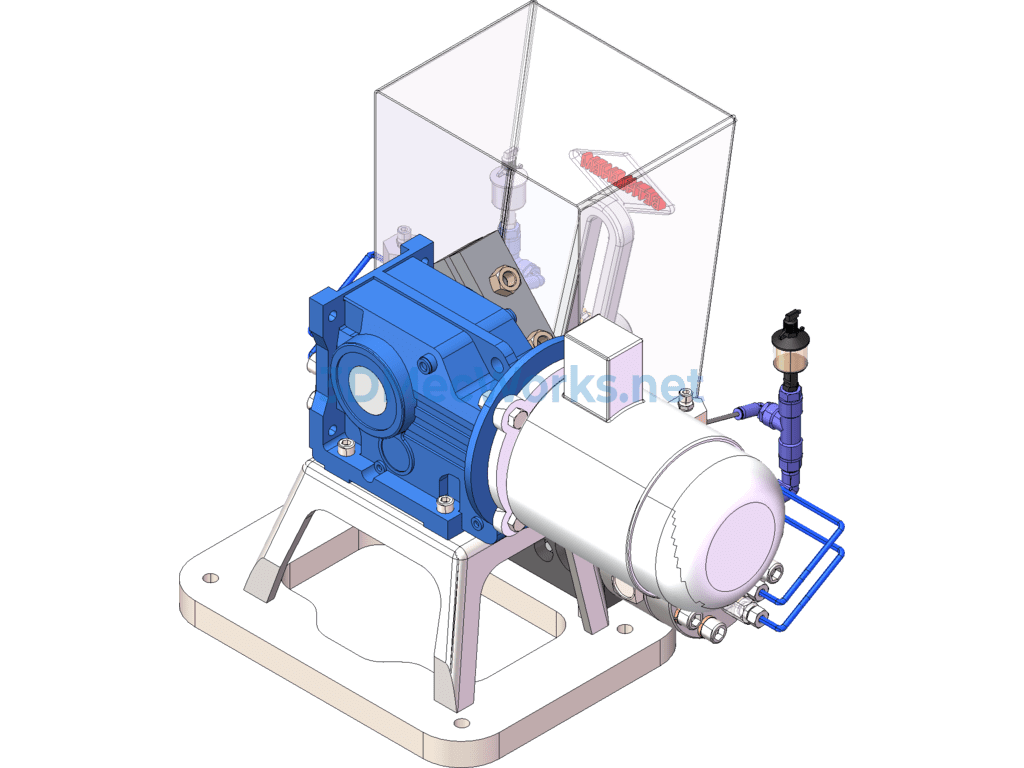

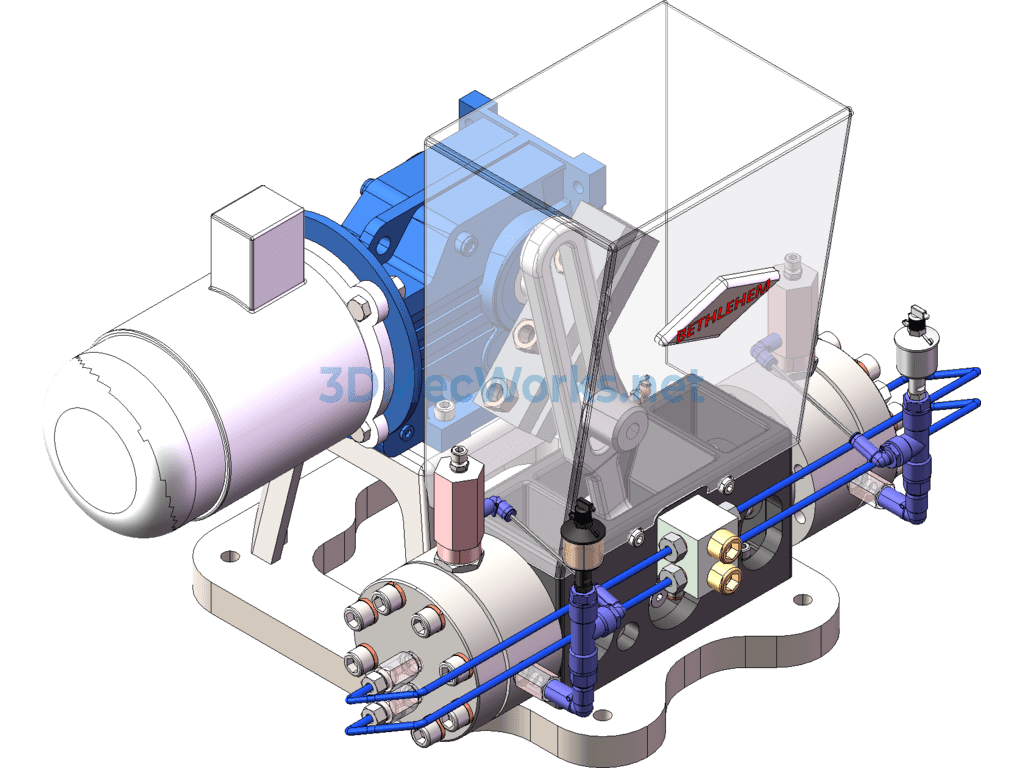

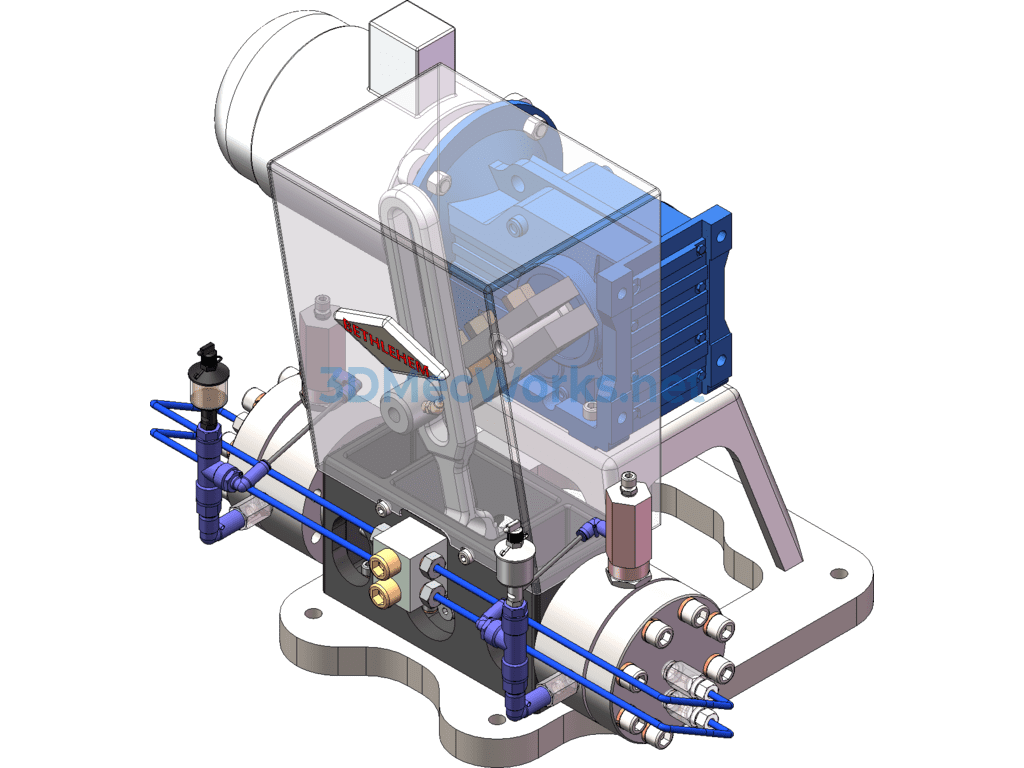

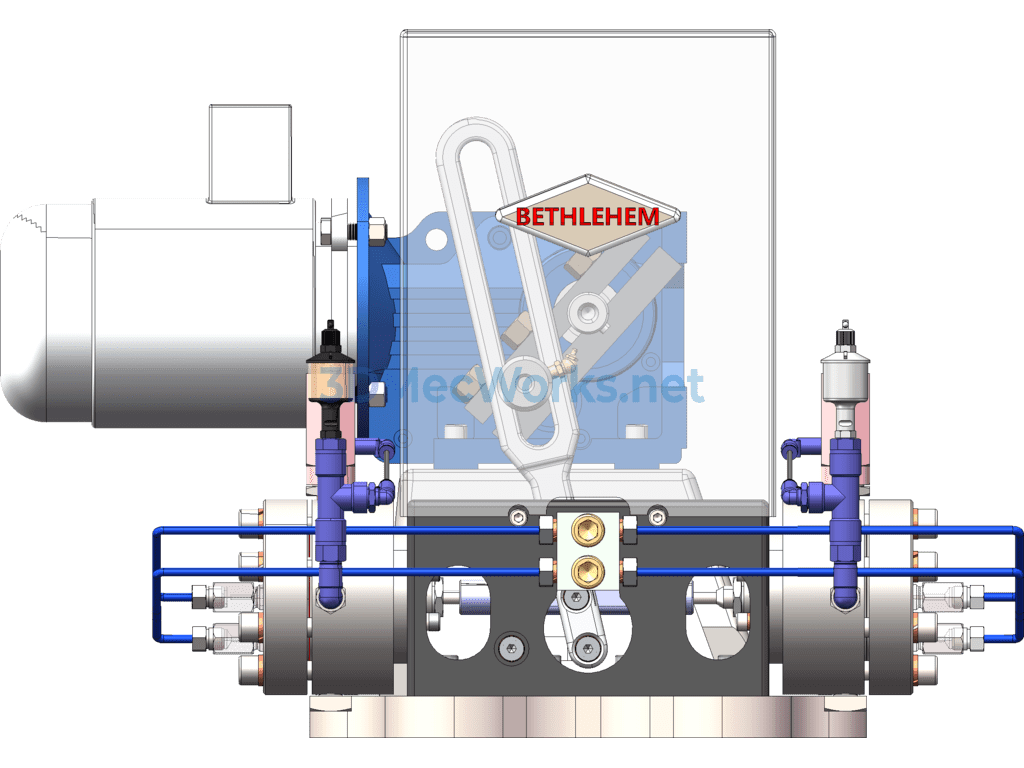

NEWPORT Series Diaphragm Compressor 3D Model
This equipment is suitable for various applications when the exhaust volume is small. It can be used as a small gas supply device, pneumatic regulator, aeration device for aquarium tanks, as well as for the transport and pressurization of oil-free, toxic, corrosive, valuable, or radioactive gases in the chemical industry. The small exhaust volume diaphragm compressor Solidworks 2012 design source file is shared, with components that have editable parameters. Welcome to download.
