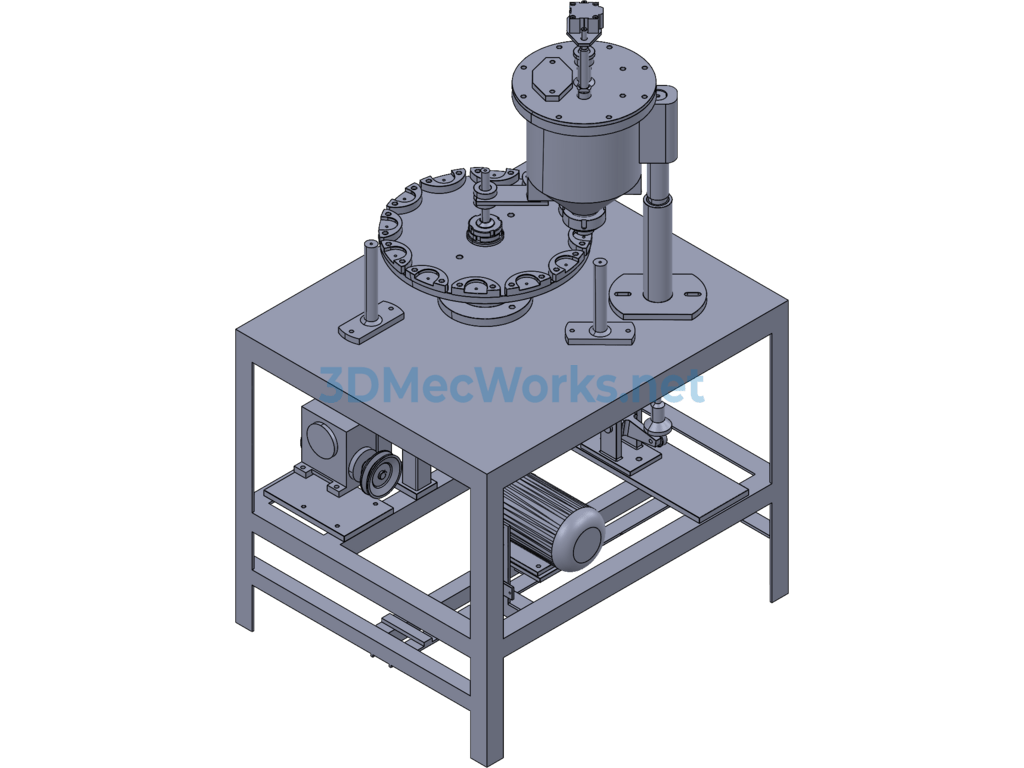

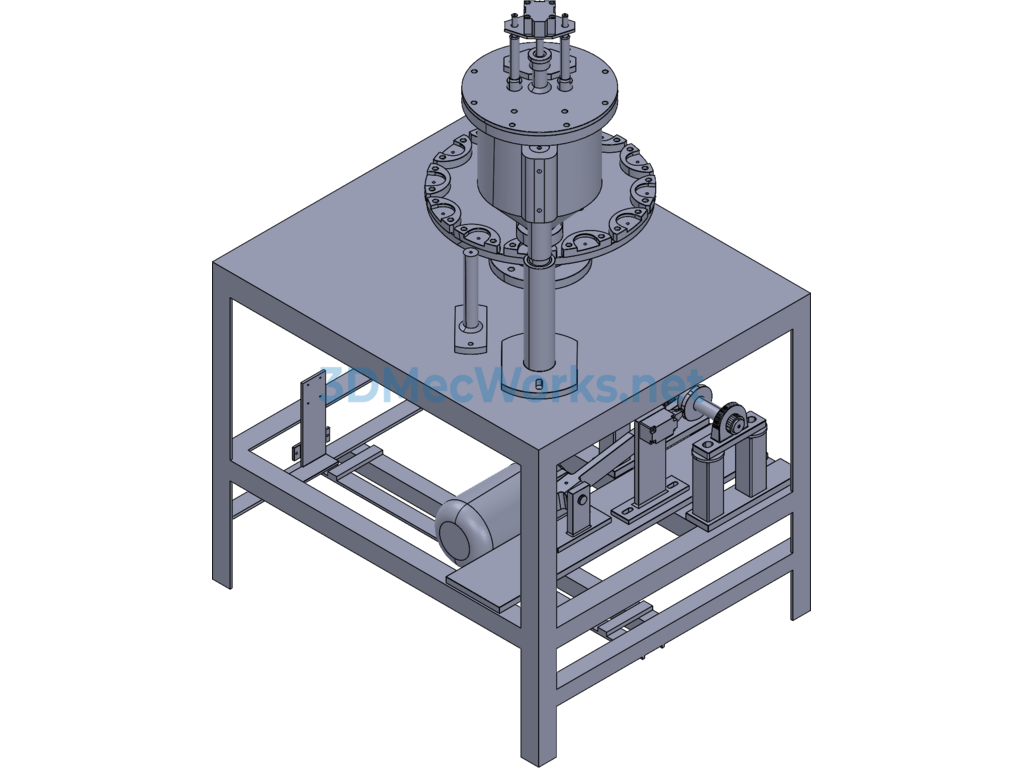

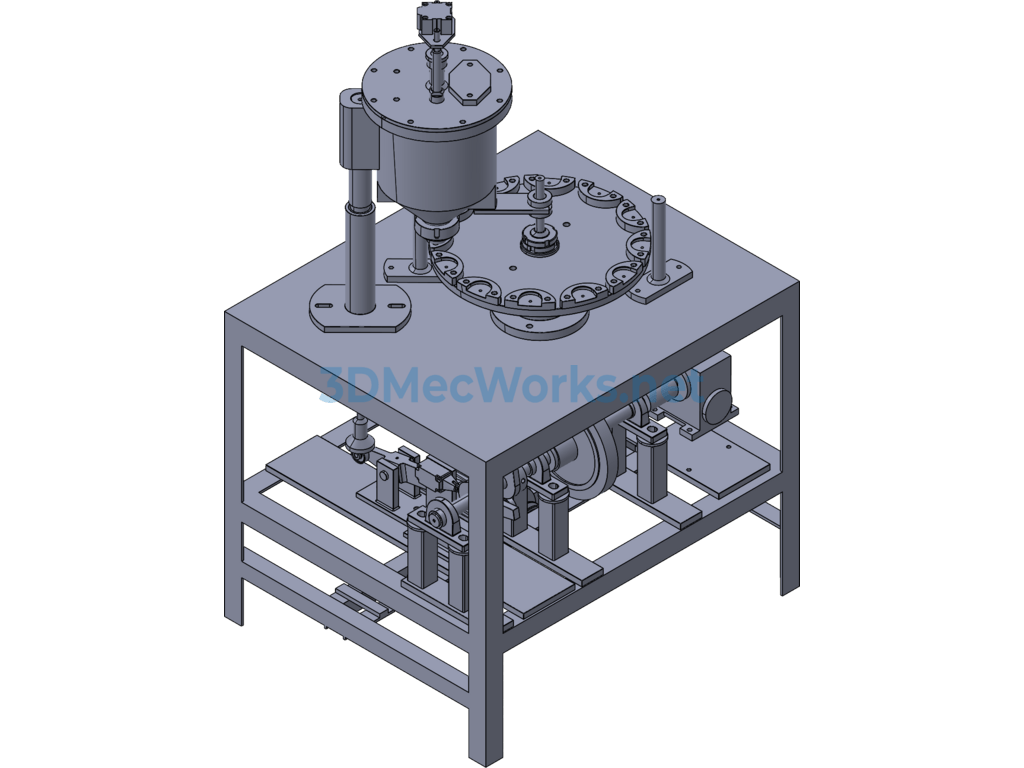

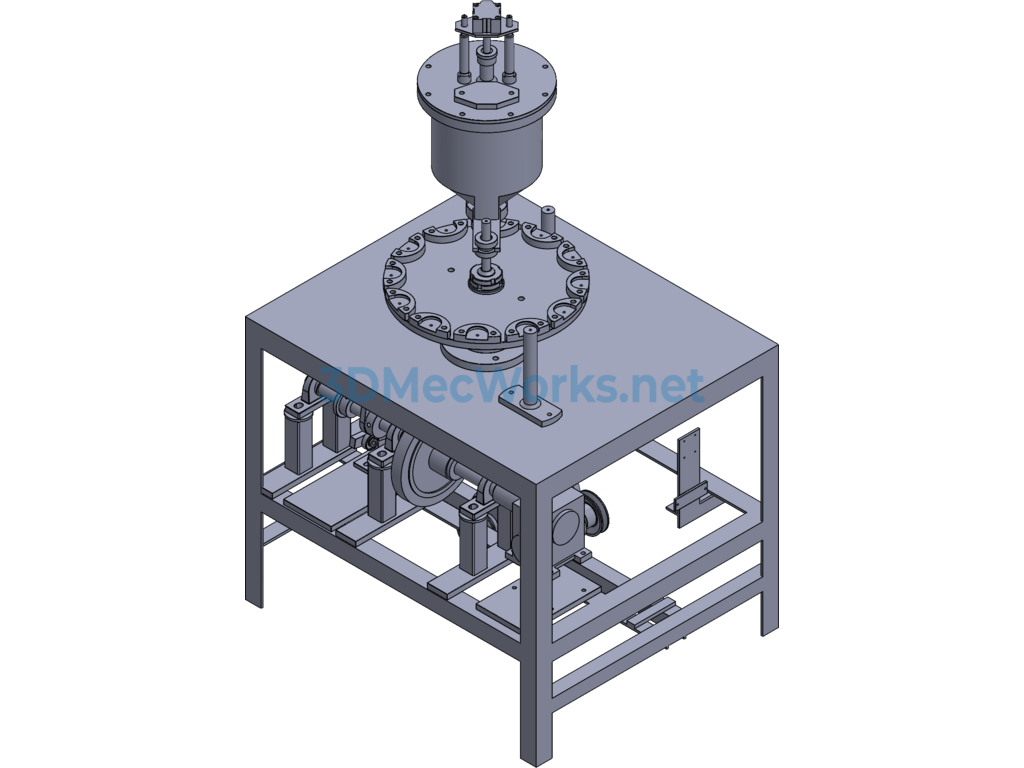

Non-standard automatic filling machine 3D model, includes SW files + Creo source files. This is a small cement filling machine model with belt drive and multi-stage reduction, working in conjunction with a rotating worktable. The model structure is simple and practical, suitable for cement filling of small workpieces, and is a commonly used product in the industrial field. The model provides SolidWorks files that are non-editable in terms of parameters. This disc cam-type bulb cement filling machine equipment adopts a multi-station disc design and uses a cam lever-type structure. A cylindrical cam achieves indexing, and a planar cam achieves filling. It is highly valuable for reference. Created in Creo 2.0, the design allows for parameter editing. Welcome to download.
